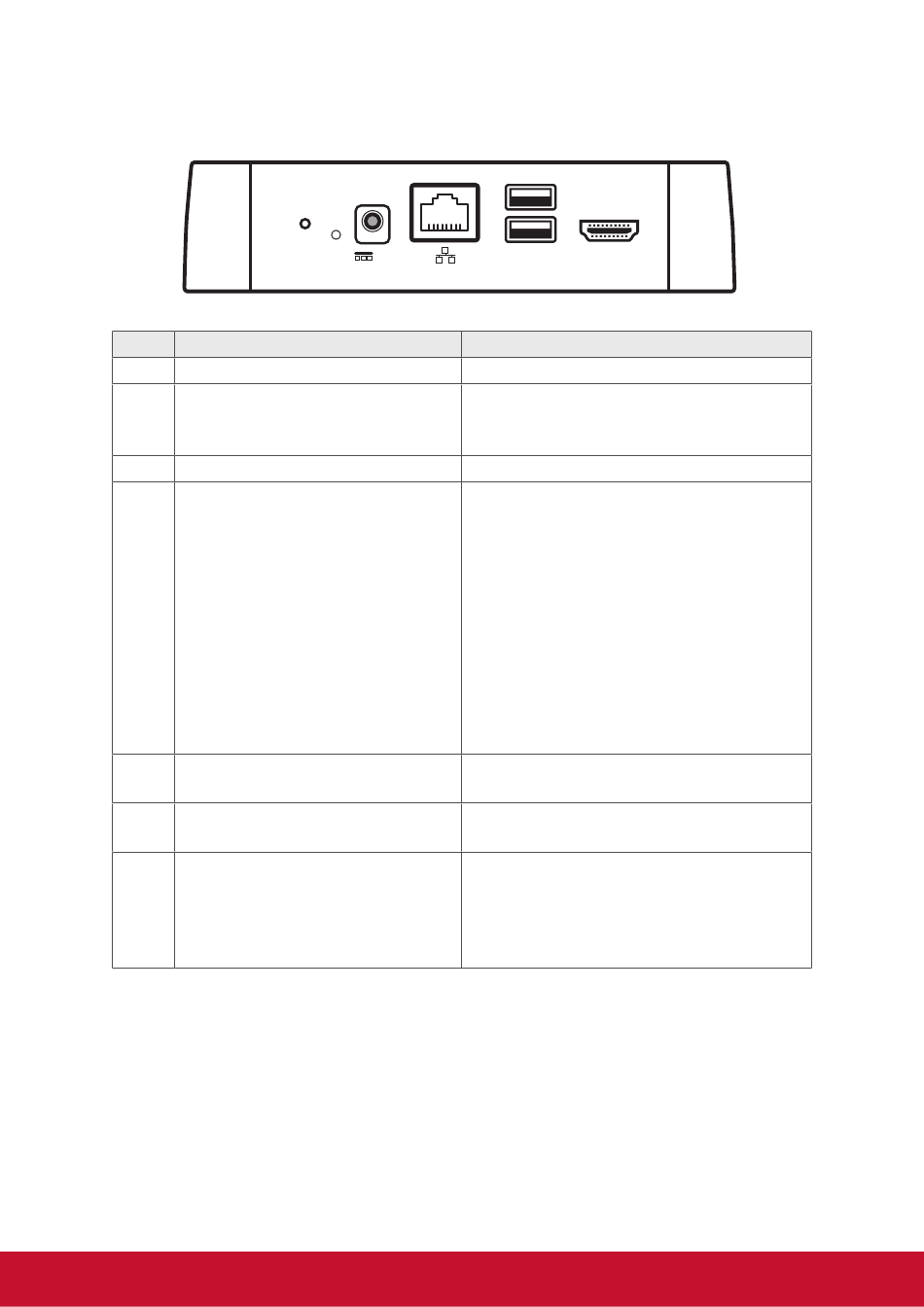

Front view
RESET
No.
Components
1
Reset button
2
Power LED
3
DC Jack 5V
4
GB-LAN (RJ-45)
5
USB 2.0 (Type-A) ports
6
USB 3.0 (Type-A) ports
7
HDMI IN V1.4b(Type A) port
Note1: Only support FAT32 format.
Note2: USB camera or UVC device does not support hot-plug mode.
Note3: Running USB type-C and HDMI connections at the same time is NOT supported.
Only one display output can be active.
2
5V
1
3
4
Description
Performs a hardware-reset of the device
Indicates system power status:
-Blue: power on
-None: power off
System power input connector.
Gigabit Ethernet + 802.3at class4 Gigabit
Power over Ethernet `
GB-LAN status
- Yellow (Flashing) Activity on the link.
- Yellow (Off) No activity on the link.
-Green (ON) Activity link with 100M
speed.
-Orange (ON) Activity link with 1000M
speed.
-Green/Orange (Off) Activity link with
10M speed.
USB
RS232
DP OUT
Universal Serial Bus 2.0 500mA
1
2
*Note1/Note2
Universal Serial Bus 3.0 900mA
*Note1/Note2
High-definition
signal input: connects to a PC with HDMI
output, set-top box, or other video devices
(HD 720P)
*Note3
3
5
6
USB
HDMI IN
7
HDMI OUT
3
multimedia
interface
