Realtree RTLS-310 Instruction & Safety Manual page 5

MODEL: RTLS-310
15' Ladderstand
A B
Top Ladder Middle Ladder
Section (1) Section (1)
F
Handle Rails (2)
J
Tree Brace (1)
M
Jaws (2)
R Tiedown
Rope (1)
Distributed by Acheson Harriman Swan, LLC, 2407 W. Euclid Ave., Littleton, CO 80120
Customer Service Department 1-866-972-6168
C
Bottom Ladder
Section (1)
G
Platform Supports (2)
K
Seat Stabilizer (1)
N Jaw Ratchet
O
Strap (1)
S Installation T Ratchet
Straps (2) Strap (1)
D
Sling Seat (1)
E
Foot Platform (1)
H
Yoke (2)
L
Stabilizer Bar (1)
P Jaw Assembly
Jaw Assembly
Tree Buckle (1)
Vertical Strap (1)
U Adjustment
Knob (1)

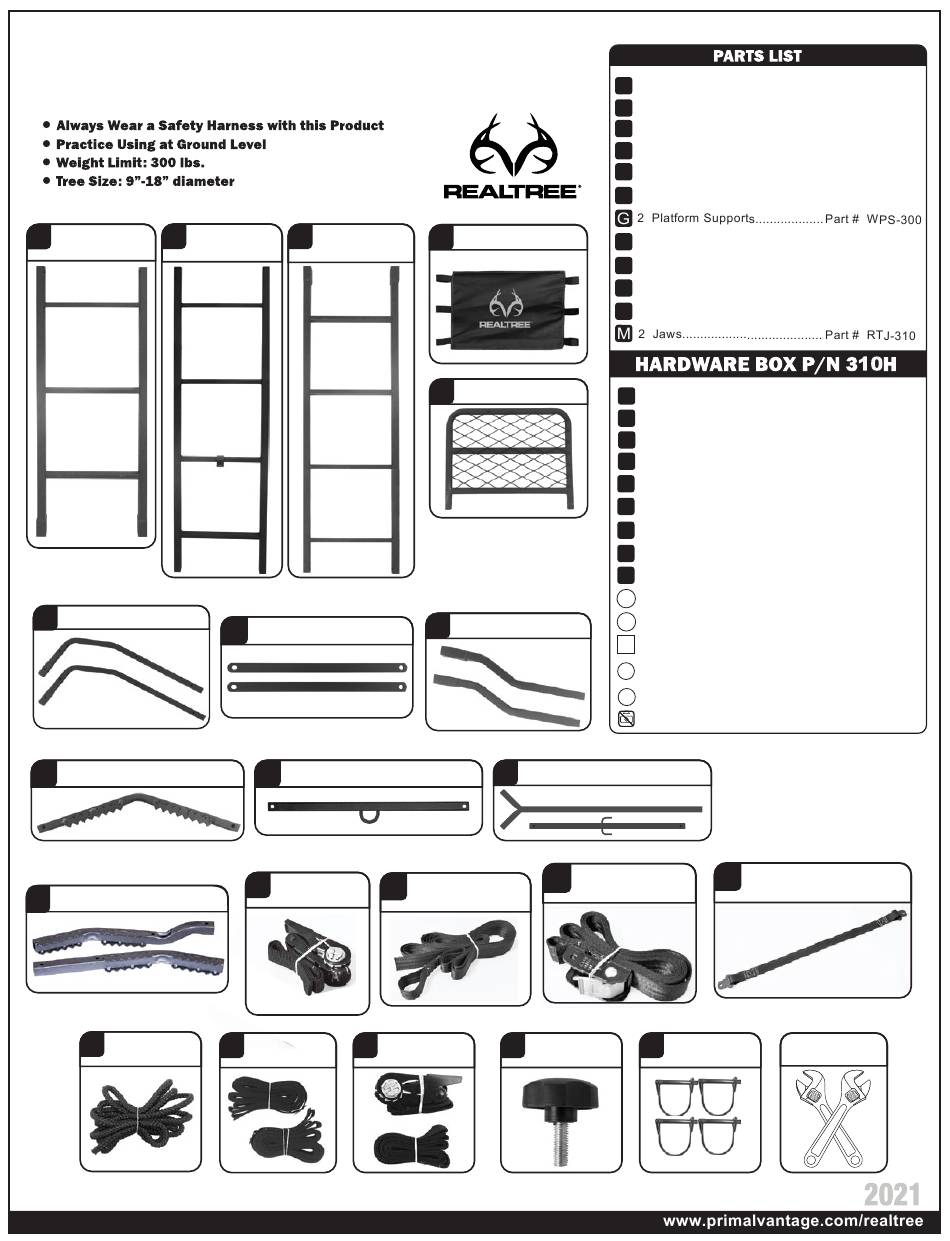

1 Top Ladder Section................
A
B 1 Middle Ladder Section...........
C
1 Bottom Ladder Section.......... Part # WBL-304
D
1 Sling Seat.............................. Part # RTS-310
E
1 Foot Platform......................... Part # WFP-300
F
2 Handle Rails........................... Part # WHR-304
H
2 Yokes......................................Part # WYK-304
J
1 Tree Brace............................. Part # WTB-301
K
1 Seat Stabilizer........................ Part # RSB-310
L
1 Stabilizer Bar......................... Part # WSB-100
N
1 Jaw Ratchet Strap..................Part # JRS-310
O
1 Jaw Assembly Vertical St... ......Part # AVS-310
P
1 Jaw Assembly Tree Buckle ...Part # ATB-310
Q
1 Horiz. Jaw Assembly Strap....Part # HJA-310
R
1 Tiedown Rope...........................Part # TR-310
S
2 Installation Straps.................. Part # IS-310
T
1 Ratchet Strap.........................Part # RA-310
U
1 Adjustment Knob................... Part # AK-310
V
4 M6 Quickclips......................... Part # 1615
60 4 M8x60mm Bolt......................Part # 1260
40 4 M8x40mm Bolt......................Part # 1240
40 4 M6x40mm Bolt......................Part # 1040
2 M8x100mm Bolt w/3 washers...
100
3 M8x45mm Bolt........................
45
1 Harness (Not Pictured).......... Part # 2021
Horizontal Jaw Assembly
Q
Strap (1)
V M6 Tools Required
Quickclip (4) Adjustable Wrench
Part # WTL-304
Part # WML-304
Part # 1275
Part # 1245W
©2021 (rev. 1/21)
