PRO-Matrix88
8x8 HDMI 2.0a Matrix 4K HDR
User's Guide
Made in Taiwan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO-Matrix88 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for gofanco PRO-Matrix88

Summary of Contents for gofanco PRO-Matrix88

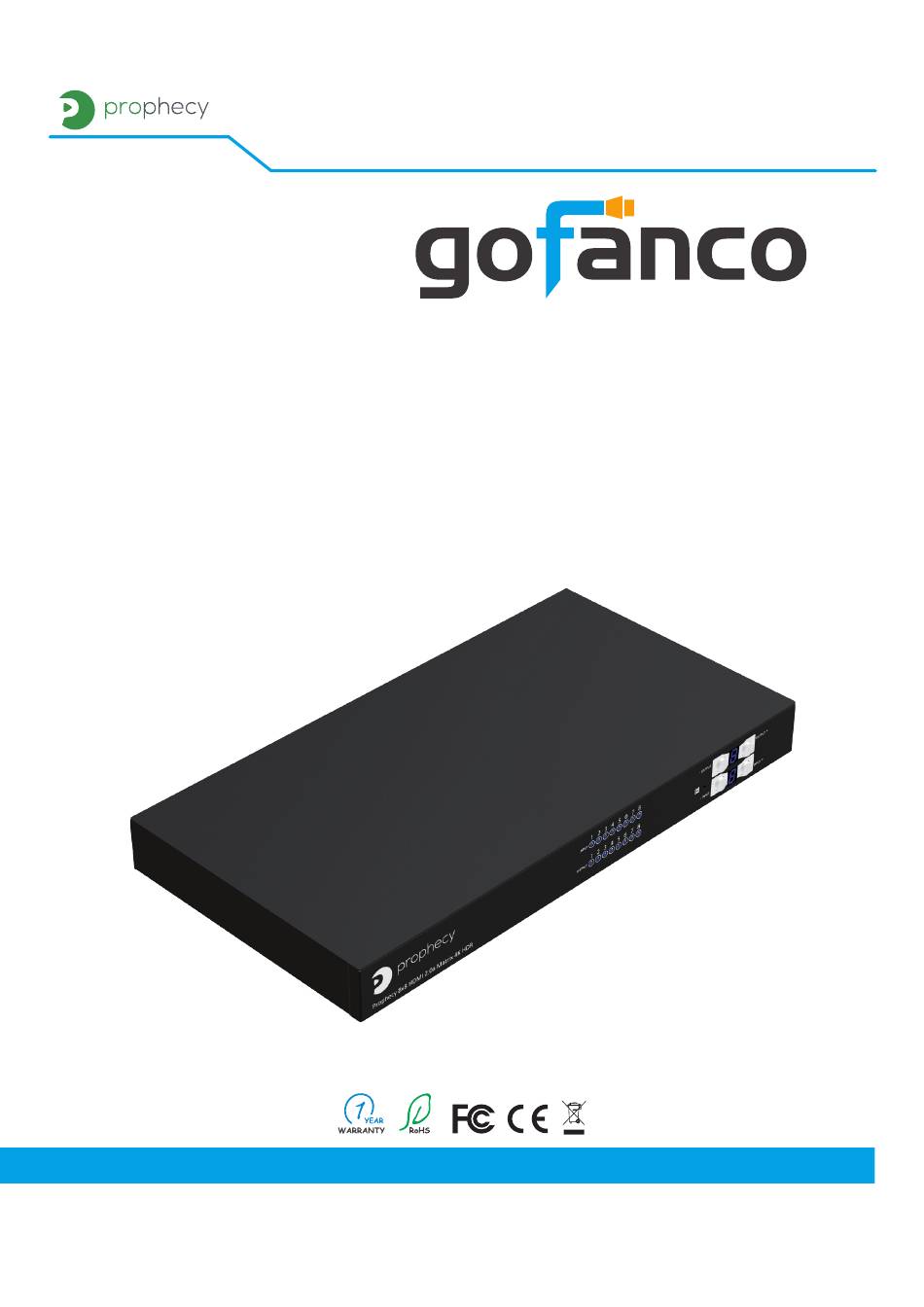

  • Page 1 ® PRO-Matrix88 8x8 HDMI 2.0a Matrix 4K HDR User‘s Guide Made in Taiwan...
  • Page 2 ® PRO-Matrix88 Congratulations for owning a gofanco product. Our products aim to meet all your connectivity needs wherever you go. Have fun with our products! Please read this manual carefully before first use. If you need more information about our products, please visit www.gofanco.com.

  • Page 3: Table Of Contents

    However, like all electronic equipments, the PRO-Matrix88 should be used with care. Please read and follow the safety instructions to protect your- self from possible injury and to minimize the risk of damage to the unit.

  • Page 4: Introduction

    The PRO-Matrix88 supports HDR and true 4K2K video! With the latest HDMI 2.0 video & audio support, the PRO-Matrix88 is well suited for home theaters, conference rooms, or other similar settings or applications.

  • Page 5: Specification

    ® PRO-Matrix88 5. Specifications Item Description Technical Role of usage True 8x8 matrix HDMI compliance HDMI 2.0a HDCP 1.4/ HDCP 2.2 HDCP compliance Video bandwidth Single-link 594MHz [18Gbps] Video support HDR 4K2K@60(4:2:0 10bits)/ 4K2K@60 (4:4:4 8bits) Audio support Surround sound (up to 7.1ch) or stereo digital audio ESD protection Human body model —...

  • Page 6: Panel Description

    ® PRO-Matrix88 6. Panel Description Front Panel Source Status: Input source detection LED Display Status: Output display detection LED IR SENSOR: IR sensor for receiving the IR commands from IR remote Output Push Button & 7-segment LED: Front panel push buttons used to select the number of display channel &LED display for output ports...

  • Page 7: Connection Diagram

    1. Connect all sources to HDMI Inputs on the 8x8 HDMI Matrix PRO-Matrix88. 2. Connect all displays to HDMI Outputs on the 8x8 HDMI Matrix PRO-Matrix88. 3. Connect the +12V 7.5A DC power supply to the 8x8 HDMI Matrix PRO-Matrix88.

  • Page 8: Operation Approach

    ® PRO-Matrix88 9. Operation Approach Method A: Push-in Button IN/OUT MAP (1) Use the “+”or “-“ output push button to select the number of display (2) Use the “+”or “-“ input push button to select the number of input source “+”: change selected input/output port in ascending order...
  • Page 9 ® PRO-Matrix88 2. Example of function key 7-Segment Operation Procedure Status + Output Number (1~8) + Take Output Status 1.Press “STATUS” button Ex: Output 4 2.Press number key “4” to select Output 4 (Input 2) 3.Press “TAKE” button Save + Output Number (1-8 storage site) + Take Save Current Mapping 1.Press “SAVE”...
  • Page 10 ® PRO-Matrix88 Method C: Software Control through RS-232 port System Requirement (1) OS Information: MS WinXP/7/8.1/10 (2) Baud rates: 9600 (3) Software size: 1 MB (4) Minimum RAM requirement: 256 MB Power ON/ Standby mode Control SW via RS-232 COM Port Selection...
  • Page 11 ® PRO-Matrix88 2. EDID Button Learn EDID from Default to Input (1) Select Default EDID(1-17 Default EDID) (2) Select designated Input (3) Click “Apply” button to learn from default EDID Learn EDID from Display to Input (1) Select output (2) Select designated Input (3) Click “Apply”...
  • Page 12 ® PRO-Matrix88 Read Button Get the auto EDID status from device View EDID (1) Select Input or HDMI output (2) Click “View” button to read and analyze the EDID 3. Rename I/O Button Rename I/O: (1) Rename the Inputs (2) Rename the Outputs...
  • Page 13 ® PRO-Matrix88 4. System Button Network-DHCP mode Select DHCP and click “Read” button to automatically get the IP address Information Network-Static mode Click Static and then key in the “IP”, “MASK”, “GATEWAY” information. After setting IP address, please click “Save” button to save IP address Information Read the device’s MAC address information...
  • Page 14 ® PRO-Matrix88 Cloud setting-Association Code To get an “association code”. The device can use this code to pair with cloud server. Cloud-Reset Cloud To reset cloud after a successful pairing 5. Firmware Update Button Update from USB (1) Please ensure the file of new firmware files are in the root directory of USB Flash Drive.
  • Page 15 ® PRO-Matrix88...
  • Page 16 3. Run the application “Matrix_Serial from the included CD-ROM and the appli- cation pictured below will open. *Note: if your system doesn’t have a CD- ROM, go to www.gofanco.com/download, search for this product by its part# PRO-Matrix88, and click on “Control Programs” to download the software.
  • Page 17 ® PRO-Matrix88 6. In Cloud setting, click on Read to obtain an Association Code. Write down this code, you’ll need it to configure your intriCloud account later. 7. Access your intriCloud account and log in to your account. On the upper right corner, click “Add Device”.
  • Page 18 ® PRO-Matrix88 9. After adding the device, the device name will show on the upper right corner. You can click the button to switch to device control. The intriCloud is ready for use. Drag and drop any Input to any Output to change viewing options...
  • Page 19 ® PRO-Matrix88 Method E: Amazon Echo (Alexa) control Connecting your intriCloud to Alexa. Make sure your Echo device is linked to your Amazon account before continuing. 1. Go to alexa.amazon.com. Create an account or login using an existing ama- zon account.
  • Page 20 ® PRO-Matrix88 2. Install intriCloud for Echo. Search using keyword “Intri Cloud” in Skills page and click “Enable”. Then go to Settings (next to “Disable Skills”) to link it. 3. Click “Link Account“ and the “IntriCloud” sign in box will pop up. Type in your Intri Cloud account and password, to successfully link Intri Cloud and Amazon Alexa.
  • Page 21 ® PRO-Matrix88 Voice Control Step 1. Alexa, open la la land (into IntriCloud) “ “ Step 2. list device (What device connected to your IntriCloud ) “ “ Step 3. select device (Select the device which you want to control) “...

  • Page 22: Edid Learning

    ® PRO-Matrix88 10. EDID Learning The EDID learning function is only necessary whenever you encounter any display on the HDMI output port that cannot play audio and video properly. Because the HDMI source devices and displays may have various level of capability in playing...
  • Page 23 ® PRO-Matrix88 11. FAQ Q .Can every TV work with the HDMI matrix? Basically, the answer is YES. But if your TV can not support 1080p, please refer the EDID LEARNING section to learn EDID from your TV. Q What is EDID? Why do I need to learn EDID? EDID contains the whole information of the display such as the resolution and audio setting which this display can support.
  • Page 24 The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the PRO-Matrix88 features and specifications is subject to change without further notice.
  • Page 25 ® PRO-Matrix88...
  • Page 26 ® PRO-Matrix88...
  • Page 27 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user‘s guide. The pictures on the user‘s guide are just for reference, and there may be some slight differences with the actual products. We reserve the rights to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
  • Page 28 ® Thank you for choosing gofanco www.gofanco.com Dec, 2018 Ver. A Copyright © by gofanco, LLC. All rights reserved.
