JS7001

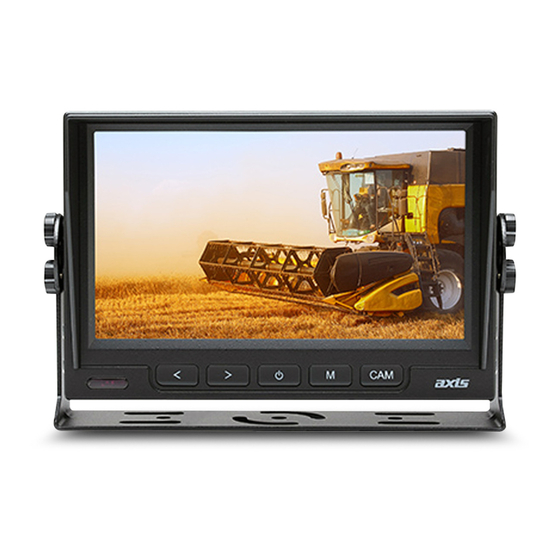

7 INCH HEAVY DUTY LED MONITOR
SPECIFICATIONS
- TFT Panel:
- LCD Size:
- Display Format:
- Resolution:
- Brightness:
- Viewing Angles:
- Video System:
- Video Connections:
- Reverse Trigger:
- Camera View:
- Monitor View:
- Guidelines:
- Audio:
- Main Menu:
- Casing Material:
- Power Input:
- Dimensions:
INCLUDED
INSTRUCTION MANUAL
New Grade A LCD, LED Backlight
178mm (7-Inch) Diagonal
16:9
800 x 480
< 400 CD/M2
90 Deg. Left/Right/Up/Down
Auto PAL/NTSC Select
2 x 4-Pin (Female)
Input Assignable
Input Overide in Reverse Mode
Normal/Mirror Image Select
Selectable
On Board Speaker
Brightness/Contrast/Colour/Volume/Reset/Slideshow/Language/Reverse Priority
& Delay
100°C Heat/Flame Proof (UL94V-0) ABS Material
10-32V DC (Negative Ground)
182W x 122H x 29D mm (excluding brackets)
Stand Mount, U-Shape Mount, Remote Control, Power Cable Assembly,
Sunshade. Optional: Glass Mount Bracket (BKT101)
1
Advertisement
Related Manuals for Axis JS7001
Summary of Contents for Axis JS7001
- Page 1 JS7001 7 INCH HEAVY DUTY LED MONITOR SPECIFICATIONS - TFT Panel: New Grade A LCD, LED Backlight - LCD Size: 178mm (7-Inch) Diagonal - Display Format: 16:9 - Resolution: 800 x 480 - Brightness: < 400 CD/M2 - Viewing Angles: 90 Deg.
-
Page 2: Monitor Functions
Thank you for choosing this versatile AXIS monitor! Please take time to read through the simple instructions below. CAUTIONS: • Securely install the monitor in a location that will not hinder driver vision or control. • Keep the monitor away from moisture and heat sources •... - Page 3 CONNECTIONS CONNECTIONS: Red - 12 - 24V Black - Ground Brown - Dimmer Control Green - Reverse Trigger 4 Pin Female Video V1 9 Pin Male 4 Pin Female Video V2 Note: Cam 2 has reverse trigger control. 4-Pin Locking Socket (Female) Connection 4-Pin Locking Plug VIDEO AUDIO...
- Page 4 Monitor Menu Instructions Press the M button on the monitor or the MENU button on the remote to open the menu. Press the M/MENU button repeatedly to scroll through the different options. Press the left or right arrow to adjust the settings.
- Page 5 NOTES: ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
- Page 6 NOTES: ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
- Page 7 NOTES: ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________ ______________________________________________________________...
- Page 8 JS7001 AX1570...
