DVR1

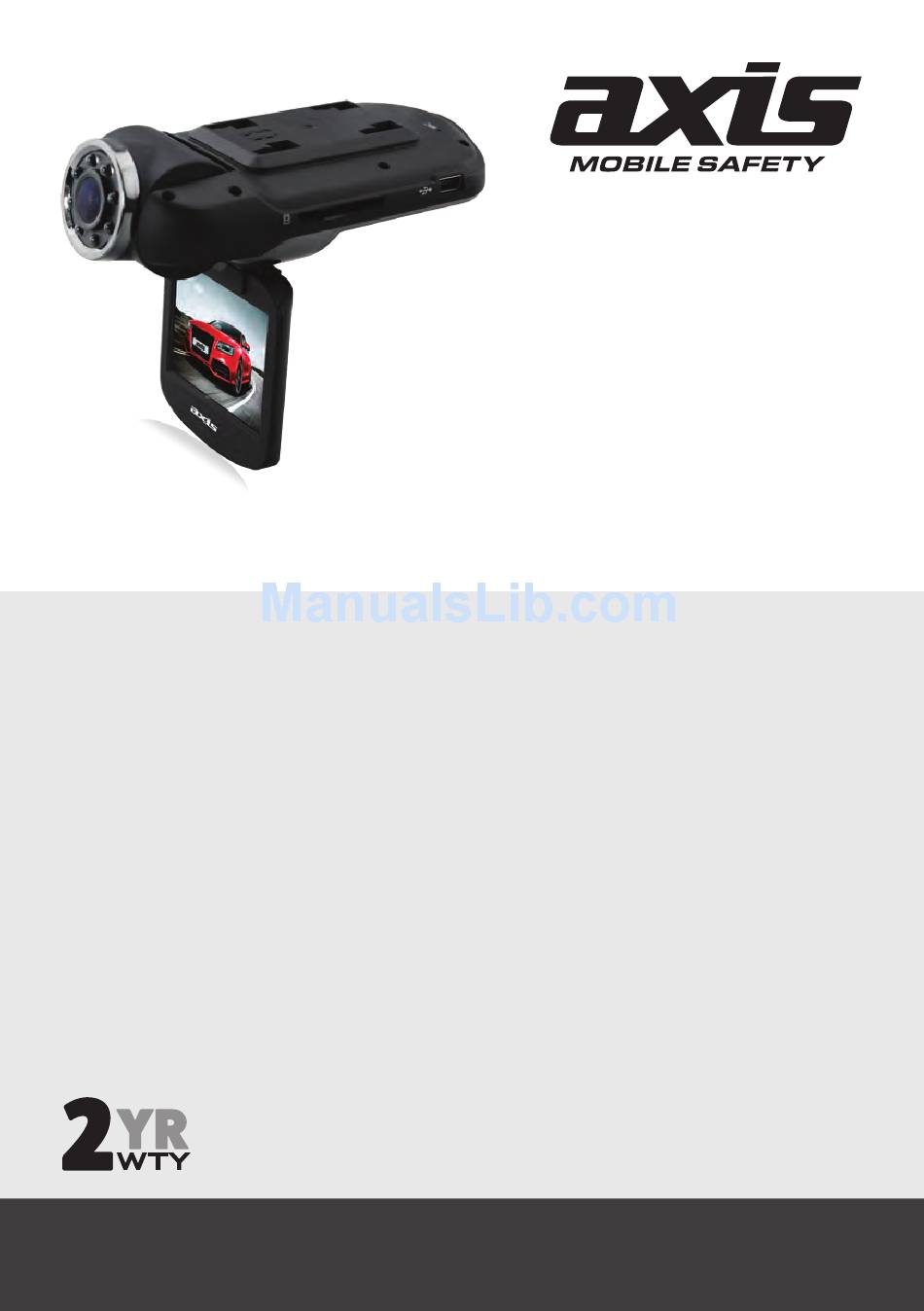

FLIP DOWN HD DVR
SPECIFICATIONS
GENERAL
- Display:
- Image Sensor:
- Resolutions:
- Viewing Angle:
- Camera Adjustment:
- Memory Support:
- IR LED:
- G-Sensor:
- Motion Detection:
- Seamless loop recording:
- Auto Record:
- Still Photography:
- Outputs:
- PC Interface:
- Power Supply:
- Battery:
- Mounting:
INSTRUCTION MANUAL
2" LCD TFT - Rotates 180°
5MP, 1/3" Colour CMOS
HD 720p with 1080p Upscaling
120°
Yes - Vertical
1 x 32GB SD Card (Not Included)
Yes - 8
Yes
Yes
Yes
Yes - After Power On
Yes
HDMI
USB
12/24V Cig Lead
Built-in Lithium Battery
Suction Bracket
INCLUDED
- Suction Bracket
- 12/24V Car Charger
- Mini USB Cable
- HDMI Lead
Advertisement
Table of Contents
Related Manuals for Axis DVR1
Summary of Contents for Axis DVR1
- Page 1 DVR1 FLIP DOWN HD DVR SPECIFICATIONS GENERAL INCLUDED - Display: 2” LCD TFT - Rotates 180° - Suction Bracket - Image Sensor: 5MP, 1/3” Colour CMOS - 12/24V Car Charger - Resolutions: HD 720p with 1080p Upscaling - Mini USB Cable - Viewing Angle: 120°...
-
Page 2: Product Overview
Product Overview: This multi-functional high-tech product includes high-definition video recording, photo-taking, sound recording and external SD card memory. It uses high- performance, high compression ratio of H.264 video decoding technology, with high-definition multimedia HDMI interface which can transmit high-quality and uncompressed HD videos and multi-channel audio data. - Page 3 Product Structure:...
- Page 4 Direction button (To switch up/down/left or right) Mode key Power key Menu key SD card slot USB interface HDMI interface Lens IR Lights Display Reset Microphone Charging indicator...
-
Page 5: Button Functions
Button Functions Button Functions Button name Descriptions 1. Press briefly to record or take photos. 2. Press to choose the submenu function. 3. Press briefly to Play/Pause videos when preview video is in playback mode. 1. When enter menu, press down this switch. Down 2. - Page 6 2. USB charging: Connect PC via USB cable. Will charge directly even if power is off. Insertion and removal of the TF memory card 1. Insert the memory card into the slot in the correct direction. 2. When removing the SD card, press the SD lightly. After card pops out, carefully remove.
-
Page 7: Recording Settings
User’s Guide A) Power on/off Lightly press power button to turn on or off. B) Switching the operation mode Lightly press “MODE” button to switch between modes: recording mode, camera mode, playback mode. These icons will display on the top left corner of screen. How to enter into the system setting options Press the MENU button twice to enter into the “System Settings”... -
Page 8: Playback Mode
Photo and camera option settings 1. Turn the power on. The device will enter recording mode. Press and hold the MENU button to switch camera mode. This icon will appear on the top left of the unit. 2. Focus on the object to take photos. Adjust the zoom function via up/down but- tons. -
Page 9: Information Backup
3. Delete: In playback mode, press Menu button to see the delete and format options. Press the Up/Down button to select the file to be deleted. Press OK button to “delete the current file” and “delete all”. Then press OK button to select format options. Press OK to enter formatting options, then press OK button format file and press OK again to confirm format file. -
Page 10: Technical Specifications
Technical Specifications 2 Inch HD LTPS(4:3) Lens 120 degrees A+ grade high resolution wide angle lens Language English, French, Spanish, Germany, Italian, Traditional Chinese, Simplified Chinese, Russian , Japanese Video 1080P(1440*1080)/720P(1280*720)/WVGA(848*480)/ QVGA(320*240) Video format H.264 Photo Size 12M/8M/5M/3M Photos format JPEG Flash record 1 sec flash record... - Page 11 Notes...
