Axis JS5001+C20 Instruction Manual

JS5001+C20

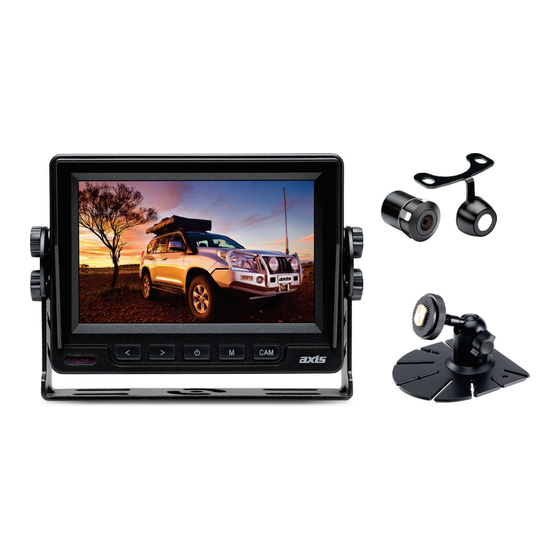

5 INCH LED MONITOR & CAMERA KIT
SPECIFICATIONS
JS5001 MONITOR
- TFT Panel: New Grade A LCD
LED Backlight
- LCD Size: 125mm (5-Inch) Diagonal
- Display Format: 16:9
- Resolution: 800 x 480
- Brightness: < 450 CD/M2
- Viewing Angles: 90 Deg. Left/Right/Up/Down
- Video System: Auto PAL/NTSC Select
- Video Connections: 2 x 4-Pin (Female)
- Reverse Trigger: Assignable to Cam 1 or 2 (via Menu)
- Camera View: Input Selectable (CAM Button)
Input Override in Reverse Mode
- Monitor View: Normal/Mirror Image Select
- Guidelines: Selectable
- Audio: On Board Speaker
- Main Menu: Brightness/Contrast/Colour/Volume/Reset/
Slideshow/Language/Reverse Priority & Delay
- Casing Material: 100°C Heat/Flame Proof (UL94V-0) ABS
- Power Input: 10-32V DC (Negative Ground)
- Dimensions: 36W x 102H x 25D mm (excluding bracket)
- Included: Stand Mount, U-Shape Mount,
Remote Control, Power Cable Assembly,
Sunshade
Optional: Glass Mount Bracket (BKT101)
INSTRUCTION MANUAL
C20 CAMERA
- Imaging Device:
- Imaging Sensor:
- Lens:
- Viewing Angle:
- Video Format:
- Parking Guidelines:
- One Button Control:
- Image Orientation:
- Minimum Illumination: 0.3 Lux
- Water/Dust Protection: IP67
- Power Input:
- Mounting:
- Connection:
- Dimensions:
1
1/4" Full Colour CMOS
PC7070
Full Glass
170° (Diagonal)
110° (Horizontal)
PAL/NTSC (Selectable)
Yes (Selectable)
Type (Adjustable)
Height & Width (Adjustable)
Image Orientation Select (Mirror/Normal)
Video Mode Select (PAL/NTSC)
Guideline Type Adjust
Guideline Height Adjust
Guideline Width Adjust
Mirror, Normal, Upside-Down Mirror,
Upside-Down Normal (Selectable)
12/24V DC
Number Plate or In-Bumper
RCA
16.5mm x 23mm (D)
Installation Hardware, Metal Hole Saw
for Bumper Fit Installation,
6m Camera to Monitor Lead (RCA Male)
with Power Wire for Reverse Triggering,
RCA to 4-Pin Adaptor
