MOBILE SAFETY
WATERPROOF REAR CAMERA
1/3" SURFACE MOUNT with NIGHT VISION
Universal Number Plate / Boot / Car Panel Mount
SPECIFICATIONS:
- Image Sensor:
- Lens Angle:
- Effective Pixels:
- Resolution:
- TV System
- Night Vision:
- Min Illumination:
- Image:
- Protection:
- Dimension:
- Current Consumption:
- Input Power:
- Operating Temp:
- Connection:
INSTRUCTION MANUAL
C03
1/3" CMOS PC1089
120°
728 x 488
500 TV Lines
PAL
9 IR LEDs
0.3 Lux (Day), 0 Lux (with IR)
Mirror/Normal Selectable
IP67 Dust and Waterproof
ø31mm
150mA Max
12V DC
-30° - 70° C
RCA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis C03
Summary of Contents for Axis C03

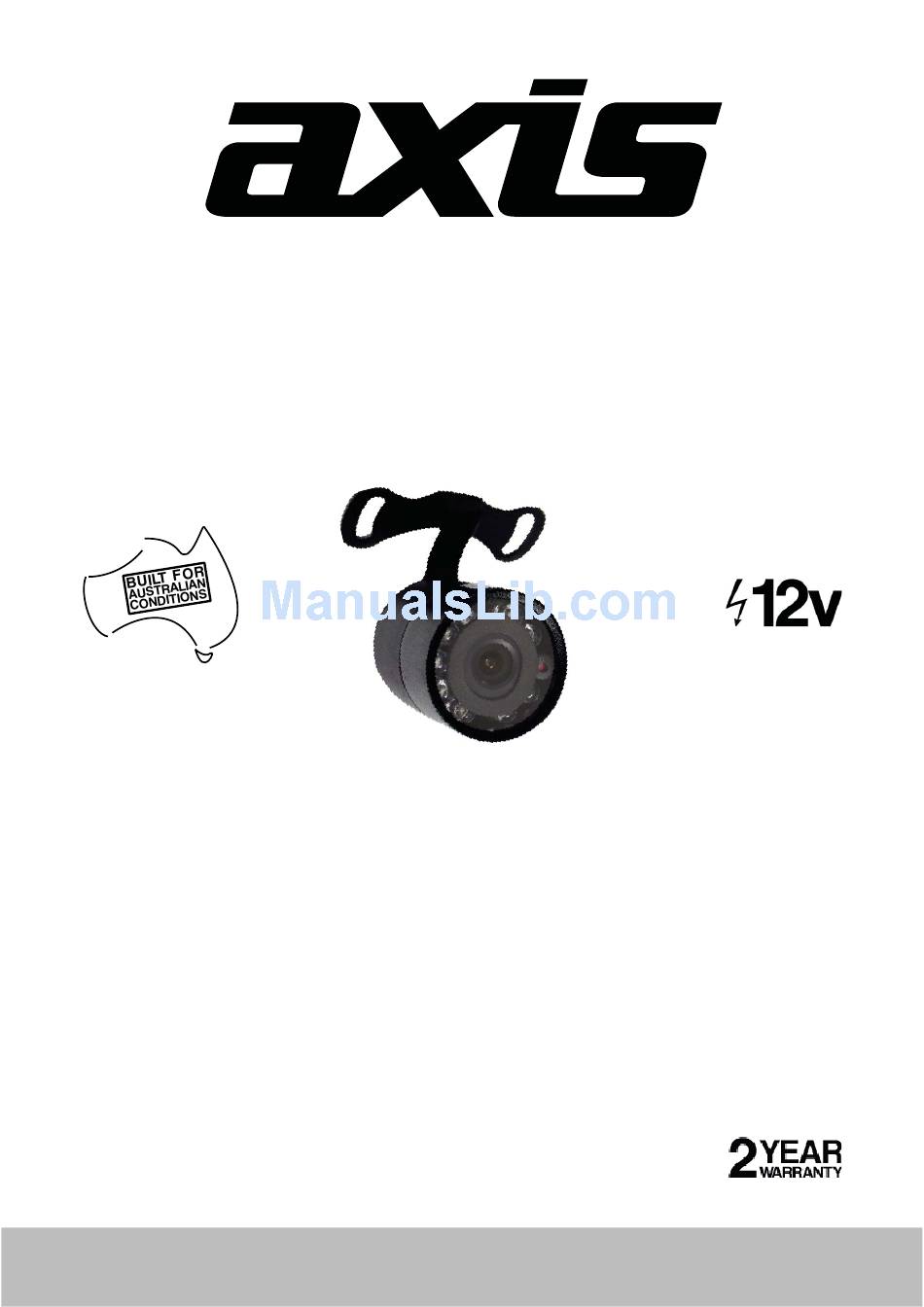

- Page 1 MOBILE SAFETY WATERPROOF REAR CAMERA 1/3” SURFACE MOUNT with NIGHT VISION Universal Number Plate / Boot / Car Panel Mount SPECIFICATIONS: - Image Sensor: 1/3” CMOS PC1089 - Lens Angle: 120° - Effective Pixels: 728 x 488 - Resolution: 500 TV Lines - TV System - Night Vision: 9 IR LEDs...
- Page 2 CAR REARVIEW CAMERA GENERAL: After installation, the rear view system will automatically activate when reverse gear is selected. This provides a clear image for the driver as a protection for children, pedestrians and property from injury and damage. It also avoids costly repairs to your vehicle from towing or parking.
- Page 3 CAR REARVIEW CAMERA CABLE CONNECTIONS: See wiring diagram below: Red Cable connect to rear lamp positive +12V Camera Power Cables Monitor Video Mirror/Normal Control Wire...
