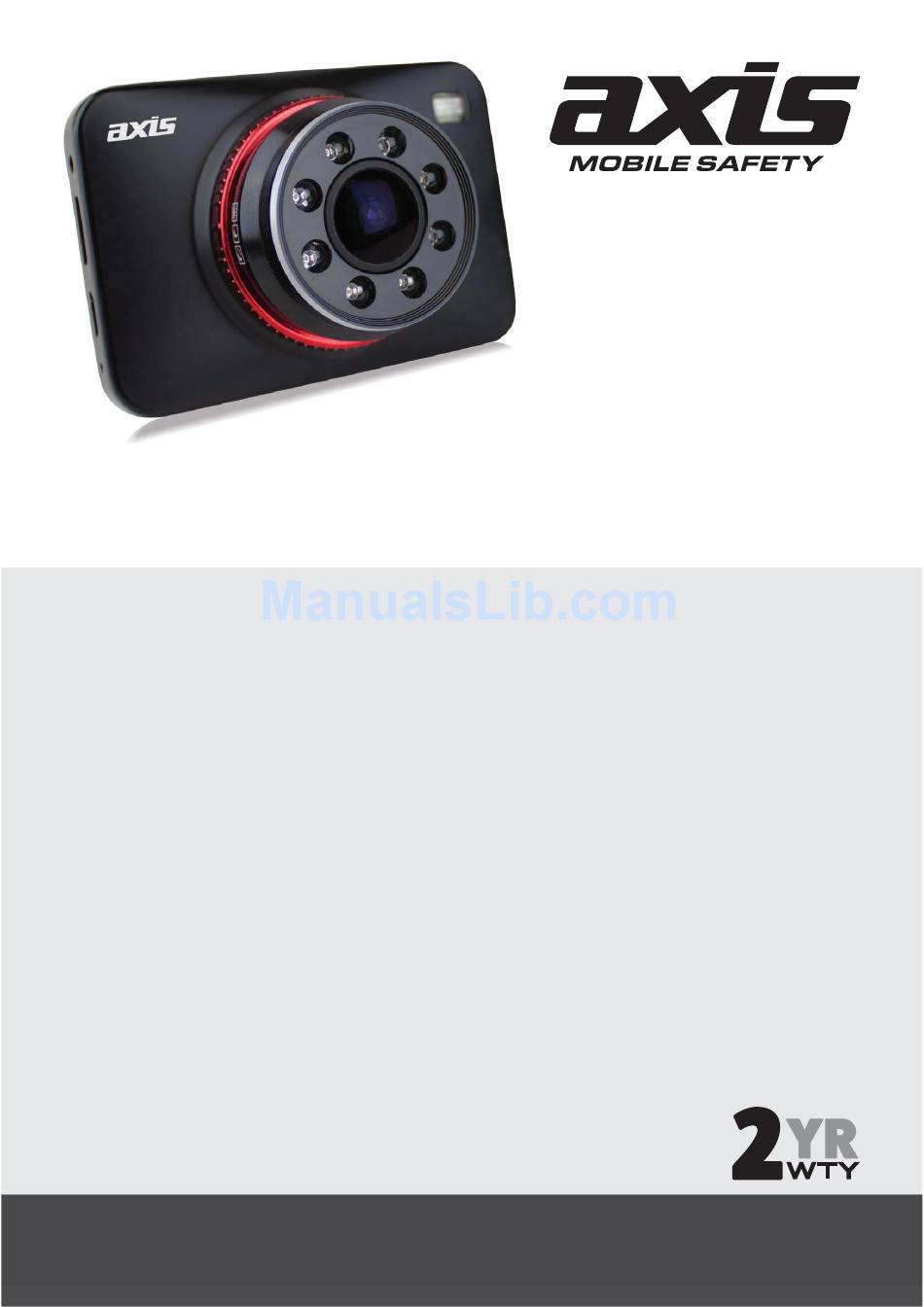

Axis DVR5 Instruction Manual

Full hd dvr with gps & night vision
Hide thumbs

Advertisement

Quick Links

DVR5
FULL HD DVR with GPS & NIGHT VISION
SPECIFICATIONS
GENERAL
- Display:
- Chipset:
- Image Sensor:
- Resolutions:
- Picture Format:
- Len Viewing Angle:
- Memory Support:
- Video Format:
- Night Vision:
- GPS Function:
- Google Maps Data:
- G-Sensor:
- Motion Detection:
- Seamless loop recording:
- Still Photography:
- Auto Record:
- Outputs:
- PC Interface:
- Menu Language Selection: 8
- Power Supply:
- Input Power:
- Battery:
- Chassis:
- Mounting:
- Dimensions:
INSTRUCTION MANUAL
2.7" TFT LCD
Ambarella A7
4MP CMOS
1920x1080p, 1280x720p, 848x480, 640x480 30fps
JPG - 12MP
150°
Up to 64GB Micro SD Card (included)
MOV
Yes - 8 LED
Yes
Route, Speed, G-Sensor Data
Yes
Yes
Yes
Yes
Yes - After Power On
HDMI
USB
12/24V Cig Lead Charger
5V DC
Built-in Hi Capacity Polymer Rechargable 3.7V/450mA
Robust Alloy Construction
Suction Bracket
80W x 56H x 35Dmm (Without Mounting Bracket)
1
INCLUDED
- Suction Bracket
- 12/24V Car Charger
- 64GB Micro SD Card
- USB Lead

Advertisement

loading
Need help?

Need help?

Do you have a question about the DVR5 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis DVR5

Summary of Contents for Axis DVR5

  • Page 1 DVR5 FULL HD DVR with GPS & NIGHT VISION SPECIFICATIONS GENERAL INCLUDED - Display: 2.7” TFT LCD - Suction Bracket - Chipset: Ambarella A7 - 12/24V Car Charger - Image Sensor: 4MP CMOS - 64GB Micro SD Card - Resolutions:...

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION........................3 COMMON OPERATIONS....................4,5 OPERATING GUIDELINES....................5-11 TROUBLESHOOTING....................12-14 SPECIFICATIONS........................15 WARRANTY CARD........................16 M (Menu) Down O (Mode/Enter) Reset Power Switch TF Card Slot GPS Port IR Switch HDMI Port Data Port Microphone...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the quality FHD mobile data recorder. This product is a professional-grade data video recorder that can record 1920 x 1080 FHD and high quality video. Compared with traditional DVR’s, this product can record clearer, well Micro SD storage supplied.

  • Page 4: Common Operations

    COMMON OPERATIONS 6. Fault Handling 2. Format the memory card. 3. Do not set other functions except for the time. 4. Record the video again. COMMON OPERATIONS Date and Time Setting 2. Double press “M” button to enter video setup menu. 3.

  • Page 5: Operating Guidelines

    OPERATING GUIDELINES 1. In video mode standby (If in recording status, please stop by pressing 2. Enter the video setup menu by pressing “M” once. 3. Choose “G-Sensor” option by pressing “up” and “down” buttons. 4. Press “0” button once to enter the submenu. save.
  • Page 6 OPERATING GUIDELINES This icon shown at the upper left corner of the screen indicates video mode and standby status. “M” is the menu button. Press it once to enter into the video setting menu and press again to enter into system setting menu. “Up”...
  • Page 7 OPERATING GUIDELINES This icon is shown when previewing image under replay mode. This indicates Key Function of Preview Interface Under Replay Mode “0” is “switchover”. Key Function of Replay Interface Under Replay Mode system setting menu. This icon shown at the upper left corner of the screen indicates replay setting menu.
  • Page 8 OPERATING GUIDELINES 4. Motion Detection When there is movement within detection range, the system will automatically start shooting video. When the movement is lower than set range, the system will stop shooting video in 10s. 5. Automatic Video When Power Is On 6.
  • Page 9 OPERATING GUIDELINES 12. Parking Monitoring Display Mode 1. Display on 13. Postmark of License Plate 3. Setting number through “up” and “down” 4. 0 key to move to the next 5. Press 0 for save and exit at OK position 14.
  • Page 10 OPERATING GUIDELINES 5. TV Mode 6. Frequency of Light Source 7. Screen Protection (It is recommended to activate the screen protection function. In screen protection 8. White Light Sources 9. Exposure Compensation +2/3 +1/3 -1/3 -2/3 -1.0 -4/3 -5/3 -2.0 10.

  • Page 11: Operating Guidelines

    OPERATING GUIDELINES 14. Select Time Zone The DVR5 is capable of automatically changing the time via GPS. Choose “Select Time Zone” menu 15. Daylight Saving Time the correct time. Choose “Daylight Saving Time” menu. Photo Setting Menu 1. Image Resolution 2.

  • Page 12: Troubleshooting

    TROUBLESHOOTING COMMON PROBLEMS AND TROUBLESHOOTING Hint: Most failures can be solved by “restarting”. Q: How do I initially set up the DVR? It is generally caused by activating “movement detection” menu. Restart the unit. Q: Why is the whole picture purple? It is generally caused by starting “infrared lamp”.
  • Page 13 TROUBLESHOOTING is stable. Q: Why does video recording stop suddenly? It is set to screen protection mode, which can save power and not will stop recording after the memory card is full and shut down automatically. Q: Why does the system halt? Q: It seems there is second leakage in recorded video.
  • Page 14 TROUBLESHOOTING Q: Why does recording not start? cable is normal. Q: Why is there an internal sound when shaking the recorder? There is a special night vision device inside the recorder. It is a normal sound. Q: It seems view angle of recorder does not reach 170°.

  • Page 15: Specifications

    SPECIFICATIONS Display Screen TFT 2.7 inch 4:3 Resolution Camera Angle Wide angle 150° Video Output 1920x1080P Zoom 4 times digital zoom Picture Format Video Compression Format H.264 seamless connection Video Format GPS Format Support external track Storage Maximum support : 64GB Menu Language Selection Battery...
  • Page 16 DVR5 JS007WQK...
