- Page 1 L8543256 06/2018 rev 1 BULL 624 TURBO UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 3 110 mm 143 mm ≈1 mm...
- Page 4 ≈1 mm K Max 35 mm 3 mm 74 mm BULL 624 TURBO 35 mm 63 mm (optional MLS)
- Page 6 Radio receiver POWER INPUT AUX1 SELECTION AUX1 BLINK BLINK +24V 230Vac 115Vac -24V COSTA 8k2/N.C. 24Vdc BATT AUX 1 BLINK 24Vdc 15W max. RELAY AUX 2 AUX 2 24Vdc 24Vdc 0,5A max 0,5A max...
- Page 7 2x12V 2,1 Ah Mod. DA.BT2...
- Page 8 MINV:On OPEN MINV:Off OPEN MASTER SLAVE 3x0,5mm Menu BUS Menu BUS GND B A GND B A ID=0 ID=1 OPEN Close Safety Edge MOTOR Open Safety Edge bar:On (8K2/N.O. Jumper) PHOTO N.C. Open Close BAR N.C. BAR 8K2...
- Page 9 AUX 1 AUX1:0000 PHOTOTEST - PHO 24Vdc AUX1 AUX1 24Vdc PHOTO AUX1:0003 tst1:on 24Vdc Max1A LIGHT 24Vac NC NO 24Vac/dc II° CH RADIO AUX1:0001 24Vdc Max1A AUX1 PHOTOTEST - PHC AUX1 24Vdc PHOTC AUX1:0003 SERVICE LIGHT tst2:on AUX1:0002 24Vdc 24Vdc Max1A AUX1 24Vac/dc 24Vac...
- Page 10 Schema menu di programmazione - Menu programming layout Display OFF Diagramm Programmiermenü - Menu de programmation Menú de la carta de programación - Układ menu programowania Power ON v1. 0 0 Firmware Ver. (3s) 8888 Diagnostic tped fsto IBCA fstc sldo sldc tsmo...
- Page 11 RADI PUSH PUSH n TX 0012 PUSH Nman 0012 3456 MACI AUTO 2 Cycle PUSH OPEN/CLOSE RE-ENTER CODE 0000 9000 9C5a conf CODE Display OFF Legenda Premere simultaneamente (+) e (-) / Press simultaneously keys (+) and (-) Premere il tasto (-) / Press key (-) / Die Taste (-) drücken Gleichzeitig (+) und (-) drücken / Presser simultanément (+) et (-) Appuyez sur la touche (-) / Presionar la tecla (-) / Wcisnąć...
- Page 12 6) HOW TO POSITION THE LIMIT SWITCH BRACKETS ........23 8.5) SYNCHRONISATION OF TWO OPPOSITE SLIDING DOORS ....28 7) HOW TO INSTALL THE MAGNETS (BULL 624 TURBO.S OR ACCES. MLS)..23 8.6) TRANSMITTERS REMOTE LEARNING ..........28 7.1) FITTING ONTO THE LIMIT SWITCH BRACKETS ........23 8.7) FUSES .....................
-
Page 13: Quick Programming

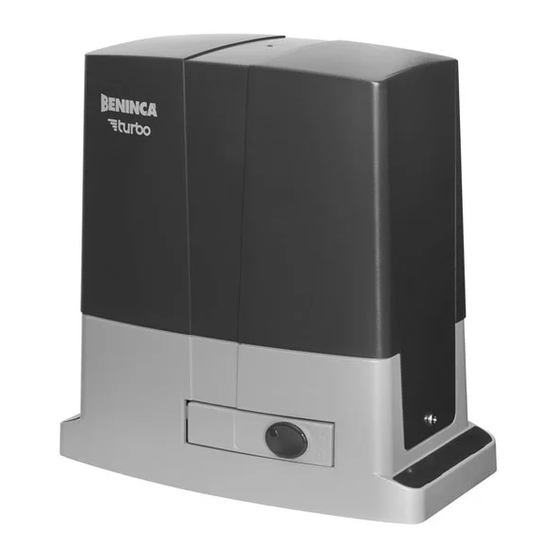

Gear motor 24Vdc for heavy-duty sliding gates up to 600 Kg for residential or industrial buildings, with built-in controller CP.B1524 We would like to remind you that if you register on the site www.beninca.com you will have access to the technical documentation updated for all the Benincà... -
Page 14: Installation
flask S with the grains G to press the limit stop micro. Repeat the sequence with closing gate. 7) HOW TO INSTALL THE MAGNETS (BULL 624 TURBO.S OR ACCESSORY MLS) FIG.12 The magnets are housed in special supports (fig.12-”A”). These magnets are to be fitted to the limit switch brackets or the rack and cause the triggering of sensors when they approach them. - Page 15 8) CP.B6-1024 TURBO CONTROL UNIT 8.1) WIRE DIAGRAM Wire connections shown in Fig. 17 are described hereunder: Mains power supply se- 230Vac 50/60Hz (from 207Vac to 253Vac) M2 OPEN jumper M2 SEL. 115V lection 115Vac 50/60Hz (from 102Vac to 125 Vac) M2 CLOSED jumper L-N-GND Mains power supply Mains power supply input selectable via M2 jumper.
- Page 16 8.4) PARAMETERS, LOGICS AND SPECIAL FUNCTIONS The following tables describe the functions available on the control unit. 8.4.1) PARAMETERS (PAR) MENU FUNCTION MEMO MIN-MAX-(Default) Automatic closing time. Enabled only with logic “TCA”=ON. 3-240-(40) At the end of the set time, the control unit commands a closing maneuver . tped The passage left open by the gate leaf during the partial opening (pedestrian) is adjusted.
- Page 17 Enabled or disables HOLD-TO-RUN function On: HOLD-TO-RUN function. The pressure of the OPENS/CLOSES button must be maintained throughout the entire manoeuvre. (OFF) The opening of the STOP input stops the motor. All the safety inputs are deactivated. Off: Automatic/semiautomatic function Selects the operating mode of the blinking light during the time TCA ltca On: Blinking light on during TCA...
- Page 18 8.4.4) CYCLES NUMBER (NMAN) Displays the number of complete cycles (open+close) carried out by the automation. When the <PG> button is pressed for the first time, it displays the first 4 figures, the second time it shows the last 4. Example <PG> 0012 >>> <PG> 3456: made 123.456 cycles.
- Page 19 8.5) SYNCHRONISATION OF TWO OPPOSITE SLIDING DOORS It is possible to manage a system composed of two sliding doors by using for each CP.B6-1024 the specific optional control unit SIS, which must be plugged into the appropriate connector as shown in Fig. 21. Each SIS unit must be connected to the other one by means of 3 wires by 0,5 sq.mm each, as shown in Fig.21.
-
Page 20: Maintenance
9) MAINTENANCE The following table is used to record maintenance operations, improvement or repair works carried out by the expert engineer. Stamp Date _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Engineer's Signature _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ Description of operation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _... - Page 21 BULL 624 TURBO USER’S HANDBOOK SAFETY MEASURES • Do not stand within the gate movement area. • Children must not play with controls and near the gate. • In the event of malfunctions, do not attempt to repair the failure but contact the specialised personnel.
- Page 22 BULL 624 TURBO Ref. Code Note 9686770 9688362 9686329 9686421 9688365 9686032 9688360 9686757 9688361 9688102 9686427 9688364 9688363...
- Page 23 AUTOMATISMI BENINCÀ SpA - Via Capitello, 45 - 36066 Sandrigo (VI) ITALY - Tel. 0444 751030 r.a. - Fax 0444 759728 www.beninca.com - sales@beninca.it...
