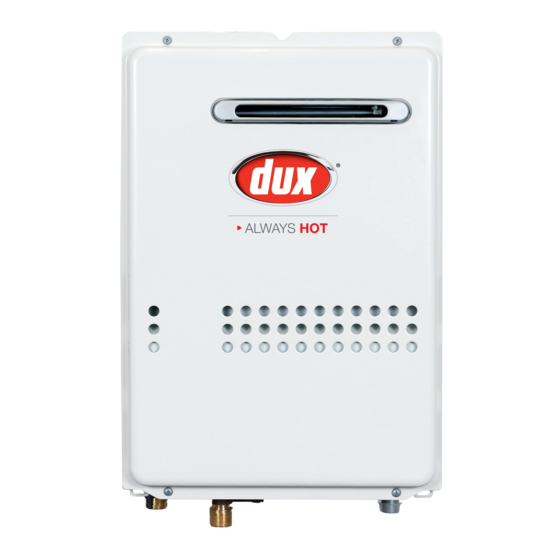

Thank you for purchasing this Dux Gas Water Heater.
Before using, please:
Read this manual completely for operating instructions.
Confirm warranty and proof of purchase.
Keep this manual where it can be found whenever necessary.
Installation must conform with local codes, or in the absence of local codes, AS/NZS 5601, AS/NZS 3500.4, AS/
NZS 3000 wiring regulations and all Local Building, Water and Gas fitting regulations.
Dux reserves the right to discontinue, or change at any time, the designs and/or specifications of its products
without notice.
* Note: This appliance requires a minimum flow rate to operate of 2.5 litres/min., water fixtures with a flow rate
of 7.5 litres/min. or higher are recommended.
For optimum performance we recommend installation of Dux optional temperature controllers.
SBB816U
Rev. 05/19
Owner's Guide
Condensing Models
26ECB5N
26ECB5L
26ECB6N
26ECB6L
21ECB5N
21ECB5L
21ECB6N
21ECB6L
Non Condensing Models
21ENB5N
21ENB5L
21ENB6N
21ENB6L
17ENB5N
17ENB5L
17ENB6N
17ENB6L
26ENA5N
26ENA5L
26ENA6N
26ENA6L
32END5N
32END5L
32END6N
32END6L
