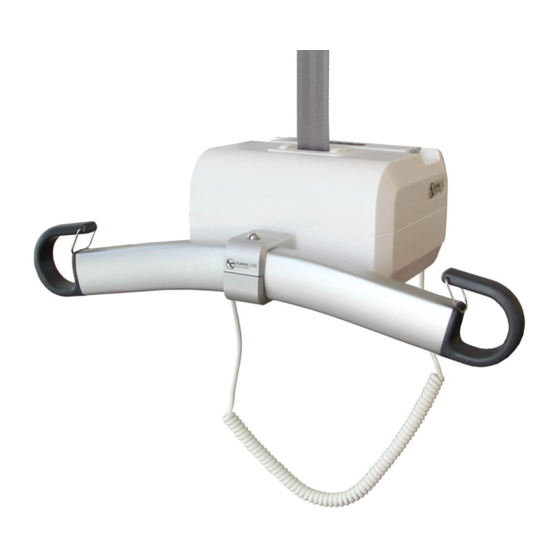

human care Altair Service Manual

Hide thumbs Also See for Altair:

Advertisement

Quick Links

Altair
Service Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Altair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for human care Altair

Summary of Contents for human care Altair

  • Page 1 Altair Service Manual...

  • Page 2: Table Of Contents

    Altair: Exploded view - Altair Spare part kits Opening the lift - Altair Closing the lift - Altair Reseting the service alarm – Altair Changing the belt - Altair Changing the battery - Altair Changing the hand control - Altair...

  • Page 3: Exploded View - Altair

    - Altair All spare parts for the overhead lifts are sold as a kits. circled and pointed parts shows the kits that are available. Detailed list with included parts is shown at the next page.

  • Page 4: Spare Part Kits

    3M VHB 5930 Double sided adhesive tape 71450 Battery overhead lift - kit CT2.3-12_Battery 3M VHB 5930 Double sided adhesive tape 71466 Beltstop sensor Altair HeliQ - kit Beltstop sensor with 350 cable Belttension guard sensor 1 Spring Belt Tension Guard Washer Plastic BTG Washer-LB-A-4816...
  • Page 5 - kit 71456 Spring leg hook Altair Roomer Spring S - kit 71457 Hand control Altair Roomer S - kit Hand control Altair Roomer S Strain Relief Clamp cc12 Screw PT WN1452 K30x10 FZB 71462 Screw holder Altair HeliQ - kit...

  • Page 6: Opening The Lift - Altair

    Opening the lift - Altair 1. Activate the emergency stop. 4. Untighten the two screws with a torx screwdriver (TX10) holding the covers together (about 6-7 laps or until it´s loosened). The screws are located at the bottom of the holes for the rubber feet/plastic.

  • Page 7: Closing The Lift - Altair

    3. Follow the steps 1-6 in the “opening the lift chapter” in reverse. Reseting the service alarm – Altair After the service is finished the service alarm should be reset. • Connect the lift to a computer thru “Data and service application”.

  • Page 8: Changing The Belt - Altair

    Changing the belt - Altair The belt can be changed without removing the 4. Create a big loop. belt outlet. Follow the steps 1-5 in the “opening the lift chapter”. 1. Re-activate the emergency stop. 2. Unscrew the Opto-switch for the belt tension guard and turn it 90°...
  • Page 9 7. Use the spatula again to get the end of the belt with the small pin out. 8. Return the belt roll with the up button on the hand control. Grab the belt. 9. Remove the pin, the belt is now loose. 10.

  • Page 10: Changing The Battery - Altair

    Changing the battery - Altair The battery pack consists of two 12 V, 2.3 Ah, 4. Lift up the battery pack from the lift. lead type batteries. The lifetime is up to 5 years depending on charging and usage. Replacing the battery: 1.

  • Page 11: Changing The Hand Control - Altair

    Changing the hand control - Altair 1. Follow the steps 1-6 in the “opening the lift 4. Remove the rubber seal from the cover. chapter”. 2. Remove the connector on the hand control cable from the circuit board (PCB) by pressing on the small plastic lock on the left side.
