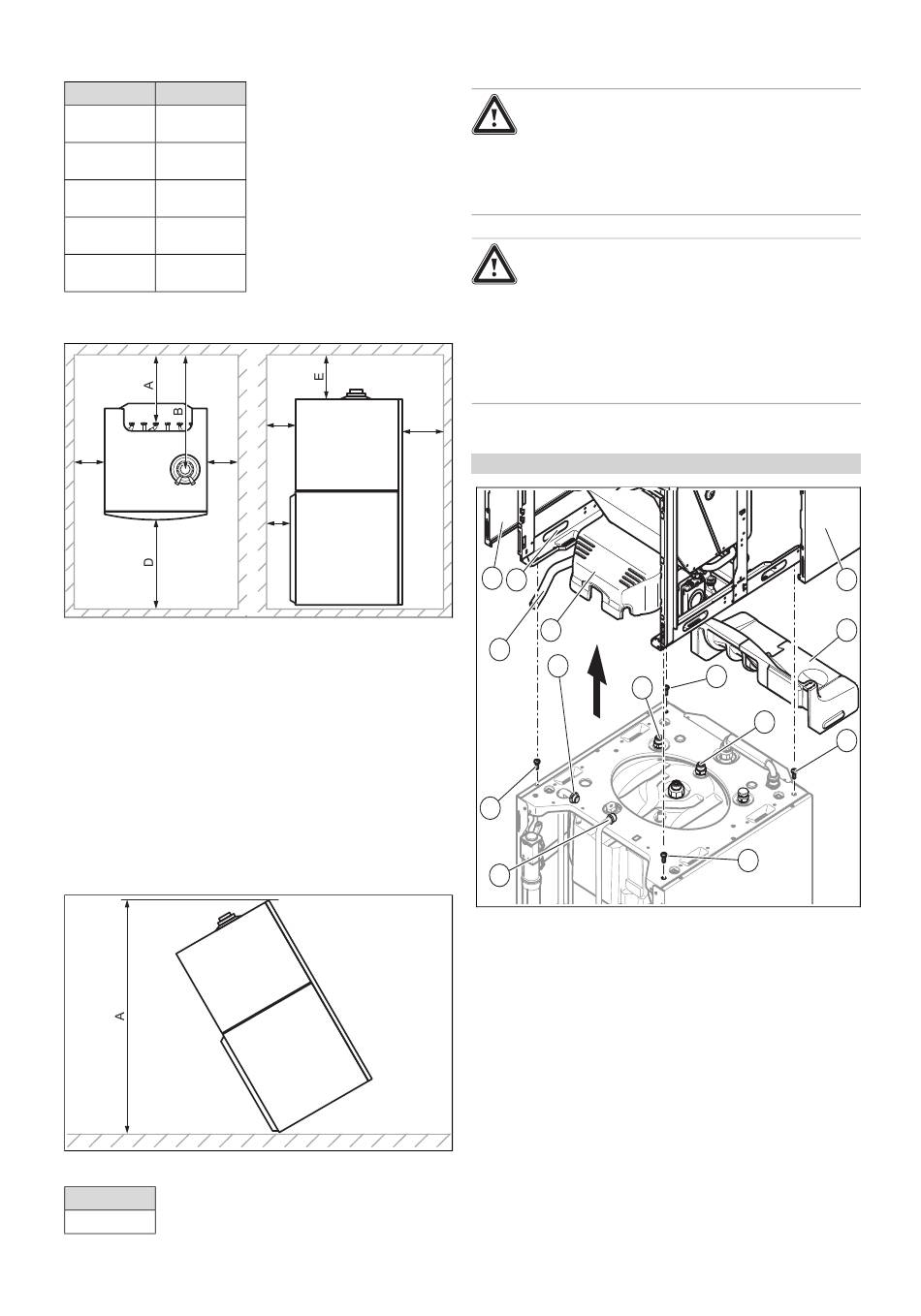

4 Set-up
Unit dimensions
150L
Dimension
1,640 mm
(A)
Dimension
941 mm
(B)
Dimension
770 mm
(C)
Dimension
1,577 mm
(D)
Dimension
1,627 mm
(E)
4.4
Minimum clearances
C
C
A
160 mm
B
425 mm
C
20 mm; (≥ 300 mm)
D
600 mm
4.5
Clearance from combustible components
It is not necessary to maintain a clearance between the
product and components made of combustible materials that
goes beyond the minimum clearances (→ Page 10).
4.6
Unit dimensions for transport
Unit dimensions for transport
150L
1,760 mm
10
G
D
F
E
165 mm (air/flue pipe,
60/100 mm diameter)
275 mm (air/flue pipe,
80/125 mm diameter)
F
40 mm
G
70 mm
4.7
Transporting the unit
Danger!
Risk of injury due to carrying heavy loads.
Carrying heavy loads can cause injuries.
▶
When transporting heavy units, observe
all valid laws and other regulations.
Danger!
Risk of injury due to repeated use of the
carrying handles.
Due to material ageing, the carrying handles
are not designed to be reused during any
subsequent transportation.
▶
Never reuse the carrying handles.
1.
Remove the front casing. (→ Page 12)
Conditions: The unit is too bulky or heavy for transport.
1
2
4
3
5
8
10
Disassembling for transport
▶
Remove the side panels (1) to be able to use the carry-
ing handles (2).
▶
Remove the insulating elements (4) and (6).
▶
Undo the nuts and pull the hose out from the siphon (3).
▶
Remove the power plug from the cylinder temperature
sensor.
▶
Undo the nuts (7) and (9) on the domestic hot water
cylinder.
▶
Disconnect the heating coils (5) and (10).
▶
Remove the four screws (8).
▶
When assembling the unit, carry out the steps described
above in reverse.
Installation and maintenance instructions ecoCOMPACT 0020181421_04
8
7
9
8
1
6
8
