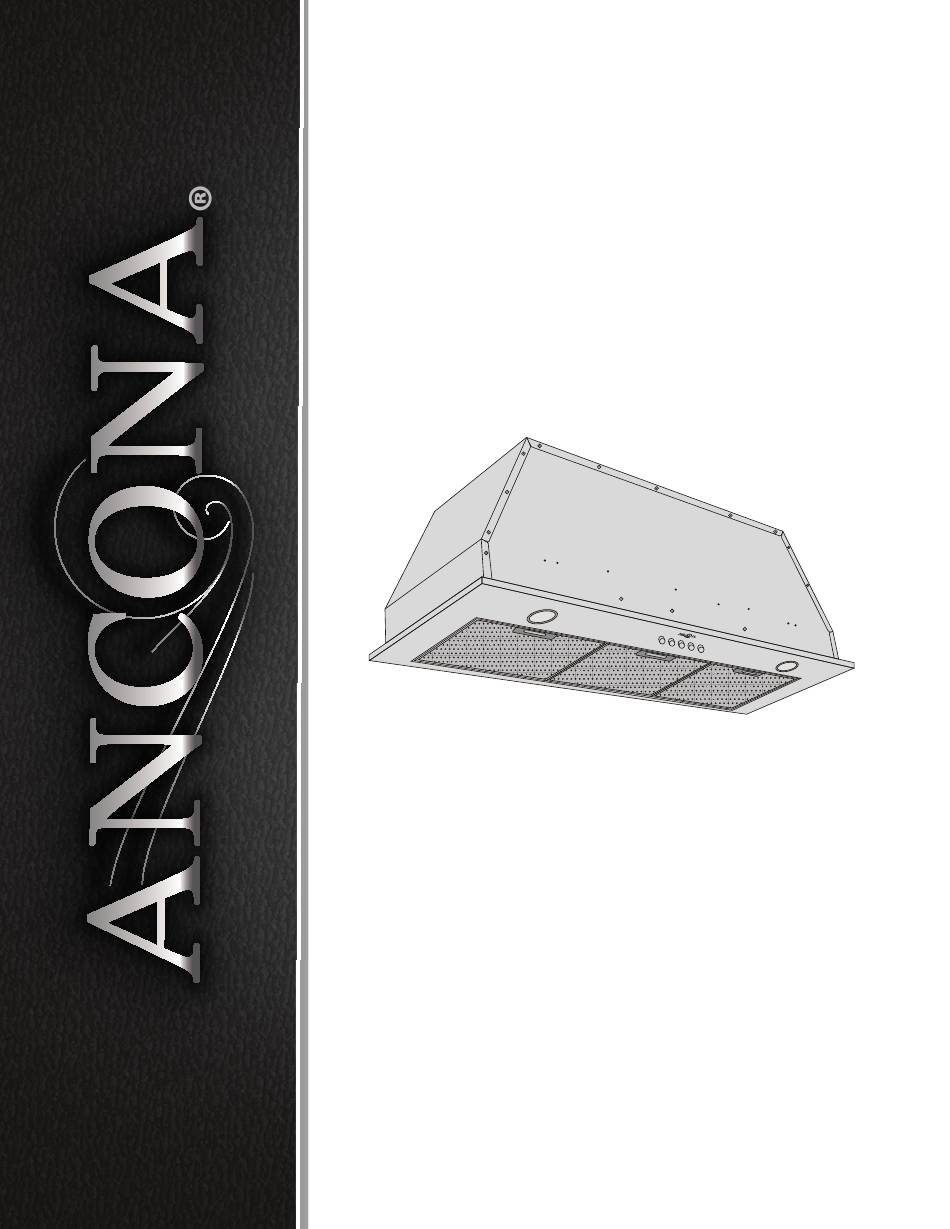

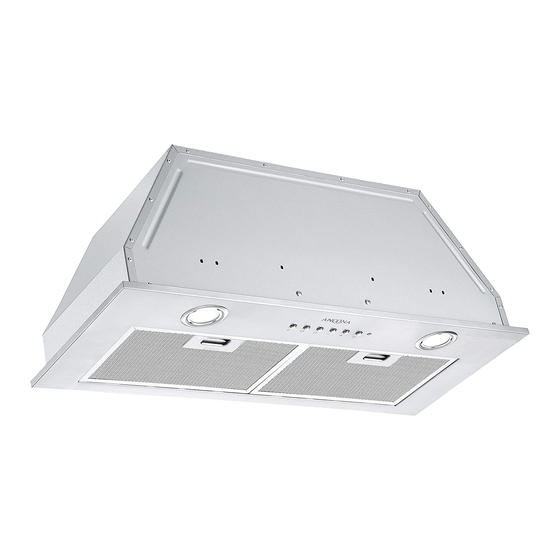

- Page 1 Range Hood B328D and B336D 28 in. and 36 in. User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference. MAAN1320-02 2019-04-05...
-
Page 2: Before You Begin
Before You Begin INSTALLERS - Start Here Safety Instructions are on pages 4 and 5 and Installation Instructions are on pages 8 to 13. Please perform these steps: 1. Read the safety instructions. 2. Read all instructions in the Installation section of this manual BEFORE installing the range hood. -
Page 3: Table Of Contents
Table of Contents Before You Begin ..........................2 Table of Contents ..........................3 Important Safety Information ......................4 Included Parts ........................... 6 Range Hood Dimensions ........................7 Specifications ............................ 7 Installation ............................8 Step 1 - Read the Safety Instructions .................... 8 Step 2 - Unpack Range Hood and Prepare Tools ................ -
Page 4: Important Safety Information
Important Safety Information READ ALL INSTRUCTIONS BEFORE USE Read and follow all instructions before using the range hood to prevent the risk of fire, electric shock, personal injury, or damage when using the range hood or appliances with the range hood. This guide does not cover all possible conditions that may occur. - Page 5 Important Safety Information WARNING: TO REDUCE RISK OF A RANGE To reduce the risk of injury to persons in the TOP GREASE FIRE: event of a gas leaks: a) Never leave surface units unattended at high • Extinguish any open flame. settings. Boilovers cause smoking and greasy • DO NOT turn on the lights or any type of appliance.
-
Page 6: Included Parts
Included Parts Range Hood 2 Filters (28 in.) Damper flap Vent/Damper screws 3 Filters (36 in.) 4 + 1 pieces Hardware Note: For safety reasons, range hood mounting screws and anchors will not be included due to the variation of cabinetry constructions and wall material. Please consult your installation specialist regarding the optimal type of mounting screws and wall anchors to suit your home’s construction. -
Page 7: Range Hood Dimensions
Range Hood Dimensions Ø 5.9 in. (15 cm) 10 in. (25.4 cm) 0.4 in. (1 cm) Specifications Body Design Stainless Steel Power Rating 120 V / 60 Hz (cULus Certified) Total Input Power 250 W (210 W + 2 x 20 W) Motor Input Power 210 W Amperage 2.2 A Speed Control Levels... -
Page 8: Installation
Installation STEP 1 Read the Safety Instructions • It is very important to read the safety instructions on pages 4 and 5. IMPORTANT: It is the installer’s responsibility to comply with installation clearances. STEP 2 Unpack Range Hood and Prepare Tools • Carefully unpack the range hood and parts. -
Page 9: Step 5 - Venting Installation Guidelines
Installation STEP 5 Venting Installation Guidelines • The following steps are for exterior ventilation. For the most efficient and quiet operation: IMPORTANT: • It is recommended that the range hood be vented • Vent system must terminate to the outside (roof or side wall). vertically through the roof through 6 in. (15.3 cm) or • DO NOT terminate the vent system in an attic or other bigger round metal/aluminum vent work. - Page 10 Installation electric cook tops and minimum of 30-inch (76.2 cm) IMPORTANT: for gas stove tops and no higher than 30-inch (76.2 cm) • A minimum of 6 in. (15.3 cm) round or 3-1/4 x 10 in. (8.3 cm for electric cook tops. x 25.4 cm) rectangular duct (purchased separately) must be • It is important to install the hood at the proper mounting used to maintain maximum airflow efficiency.
-
Page 11: Step 6 - Preparations
Installation STEP 6 Preparations NOTE: To avoid damage to your hood, prevent debris from entering the vent opening. • Determine and mark the centre line on the ceiling or wall where the range hood will be installed. • Make sure there is proper clearance within the ceiling or wall for exhaust vent. • Due to the weight and size of this unit, please make sure that the support system or framework being used is stable and secure in the ceiling or wall. -
Page 12: Step 9 - Installing The Hood
Installation STEP 9 Installing the hood • Remove the filters, halogen lights and the range hood cover. (See Fig #3) • Align range hood to the opening in the bottom of the cabinet and screw in with screws. (See Fig #4) Fig #3 Fig #4 STEP 10... -
Page 13: Step 12 - Install Filters
Installation IMPORTANT: • Observe all governing codes and ordinances. • It is the customer’s responsibility to contact a qualified electrical installer. • If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A 120-Volt, 60 Hz, AC-only, fused electrical supply is required on a separate 15-amp circuit, fused on both sides of the line. • DO NOT ground to a gas pipe. • Check with a qualified electrician if you are not sure that the range hood is properly grounded. • DO NOT have a fuse in the neutral or ground circuit. IMPORTANT: Save this Installation Guide for electrical inspector’s use. GROUNDING INSTRUCTIONS: • This appliance must be grounded. In the event of an electrical short-circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. -
Page 14: Operation
Operation Stop Medium High Light Speed Speed Speed Power Settings Press the button once and the motor starts to operate at Low speed. Press the button and the motor will reach Medium speed. Press the button the motor will reach High speed. -
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause If the range hood or halogen light Check if the range hood has been plugged in, make sure that does not operate after installation: all power has been turned back ON, fused not blown and all electrical wiring are properly connected. -
Page 16: Maintenance
Maintenance Replacing the Light Bulbs IMPORTANT: ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY AT THE MAIN PANEL BEFORE CARRYING OUT ANY OPERATION ON THE APPLIANCE. Removing old lightbulbs Installing new lightbulbs Make sure the range hood is unplugged or turn OFF With your new lightbulb in one hand, ensure the breaker. -
Page 17: Range Hood Assembly
Range Hood Assembly Number Part Power cord Round outlet assembly Number Part Housing assembly Power cord Round outlet assembly Housing assembly Blower assembly (include Blower assembly (includes motor) Bracket of electronic box Base of electronic box Bracket of electronic box Terminal connector Base of electronic box Capacitor... -
Page 18: Assembly
Assembly Assembly Circuit Diagram Circuit Diagram wer Assembly Capacitor ssembly 0V 60Hz er Part Grid Motor ssembly Impeller peller Blower Blower Assembly Wind drum inlet nd drum inlet Number Part Grid Motor eller Impeller Blower Wind drum inlet trical Assembly nd drum inlet l Assembly nlet... -
Page 19: Use And Care Information
Use and Care Information Operations • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating fans could catch on to hair, fingers and loose clothing. - Page 20 Ancona is in association with Mr Appliance for all after sales service calls. Please contact their service provider or visit their website: Phone: 1-888-998-2011 Website: www.mrappliance.com MAAN1320-02 © 2019 Copyright of Ancona Home. All rights reserved. This material may not be reproduced, displayed, modified or distributed. — 20 —...
