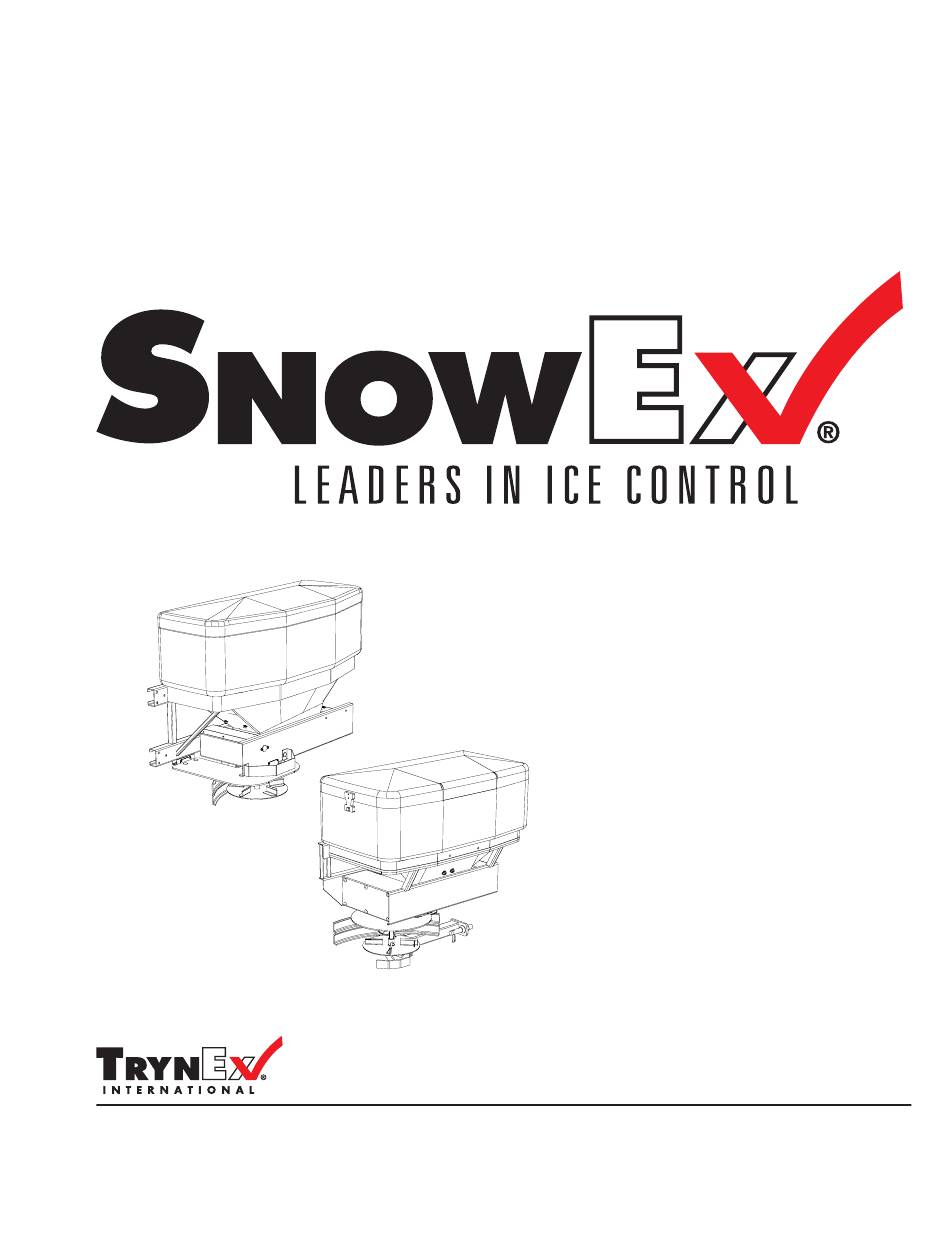

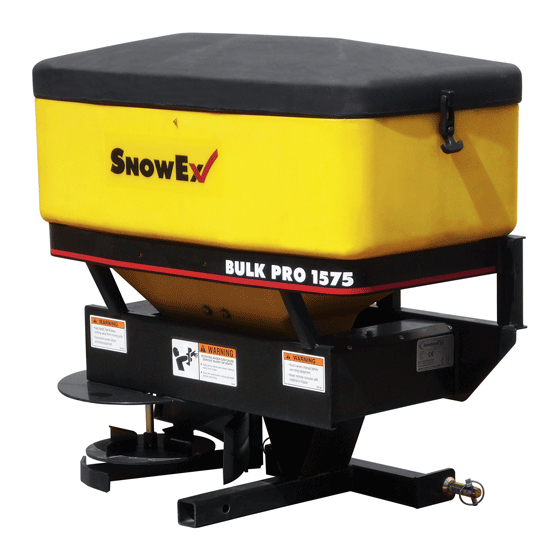

Owner's Manual
This Manual Must Be Read Before Operating The Equipment
Madison Heights, Michigan 48071
800-725-8377
www.snowexproducts.com
© Trynex International 2013
(REV A) F50872
SP-1575
Serial # N1-161813 and higher
SP-1875
Serial # D1-613020 and higher
CUSTOMER COPY
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SnowEx SP-1575 and is the answer not in the manual?

Questions and answers

Related Manuals for Trynex SnowEx SP-1575

Summary of Contents for Trynex SnowEx SP-1575

  • Page 1 Owner’s Manual This Manual Must Be Read Before Operating The Equipment SP-1575 Serial # N1-161813 and higher SP-1875 Serial # D1-613020 and higher CUSTOMER COPY Madison Heights, Michigan 48071 800-725-8377 www.snowexproducts.com © Trynex International 2013 (REV A) F50872...

  • Page 2: Table Of Contents

    Model # SP-1875 ..................................26-27 Notes ........................................28-29 Have a question or need assistance? SnowEx Customer Care 1-800-SALTERS or (248) 586-3500 Monday through Friday 8:00 AM to 4:30 PM EST Fax: (248) 691-8378 E-mail: customercare@trynexfactory.com Website: www.snowexproducts.com © Trynex International 2011 (REV A) F50872...

  • Page 3: General Information

    This will also give us a record so that any safety or service information can be www.trynexfactory.com communicated to you. 4in x 2.3125in D6381_TrynEx_CE_sprdr_plate Madison Heights, MI 48071 U.S.A. 1-800-725-8377 www.trynexfactory.com 4in x 2.3125in D6267_TrynEx_CE_sprdr_plate © Trynex International 2011 (REV A) F50872...

  • Page 4: Introduction

    Information that, if not carefully followed, can cause death! (ORANGE) Information that, if not carefully followed, can cause serious personal injury or death! (YELLOW) Information that, if not carefully followed, can cause minor injury or damage to equipment © Trynex International 2011 (REV A) F50872...

  • Page 5: Safety

    Never leave material in hopper for long periods of time. Be aware that all ice melters are hygroscopic and will attract atmospheric moisture and harden up. © Trynex International 2011 (REV A) F50872...

  • Page 6: Warning Decal Position

    • Keep arms, hands, and loose clothing away from auger. • Shut off control and unplug spreader before servicing. D6335 4in x 2.25in D6194_Warning.ai 4in x 2.25in D6192_Warning.ai 7.25in w x 3.00in h D6335_Warning.ai © Trynex International 2011 (REV A) F50872...

  • Page 7: Spreader Assembly

    Note: Your spreader is factory set in the Three Point Mount position. To switch your spreader to truck mount remove hitch and rotate 180 degrees and reattach.. Three Point Mount Position Truck Mount Position © Trynex International 2011 (REV A) F50872...

  • Page 8: Operating The Spreader

    You will need (2) 1/4-20 X 1/2” machine screws along with nylock type nuts (not included with spreader) Install license plate with hardware to mounting holes provided in hopper apron (see illustration) Mounting Holes © Trynex International 2011 (REV A) F50872...

  • Page 9: Spreader Maintenance

    • Apply small amount of light oil to latches as needed. • If motor cover is removed for any reason, use silicone sealant to ensure weather proofing of enclosure. • After first use, tighten all nuts and bolts on spreader and mount. © Trynex International 2011 (REV A) F50872...

  • Page 10: General Wiring Instructions

    Step 7: Push the ON/OFF button on the controller to check for power, when that has been conrmed turn power OFF. The electrical portion of the installation is complete. NOTE: If adding an inline fuse use a 60 amp slow blow (time delay) or a 60 amp relay. © Trynex International 2011 (REV A) F50872...

  • Page 11: Control And Harness Diagram

    5) If inline fuse is installed, use a 60 amp maxi fuse or circuit breaker. D6237 Power Switch | 5 Terminal D6354 Vibrator Switch | 3 Terminal Red D6344 Dielectric Grease | 1-1/2 oz. © Trynex International 2011 (REV A) F50872...
  • Page 12 10 GA Green Vibrator+ Vibrator- 12 GA Orange 12 GA Blue Circuit Circuit D6341 Control Power Cable 3/8” Terminal w/Heat Shrink 124” Tubing Black Front View Red to Black to Positive + Negative - © Trynex International 2011 (REV A) F50872...
  • Page 13 Vibrator Red D6527 Controller Vibrator Red Positive (+) Vibrator Black Negative (-) Auger Black Negative (-) Auger Red Positive (+) Spinner Black Red Positive (+) Spinner Negative (-) Black Negative (-) Positive (+) © Trynex International 2011 (REV A) F50872...

  • Page 14: Trobleshooting

    No Display To Controller Check With Test KIt On/Off Will Not Light Up Snowex Diagnostic Test Kit (STK-080) Is Available To Accurately Diagnose Any Issues With Snowex Spreaders. Call Your Dealer For Details. © Trynex International 2011 (REV A) F50872...
  • Page 15 Reverse Polarity Harness Slow Material Flow Turn On Vibrator Increase Auger Speed Material Issue Snowex Diagnostic Test Kit (STK-080) Is Available To Accurately Diagnose Any Issues With Snowex Spreaders. Call Your Dealer For Details. © Trynex International 2011 (REV A) F50872...

  • Page 16: Warranty

    Snowex dealers or Snowex personnel. Due to the corrosive properties of the materials dispensed by spreaders, Trynex does not warrant against damage caused by corrosion. Warranty claims by the user must be made to the dealer from where the product was purchased, unless otherwise authorized by Snowex.

  • Page 17: Model # Sp-1575/Sp-1875

    Spreader Views Model # SP-1575/SP-1875 SP-1575 SP-1875 © Trynex International 2011 (REV A) F50872...

  • Page 18: Hopper Assembly Parts Breakdown

    Hopper Assembly Parts Breakdown Model # SP-1575 © Trynex International 2011 (REV A) F50872...
  • Page 19 Description Qty BOM ID Description Qty BOM ID Description Qty BOM ID D4122 D5706 D6169 D6553 D5100 D6105 D6174 D6584 D5105 D6137 D6198 D6978 D5110 D6140 D6240 D5114 D6165 D6257 D5115 D6166 D6394 © Trynex International 2011 (REV A) F50872...

  • Page 20: Frame Assembly Parts Breakdown

    Frame Assembly Parts Breakdown Model # SP-1575 © Trynex International 2011 (REV A) F50872...
  • Page 21 Description Qty BOM ID Description Qty D5102 D5535 D6232 D6584 D5103 D6107 D6327 D6651 D5107 D6131 D6332 D6746 D5120 D6132 D6333 D6750 D5138 D6165 D6452 D6781 D5139 D6172 D6467 D6874 D5140 D6214 D6566 © Trynex International 2011 (REV A) F50872...

  • Page 22: Hitch Parts Breakdown

    Hitch Parts Breakdown Model # SP-1575 Note: Always position D4116 (#2) and D4119 (#3) through this hole. © Trynex International 2011 (REV A) F50872...
  • Page 23 Hitch Parts Breakdown Model # SP-1575 BOM ID Description Qty BOM ID Description Qty BOM ID Description Qty D4115 D4133 D4137 D4116 D4135 D5104 D4119 D4136 © Trynex International 2011 (REV A) F50872...

  • Page 24: Hopper Assembly Parts Breakdown

    Hopper Assembly Parts Breakdown Model # SP-1875 © Trynex International 2011 (REV A) F50872...

  • Page 25: Model # Sp-1875

    BOM ID Description Qty BOM ID Description Qty BOM ID Description Qty BOM ID Description Qty D4122 D6169 D6315 D6394 D4124 D6174 D6328 D6553 D6105 D6198 D6330 D6584 D6137 D6313 D6334 D6140 D6314 D6337 © Trynex International 2011 (REV A) F50872...
  • Page 26 Frame Assembly Parts Breakdown Model # SP-1875 © Trynex International 2011 (REV A) F50872...
  • Page 27 Description Qty BOM ID Description Qty D4289 D6281 D6331 D6584 D6132 D6317 D6332 D6651 D6133 D6323 D6333 D6652 D6172 D6324 D6356 D6781 D6214 D6325 D6452 D6854 D6225 D6326 D6463 D6877 D6232 D6327 D6501 © Trynex International 2011 (REV A) F50872...

  • Page 28: Notes

    Notes © Trynex International 2011 (REV A) F50872...
  • Page 29 Notes © Trynex International 2011 (REV A) F50872...
  • Page 30 Notes © Trynex International 2011 (REV A) F50872...
  • Page 31 Notes © Trynex International 2011 (REV A) F50872...
  • Page 32 132609...
