Spreaders for Snow & Ice Control

FOR MODEL

RTG-2400

L1186

8 — 1

(REV 000)

Need help?

Do you have a question about the SnowEx RTG-2400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trynex SnowEx RTG-2400

Page 3 6” Variable Pitch Auger D5706 5/16” Serrated Flange Nut D6452 3/8” Serrated HHCS D6842 Love Joy Coupling D6843 Urethane Spyder D6873 3/16” Key Stock D6825 12 Volt Auger Motor D6894 Auger Transmission Auger Drive Assembly © Trynex International 2007 L1186 8 — 11...
Page 5 Leveler Mount Bracket D5738 Spinner Motor D5722 Motor Coupler D6232 D5723 Spinner Transmission Spinner Motor Cover D5715 D6135 #10-32 x 5/8” HMS D4124 3/8” Lock Nut 3/8” Flat Washer D4125 Complete Drive Assembly © Trynex International 2007 L1186 8 — 13...
Page 7 Long Baﬄe Plate D 5714 Interior Main Baﬄe Support Frame D 5712 D 6453 5/16 x 1” Serrated 18-8 SS D 6165 5/16 Flat Washer 5/16-18 x 1” HHCS D 4121 Hopper Assembly © Trynex International 2007 L1186 8 — 15...

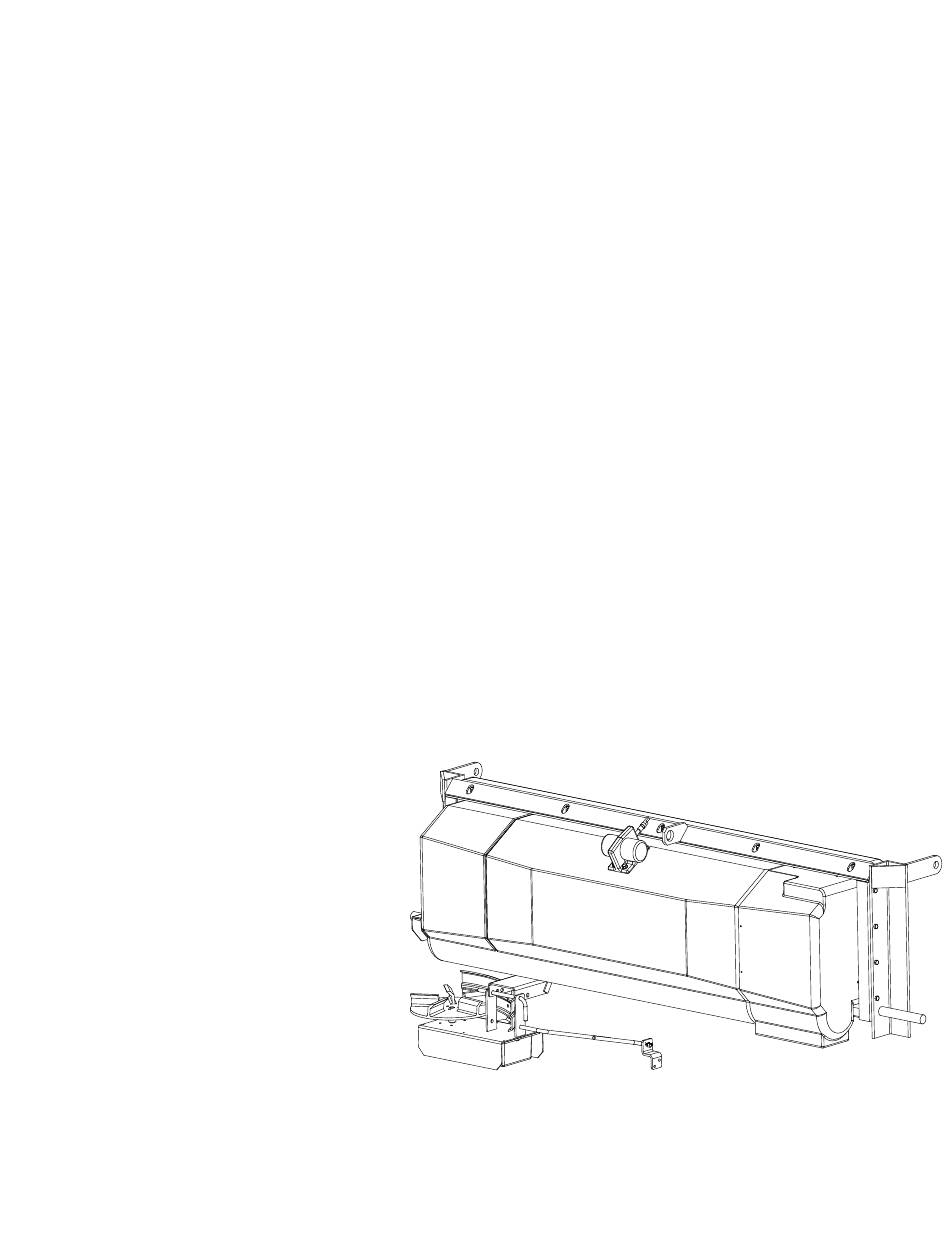

Page 8 RTG-2400 Frame Assembly Parts Breakdown Optional Universal Mounting Kit Shown In Illustration As Part Of Frame Assembly. 8 — 16 L1186 © Trynex International 2007...
Page 9 D 5730/31/32 2 ea. D 5735 Right Hand Main Bracket (UMK - 175 Kit) D 5734 Left Hand Main Bracket (UMK - 175 Kit) Frame Assembly FRAME SHOWN WITH OPTIONAL UMK MOUNTING KIT © Trynex International 2007 L1186 8 — 17...
Page 10 Step 7: Push the ON/OFF button on the controller to check for power, when that has been conﬁrmed turn power OFF. The electrical portion of the installation is complete. 8 — 18 L1186 © Trynex International 2007...
Page 11 RTG-2400 Electrical System Parts Breakdown Description . y t Spreader Speed Control D 6835 D 6837 Control Power Harness D 6896 Vehicle Harness Spreader Harness D 5708 © Trynex International 2007 L1186 8 — 19...
Page 13 6 GA. Breaker Wire D 6840 100 AMP Resetable Breaker 1 Connect to control mating half * NOTE: A) Leads must only be attached to battery. B) 100 Amp breaker must be inserted. L1186 © Trynex International 2007 8 — 20...
Page 14 Red Positive (+) Red Positive (+) VIBRATOR AUGER Black Negative (–) Black Negative (–) MAIN POWER PLUG SPREADER Black Negative (–) Positive (+) Positive (+) Black Negative (–) VIBRATOR POWER PLUG SPINNER POWER PLUG © Trynex International 2007 L1186 8 — 21...
Page 15 SPINNER OUTPUT Black Negative (–) Blue Positive (+) SPINNER OUTPUT SPINNER Orange Negative (–) AUGER Blue Positive (+) Red Positive (+) SPINNER Orange Negative (–) * NOTE: Reference Bumper Plug for Color Code L1186 © Trynex International 2007 8 — 22...
Page 16 D 5731 Lower Weld On Pin 1.0 Dia D 5732 Lower Weld On Pin .750 Dia D 5734 Left Hand Main Bracket D 5735 Right Hand Main Bracket D 5736 Upper Gussett © Trynex International 2007 L1186 8 — 23...
Page 17 Step 2: Step 3: Connect D-5740 short leveling rod to drive leveling bracket with hair pin clip. Align both rods next to each other (see ﬁg2) and weld togther. ﬁg. 1 ﬁg. 2 8 — 24 L1186 © Trynex International 2007...
Page 18 • Speed of auger and spinner may be adjusted separately to get desired ﬂow and spread distance from spreader. • The Vibrator Switch is needed for dense material or to increase the ﬂow to the auger. This eliminates bridging of material in hopper. 8 — 25 © Trynex International 2007 L1186...
Page 19 The baﬄe system is also connected to the vibrator link arm assembly to assist with material ﬂow. Make sure vibrator bolts and link arm hardware are tight before operating spreader • WARNING: Always disconnect power source before attempting to remove material baﬄe. Long Baﬄe Connect To Link Arm Short Baﬄe © Trynex International 2007 L1186 8 — 26...
Page 20 “E 0” this means that the motor is not getting any power. Check all connections. If display reads “LB” the vehicl e battery is extremely low (possibly caused by a poor or corroded connection) and could damage the system. • If there are any problems while operating the spreader, refer to Troubleshooting Guide. © Trynex International 2007 L1186 8 — 27...
Page 21 Motor is not getting power. Turn oﬀ. Check all connections. display shows EO. Audible alarm beeping Vehicle battery is extremely low, Turn oﬀ. Charge battery. display shows LB. or a poor connection exists. 8 — 28 © Trynex International 2007 L1186...
Page 22 ON/OFF SWITCH BAD CONTROLLER LIGHTS NO DISPLAY CHECK WITH TEST KIT NOTHING HAPPENS BAD CONTROLLER CHECK POWER SOURCE NO DISPLAY ON/OFF SWITCH WILL TO CONTROLLER CHECK WITH TEST KIT NOT LIGHT UP © Trynex International 2007 L1186 8 — 29...
Page 23 (ORANGE) Information that, if not carefully followed, can cause serious personal injury or death! (YELLOW) Information that, if not carefully followed, can cause minor injury or damage to equipment. © Trynex International 2007 L1186 8 — 3...
Page 24 AT AUGER MOTOR AUGER RUNS REPLACE SPREADER FOR REVERSE VIBRATOR BACKWARDS HARNESS POLARITY SLOW TURN ON MATERIAL VIBRATOR FLOW INCREASE AUGER SPEED MATERIAL ISSUE * Spreader capable of speading most granular bulk material. 8 — 30 © Trynex International 2007 L1186...
Page 25 If motor cover is removed for any reason, use silicone sealant to ensure weather prooﬁng of enclosure. • Grease bearings after every 20 hours use. • After ﬁrst use, tighten all nuts and bolts on spreader and mount. • WARNING: Never remove spreader with material in hopper. © Trynex International 2007 L1186 8 — 31...
Page 26 3/4-10 7/8-9 Metric Grade 8.8 (ft.-lb.) SIZE TORQUE SIZE TORQUE M 12 M 14 M 10 M 16 These torque values apply to mount assembly fasteners except those noted in the instruction. 8 — 32 © Trynex International 2007 L1186...
Page 28 Snowex dealers or Snowex personnel. Due to the corrosive properties of the materials dispensed by spreaders, Trynex does not warrant against damage caused by corrosion. Warranty claims by the user must be made to the dealer from where the product was purchased, unless otherwise authorized by Snowex.
Page 29 SnowEx Dealer Address: SnowEx Dealer Phone: Does your Trynex Dealer stock Trynex replacement Parts? I don’t know Do you feel your Trynex Dealer sold you the correct product for your needs/application? 10) How would you rate your overall satisfaction Very...
Page 30 Please ﬁll out the warranty card with all the necessary information to validate it. This will also give us a record so that any safety or service information can be communicated to you. 8 — 4 L1186 © Trynex International 2007...
Page 31 The unit, or any part of it should be altered without prior written permission from the manufacturer. Never use the RTG-2400 with foreign debris in the spreader. These units are designed to handle clean, free-ﬂowing material. © Trynex International 2007 L1186 8 — 5...
Page 32 Before working with the spreader, secure all loose ﬁtting clothing and unrestrained hair. Always wear safety glasses with side shields when servicing spreader. Failure to do this could result in serious injury to the eyes. 8 — 6 L1186 © Trynex International 2007...
Page 33 Maintain Safe Distance From Buildings,Vehicles And People Maintain Safe Distance From Buildings,Vehicles And People When Spreader Is Operating When Spreader Is Operating D5704 D5704 D 6546 D 5703 D 5704 D 6544 D 6335 D 6548 © Trynex International 2007 L1186 8 — 7...
Page 34 RTG-2400 Component Assembly Views Spinner Drive Auger Drive Assembly Assembly Electrical System Assembly Frame Hopper Assembly Assembly 8 — 8 L1186 © Trynex International 2007...
