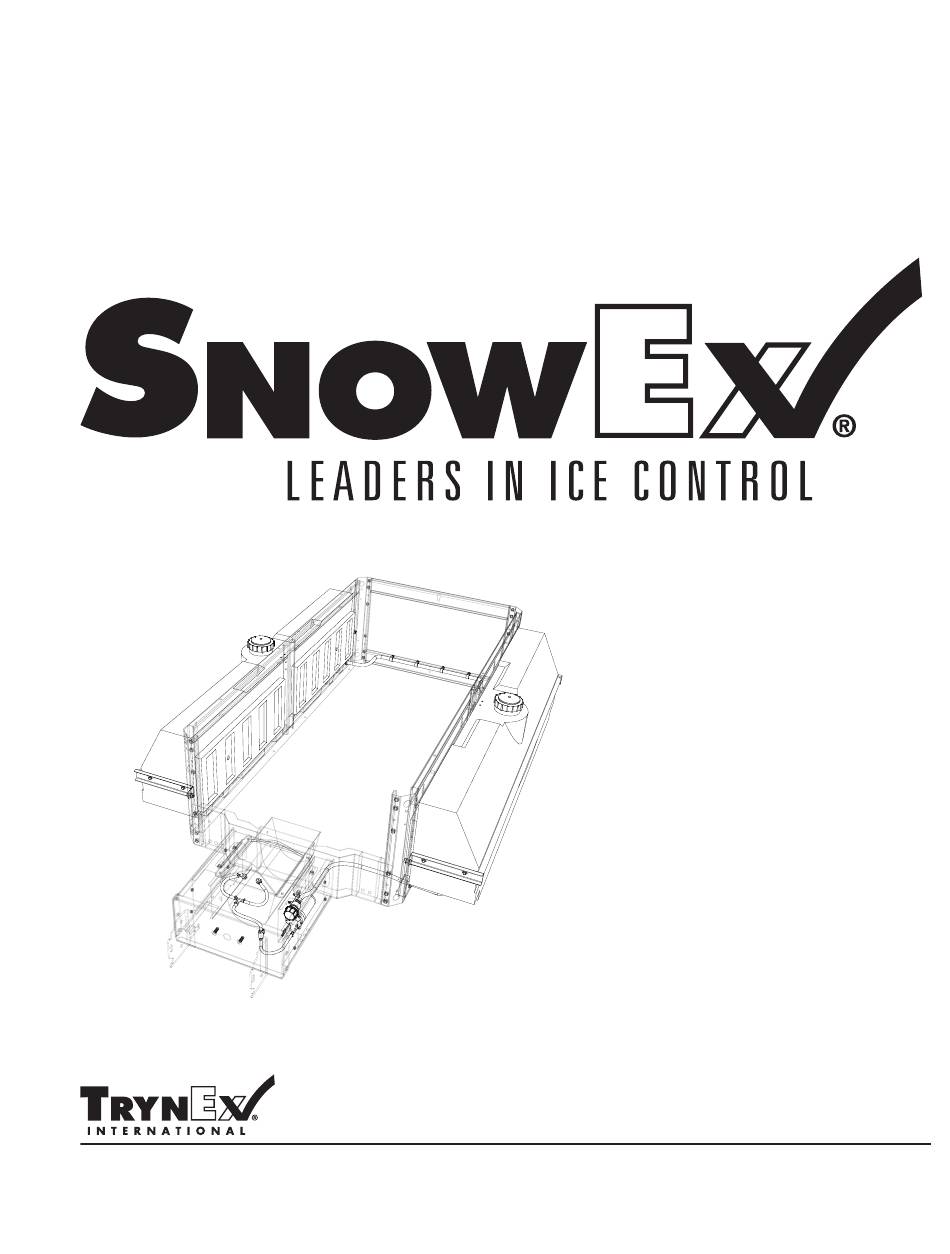

- Page 1 Owner / Operator’s Manual This Manual Must Be Read Before Operating The Equipment PWX-200 Serial # 200959 and higher PWX-250 Serial # 200959 and higher CUSTOMER COPY Madison Heights, Michigan 48071 800-SALTERS www.snowexproducts.com © TrynEx International 2013 (REV C) F50766...
-
Page 2: Table Of Contents
Notes ........................................26-27 Have a question or need assistance? SnowEx Customer Care (800) SALTERS or (248) 586-3500 Monday through Friday 8:00 AM to 4:30 PM EST Fax: (248) 691-8378 E-mail: customercare@trynexfactory.com Website: www.snowexproducts.com © TrynEx International 2013 (REV C) F50766... -
Page 3: General Information
Please register your system for warranty at your local SnowEx Dealer. This will also give us a record so that any safety or service information can be communicated to you. The Serial Number can be found on the Tank Mounting Tube. © TrynEx International 2013 (REV C) F50766... -
Page 4: Introduction
Information that, if not carefully followed, can cause death! (ORANGE) Information that, if not carefully followed, can cause serious personal injury or death! (YELLOW) Information that, if not carefully followed, can cause minor injury or damage to equipment © TrynEx International 2013 (REV C) F50766... -
Page 5: Safety
45 m.p.h. Never use materials with foreign debris with any sprayer These units are designed to handle clean, free flowing material. Never leave material in hopper for long periods of time. © TrynEx International 2013 (REV C) F50766... -
Page 6: Wiring Installation Instructions
Put Spinner Drive into ‘Down’ position. STEP 4 Remove the Auger Extension Cover. STEP 5 Remove the Cover of the Power Box. STEP 6 Push out the lower Plug in the rearward-side of the Control Box. © TrynEx International 2013 (REV C) F50766... - Page 7 STEP 9 Insert PWX Harness [F50679] through the hole from which the plug was removed. Install Restraint Nut [D6781]on inside. Tighten Restraint Nut. Do not tighten the Cord Restraint yet. Cord Restraint Restraint Nut © TrynEx International 2013 (REV C) F50766...
- Page 8 Install the round Terminal End of the Relay Wire [F50681] onto the “BAT +” stud. Replace Nut and Washer. Tighten. STEP 13 Wire the Relay [D6083] as shown. Use Dielectric Grease. Orange Wire Red Wire from Control Board from F50679 Pump Harness Green Wire from Control Board F50681 Prewet Battery Wire © TrynEx International 2013 (REV C) F50766...
- Page 9 Coil the Wires to the Relay back around and tie to the one of the large wires with Zip Tie [F50202]. Put Power Box Cover back on. Leave Auger Extension Cover off. THE ELECTRICAL INSTALLATION IS COMPLETE. Diagram of Finished Installation. © TrynEx International 2013 (REV C) F50766...
-
Page 10: Tank And Pump Installation Instructions
Use parts from the Tank Mounting Kit. Install a Rubber Grommet [D5602] into each of the two holes in the front of the Frame. The holes are on the side and in line with the ends of the Tanks. © TrynEx International 2013 (REV C) F50766... - Page 11 Install the remaining Hose Grommet [D5602] into the hole in the frame by the Passenger-Side Tank. Slide the Hose [D6989] through the Grommet and onto the Hose Barb already installed on the Tank. Tighten with a 1/2” Plastic Hose Clamp [F50146] from the Tank Connection Hardware Kit. © TrynEx International 2013 (REV C) F50766...
- Page 12 STEP 10 Connect the Filter to the Inlet of the Pump. This should be on the upward side. Secure the connection by pushing the Tab on the Pump until it clicks into position. © TrynEx International 2013 (REV C) F50766...
- Page 13 Mark a line 1-5/8” from the edge of the Trough Cover. Make a mark 1-1/2” from the edge along this line, one on each side. Drill an 11/16” hole at both of the locations. © TrynEx International 2013 (REV C) F50766...
- Page 14 Slide the Hose Assembly onto the Barbs just installed. The 9” Hose should go to the Barb closer to the Hopper. Use the Small Plastic Hose Clamps [F50145] to tighten. STEP 15 Connect the Hose Assembly to the Pump on the outlet side. Clamp with clip on the pump. © TrynEx International 2013 (REV C) F50766...
-
Page 15: Operating And Maintaining The Pwx
Empty Tanks and Spreader’s Hopper after each use to prevent freezing. To drain tanks; remove the cap from the driver’s side tank. Store system indoors or run RV Antifreeze through pump and store with RV Antifreeze in Pump. © TrynEx International 2013 (REV C) F50766... -
Page 16: Harness Diagram
Harness Diagram F50679 PWX Pump Harness F50681 PWX Relay Wire 8.00 © TrynEx International 2013 (REV C) F50766... -
Page 17: Troubleshooting
Check electrical connections. Check for bare wires. Replace controller. Liquid not spraying. Empty tank. Fill tank. Full Strainer. Clean or replace filter element. Pump not running. Refer to Problem 1. Obstructed nozzle. Remove and clean. © TrynEx International 2013 (REV C) F50766... -
Page 18: Warranty
SnowEx dealers or SnowEx personnel. Due to the corrosive properties of the materials dispensed by spreaders, Trynex does not warrant against damage caused by corrosion. Warranty claims by the user must be made to the dealer from where the product was purchased, unless otherwise authorized by SnowEx. -
Page 19: Key To Parts
Bolt | 3/8”-16 x 1/2” Serr. Flange Hex D6988-8 Hose | 3/8” X 1” X 8” PVC Clear T20131 Garden Hose Cap | 3/4” Plastic D6988-12 Hose | 3/8” X 1” X 12” PVC Clear T20136 Washer | Garden Hose © TrynEx International 2013 (REV C) F50766... -
Page 20: Tank Assembly Parts Breakdown
Tank Assembly Parts Breakdown Model # PWX-200 © TrynEx International 2013 (REV C) F50766... - Page 21 Hose Clamp | 3/4" Double Tooth Poly Bolt 3/8"-16 X 1/2" Serrated Flange Type F Zinc F50845 T20131 Garden Hose Cap | 3/4" Plastic T20136 Washer | Garden Hose D5255 Hose Barb | 3/4" Male Thread X 1/2" Straight © TrynEx International 2013 (REV C) F50766...
-
Page 22: Model # Pwx-250
Tank Assemblies Breakdown Model # PWX-250 © TrynEx International 2013 (REV C) F50766... - Page 23 Hose Clamp | 3/4” Double Tooth Poly Bolt 3/8”-16 X 1/2” Serrated Flange Type F Zinc F50845 T20131 Garden Hose Cap | 3/4” Plastic T20136 Washer | Garden Hose T20313 Hose Barb | 3/4” Male Thread X 1/2” 90° © TrynEx International 2013 (REV C) F50766...
-
Page 24: Pump Assembly Parts Breakdown
Pump Assembly Parts Breakdown Model # PWX-200 / PWX-250 © TrynEx International 2013 (REV C) F50766... - Page 25 Hose Clamp | Double Tooth Poly 3/8" F50146 F50148 Hose Barb Tee | 3/8" F50202 Cable Tie | 6" 30lb F50672 Valve | 3/8" Hose Barb X 3/8” Hose Barb F50679 Pump Harness Relay Jumper F50681 © TrynEx International 2013 (REV C) F50766...
-
Page 26: Notes
Notes © TrynEx International 2013 (REV C) F50766... - Page 27 Notes © TrynEx International 2013 (REV C) F50766...
- Page 28 131006...
