FRONT PANEL

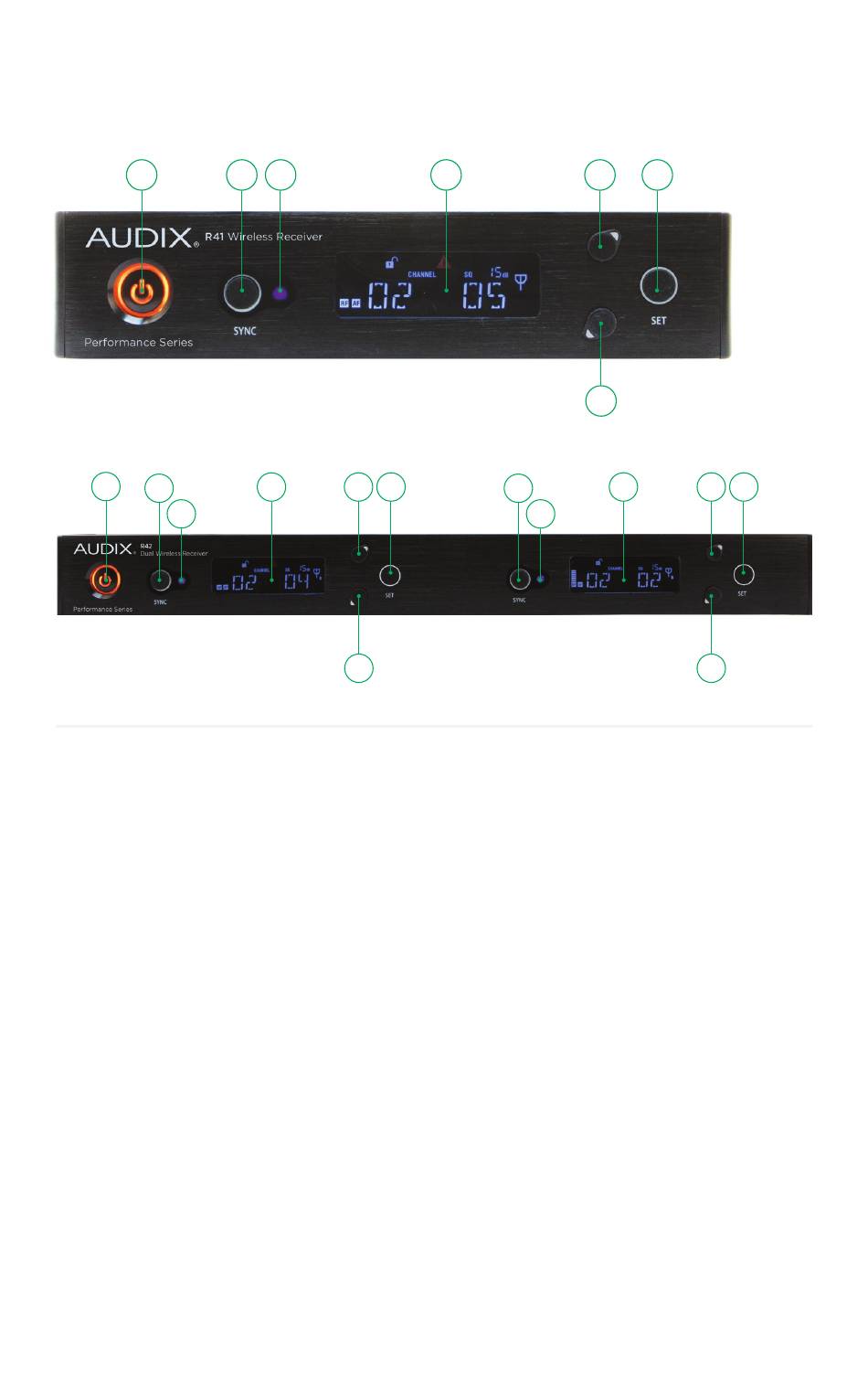

R41 SINGLE RECEIVER
1
R42 DUAL RECEIVER
1
2
1
POWER switch. Press for instant ON.
Press and hold for 3 seconds to turn
system OFF.
2 SYNC button. Automatically synchronizes
the transmitter to the receiver.
3 Infrared sensor. Sends data from receiver
to transmitter when SYNC function
is engaged.
4 High contrast LCD display. See Menu
Functions on page 14 for more details.
5 UP button. Only active in Menu mode.
Scrolls forward through menus. Also acts
as hot key for autoscan when pushed
and held.
8
2 3
4
3
4
5 7
2
6
6
DOWN button. Only active in Menu
mode. Scrolls backwards through
menus. Also acts as hot key for
autoscan when pushed and held.
7
SET button. Press and hold to enter the
Menu mode. Also used to save settings,
exit the Menu mode and toggle
between Frequency˝ and Group/
Channel˝ for quick reference.
5 7
6
4
3
5 7
6
