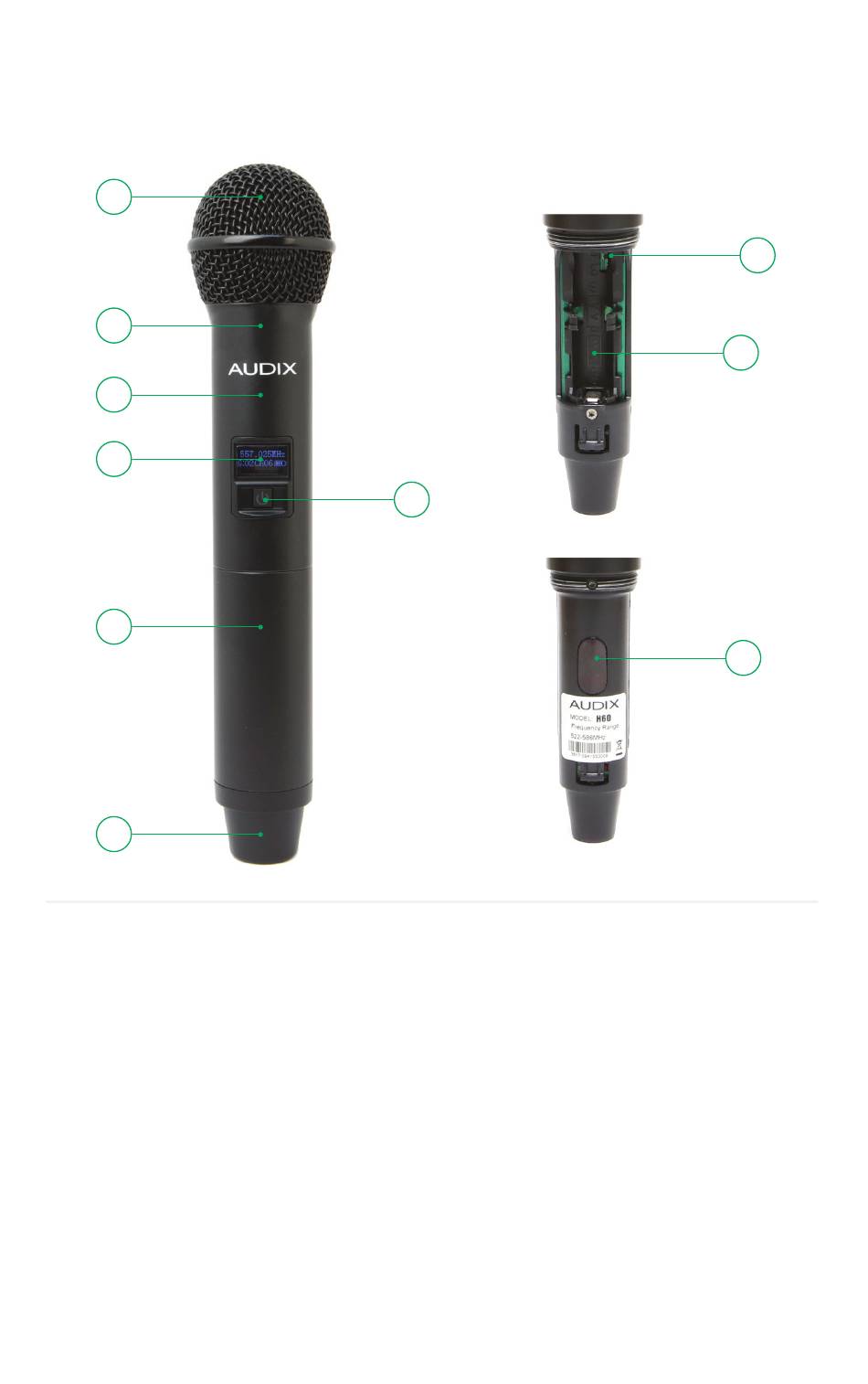

H60 TRANSMITTER - HANDHELD
The H60 is a 64 MHz wide spectrum transmitter. It covers both A and B frequency groups (pg 28).
1
2
3
4
6
7
1
Grill ball. Protects capsule.
Replaceable part.
2
Capsule housing. Threads on to
body of the transmitter housing.
Interchangeable part.
3
Transmitter housing. Contains
PCB boards and electronics for
RF transmission.
4 LCD display. Indicates Group/
Channel˝, Frequency˝ and Battery
Status˝.
5
5
Power ON/OFF and MUTE button.
6 Battery cover. Must be opened to
replace batteries or change transmitter
power selection.
7 Transmitter antenna housing.
8 Power dip switch (pg 12).
9
Battery compartment.
10 Infrared sync circuit.
8
9
10
