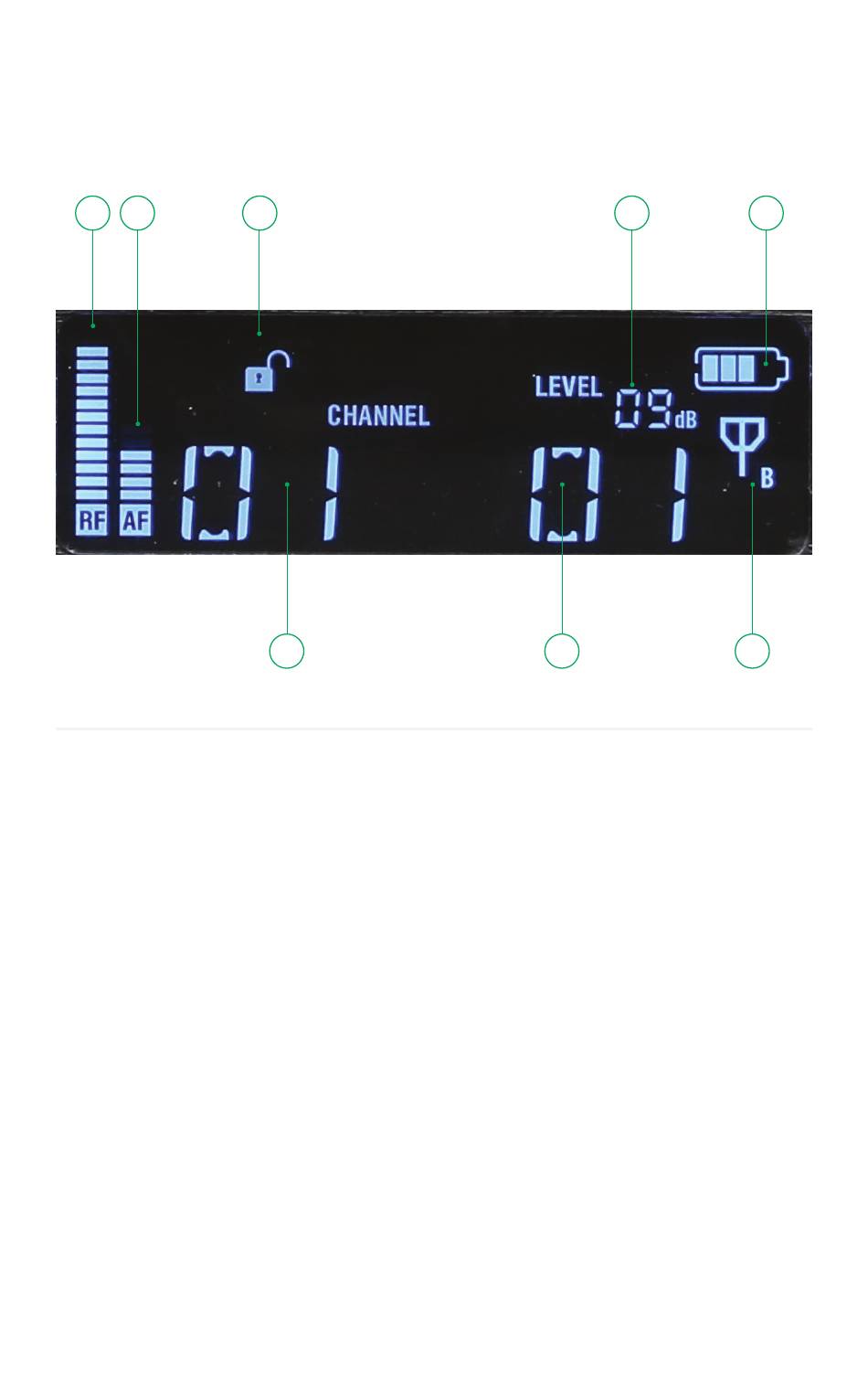

R41 LCD DISPLAY

1 2
1
RF (Radio Frequency). Displays RF
signal strength.
2 AF (Audio Frequency). Displays audio
signal strength.
3 Indicates whether receiver is
unlocked or locked for security.
4 Indicates active group when display
is in Channel mode. Indicates active
frequency when display is in
Frequency mode.
5 Indicates active channel when display
is in Channel mode. Indicates active
frequency when display is in
Frequency mode.
10
3
4 5
6
Displays Level (receiver gain) or
Squelch (see Menu Functions, pg 14).
7 Battery level.
4 bars = Up to 14 hours
3 bars = 9 hours
2 bars = 7 hours
1 bar = 3 hours
0 bars = 1 hour
8 Active antenna indicator (A or B).
6 7
8
