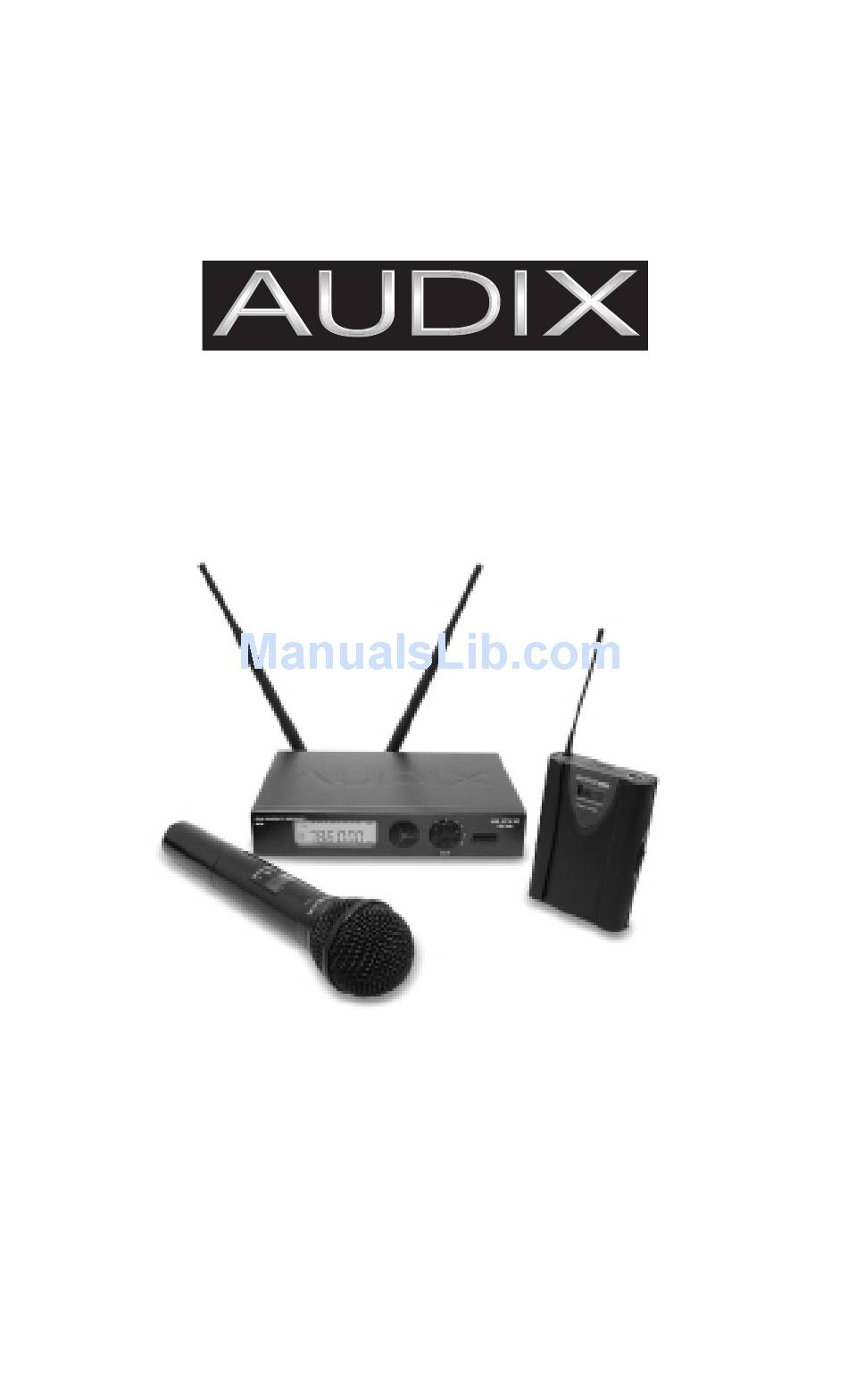

RAD-360
True Diversity Wireless Microphone System
Thank you for choosing the Audix RAD-360! This product was designed to
provide you with many years of reliable service. Please read this manual
before using the system to familiarize yourself with its operation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAD-360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Audix RAD-360

  • Page 1 RAD-360 True Diversity Wireless Microphone System Thank you for choosing the Audix RAD-360! This product was designed to provide you with many years of reliable service. Please read this manual before using the system to familiarize yourself with its operation.
  • Page 2: Table Of Contents

    Table of Contents Introduction ........2 Types Of Transmitters .
  • Page 3: Introduction

    All wireless mics work on Radio Frequencies (RF). Whether in the VHF or UHF band, all transmission of wireless information is via RF. The Audix RAD 360 is in the UHF band with 193 user selectable frequen- cies in 3 different frequency groups.
  • Page 4: Frequency Groupings

    3. If you are not planning to use the system for a long period of time, Audix recommends that you remove the batteries from the transmitter. 4. Do not expose the units to direct sunlight or heat sources such as an electric heater.
  • Page 5: Unpacking

    UNPACKING YOUR RAD-360: Before beginning installation of your Wireless System, please check the list on the side of your packing box for contents and be sure all the components are included. Your system should include a combina- tion of the following components: 1.
  • Page 6: Description Of Receiver

    Description of RAD-360 Receiver (front) Front Panel: 1. LCD Display Screen: Displays status of both Transmitter and Receiver including Channel, RF level, Audio Level, and Battery life. 2. SET button: This button is used to change and store settings. 3. UP button: Changes parameter “up” or increase 4.
  • Page 7 Description of RAD-360 Receiver (back) Back Panel: 7. STRAIN RELIEF for power cable: Prevents power cable from being pulled out. 8. POWER PLUG input: Always use included power supply. Use of any other power supply other than the one provided may damage your unit and void your warranty.
  • Page 8: Description Of Handheld Transmitter

    Description of RAD-360 Handheld Transmitter 1. LCD Display Screen: Displays status of transmitter including Channel and Battery Life. 2. DOWN button: Changes parameter “down” or decrease. 3. SET button: This button is used to change and store settings. 4. UP button: Changes parameter “up” or increase.
  • Page 9: Description Of Bodypack

    Description of RAD 360 Bodypack Transmitter Back Front Battery Compartment 1. Antenna 2. Power switch 3. LCD Display Screen: Displays status of transmitter including Channel and Battery Life. 4. Mic or guitar cable connector 5. UP button: Changes parameter “up” or increase. 6.
  • Page 10: Setting Up The Receiver

    Setting up the Receiver Connecting Power: Begin by looping POWER CABLE through STRAIN RELIEF (fig. 1). This will prevent cable from being pulled from socket during operation. Plug POWER CABLE into POWER SOCKET (fig. 2). Connect to power source. fig. 1 fig.
  • Page 11: Connecting The Receiver

    Connecting the Receiver: The Audix RAD 360 features balanced and unbalanced outputs to allow you to connect it to a wide variety of audio and instrument sound systems: P. A. Application: Connect the audio output of the RAD 360 Receiver to the audio input of your PA system using a balanced (XLR) or unbalanced (1/4") cable...
  • Page 12: Battery Installation

    Battery Installation The RAD 360 transmitters require (2) AA batteries to operate. Please observe the polarity markings in the compartment to ensure proper operation. Always use batteries of the same make and age to prevent possible damage to the transmitters. Handheld battery installation: Unscrew base of handheld and remove sleeve, exposing battery compartment.
  • Page 13: Setting The Frequency On The Receiver

    Setting the Frequency on the RAD-360 Receiver 1. Power the system up. From the startup screen, press and hold the SET button until you see the word “FREQUE”. 2. Use the UP and DOWN buttons to set the desired frequency.
  • Page 14: Setting The Frequency On The Handheld Transmitter

    Setting The Frequency on the RAD-360 Handheld Transmitter 1. From the startup screen, press and hold the SET button until you see the word “FREQUE”. Be patient as it will take approximately 2 seconds for this function to trigger. The “MHz” in the upper right hand corner of the display will start to blink.
  • Page 15: Setting The Frequency On The Bodypack

    Setting The Frequency on the RAD-360 Bodypack Transmitter 1. From the startup screen, press and hold the SET button until you see the word “FREQUE”. The “MHz” in the upper right hand corner of the display will start to blink.
  • Page 16: Locking/Unlocking The Receiver

    Locking/Unlocking RAD-360 Receiver Locking the receiver will prevent changes to the settings. 1. Press and hold the UP button until you see the words “LOC ON”. Once the unit is locked, you will not be able to change parameters or power down until the unit is unlocked.
  • Page 17: Locking The Handheld Transmitter

    Locking the RAD-360 Handheld Transmitter 1. From the startup screen, press and hold the SET button until you see the word “FREQUE”. 2. Press SET once again and you will see “SENSIT” on the display. 3. Press SET again to display “LOCOFF”. Press the Up button to set it to “LOCON”...
  • Page 18: Unlocking The Handheld Transmitter

    Unlocking the RAD-360 Handheld Transmitter 1. From the startup screen, press and hold the SET button until you see “LOCON”. 2. Press the Down button to change to “LOCOFF”. 3. Press SET to store.
  • Page 19: Locking/Unlocking The Bodypack

    Locking/Unlocking the RAD-360 Bodypack Transmitter 1. Press and hold the UP button until you see the words “LOC ON”. To unlock, press and hold the UP button until you see the words “LOC OFF”.
  • Page 20: Adjusting Sensitivity On The Handheld Transmitter

    Adjusting the Sensitivity on the RAD-360 Handheld Transmitter The RAD 360 Handheld features adjustable sensitivity to increase/decrease the output stage of the microphone. This helps to improve gain before feed- back and to prevent overloading the mixer/preamp. 1. From the startup screen, press and hold the SET button until you see the word “FREQUE”.
  • Page 21: Adjusting Sensitivity On The Bodypack

    Audix supplies a miniature screwdriver for the purpose of changing the gain and pad settings. Please note that Audix ships the bodypack transmitter with the pad at “0” (zero) and the gain at the 12:00 o’clock position. The pad allows you to control the input sensitivity of the microphone you are using with the bodypack.
  • Page 22: Using The Bodypack

    2. Headset microphone 3. Horn/sax microphone 4. Guitar/Bass Cable Audix uses a common mini 3-pin XLR(f) connector to connect the microphone cable to the Bodypack. The following information will instruct you on how to connect the microphone to the Bodypack and achieve the best performance from the microphone: 1.
  • Page 23: Using The Bodypack

    Setting the gain structure of the Bodypack: The Audix RAD360BP has a variable gain control and three position pad switch on the back of the Bodypack. From the factory the Bodypack will be set with the pad at 0 and the gain in the 12:00 position. This should be the correct position when using either the lavaliere or headset options.
  • Page 24: Using The Scan Feature On The Receiver

    Using the Scan Feature on the RAD-360 Receiver To simplify setup, The RAD 360 is equipped to scan for working transmitters so that one person can easily setup the system, even at a distance. 1. From the startup screen, press and hold the SET button until you see the word “FREQUE”.
  • Page 25: Battery Life Indicators

    Battery Life Indicators The Audix RAD 360 wireless system features a battery indicator dis- play on both the transmitter and receiver. The following guide will help you determine the length of time the system will operate until the batteries need replacement. This is only a guide as different bat- teries and conditions may cause variations.
  • Page 26: Performance Tips

    2) The Audix RAD 360 you have purchased is a true diversity system; inside the receiving unit there are separate receivers for each antenna. The system auto- matically silently switches back and forth between the two receivers to pick the one that has the best signal and sends that to the output jack.
  • Page 27 7) If in doubt, use new batteries. The Audix RAD 360 system uses the most cur- rent technology to ensure you get the most life from your batteries. In fact, our transmitters will continue to broadcast at 50mW right up until the end of the battery life when the broadcast distance and sound quality will drop off dramatically.
  • Page 28: Troubleshooting

    Either move the transmitter closer to the receiver or remote your antennas closer to the transmitter. As noted above, these are some common problems. If you find other questions regarding troubleshooting that are not answered here, please contact your Audix representative for assistance at 1-800-966-8261.
  • Page 29: Specifications

    specifications Frequency Range 638 MHz–804 MHz Switchable Frequencies 193 (per system group of 24 MHz spaced .125 Hz apart) Freq Response 40 Hz–18 kHz (depending on capsule) Signal To Noise Ratio >110dB Compander System Pilot Tone 32.768 kHz RAD360-R Receiving System Dual tuners, true diversity receiver Image Rejection 50 dB nominal, 45 dB minimum...
  • Page 30 Supplied Accessories g RAD-ANT1 3/4 Wave UHF whip antenna (2) g RAD-PS110 DC power supply (110 VAC, 12V–350 milliamp,) g RAD-CC360 Zippered carrying case g RAD-MC360T Microphone clip for handheld transmmitter Optional Accessories g RAD-RM1 Rack mount kit for 1 -RAD360R g RAD-RM2 Rack mount kit for 2 -RAD360R g RAD-CBL1...
  • Page 31 Measurements Measurement in Millimeters...
  • Page 32 CALL: 503-682-6933 • FAX: 503-682-7114 • www.audixusa.com Specifications subject to change without notice. Audix Corporation PO Box 4010, Wilsonville, OR 97070 . In Canada, Cabletek Electronics LTD, 604-942-1001 fax 604-942-1010 ®Audix Corporation 2004. All rights reserved. Audix and the Audix logo are trademarks of Audix Corporation.
