I N S T A L L A T I O N G U I D E
for the

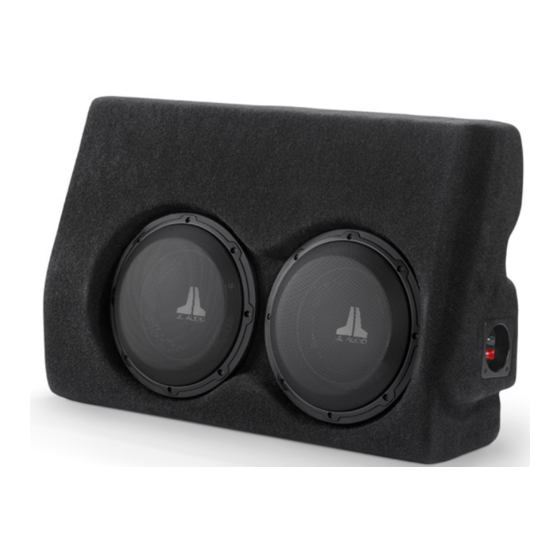

SB-T-TACDC/10W1v3
SKU# 94312
2005 - 2011 Toyota Tacoma Double Cab
Thank you for choosing a JL Audio Stealthbox ® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
installed by your authorized JL Audio dealer. The installation
®
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
SB-T-TACDC/10W1v3_INSTR_SKU#011238
INSTALLATION
D I F F I C U L T Y :
3
OUT
OF
ESTIMATED TIME:
2-3 HOURS
S T E P 1
Remove the all contents from the rear seating area.
Lower the second row seats.
Remove the two-piece plastic storage bins from the rear
wall.
S T E P 2
The rear wall of the passenger's side storage bin needs to
be cut out. Follow STEPS 2 - 4 carefully. The cut lines are
indicated by the white dash lines. Use a cutting wheel for the
best results.
This cut line follows the corner line crease of the storage bin.
S T E P 3
This cut line also follows the corner line crease.
Continued on Next Page
