JL Audio Stealthbox 011180 Installation Manual

Stealthbox ®
I N S T A L L A T I O N G U I D E
for the
SB-T-TUNCNSL2/10W3v2
('03-Up Toyota Tundra Access & Double Cab
with front bucket seats and center console)
This Stealthbox is a product which
requires professional installation skills and
tools.
Please read this installation guide thor-
oughly before beginning the project. It
will guide you step by step through the
installation. Several of the steps in this
process may require two people to
accomplish.
It is absolutely vital that the enclosure
be properly mounted to the vehicle
according to these instructions. Failure
to mount the enclosure properly pres-
ents two problems: 1) The sub-bass
performance will suffer due to the
movement of the enclosure caused by
the force exerted by the woofer(s) and
2) A loose enclosure presents a serious
safety hazard in the event of a collision
or sudden deceleration.
Please enjoy your JL Audio Stealthbox
responsibly.
w w w . j l a u d i o . c o m
START
HERE

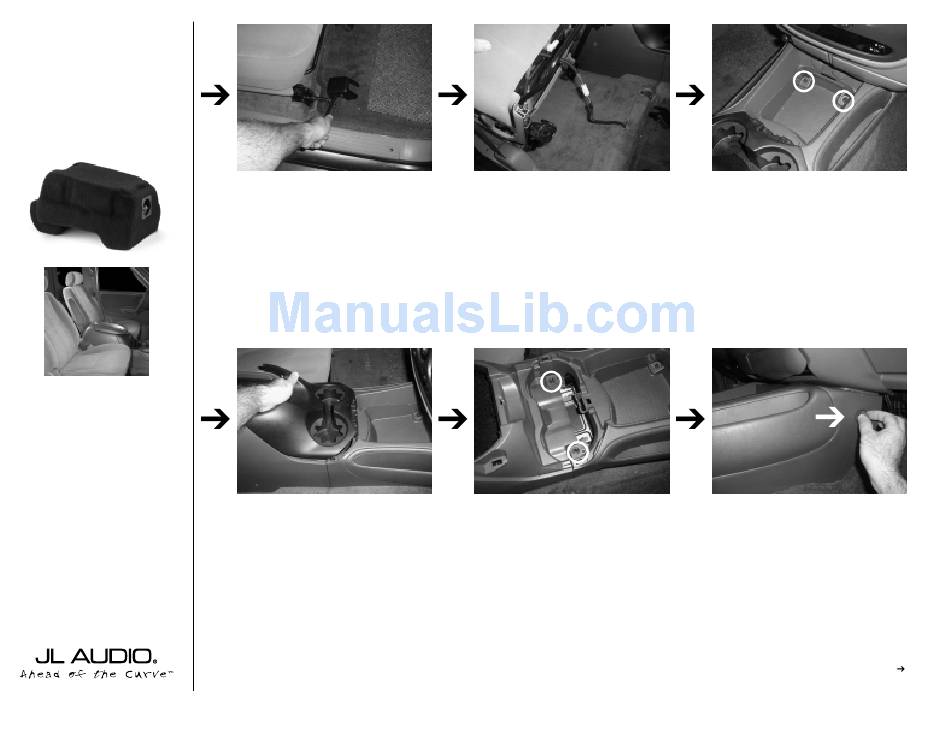

STEP 1: Using a 14mm socket, remove the
four bolts that secure the passenger side front
seat.
STEP 4: With the main storage door open,
grab ahold of the black cup holder section
and pull up.
S B - T- T U N C N S L 2 / 1 0 W 3 v 2 , J L AU D I O, I n c 2 0 0 5
STEP 2: Tilt the seat to the rear, unplug the
exposed wire assembly, remove the seat from
the truck.
STEP 5: Using a 10mm socket, remove the
exposed bolts. Also remove the bolts that are
located at the bottom of the main storage
bucket.
Pa g e 1
STEP 3: Remove the front storage access
door. Using a 10mm socket, remove the
exposed bolts.
STEP 6: Remove the plastic buttons that are
located on each side of the center console.
Continued on Next Page
S h e e t S K U # 0 1 1 1 8 0 R ev i s i o n 4 / 6 / 2 0 0 5
