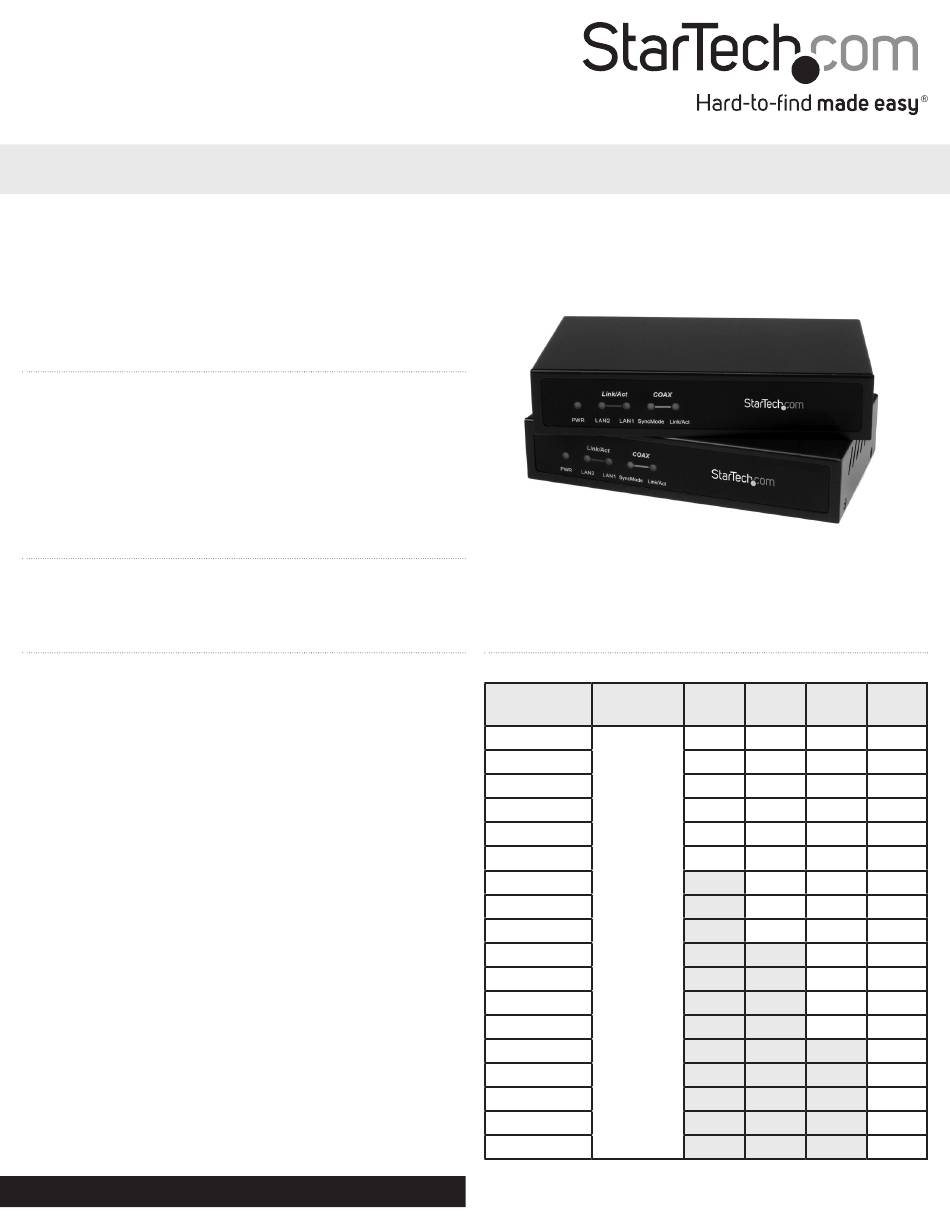

StarTech.com EOC1110R Instruction Manual

Instruction Manual
Gigabit Ethernet LAN Over Coaxial Extender Kit/Receiver - 2.4km
EOC1110K / EOC1110R
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
JP: 取扱説明書 - jp.startech.com

Packaging Contents

SKU EOC1110K:
• 2 x Ethernet over Coax converter box
• 2 x Universal Power Adapter (NA/UK/EU/AU)
SKU EOC1110R
• 1 x Coax to Ethernet Media Receiver
• 1 x Universal Power Adapter (NA/UK/EU/AU)
• 1 x Instruction Manual

System Requirements

• 10/100/1000Mbps compatible Ethernet network/equipment
• Coaxial cabling (RG-59/6/7/11)
• Available AC power outlet at converter box locations

Installation

Hardware Installation
NOTE: Both of the converter boxes in the EOC1110K kit are identical,
so they can be installed at either end, in any order.
1. At one of the locations for the converter box, connect an RJ45
Ethernet cable from the existing Ethernet network or computer
network adapter to the "LAN" port on the converter box.
2. Connect the coax cable to the "Link" F-Connector on the converter.
OPTIONAL: If also transmitting analog cable TV signals over the
coax line, connect the CATV F-Connector to a TV or TV receiver.
Digital cable TV signals are not supported.
3. Connect the included power adapter. The power LED should
light up solid. The LAN Link/Act LED should light up solid when
successfully connected to an Ethernet device on the "LAN" port.
4. Setup the other converter boxes by following the same Steps 1~4
5. Once both units are setup, they should be able to automatically
locate one another over the coax cabling. The Coax Link and Sync
LEDs should stay solid once communication is established. The
Coax Link LED will flash during communication.
6. The devices plugged into the "LAN" ports should now be able to
communicate with one another freely.

Driver Installation

No driver or software installation is required for these converters on
any connected computer systems.
For the most up-to-date information, please visit: www.startech.com

Cable Lengths

Maximum bandwidth (Mbps) based on coaxial cable type and length.
RF
Distance
Bandwidth
100m ~ 700m
800m
900m
1000m
1100m
1200m
1300m
1400m
1500m
< 30MHz
1600m
1700m
1800m
1900m
2000m
2100m
2200m
2300m
2400m
*actual product may vary from photos
RG-59 RG-6 RG-7
144 144 144
128 144 144
112 144 144
96 128 144
80 128 144
64 112 128
80 128
80 128
64 112
96
80
80
64
Manual Revision: 10/02/2018
