Xenosys L2S14C User Manual page 10

① Battery Alarm: Show the battery remaining sign
② Power ON/OFF button & Intensity change knob:
- Press the button to turn on or off LED lens module.
- Turn left or right, then the beep sound comes to change the desired light intensity. There is
no beep sound when it reaches to minimum or maximum level.
- Turn right side for brighter level and turn left for dimmer level.

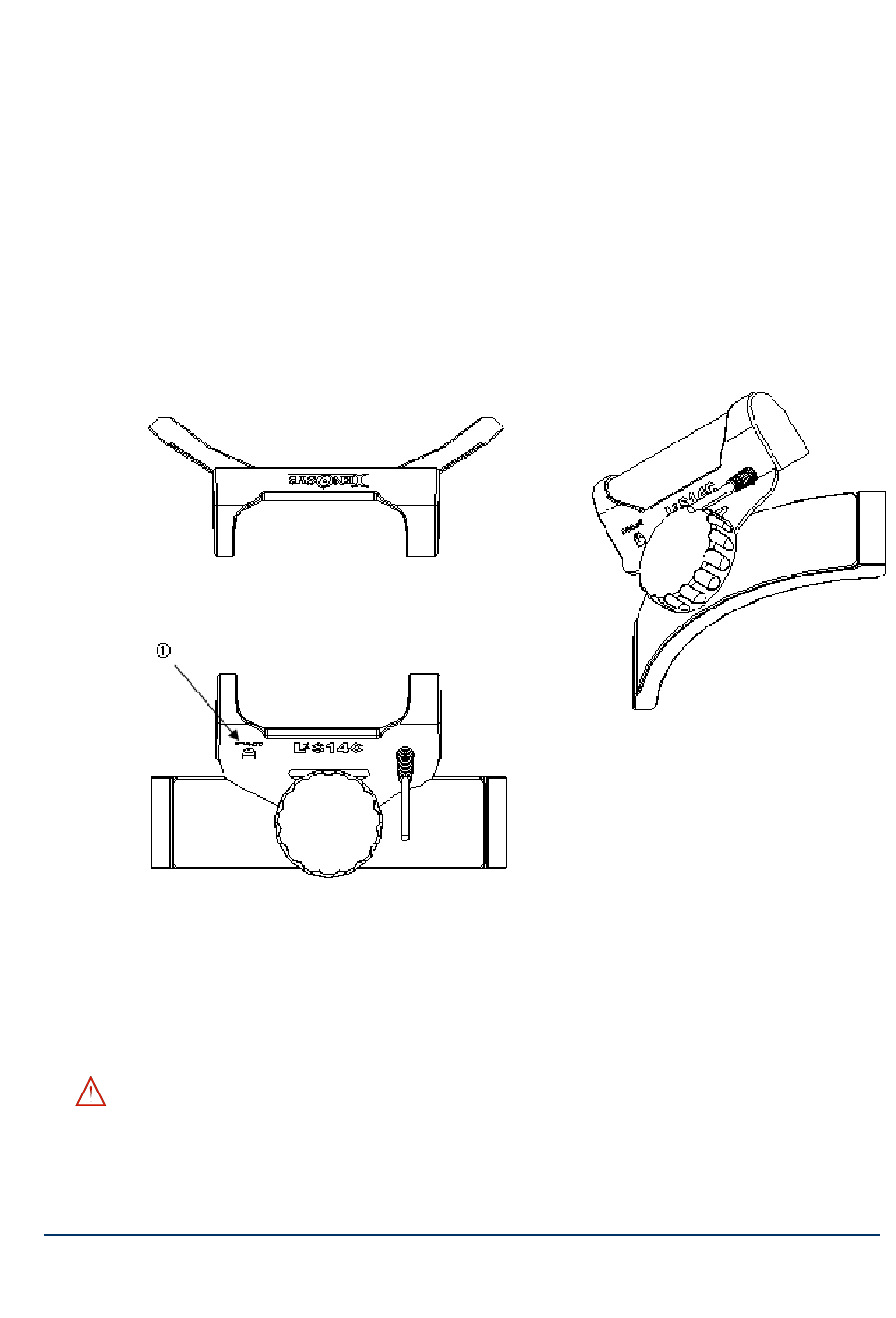

2. Battery Pack
① Ø3.5 DC4.2V Input phone jack: Connect the phone plug of the charger directly to the
battery pack to charge the battery.
Warning – Do not connect ANY OTHER charger with Ø3.5 phone jack; it will cause severe
damage to main body. This will be excluded from the under warranty and get charged.
Portable LED Headlight System (L2S14C)
Top View
+ -
Front View
10
Isometric View
