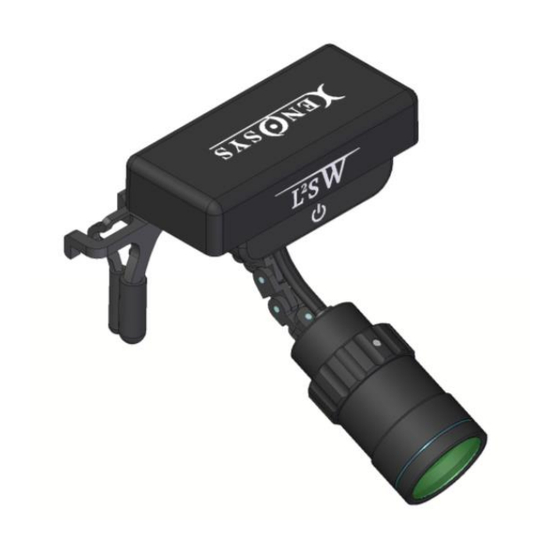

- Page 1 Doc. No. F702M-L2SWEK L2SWE (Wireless LED HeadLight System) User Manual Optical Device Medical Device System Engineering XENOSYS CO., LTD. 2, Venture-ro, 100 Beon-gil, Yeonsu-gu, Incheon 22013, Korea TEL. 82-32-875-9811~2 FAX. 82-32-875-9813 www.xenosys.co.kr / sales@xenosys.co.kr...
-
Page 2: Table Of Contents
COMPONENTS ..........................8 FUNCTIONS ............................ 9 OPERATING INSTRUCTION ......................12 BASIC TROUBLESHOOTING ......................16 SPECIFICATIONS.......................... 17 ELECTROMAGNETIC COMPATIBILITY ..................22 TRANSPORTATION ........................22 STORAGE ............................23 CLEANING INSTRUCTION ......................24 SERVICE & WARRANTY ......................24 Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... -
Page 3: Introduction
By the help of co-axial & shadow-free illumination, L2SWE provides you the excellent color rendering with consistent brightness. The biggest feature of this product is that the size of the irradiation area can be controlled by adjusting the illumination area adjustment knob. -
Page 4: Safety & Precautions
Warning for Power Unit 1. Do not use any undesignated DC power supply except Xenosys. If any damage or unexpected hazard happens by the usage of undesignated DC power supply, the manufacturer is NOT responsible for any damage or collapse. - Page 5 4. LED optic outside emits heat, so be careful on touching. 5. Do not look directly into LED lens module or some one’s eyes to avoid the risk of permanent eye damage. Warning for Battery Pack Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 6 1. Do not connect any metallic objects between the cradle connector and battery. This may cause the defective on the charger and charger cradle. 2. Use only the charger which is provided by Xenosys on the phone jack. This may cause the defective on the charger and charger cradle.
-
Page 7: Features
FEATURES 1. Operating Principle L2SWE adopts the way to deliver DC voltage from the battery to LED device through Step- Down circuit and generate light speed through the lens. Even though battery voltage is reduced, L2SWE allows LED to provide consistent brightness. -
Page 8: Components
① Main Body(LED Control (BTPWL-2 pcs, BTPWS-2 ③ Charger (LCHW) Unit, LCUWE) pcs) ① Medical DC Power Supply ② USB Power Cable (USBC) ③ KOIKO Mini Driver(DRV18) (FW8000MUSB05) ④ L2SW Universal Clip ⑤ (UGC02) Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... -
Page 9: Functions
① Power ON/OFF: Operating with touch sensor and power ON/OFF for LED lens module. ② Intensity Change Switch: Adjust the brightness intensity from 1 to 3 step. ③ Pogo Pin: Connect to battery output terminal. Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... - Page 10 ⑥ Illumination Area Adjustment Knob: Possible to adjust the diameter size of illumination field (ex. Ø 10 ~ Ø 82mm@WD400mm) ⑦ Fix Screw hole: Bolt position for universal clip or Xenosys TTL frame or loupe fix. M2 Flat headed bolt ※...
- Page 11 ③ Charging Terminal: The charging will start when the battery has been put on the charger and connect DC5V power supply connected to the power plug. Warning – Do not use non-Xenosys supplied power supply. This will cause severe damage to the cradle & main body which is also excluded from the under warranty.
-
Page 12: Operating Instruction
Warning – Do not use any other device randomly which may cause the defective reason. In case of using non-Xenosys-supplied charger with higher voltage (over 5V), it will cause the severe damage to main body. Please check if its Xenosys supplied charger and the serial number. - Page 13 10. Battery Service Life Provided battery can be charged and discharged about 300 times at room temperature. Lithium-ion battery is expendables, thus if the operating time is shortened after full charge, we recommend exchanging new battery. Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 14 1. Adjust LED lens module up-down or left-right to locate the desired position. Caution – External LED lens module’s temperature will go up to max. 46℃ during usage, so be careful. 2. After finishing the usage, slightly touch the power ON/OFF button to turn off. Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 15 3. Sit on the battery pack to fit pogo pin of main body to the battery output terminal of battery pack or disassemble the battery pack. Battery Output Terminal Pogo pin F. Example of LED Control Unit attachment ① TTL frame ② TTL frame by using universal clip Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
-
Page 16: Basic Troubleshooting
LED from charger) exchanging with new battery as it is expendables. LED lens is intermittently Contact to local distributor or Check the wire near LED lens on & off Xenosys Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... -
Page 17: Specifications
A. Main Body (LED Control Unit, LCUWE) ① Size: Refer to below photo ② Weight: 19 g B. Battery Pack (BTPWS, BTPWL) ① Size: Refer to below photo ② Weight: BTPWS (11.4 g), BTPWL (16.4 g) BTPWS BTPWL Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... - Page 18 ② Weight: 24 g D. Medical DC Power Supply (FW8000MUSB/05) ① Size: 31(L)x41(W)x77(H) [mm] ② Weight: 81 g purpose of green LED is to indicate the power ON, regardless charging status 충전과는 무관 하다 Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 19 E. USB Power Cable (USBC) ① Size: 2m ② Weight: 44 g Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 20 Field of View (mm) @WD400mm Ø 10 ~ Ø 82mm 3500 K, 400 ~ 700 nm(Visible Light) Color Temperature, Wavelength Range More than 80% @WD400mm Uniformity 50,000 hours LED Life Span (Guaranteed Time) Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
- Page 21 C. Package External Figures & Weight W228 x H138 x D80 (mm) External Figures 550 g Total Weight 3. Labels A. Outer Carton Box B. LED Control Unit C. Battery Pack D. Charger Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
-
Page 22: Electromagnetic Compatibility
2. Load L2SW boxes up and down evenly by handcart and any vehicle trunk to transport. 3. When you carry L2SW by hand, hold it with two hands firmly and disconnect charger, and Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... -
Page 23: Storage
① Store it under half-charged condition in case of non-use immediately. ② Recommend to keep it in the dry condition with ambient temperature range of +15℃ ~ +25℃. Keep away from too hot or extremely cold places. Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr... -
Page 24: Cleaning Instruction
1. This service & warranty statement applies to all countries to the extent that there is no special warranty rule. 2. All services & warranty should be provided by Xenosys Co., Ltd. or authorized personnel from Xenosys Co., Ltd. 3. Warranty becomes effective from the sales date for material, production defective, or defect under the normal use. - Page 25 9. If there is any defect happens which cannot be handled by troubleshooting in this manual, return it to the manufacturer. Then Xenosys will take care of it. If the qualified engineer determines that the defect comes from the abuse or improper use, warranty will not be applied.
- Page 26 ※ Revision List Version No. Release Date Revision Version 1.0 January 29, 2021 First version XENOSYS CO., LTD. 2, Venture-ro, 100 Beon-gil, Yeonsu-gu, Incheon 22013, Korea TEL. 032-875-9811~2 FAX. 032-875-9813 sales@xenosys.co.kr www.xenosys.co.kr / Wireless LED HeadLight System (L2SWE) www.xenosys.co.kr...
