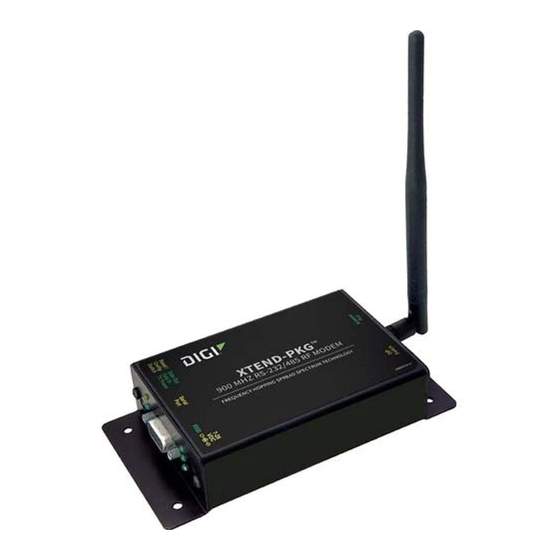

9XTend-PKG-U
USB RF Modem
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9XTend-PKG-U and is the answer not in the manual?

Questions and answers

Related Manuals for Digi 9XTend-PKG-U

Summary of Contents for Digi 9XTend-PKG-U

  • Page 1 9XTend-PKG-U USB RF Modem User Guide...
  • Page 2 To view product warranties online, visit www.digi.com/howtobuy/terms. Customer support Digi offers multiple technical support plans and service packages to help our customers get the most out of their Digi product. For information on Technical Support plans and pricing, please contact us at 952.912.3456 or visit www.digi.com/support.

  • Page 3: Table Of Contents

    DB (Received Signal Strength) Command ............9XTend-PKG-U USB RF Modem User Guide...
  • Page 4 RF Modem Status ................9XTend-PKG-U USB RF Modem User Guide...
  • Page 5 XTend vB Modem FCC-approved antennas (30 dBm Maximum RF power) ......9XTend-PKG-U USB RF Modem User Guide...

  • Page 6: About The Rf Modems

    Kb/s data throughput. Applicable hardware This manual covers both the 9XTend-PKG-U USB RF Modem and the XTend vB USB RF Modem. Throughout the manual, you will see references to the Legacy Modem and the XTend vB Modem. Legacy modems have part numbers with the format XT09-PK.-.and contain radio model XT09.

  • Page 7: Worldwide Acceptance

    FCC Approved (USA) Refer to Agency certifications on page 73 for FCC Requirements. Systems that include XTend RF Modems inherit Digi’s Certifications. ISM (Industrial, Scientific and Medical) license-free 902-928 MHz frequency band Manufactured under ISO 9001:2000 registered standards 9XTend RF Modems are optimized for use in the US, Canada, Australia and Israel Specifications Out-of-box, the 9XTend RF Modem is configured to provide immediate long range wireless links between devices.

  • Page 8: Performance Specifications

    This document describes how Digi RF products are designed to have good out-of-band interference rejection from other sources of RF emissions 1 MHz or more away from the frequency in which the Digi RF product is designed to operate. An out-of-band interfering radio is one that is intended to broadcast in one frequency but has RF energy that bleeds-over to affect a second radio operating on a different frequency.

  • Page 9: Networking And Security Specifications

    Peer-to-Peer (“Master/Slave” relationship not required), Point-to-Point, Point-to-Multipoint and Multidrop Channel Capacity 10 hop sequences share 50 frequencies Encryption 256-bit AES Encryption – To implement, refer to the KY (AES Encryption Key) Command page 39 9XTend-PKG-U USB RF Modem User Guide...

  • Page 10: Physical Specifications

    * If the supply voltage for a given power setting is lower than the minimum supply voltage requirement, the TX Power Output will decrease to the highest power level setting given the current supply voltage. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 11: External Interface

    The antenna port is a 50 RF signal connector for connecting to an external antenna. The connector type is RPSMA (Reverse Polarity SMA) female. The connector has threads on the outside of a barrel and a male center conductor. 1‐02a. Config Switch 1‐02b. Antenna Port 9XTend-PKG-U USB RF Modem User Guide...

  • Page 12: Pin Signals

    Legacy modem will issue a warning if transmission is attempted at a power level higher than 100 mW, and the XTend vB modem will issue a warning is transmission is attempted at a power level higher than 500 mW. For more information on warnings, see WN (Warning Data) command on page 54. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 13: Operation

    USB has two types of devices: Those that supply drivers (a host, such as a PC); and those that require a driver (a client, such as a Digi USB RF Modem). When a USB client is plugged into a host, the host prompts for a driver. Once a driver is located, the host loads the driver on the first use of the USB client;...

  • Page 14: Api Operation

    XTend RF Modems operate in five modes. Idle mode When not receiving or transmitting data, the RF modem is in Idle Mode. The modem shifts into the other modes of operation under the following conditions: 9XTend-PKG-U USB RF Modem User Guide...

  • Page 15: Transmit Mode

    This could be the case if more than PK bytes were originally pending in the DI buffer or if more bytes arrived from the UART after the transmission began. If more data is pending, the transmitting modem assembles a subsequent packet for transmission. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 16: Receive Mode

    If the CRC data bits on the incoming packet are invalid, the packet is discarded. If the CRC is valid, the packet proceeds to the DO Buffer. The following figure shows the Receive Mode Data Flow. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 17: Sleep Mode

    When in Sleep Mode, the modem will not transmit or receive data until the modem first transitions to Idle Mode. All Sleep Modes are enabled and disabled using SM Command. Transitions into and out of Sleep Modes are triggered by various mechanisms as shown in the table below. 9XTend-PKG-U USB RF Modem User Guide...
  • Page 18 Serial Port Sleep (SM = 2) • Wake on serial port activity Serial Port Sleep is a Sleep Mode in which the modem runs in a low power state until serial data is detected on the DI pin. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 19: Command Mode

    Command mode To modify or read modem parameters, the modem must first enter into Command Mode (state in which incoming characters are interpreted as commands). Two command types are supported: • AT Commands 9XTend-PKG-U USB RF Modem User Guide...

  • Page 20: At Command Mode

    2. Assert (low) the CONFIG pin and turn the power going to the modem off and back on (or pulse the SHDN pin). [If the modem is mounted to a Digi RS-232/485 Interface Board, the result can be achieved by pressing the configuration switch down for 2 seconds.]...

  • Page 21: Binary Command Mode

    In this graph, a value was written to a register and then read out to verify it. While not in the middle of other received data, note that the CTS signal outlines the data response out of the modem. 9XTend-PKG-U USB RF Modem User Guide...
  • Page 22 CMD pin is asserted and therefore will not recognize the data as binary commands. For a binary programming example, see Binary commands on page 24 (DT command example returns two bytes). 9XTend-PKG-U USB RF Modem User Guide...

  • Page 23: Configure The Rf Modem

    Use XCTU to configure the RF Modem XBee Configuration and Test Utility (XCTU) is a multi-platform program that enables developers to interact with Digi radio frequency (RF) devices through a graphical interface. The application includes built-in tools that make it easy to set up, configure, and test Digi RF devices.

  • Page 24: Binary Commands

    4. De-assert CMD (GPI1 is driven low). (Exit Binary Command Mode) Note CTS (GPO1) is high when a command is being executed. Hardware flow control must be disabled as CTS will hold off parameter bytes. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 25: Command Reference Table

    Command Mode Timeout 2 - 0xFFFF [x 100 ms] Command Mode 0xC8 Options (200d) 0x36 (54d) Received Signal Strength 0x6E - 0x28 [read-only] Diagnostics 0x00 (0d) Destination Address 0 - 0xFFFF Networking and Security 0x0A (10d) Echo Off Command Mode Options 9XTend-PKG-U USB RF Modem User Guide...
  • Page 26 0x2A (42d) Source Address 0 - 0xFFFF Networking and 0xFFFF Security (65535d) 0x23 (35d) Parity 0 - 4 Serial Interfacing 1 PB v2.x20* 0x45 (69d) Polling Begin Address 0 - 0xFFFF Networking and Security 9XTend-PKG-U USB RF Modem User Guide...
  • Page 27 Power) (100d) 0x38 (56d) Board Temperature 0 - 0x7F [read-only] Diagnostics 0x1B (27d) Delivery Failure Count 0 - 0xFFFF [read-only] Diagnostics 0x1A (26d) Streaming Limit 0 - 0xFFFF [0 = disabled] Networking and Security 9XTend-PKG-U USB RF Modem User Guide...

  • Page 28: Command Descriptions

    The address is formed with bits 29, 28 and 13-0 of the serial number (in that order). The resulting value is displayed as a result of this command. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 29: Ap (Api Enable) Command

    The RF data rate is not affected by the BD parameter. If the interface data rate is set higher than the RF data rate, a flow control configuration may need to be implemented. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 30: Br (Rf Data Rate) Command

    <RF Interfacing> The BR command is used to set and read the RF data rate (rate that RF data is transmitted over-the- air) of the modem. AT Command: ATBR Binary Command: 0x39 (57 decimal) Parameter Range:0 - 1 9XTend-PKG-U USB RF Modem User Guide...

  • Page 31: Bt (Guard Time Before) Command

    AT Command: ATCC Binary Command: 0x13 (19 decimal) Parameter Range: 0x20 - 0x7F Default Parameter Value: 0x2B (ASCII “+”) Number of bytes returned: 1 Related Commands: AT (Guard Time After), BT (Guard Time Before) 9XTend-PKG-U USB RF Modem User Guide...

  • Page 32: Cc (Command Sequence Character) Command

    Binary Command: 0x28 (40 decimal) Parameter Range: 0 - 8 (standard rates) Parameter Configuration RX LED Default High Default Low (reserved) RX LED (valid address only) Default Parameter Value: 2 Number of bytes returned: 1 9XTend-PKG-U USB RF Modem User Guide...

  • Page 33: Cf (Number Base) Command

    By default, GP01 provides RS-232 CTS (Clear-to-Send) flow control. AT Command: ATCS Binary Command: 0x1F (31 decimal) Parameter Range: 0 - 4 Parameter Configuration RS-232 CTS flow control RS-485 TX enable low High RS-485 TX enable high 9XTend-PKG-U USB RF Modem User Guide...

  • Page 34: Ct (Command Mode Timeout) Command

    0x8000 (which means an RF packet has not yet been received). AT Command: ATDB Binary Command: 0x36 (54 decimal) Parameter Range (read-only): 0x6E - 0x28 (-110 to -40 Decimal) Number of bytes returned: 2 9XTend-PKG-U USB RF Modem User Guide...

  • Page 35: Dt (Destination Address) Command

    (up to 0xFFFF), it remains at its maximum count value until the maximum count value is explicitly changed or the modem is reset. The ER parameter is not reset by pin, serial port or cyclic sleep modes. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 36: Fh (Force Wake-Up Initializer) Command

    RF initializer. The RF modems then remain synchronized for subsequent packets of the stream. This parameter can be used to periodically force an RF initializer during such streaming. Any break in UART 9XTend-PKG-U USB RF Modem User Guide...

  • Page 37: Ft (Flow Control Threshold) Command

    Related Commands: ER (Receive Error Count) HP (Hopping Channel) Command <Networking and Security> The HP command is used to set/read the RF modem's hopping channel number. A channel is one of three layers of filtration available to the modem. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 38: Ht (Time Before Wake-Up Initializer) Command

    HV (Hardware Version) Command <Diagnostics> The HV command is used to read the hardware version of the RF modem. AT Command: ATHV Parameter Range:0 - 0xFFFF [Read-only] Legacy Modem Minimum Firmware Version Required: v1.x80 9XTend-PKG-U USB RF Modem User Guide...

  • Page 39: Id (Modem Vid) Command

    Time must be longer than the cyclic sleep time that [as determined by SM (Sleep Mode) parameter]. If the wake-up initializer time were less than the Cyclic Sleep interval, the connection would be at risk of missing the wake-up initializer transmission. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 40: Md (Rf Mode) Command

    Transparent Operation (Repeater Base) [reserved - not used] [reserved - not used] Polling Base Polling Remote Repeater Repeater End Node Default Parameter Value: 0 Number of bytes returned: 1 Legacy Modem Minimum Firmware Version Required: 2.x20 9XTend-PKG-U USB RF Modem User Guide...

  • Page 41: Mk (Address Mask) Command

    Binary Command: 0x3D (61 decimal) Parameter Range: 0 - 0xFF Default Parameter Value:0 (no forced retransmissions) Number of bytes returned: 1 Related Commands: Networking (DT, MK, MY, RN, TT), Serial Interfacing (BR, PK, RB, RO), RF Interfacing (FS) 9XTend-PKG-U USB RF Modem User Guide...

  • Page 42: My (Source Address) Command

    Remote’ responds by sending the data from the Data In buffer following the RB and RO parameters. When there is no eligible data to send, the ‘Polling Remote’ will not respond. The ‘Polling Base’ will move to the next address in the polling sequence after a short delay. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 43: Pd (Minimum Polling Delay) Command

    ‘Polling Remote’ will not respond. The ‘Polling Base’ will move to the next address in the polling sequence after a short delay. AT Command: ATPE Binary Command: 0x46 (70 decimal) Parameter Range: 0 - 0xFFFF 9XTend-PKG-U USB RF Modem User Guide...

  • Page 44: Pk (Maximum Rf Packet Size) Command

    XTend vB modem does not support the 1 mW and 10 mW power levels. If PL is set to 0 or 1, the device will transmit at 100 mW. AT Command: ATPL Binary Command: 0x3A (58 decimal) Parameter Range: 0 - 4 Default Parameter Value: 4 Number of bytes returned: 1 9XTend-PKG-U USB RF Modem User Guide...

  • Page 45: Pw (Pin Wake-Up) Command

    Note: RB and RO criteria only apply to the first packet of a multi-packet transmission. If data remains in the DI Buffer after the first packet, transmissions will continue in a streaming manner until there is no data left in the DI Buffer (UART receive buffer). 9XTend-PKG-U USB RF Modem User Guide...

  • Page 46: Rc (Ambient Power - Single Channel) Command

    50 power levels (this is easiest to do when CF = 1 or 2). Sample output [when CF = 0]: Ch 0: -100 dBm Ch 1: -103 dBm Ch 49: -99 dBm Sample output [when CF = 1]: 9XTend-PKG-U USB RF Modem User Guide...

  • Page 47: Rn (Delay Slots) Command

    When RO is the transmission-beginning criteria: The actual time between the reception of the last character from the UART and the beginning of RF transmission will be at least 800 µsec longer than the actual RO time to allow for 9XTend-PKG-U USB RF Modem User Guide...

  • Page 48: Rp (Rssi Pwm Timer) Command

    The Config/RSSI pin is shared between PWM output and Config input. When the modem is powered, the Config pin is an input. During the power-up sequence, if RP parameter is a non-zero value, the Config pin is configured as an output 9XTend-PKG-U USB RF Modem User Guide...

  • Page 49: Rr (Retries) Command

    Number of bytes returned: 1 Related Commands: SM (Sleep Mode), ST (Time before Sleep) SB (Stop Bits) Command <Serial Interfacing> The SB Command is used to set/read the number of stop bits in the data packet. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 50: Sh (Serial Number High) Command

    SM (Sleep Mode) Command <Sleep Mode (Low Power)> The SM Command is used to set/read the RF modem's Sleep Mode settings that configure the modem to run in states that require minimal power consumption. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 51: St (Time Before Sleep) Command

    This command can only be used if Cyclic Sleep or Serial Port Sleep Mode settings have been selected using SM (Sleep Mode) Command. AT Command: ATST Binary Command: 0x02 (2 decimal) Parameter Range:(ATAT+3) - 0x7FFF [x 100 milliseconds] Default Parameter Value: 0x64 (100 decimal) 9XTend-PKG-U USB RF Modem User Guide...

  • Page 52: Tp (Board Temperature) Command

    (once it sends TT bytes of data). Inserted random delay lasts between 1 and 'RN + 1' delay slots, where each delay slot lasts 38 ms. The TT command can be used to simulate full-duplex behavior. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 53: Tx (Transmit Only) Command

    <Diagnostics> The VR command is used to read the firmware version of the RF modem. Note: Firmware versions contain four significant digits - “A.B.C.D”. If B=2, the modem is programmed for operation in Australia only. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 54: Wa (Active Warning Numbers) Command

    Under-temperature. This is caused if the temperature sensed by the module is less than -40 C. The module does not artificially limit operation while this warning is active, but module functionality is not guaranteed. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 55: Wr (Write) Command

    (including any warnings which are currently active). This command also resets all non-zero warning counts, except for warnings that are presently active, which are set to 1. AT Command: ATWS Parameter Range (read-only): 1 - 8 Number of bytes returned: 1 9XTend-PKG-U USB RF Modem User Guide...

  • Page 56: Api Operation

    Start Delimiter Length Frame Data Checksum (Byte 1) (Bytes 2-3) (Bytes 4-n) (Byte n + 1) 0x7E API-specific Structure 1 Byte Characters Escaped If Needed MSB = Most Significant Byte, LSB = Least Significant Byte 9XTend-PKG-U USB RF Modem User Guide...

  • Page 57: Api Types

    Refer to the sections that follow for more information regarding the supported API types. Note that multi-byte values are sent big endian. RF Modem Status API Identifier: 0x8A RF modem status messages are sent from the modem in response to specific conditions. 9XTend-PKG-U USB RF Modem User Guide...
  • Page 58 TX (Transmit) Status API Identifier Value: 0x89 When a TX Request is completed, the modem sends a TX Status message. This message will indicate if the packet was transmitted successfully or if there was a failure. 9XTend-PKG-U USB RF Modem User Guide...
  • Page 59 Hexadecimal equivalent of (-dBm) value. Up to 2048 Bytes per bit 1 = Indicate broadcast LSB (least significant) last (For example: If RX signal strength = -40 packet bits 2-7 [reserved] dBm, “0x28” (40 decimal) is returned) 9XTend-PKG-U USB RF Modem User Guide...

  • Page 60: Rf Communication Modes

    1. Use XCTU or another terminal program to send the AM command. See the AM command for details. 2. Set the destination address to 0xFFFF, send: ATDT FFFF Basic RF modes Streaming, Multi-Transmit, Repeater. Acknowledged RF mode 9XTend-PKG-U USB RF Modem User Guide...

  • Page 61: Point-To-Multipoint Networks

    3. Send ATRR 3 to set the number of retries to 3. Remotes: 1. Use XCTU or another terminal program to send the AM command. 2. Send ATDT FFFF to set the destination address to 0xFFFF. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 62: Basic Rf Modes

    In Peer-to-peer networks, RF devices remain synchronized without the use of master/server dependencies. Each device shares the roles of master and slave. Digi's peer-to-peer architecture features fast synch times (35 ms to synchronize devices) and fast cold start times (50 ms before transmission).

  • Page 63: Acknowledged Rf Mode

    RF data. When using Basic communications, the integrator handles any functions, such as acknowledgments, at the application layer. The Broadcast modes provide transparent communications, meaning that the RF link replaces a wired link. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 64: Streaming Mode (Default)

    Every RF packet is sent exactly MT + 1 times, with no delays between packets. Diminished throughput and increased latency. Required parameter values (TX MT ≥ 1. device) Related commands Networking (DT, MK, MY, RN, TT), Serial interfacing (BR, PK, RB, RO), RF interfacing (FS). 9XTend-PKG-U USB RF Modem User Guide...

  • Page 65: Multi-Transmit Mode Connection Sequence

    System must introduce only one packet at a time to the network for transmission. The PK parameter determines the maximum number of bytes. Each hop (H) decreases network throughput by a factor of 1/(H+1). Additional repeaters add network redundancy without decreasing throughput. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 66: Repeater Mode Theory Of Operation

    (DT = 0xFFFF) and shift out of every device in the network (Basic Broadcast). Alternately, you can send the packet with a specific DT parameter so that only a specific remote node accepts it (Basic Addressed). 9XTend-PKG-U USB RF Modem User Guide...

  • Page 67: Repeater Network: Configure Communications

    The algorithm allows devices that receive the packet with a stronger RF signal (RSSI) to have the first opportunity to retransmit the packet. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 68: Response Packet Delay

    Auto-set MY 0x00 (0d) Destination Address 0 - 0xFFFF 0x3C (60d) RF Mode 0 - 6 0x2A (42d) Source Address 0 - 0xFFFF 0xFFFF 0x19 (25d) Delay Slots 0 - 0xFF [slots] 0x08 (8d) Write 9XTend-PKG-U USB RF Modem User Guide...

  • Page 69: Bandwidth Considerations

    Required parameter MD (RF Mode) = 3 values (Base) PB (Polling Begin Address) PE (Polling End Address) Required parameter MD (RF Mode) = 4 values (Remote) Related commands Networking: MT, PD, DT, MY, and AM 9XTend-PKG-U USB RF Modem User Guide...

  • Page 70: Polling Mode Theory Of Operation

    Throughput, latency and jitter vary depending on the quality of the channel and the strength of the signal. Required parameter RR (Retries) >= 1 values (TX device) Related commands Networking (DT, MK, RR), Serial Interfacing (PK, RN, RO, RB, TT) 9XTend-PKG-U USB RF Modem User Guide...

  • Page 71: Acknowledged Mode Connection Sequence

    The intent of these delays is to lessen congestion following long bursts of packets from a single TX device, during which several RX devices may have themselves become ready to transmit. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 72: Polling Mode (Acknowledged)

    Networking (RR, PD, DT, MY, AM) For configuration and theory of operation information, see Polling mode theory of operation on page 70, Configure a Polling Base on page 70 and Configure a Polling Remote on page 70. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 73: Agency Certifications

    (2) this device must accept any interference received, including interference that may cause undesired operation. Modifications (FCC 15.21) Changes or modifications to this equipment not expressly approved by Digi may void the user’s authority to operate this equipment. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 74: Ic (Industry Canada) Certification

    (in dBm) of power output, antenna gain and cable loss and cannot not exceed 30 dBm. The EIRP formula for Australia is: Note The maximum EIRP for the FCC (United States) and IC (Canada) is 36 dBm. 9XTend-PKG-U USB RF Modem User Guide...

  • Page 75: Legacy Xtend Modem Fcc-Approved Antennas

    Fiberglass Base Station 1.0 dBi Fixed A09-F2 Fiberglass Base Station 2.1 dBi Fixed A09-F3 Fiberglass Base Station 3.1 dBi Fixed A09-F4 Fiberglass Base Station 4.1 dBi Fixed A09-F5 Fiberglass Base Station 5.1 dBi Fixed 9XTend-PKG-U USB RF Modem User Guide...
  • Page 76 When operating at 1 W power output, the sum (in dB) of cable loss and antenna gain shall not exceed 6.0 dB. Mag Mount antennas (approved when operating at 1-watt power output or lower) 9XTend-PKG-U USB RF Modem User Guide...
  • Page 77 When operating at 1 W power output, the sum (in dB) of cable loss and antenna gain shall not exceed 6.0 dB. Half-wave antennas (approved when operating at 100 mW power output or lower) 9XTend-PKG-U USB RF Modem User Guide...
  • Page 78 Fixed / Mobile A09-QSPM-3 3" Straight screw mount Permanent 1.9 dBi Fixed / Mobile A09-QAPM-3 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile A09-QAPM-3H 3" Articulated screw mount Permanent 1.9 dBi Fixed / Mobile 9XTend-PKG-U USB RF Modem User Guide...
  • Page 79 14.1 dBi Fixed / Mobile A09-Y14TM 12 Element Yagi RPTNC 14.1 dBi Fixed / Mobile A09-Y15TM 13 Element Yagi RPTNC 15.1 dBi Fixed / Mobile A09-Y15TM 15 Element Yagi RPTNC 15.1 dBi Fixed / Mobile 9XTend-PKG-U USB RF Modem User Guide...

  • Page 80: Xtend Vb Modem Fcc-Approved Antennas (30 Dbm Maximum Rf Power)

    Digi does not carry all of these antenna variants. Contact Digi Sales for available antennas. Dipole antennas All antenna part numbers followed by an asterisk (*) are not available from Digi. Consult with an antenna manufacturer for an equivalent option.
  • Page 81 14 element Yagi 14.0 dBi RPTNC 9.9 dB Fixed/Mobile Omni-directional base station antennas All antenna part numbers followed by an asterisk (*) are not available from Digi. Consult with an antenna manufacturer for an equivalent option. Required Antenna Part Number Type Gain...
  • Page 82 Wire Base Station 7.1 dBi RPTNC 1.9 dB Fixed Dome antennas All antenna part numbers followed by an asterisk (*) are not available from Digi. Consult with an antenna manufacturer for an equivalent option. Required Antenna Cable Part Number Type Gain...
  • Page 83 Legacy XTend Modem FCC-approved antennas Monopole antennas All antenna part numbers followed by an asterisk (*) are not available from Digi. Consult with an antenna manufacturer for an equivalent option. Required Antenna Cable Part Number Type Gain Connector Loss Application A09-QRAMM 3"...
