EVM User's Guide: TAS2320EVM
TAS2320 Evaluation Module
Description
The TAS2320EVM has been designed to demonstrate
the performance of TAS2320 in a mono configuration.
This tool utilizes the AC-MB to provide a USB to
Audio interface to the EVM. Up to four devices
can share a common bus through I
2
I C interfaces. The TAS2320EVM supports a dual-
mono configuration combining two TAS2320EVMs or
TAS2120EVM and TAS2320EVM.
Get Started
1. Order TAS2320EVM
download the PPC3 from the
folder.
2. Read the TAS2320 data
SLAU944 – AUGUST 2024
Submit Document Feedback
2
S/TDM and
and request access to
TAS2320 product
sheet.

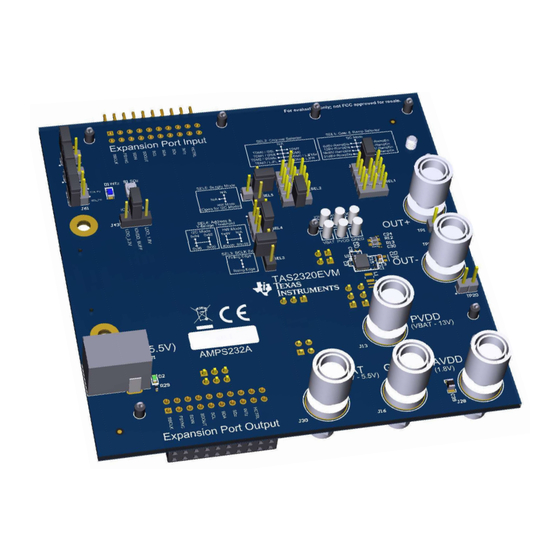

TAS2320 Mono Evaluation Module
Copyright © 2024 Texas Instruments Incorporated
3. Visit and ask questions at
Features
• Mono speaker evaluation
• Plug-n-play hardware mode
• Advanced software mode interface using
PurePath ™ Console 3 Windows
• EVM interconnection for stereo testing
• USB input
2 2
• External I C and I S/TDM host controller
connection available
Applications
• Mobile phone, tablets
• Smart speakers with voice assistance
• Bluetooth and wireless speakers
Description
e2e forum.
® software
and wearables
