www.ti.com
EVM User's Guide: TAS2118EVM
TAS2118 Evaluation Module
Description
The TAS2118EVM has been designed to demonstrate
the performance of TAS2118 in a mono configuration.
The EVM utilizes the AC-MB to provide a USB to
Audio interface to the EVM. Up to four devices
can share a common bus through I
interfaces. The TAS2118EVM also supports a dual-
mono configuration by combining two TAS2118EVMs.
Get Started
1. Order the
TAS2118EVM
resources in the
TAS2118 product
2. Read the
TAS2118 data
3. Request and download
4. Request access to the
5. Visit
E2E forum
for any questions.
SLAU963 – MAY 2025
Submit Document Feedback
2
2
S/TDM and I
C
and access supplemental
folder.
sheet.
Pure Path Console
3.
TAS2118-SW
page.

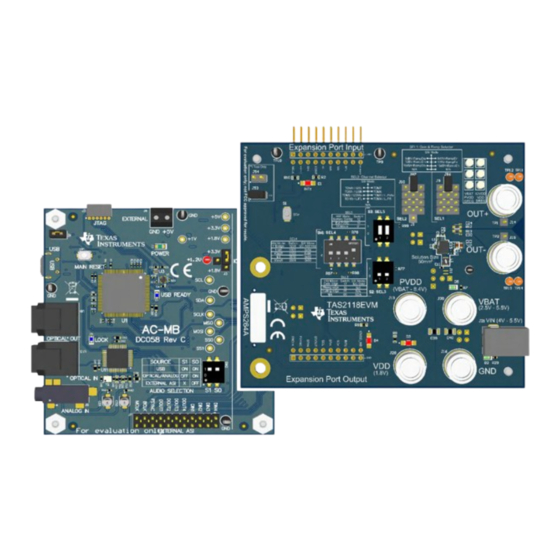

TAS2118 Mono Evaluation Module
Copyright © 2025 Texas Instruments Incorporated
Features
•
Mono speaker evaluation
•
Plug-n-play hardware mode
•
Advanced software mode interface using
PurePath
™
Console 3 Windows
•
EVM interconnection for stereo testing
•
USB input
2
2
•
External I
C and I
S/TDM host controller
connection available
Applications
•
Mobile
phone,
tablets
•
Smart speakers with voice assistance
•
Bluetooth and wireless speakers
Description
®
software
and
wearables
TAS2118 Evaluation Module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TAS2118EVM and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments TAS2118EVM

Summary of Contents for Texas Instruments TAS2118EVM

  • Page 1 Description EVM User's Guide: TAS2118EVM TAS2118 Evaluation Module Description Features The TAS2118EVM has been designed to demonstrate • Mono speaker evaluation the performance of TAS2118 in a mono configuration. • Plug-n-play hardware mode The EVM utilizes the AC-MB to provide a USB to •...

  • Page 2: Kit Contents

    1 Evaluation Module Overview 1.1 Introduction This user's guide describes the function and use of the TAS2118EVM. This document includes the hardware configuration instructions, a quick-start guide, jumper and connector descriptions, software description, schematics, and printed circuit board (PCB) layout that demonstrate TI's recommended practices for these devices.

  • Page 3: Device Information

    I C is disabled and replaced with basic option selection re-purposing some of the digital control pins. SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 4 Quick Start Guide www.ti.com 2 Quick Start Guide TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 5 • Set the IOVDD jumper on AC-MB to either 3.3V or 1.8V. • Connect USB cable from PC to AC-MB. • Connect 5V power adapter to barrel jack J21 on TAS2118EVM. • Configure TAS2118 registers with PurePath Console (PPC3). SLAU963 – MAY 2025...
  • Page 6 PurePath Console 3 is a highly integrated and easy-to-use audio development suite designed to simplify the evaluation and configuration associated with the development of Texas Instruments audio products. The PPC3 software can be requested here. Once access has been granted the software can be downloaded from the same link.
  • Page 7 Quick Start Guide Figure 2-5. TAS2118 PPC3 App - Device Control Overview 2.2 TAS2118EVM Setup for Hardware Pin-Control Mode Follow the information presented in this section to properly set the EVM for Hardware Pin-Control Mode. Place the jumpers as instructed in Table 2-2.
  • Page 8 • Set the IOVDD jumper on AC-MB to either 3.3V or 1.8V. • Connect 5V power adapter to barrel jack J21 on TAS2118EVM • Connect USB cable from PC to AC-MB. At this moment, the device is powered up and running, ready to play audio. The evaluation kit works as any other sound card, select the EVM as system playback device and use any software like web browser, media player, and so forth.

  • Page 9: Speaker Outputs

    J22. This allows flexible supply options for VBAT to use either banana or barrel-jack supply. VBAT side of L1 inductor is always connected to J30. 3.2.1 External PVDD EVM Hardware Configuration This section shows how to set the EVM jumpers to evaluate TAS2118EVM in a External PVDD application for VBAT as depicted in Figure 1-3.
  • Page 10 Figure 3-2. AC-MB Audio Serial Interface Routing Switch SW2 on the AC-MB selects the audio serial bus that interfaces with the TAS2118EVM daughter card. Next to switch SW2, the AC-MB has a quick reference table to identify the audio serial interface source options and switch settings.
  • Page 11 (USB or external). The voltage levels available are 1.2V, 1.8V and 3.3V, and can be selected via the J3 header IOVDD. Default setting for TAS2118EVM operation is 3.3V; 1.2V operation cannot be used for TAS2118EVM. When the motherboard is fully powered and the power supplies from the onboard LDOs are correct, the green POWER LED (D3) turns ON.
  • Page 12 Figure 3-6. Power -Supply Distribution of the AC-MB 3.8 4-Wire Measurement of Load TAS2118EVM has been designed such that the dummy load or speaker load connected to the device can be measured very accurately directly from the device pin including board parasitic and connector contact resistance using 4-wire method in digital multimeter.
  • Page 13 Hardware Figure 3-8. 2-Channel EVM Interconnection SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...

  • Page 14: Troubleshooting

    – Make sure J3-IOVDD on the companion AC-MB board is set to either 3.3V or 1.8V. Please note 1.2V is not supported by TAS2118 and is not be used. – Make sure J54 on TAS2118EVM is open. This is an optional jumper that is only used in special cases when connecting 2 EVMs together as described in Section 3.9.
  • Page 15 J2:J1: N/A 5.1k A6SN-2104 EXT PVDD 1S Mode 5.1k SH-J10 ADDR SEL ADDR SEL ADDR SEL SEL2_SCL1 SPC02SYAN J10 TOP VIEW Figure 5-1. TAS2118EVM Schematic (Sheet 1 of 4) +5V_MB QTE-020-01-L-D-A RESET IOVDD_MB SBCLK_LB FSYNC_LB I2C_SCL I2C_SDA SDOUT1 SDOUT1 33.0 SDIN1 SDIN1 33.0...
  • Page 16 1.50k 1.50k VCCA VCCB SCL_+1.8V I2C_SCL SCL_A SCL_B SDA_+1.8V I2C_SDA SDA_A SDA_B 24FC512-I/ST IOVDD_MB TCA9416DDF Figure 5-3. TAS2118EVM Schematic (Sheet 3 of 4) 3.3V VIN (4.0V to 5.5V) +1.8V_LDO Green VBAT1 3.3V Green 1µF 0.1uF 47uF 0.1uF 0.1uF VDD1 TLV75718PDBVR...
  • Page 17 Hardware Design Files 5.2 PCB Layouts Figure 5-5. TAS2118EVM Top Overlay Figure 5-6. TAS2118EVM Top Solder Mask SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 18 Hardware Design Files www.ti.com Figure 5-7. TAS2118EVM Top Layer Figure 5-8. TAS2118EVM Layer 2 TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 19 Hardware Design Files Figure 5-9. TAS2118EVM Layer 3 Figure 5-10. TAS2118EVM Layer 4 SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 20 Hardware Design Files www.ti.com Figure 5-11. TAS2118EVM Layer 5 Figure 5-12. TAS2118EVM Bottom Layer TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 21 Hardware Design Files Figure 5-13. TAS2118EVM Bottom Solder Mask Figure 5-14. TAS2118EVM Bottom Overlay SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 22 D1, D3, D4 1206 CTL1206FRD1T-CT Venkel 1.5V 1206 (3216 Metric) D2, D5 Green LED, Green, SMD LED_0603 LTST-C191KGKT Lite-On H1, H3, H7 HNSS440 B&F Fastener Supply TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 23 RES, 100, 1%, 0.1 W, 0402 0402 ERJ-2RKF1000X Panasonic R3, R4, R70, RES, 24 k, 5%, 0.05 W, 0201 0201 RC0201JR-0724KL Yageo America R71, R97, R98 SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 24 Solutions J13, SH-J14, SH-J15, SH- J28, SH-J29 Dip Switch SPST 4 Position Surface Omron Electronics Mount Slide (Standard) Actuator A6SN-4104-P Inc-EMC Div 25mA 24VDC TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 25 RAF Electronic H9, H11 8MM RD X 6MM X M3 10x10mm M3561-SS Hardware Standoff, Male/Male Thread, H10, H12 Standoff SO-0515-02-02-01 Samtec 5.15mm, M3 x 0.5 SLAU963 – MAY 2025 TAS2118 Evaluation Module Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...
  • Page 26 Table 5-1. Bill of Materials (continued) Package Alternate Part Alternate Designator Quantity Value Description Part Number Manufacturer Reference Number Manufacturer JUMPER-0.015x0.0 Jumper-0.015x0.072-0.04p Jumper-0.015x0.072-0.04p Jumper 72-0.04p TAS2118 Evaluation Module SLAU963 – MAY 2025 Submit Document Feedback Copyright © 2025 Texas Instruments Incorporated...

  • Page 27: Additional Information

    Additional Information 6 Additional Information 6.1 Trademarks PurePath ™ is a trademark of Texas Instruments. Windows ® is a registered trademark of Microsoft Corporation. All trademarks are the property of their respective owners. 7 Revision History NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
  • Page 28 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 29 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 30 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 31 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 32 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 33 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2025, Texas Instruments Incorporated...
