DMX-controlled operation

You can control the device individually via your DMX-controller. Every DMX-channel has a different
occupation with different features. The individual channels and their features are listed under DMX-protocol.

QuickDMX

Connect the transmitter to the DMX controller. Set each transmitter and the AKKU UP-4 QCL Spot
QuickDMX into operation. Switch the function switch (QuickDMX) to ON.
The QuickDMX status indicator shortly flashes red, green and blue. Afterward, it lights permanently
according to the selected transmission channel.
Set each transmitter and receiver to the same transmission channel. For this purpose, shortly press the
button ID SET on the device.
The selected transmission channel is indicated by the status indicator.
Channel Color
1 Red
2 Green
3 Blue
4 Yellow
5 Cyan
6 Magenta
Thus, the wireless DMX network is set up and the receivers are paired to the transmitter. The assignment of
the receivers to the transmitter is kept memorized even after disconnecting the power supply.
As soon as the transmitter receives a DMX signal, the status indicator switches to red. Shortly afterward, the
status indicators of the receivers start flashing green to indicate that the DMX signal is being received. The
DMX-controlled units can now be controlled via radio.
After the operation, disconnect the mains plug of the power supply unit from the mains outlet, to prevent
unnecessary power consumption.

USE

Several receivers may be assigned to a transmitter. It is possible to operate a maximum of 512 receivers.

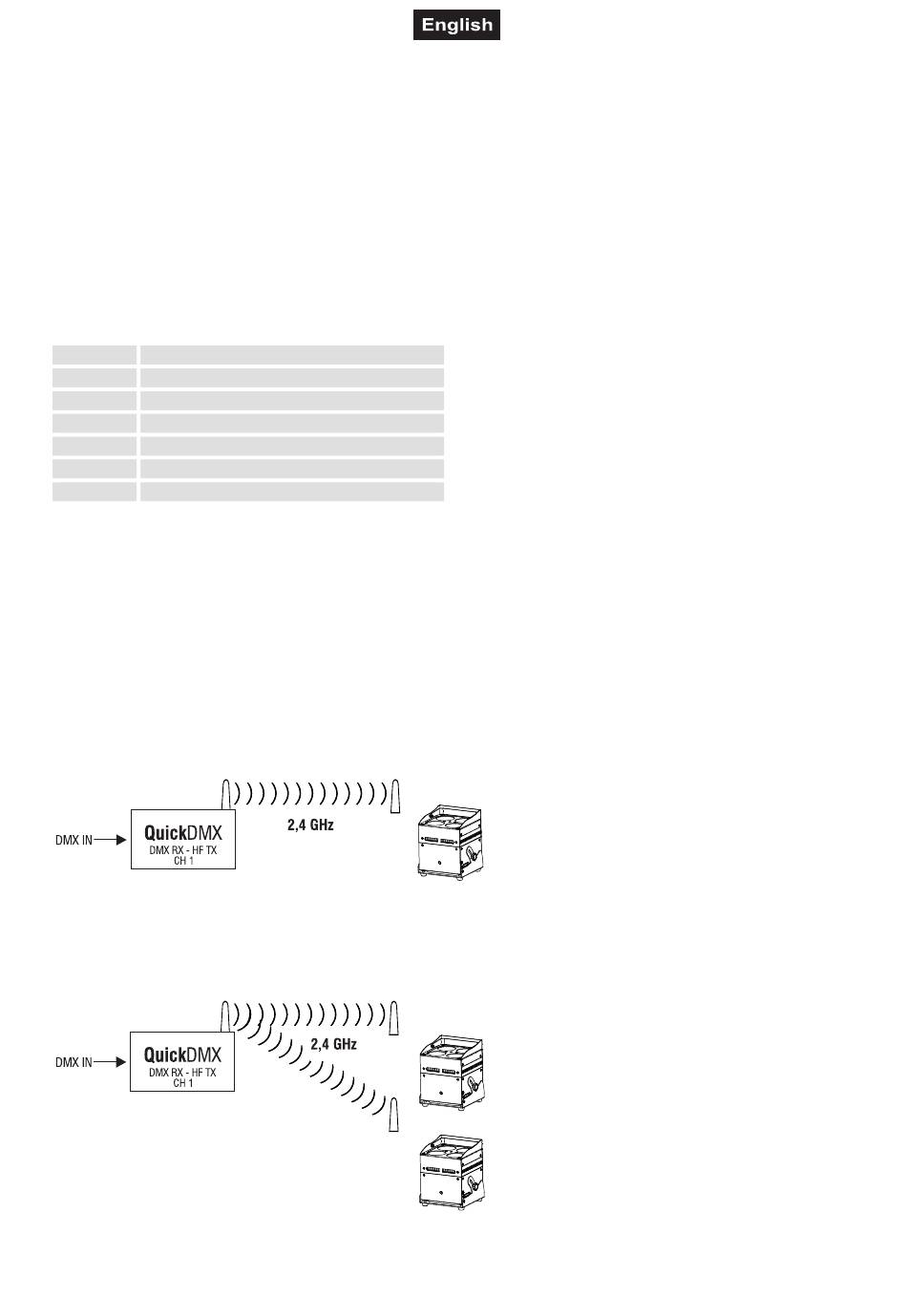

Transmission 1:1

The DMX signal is fed to a transmitter which sends it via RF. A receiver with the same transmission channel
receives the RF signal and distributes it as a DMX signal.

Transmission 1:Many

The DMX signal is fed to a transmitter which sends it via RF. Several receivers with the same transmission
channel receive the RF signal and distribute it as a DMX signal.
37/44 00096586.DOC, Version 1.1
