Control Board - EuroLite AKKU UP-4 QCL Spot QuickDMX User Manual

In the stand-alone mode, the device can be used without controller. You can do without a controller
as the device features a built-in microphone.
You can adjust the sensitivity with the rotary-control on the bottom of the device.
Disconnect the device from the controller and select the desired mode.
Please refer to the instructions under Control Board.

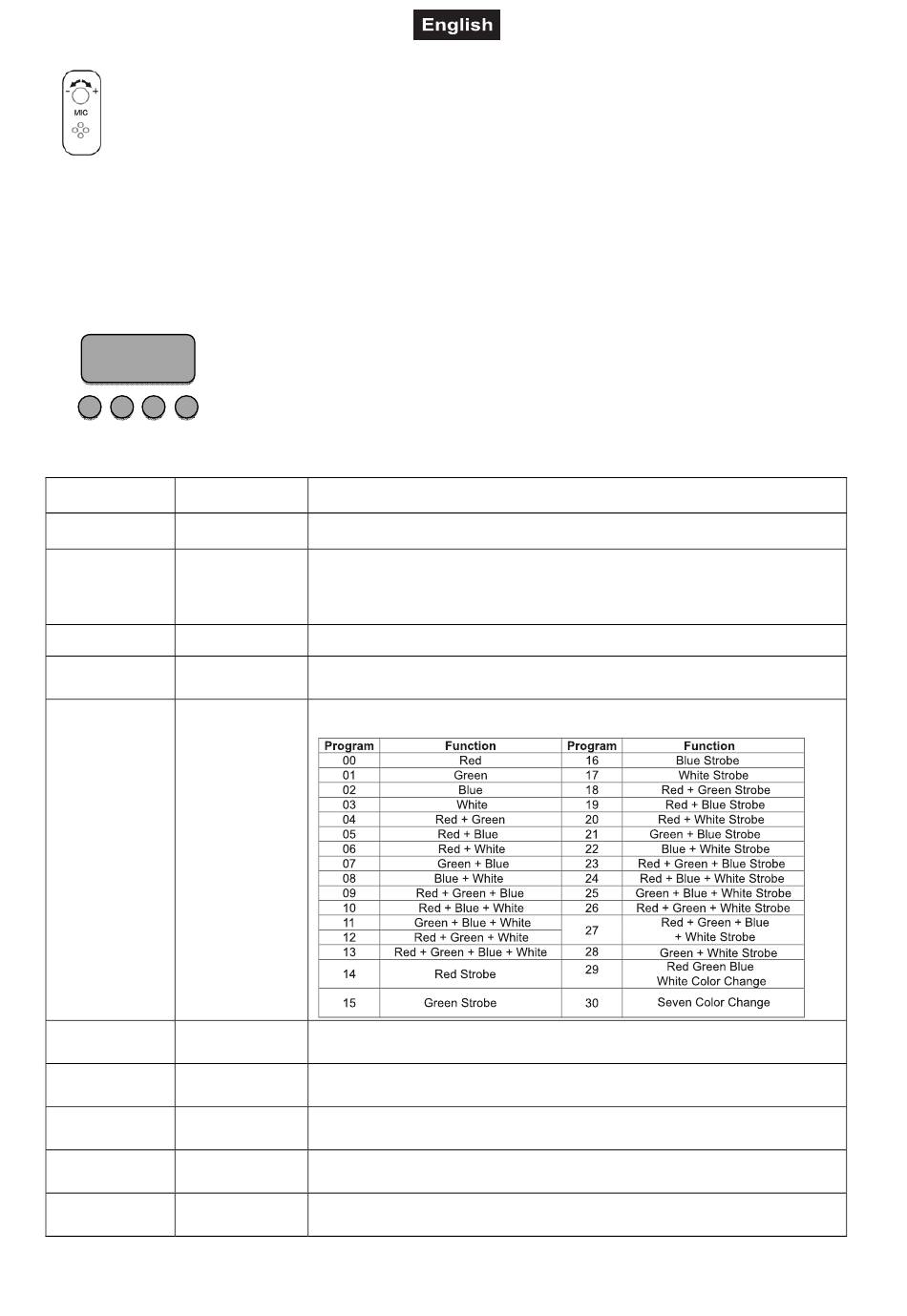

Control Board

The Control Board offers several features: you can simply set the starting address, run the pre-programmed
program or select a DMX channel mode.
MENU UP DOWN ENTER
Menu level 1 Menu level 2
Addr d001-d512
3CH, 4CH,
CHnd 6CH, 8CH,
10CH
SLAU SL.AU
SP-- SP00-SP99
Pr-- Pr00-Pr30
ASC- AC00-AC99
FAdE FA00-FA99
FLAS FL00-FL99
rL-- r000-r255
GL-- G000-G255
The main menu is accessed by pressing Menu. Browse through the menu by
pressing Up or Down. Press Enter in order to select the desired menu. You
can change the selection by pressing Up or Down. Press Enter in order to
confirm. You can leave every mode by pressing Menu. The functions
provided are listed in the following sections.
Description
DMX address setting
Setting DMX channel mode
Slave Mode
Select the desired program speed
S00 – S99 (increasing)
Preset colors
Switching colors
AC00-AC99 (with increasing speed)
Fading colors
FA00-FA99 (with increasing speed)
Strobing colors
FL00-FL99 (with increasing speed)
Dimmer intensity of red LED color
000 – 255 (increasing)
Dimmer intensity of green LED color
000 – 255 (increasing)
