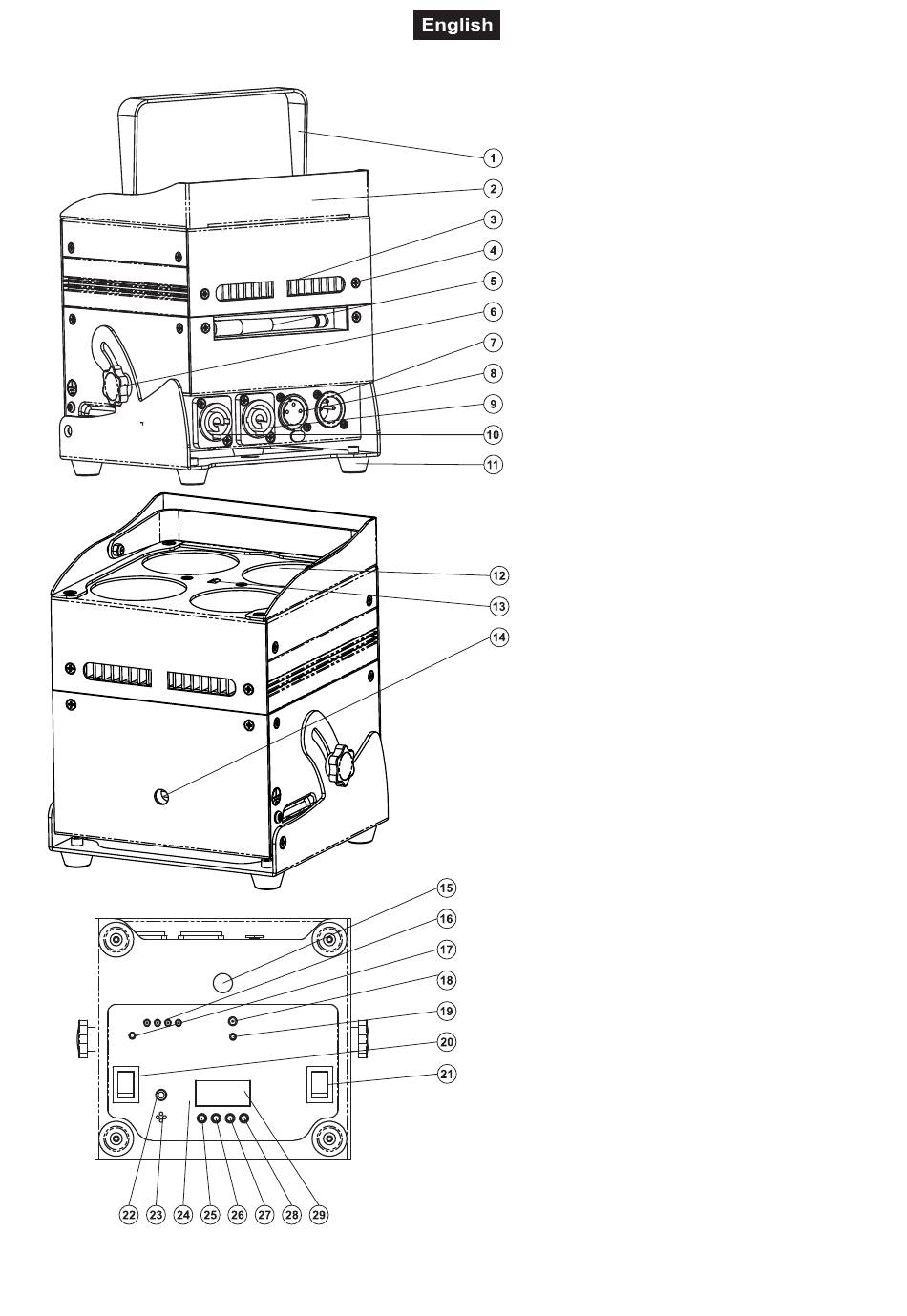

Overview

(1) Carrying handle
(2) Housing
(3) Venting slots
(4) Housing screw
(5) QuickDMX antenna
(6) Fixation screw folding foot
(7) 3-pin DMX input
(8) 3-pin DMX output
(9) Power output
(10) Power input
(11) Rubber foot
(12) Lens/LED
(13) Infrared sensor for the remote control
(14) Mounting thread
(15) Safety rope hole/folding foot
(16) Charge indicator
(17) Button charge indicator
(18) QuickDMX status indicator
(19) Button ID, to change the transmission
channel and pair the devices
(20) Power switch
(21) Function switch (QuickDMX)
(22) Microphone sensitivity control
(23) Microphone
(24) Control Board
(25) Menu button
(26) Up button
(27) Down button
(28) Enter button
(29) Display
