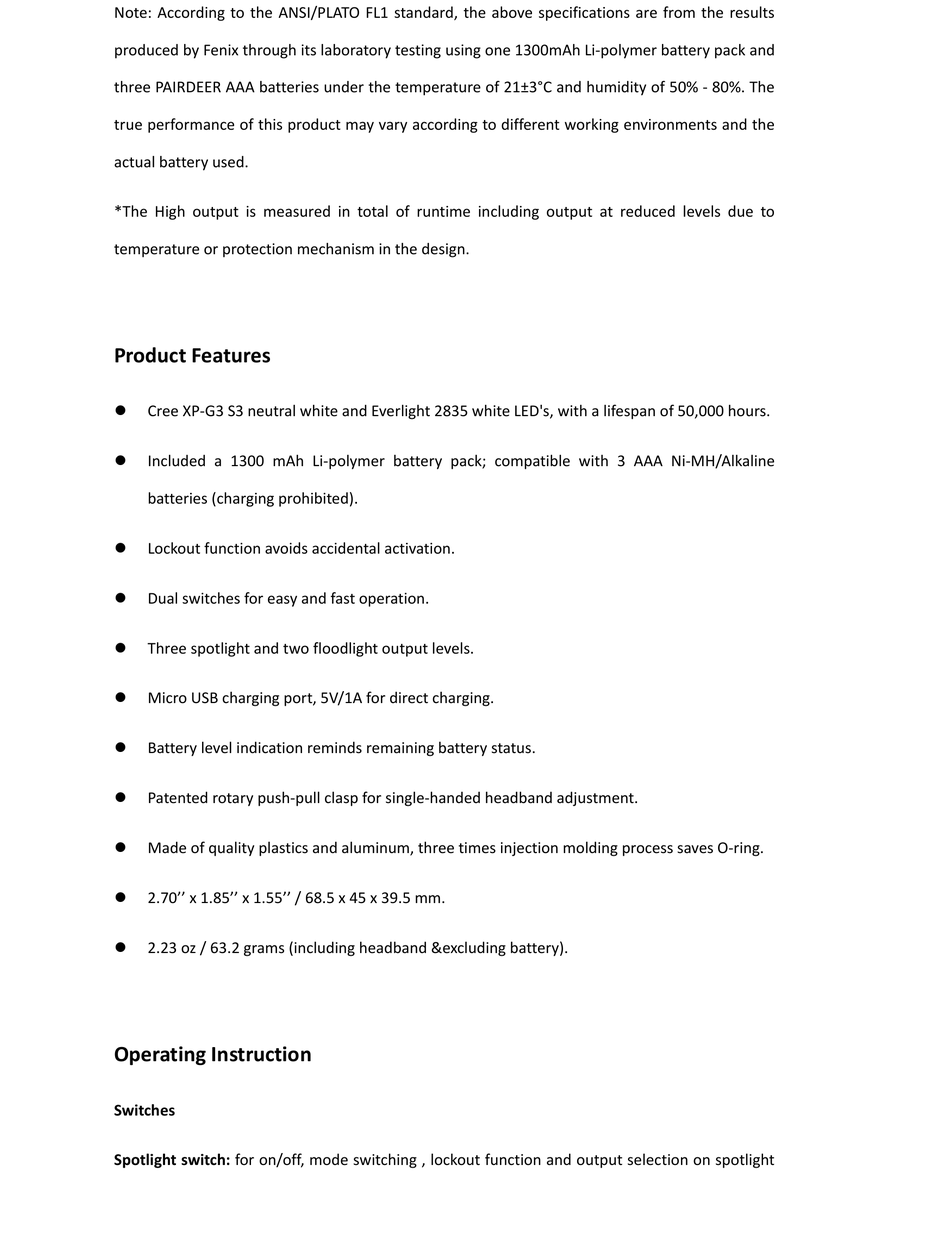

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results
produced by Fenix through its laboratory testing using one 1300mAh Li‐polymer battery pack and
three PAIRDEER AAA batteries under the temperature of 21±3°C and humidity of 50% ‐ 80%. The
true performance of this product may vary according to different working environments and the
actual battery used.
*The High output is measured in total of runtime including output at reduced levels due to
temperature or protection mechanism in the design.
Product Features

Cree XP‐G3 S3 neutral white and Everlight 2835 white LED's, with a lifespan of 50,000 hours.

Included a 1300 mAh Li‐polymer battery pack; compatible with 3 AAA Ni‐MH/Alkaline
batteries (charging prohibited).

Lockout function avoids accidental activation.

Dual switches for easy and fast operation.

Three spotlight and two floodlight output levels.

Micro USB charging port, 5V/1A for direct charging.

Battery level indication reminds remaining battery status.

Patented rotary push‐pull clasp for single‐handed headband adjustment.

Made of quality plastics and aluminum, three times injection molding process saves O‐ring.

2.70'' x 1.85'' x 1.55'' / 68.5 x 45 x 39.5 mm.

2.23 oz / 63.2 grams (including headband &excluding battery).
Operating Instruction
Switches
Spotlight switch: for on/off, mode switching , lockout function and output selection on spotlight
