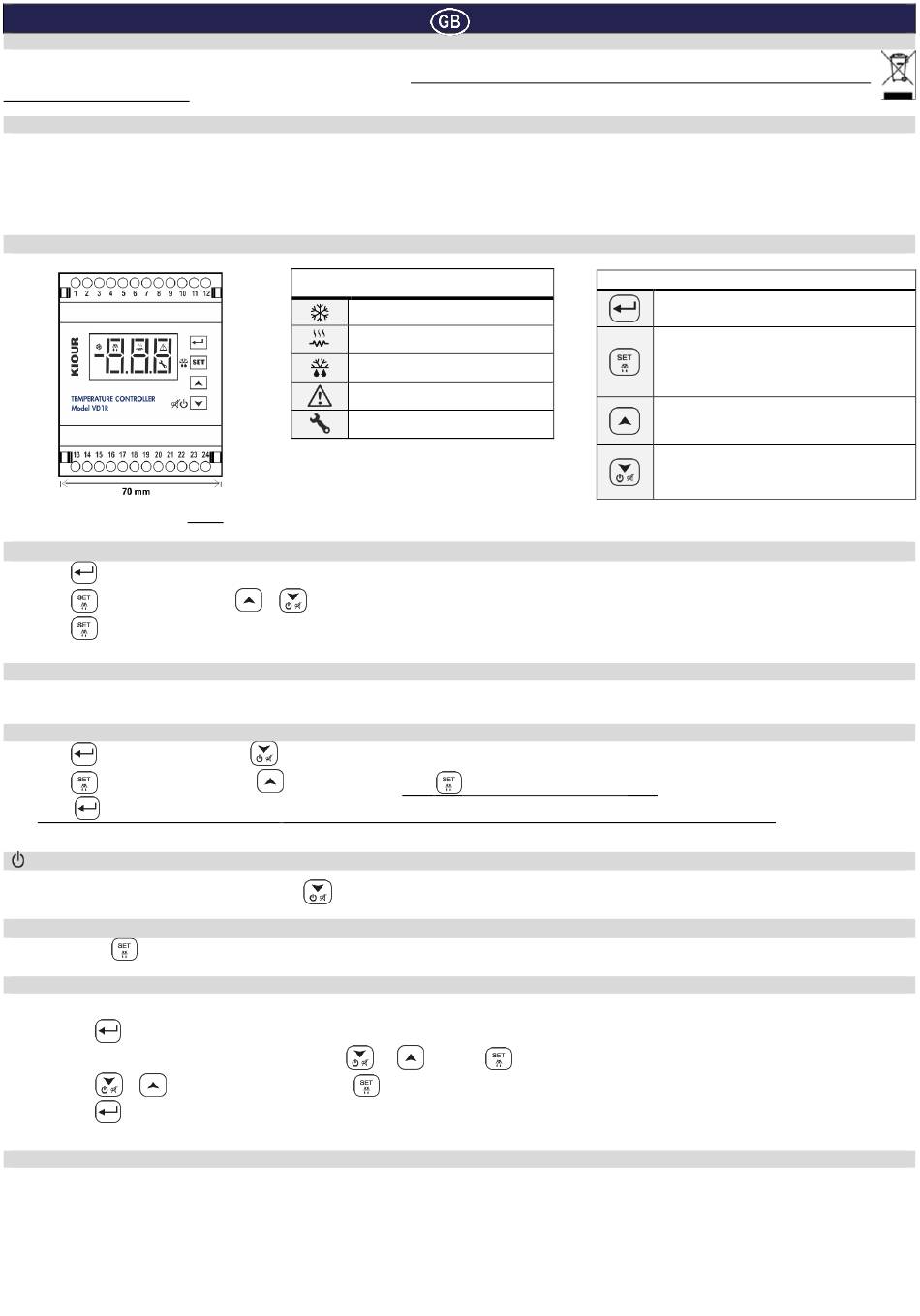

KIOUR VD1R Manual

COOLING – HEATING CONTROLLER Model VD1R
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this device
only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection of
electrical and electronic equipment.
DESCRIPTION
VD1R is a temperature controller for cooling – heating applications as well as food drying applications (eg sausages). The room temperature is controlled with an NTC / PTC
sensor. It has 3 indication digits of temperature display with an accuracy of 0.5 ° C and 4 buttons. It has a digital input for controlling the cabinet's door and automatic defrost
function. It has a relay 30A 250VAC that through parameters adjusted in operation: cooling or heating or heating with countdown. It has a buzzer that activates in case of alarm.
The device is mounted on a din rail. Through the serial input it can be connected to a network either through Cloud IoT on the CORTEX platform, or through a local computer
in the CAMIN program for complete local recording and monitoring of the device.

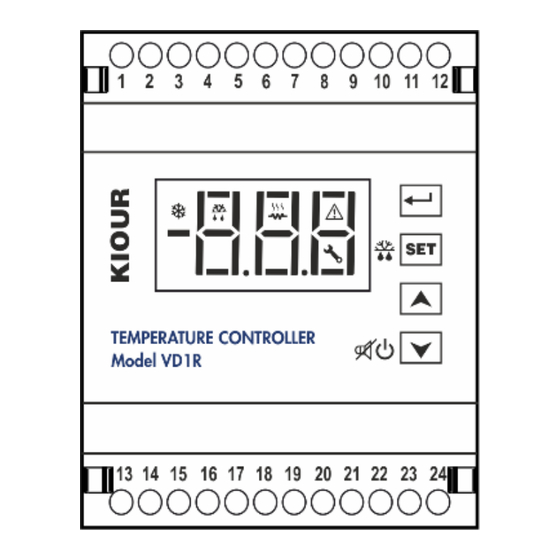

INDICATIONS AND BUTTONS FUNCTION
For more indications regarding the alarms please see the alarm's table at page 3.
ADJUSTING TEMPERATURE – SET POINT
1. Press to display the first parameter SPo.
2. Press to display its value. With
3. Press to save the new value. The device is working properly with the new adjustment.
ADJUSTING THERMOSTAT IN HEATING MODE
To toggle thermostat in heating mode, adjust the following parameters: rHC = 1, AHi, At2, HSP, diF, SPo.
INDUSTRIAL FACTORY SETTINGS
1. Press to display SPo. By pressing
2. Press to display its value and press
3. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.
ON/OFF DEVICE
To activate or deactivate the device, press for 3 seconds
MANUAL DEFROST
Press for 3 seconds to start a manual defrost with duration based on the parameter dd2.
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 2
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or to change its value and then press
4. Press to exit the parameter menu.
TECHNICAL SPECIFICATIONS
Model VD1R power supply: 230VAC 50/60Hz / Maximum power consumption: 3W. Model VD1RW switching power supply 100-264VAC 50/60Hz 5W.
It is recommended using a power supply safety fuse: 0.5Α (not included)
Room temperature sensor NTC 10K 1% 25°C ΙΡ68 with temperature range -50÷+112°C (-58÷+230°F) (or PTC 1Κ 25
not included) / Accuracy: ±0.5°C
Alarm buzzer / Serial input with 5pin connector / Digital input door
Relay 30Α res. 250VAC normally open contact / Max current load 16Α
Display indications
relay ON in cooling mode
relay ON in heating mode
defrost ON
alarm ΟΝ
malfunction ON
or change SPo value.
the parameter Cod is displayed.
to enter the value 31. Press
.
nd parameter Cod must be adjusted to 22 (see parameter table next page)
or and press
to store the new
Keyboard
to store the value to parameter Cod.
to display its value.
value.
C with temperature range -50÷+150°C (-58÷+302°F)
o
KIOUR
Firmware V4.0.0
enter/exit the parameter's menu
display the parameter's value
enter parameter's value
manual defrost or manual heating with
countdown
up arrow
OFF device (check below)
down arrow
mute buzzer
ON/OFF device (check below)
