- Page 1 EmETXe-i88U4 COM Express Compact ® Type 6 CPU Module User’s Manual Version 1.0 2020.07...
- Page 2 Revision History Version Date Description 2020.07 Initial release...
-
Page 3: Table Of Contents
Contents Preface Copyright Notice ..............iii Declaration of Conformity ..........iii CE ..................iii FCC Class B .................iii RoHS ..................iv SVHC / REACH ..............iv Warning ................v Replacing the Lithium Battery ...........v Technical Support ..............v Warranty ................vi Chapter 1 - Introduction 1.1 The Product ..............2 1.2 About This Manual............2 1.3 Specifications ...............3 1.4 Inside the Package ............4... - Page 4 Content 4.2.5 CSM Configuration ...........27 4.2.6 USB Configuration ...........29 4.3 IntelRCSetup ..............31 4.3.1 Processor Configuration .........32 4.3.2 Advanced Power Management Configuration ..33 4.3.3 QPI Configuration .............36 4.3.4 Memory Configuration ..........40 4.3.5 PCH Configuration ...........41 4.4 Security ..............46 4.5 Boot ................47 4.6 Save &...
-
Page 5: Preface
Preface Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages. -
Page 6: Rohs
RoHS ARBOR Technology Corp. certifies that all components in its products are in compliance and conform to the European Union’s Restriction of Use of Haz- ardous Substances in Electrical and Electronic Equipment (RoHS) Directive 2002/95/EC. -
Page 7: Warning
Preface Warning Single Board Computers and their components contain very delicate Integrated Circuits (IC). To protect the Single Board Computer and its components against damage from static electricity, you should always follow the following precautions when handling it : 1. Disconnect your Single Board Computer from the power source when you want to work on the inside. -
Page 8: Warranty
Preface Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms. -
Page 9: Chapter 1 Introduction
Introduction Chapter 1 Introduction - 1 -... -
Page 10: The Product

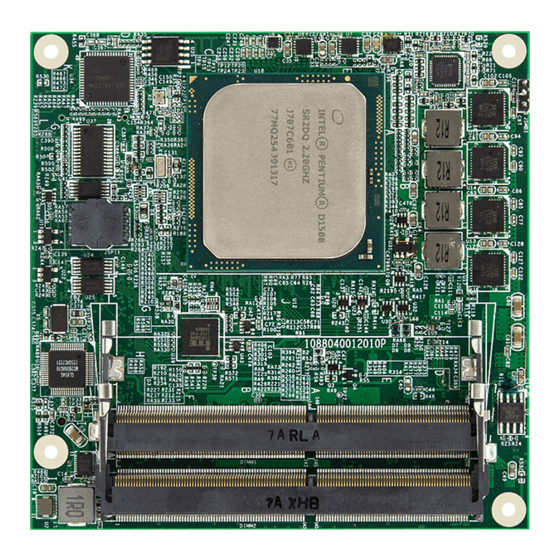

Introduction 1.1 The Product The EmETXe-i88U4 is a space-conscious CPU board of 95 mm x 95 mm to take up only small footprint in your system. By the architecture of Type 6, the board has two high-performance connectors to promise stable data passing rate. -
Page 11: Specifications
Introduction 1.3 Specifications System ® Soldered onboard Intel Xeon D-1539 1.6GHz/D-1508 2.2GHz/D-1527 2.2GHzprocessor Memory 2 x DDR4 ECC SO-DIMM sockets BIOS AMI UEFI BIOS Watchdog Timer 1~255 levels reset USB 2.0 8 x USB 2.0 ports USB 3.0 4 x USB 3.0 ports Expansion Bus 1 x PCIex16 lane, 8 x PCIex1 lanes, I2C Interface Digital I/O... -
Page 12: Inside The Package
1 x EmETXe-i88U4 COM Express CPU Module 1 x Quick Installation Guide If any of the above items is damaged or missing, contact your vendor immediately. 1.5 Ordering Information EmETXe-i88U4-D1539 Intel Xeon D1539 COM Express Compact Type 6 CPU module ® ®... - Page 13 Introduction Driver (7.0A) Installation To install the drivers,please contact your Arbor Sales Representative to get the permission to visit our website at www.arbor.technology.com and download the driver pack from the product page. Driver Path SERVER \EmETXe-i88U4\SERVER INF \EmETXe-i88U4\RST\GUI Ethernet \EmETXe-i88U4\Ethernet - 5 -...
- Page 14 This page is intentionally left blank. - 6 -...
-
Page 15: Chapter 2 - Board Overview
Board Overview Chapter 2 Board Overview - 7 -... -
Page 16: What Is "Com Express
Board Overview 2.1 What Is “COM Express ”? ® With more and more demands on small and embedded industrial boards, a multi-functional COM (Computer-on-Module) surfaces as a great solution. COM Express supports seven pin-out types applying to Basic and Extended ®... -
Page 17: Board Dimensions
Board Overview 2.2 Board Dimensions - 9 -... -
Page 18: Block Diagram
Board Overview 2.3 Block Diagram DDR4-2133MT/s 2 x SO-DIMM DDR4 sockets 1 x PCIex16 2 x PCIex1 4 x USB 3.0 LPC I/F TPM 2.0 (OEM Request) Intel® Xeon 8 x USB 2.0 Ports D-1539 (35W)/ D-1508 (25W)/ PCIex1 D-1527 (35W) Intel i210 PCIe controller processor... -
Page 19: Connector Pin Definition
Board Overview 2.4 Connector Pin Definition Being a most commonly-used Type 6, the EmETXe-i88U4 features two board- to-board connectors on bottom side. Top Side Bottom Side - 11 -... - Page 20 Board Overview COM Express AB Connector (bottom side) PCIE_RXN5 PCIE_TXN5 LAN_LED_LNK#_ACT LAN1_MDI3N DIO_6 LPC_FRAME# LAN1_MDI3P PCIE_RXP4 PCIE_TXP4 LPC_AD0 LAN_LED_100# PCIE_RXN4 PCIE_TXN4 LAN_LED_1000# LPC_AD1 LPC_AD2 LAN1_MDI2N PCIE_RXP3 PCIE_TXP3 LPC_AD3 LAN1_MDI2P PCIE_RXN3 PCIE_TXN3 LAN_LED_LNK# +V3.3S DIO_7 DIO_1 +V3.3S LAN1_MDI1N PCIE_RXP2 PCIE_TXP2 CLK_LPC_EXPRESS LAN1_MDI1P PCIE_RXN2 PCIE_TXN2...
- Page 21 Board Overview COM Express CD Connector (bottom side) PE1_TX_DN_1 PE1_RX_DN_1 TYPE2# USB3_TXN1 USB3_RXN1 PE1_TX_DP_2 PE1_RX_DP_2 USB3_TXP1 USB3_RXP1 PE1_TX_DN_2 PE1_RX_DN_2 USB3_TXN2 USB3_RXN2 PE1_TX_DP_3 PE1_RX_DP_3 USB3_TXP2 USB3_RXP2 PE1_TX_DN_3 PE1_RX_DN_3 USB3_TXN5 USB3_RXN5 USB3_TXP5 USB3_RXP5 PE1_TX_DP_4 PE1_RX_DP_4 PE1_RX_DN_4 PE1_TX_DN_4 USB3_TXN6 USB3_RXN6 USB3_TXP6 USB3_RXP6 PE1_TX_DP_5 PE1_RX_DP_5 PE1_RX_DN_5 PE1_TX_DN_5...
- Page 22 This page is intentionally left blank. - 14 -...
-
Page 23: Chapter 3 - Installation & Maintenance
Installation & Maintenance Chapter 3 Installation & Maintenance - 15 -... -
Page 24: Installing The Cpu Module To Carrier Board
Installation & Maintenance 3.1 Installing the CPU Module to Carrier Board 1. Mount the EmETXe-i88U4 into PBE-1705 via COM Express connectors as below; that is, COM Express AB to AB and CD to CD. CD connector AB connector 2. Install the optional heat spreader or heat sink with fan to the COM module. Apply thermal grease to the CPU area on the CPU module. - Page 25 Installation & Maintenance Then connect the fan cable to the fan connector on the carrier board. - 17 -...
- Page 26 This page is intentionally left blank. - 18 -...
-
Page 27: Chapter 4 - Bios
BIOS Chapter 4 BIOS - 19 -... -
Page 28: Main
BIOS 4.1 Main The AMI BIOS provides a Setup utility program for specifying the system configurations and settings. The BIOS RAM of the system stores the Setup utility and configurations. When you turn on the computer, the AMI BIOS is immediately activated. - Page 29 BIOS Set the system time. Use Tab to switch between Time elements. System Time The time format is: Hour: 00 to 23 ► Minute: 00 to 59 Second: 00 to 59 Key Commands BIOS Setup Utility is mainly a key-based navigation interface. Please refer to the following key command instructions for navigation process.
-
Page 30: Advanced
BIOS 4.2 Advanced Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Chipset Security Save & Exit Boot Advanced CPU Configuration ► Trusted Computing Parameters ► IT8528 Super IO Configuration ► HardWare Monitor ► S5 RTC Wake Settings ►... -
Page 31: Trusted Computing
BIOS 4.2.1 Trusted Computing Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Configuration Enables or disables Security Device Support [Enable] BIOS support for No Security Device Found security device. O.S. will not show Security Device. TCG EFI Protocol and InT1A interface will not be avaliable. -
Page 32: It8528 Super Io Configuration
BIOS 4.2.2 IT8528 Super IO Configuration Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced IT8528 Super IO Configuration Set Parameters of Serial Port 1 (CON1) Super IO Chip IT8528 ►... -
Page 33: Hardware Monitor
BIOS 4.2.3 Hardware Monitor Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Pc Health Status CPU Tempreture : +37 Fan1 Speed : 5269 RPM VCORE : +0.858 V VCCDU : +1.189 V : +11.942 V... -
Page 34: S5 Rtc Configuration
BIOS 4.2.4 S5 RTC Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Enables or disables [Disabled] Wake system from S5 system wake on alarm event. When enabled, system will wake on the hr::min::sec specified. Select Dynamic Time, System will wake on the current time + Increase minute(s) -
Page 35: Csm Configuration
BIOS 4.2.5 CSM Configuration Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced Compatibility Support Module Configuration Enable/Disable CSM Support. CSM Support [Enabled] CSM16 Module Version 07.79 GateA20 Active [Upon Request] Option ROM Message [Force BIOS]... - Page 36 BIOS Control the execution of UEFI and Legacy PXE OpROM. Network ► Options: Do not launch (default), UEFI and Legacy Control the execution of UEFI and Legacy Storage OpROM. Storage Options: Do not launch, UEFI (default) and Legacy ► Control the execution of UEFI and Legacy Video OpROM. Video ►...
-
Page 37: Usb Configuration
BIOS 4.2.6 USB Configuration Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support. AUTO option disables legacy USB Module Version support if no USB devices are connected. - Page 38 BIOS Use this item to set the time-out value for control, bulk, and interrupt transfers. USB Transfer time-out ► Options available are: 1 sec, 5 sec, 10 sec, 20 sec (default) Use this item to set USB mass storage device start unit command time-out.
-
Page 39: Intelrcsetup
BIOS 4.3 IntelRCSetup Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced Boot Security Save & Exit IntelRCSetup System Agent (SA) ► Processor Configuration Parameters ► Advanced Power Management Configuration ► QPI Configuration ► Memory Configuration ► PCH Configuration →←: Select Screen ↓↑: Select Item Enter: Select... -
Page 40: Processor Configuration
BIOS 4.3.1 Processor Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Processor Configuration Enables Hyper Threading -------------------------------------------- (Software Method to Processor Socket Socket 0 Enable/Disable Logical Processor ID 00050663* Processor threads. Processor Frequency 1.600GHz Processor Max Ratio Processor Min Ratio Microcode Revision 0700000E... -
Page 41: Advanced Power Management Configuration
BIOS 4.3.2 Advanced Power Management Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Advanced Power Management configuration When enabled, OS sets ---------------------------------------------- CPU frequency according EIST (P-states) load. When disabled, CPU ► CPU P State Control frequency is set at ►... - Page 42 BIOS 4.3.2.1 CPU P State Control Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Select the performance CPU P State Control state that the BIOS will set before OS Energy efficeient P-states [Enable] handoff. Boot perforamnce mode [Max Performancel Turbo Mode [Enable]...
- Page 43 BIOS 4.3.2.2 CPU C State Control Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Enables the Enhanced CPU C State Control Cx state of the CPU, takes effect after CPU C State [Enable] CPU C3 State [Disable] reboot.
-
Page 44: Qpi Configuration
BIOS 4.3.3 QPI Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Displays and provides QPI Configuration option to change the ---------------------------------------------- QPI General Settings ► QPI Per Socket Configuration ► QPI Per Socket Configuration →←: Select Screen ↓↑: Select Item Enter: Select +/-: Change Opt. - Page 45 BIOS 4.3.3.1 QPI General Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup QPI Status Help QPI General Configuration ---------------------------------------------- ► QPI Satatus Degrade Precedence [Topology Precedence] Link Speed Mode [Fast] Link Frequency Select [Auto] Link L0p Enable [Enable] Link L1 Enable [Enable]...
- Page 46 BIOS Socket that claims the legacy VGA ranges; valid values are Legacy VGA Socket 0~7; 0 is the default. To disable MMIOL P2P traffic across sockets. Default is No MMIO P2P Disable to not disable. E2E Parity Enable Enable or Disable (default) E2E Parity. Enable or Disable Cluster on Die.
- Page 47 BIOS 4.3.3.2 QPI Per Socket Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup CPU 0 Configuration QPI Per Socket Configuration Silk Screen Equivalent ---------------------------------------------- -> CPU1 ► CPU 0 ► CPU 1 ► CPU 2 ► CPU 3 →←: Select Screen ↓↑: Select Item Enter: Select...
-
Page 48: Memory Configuration
BIOS 4.3.4 Memory Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup System Agent (SA) ---------------------------------------------- Parameters Integrated Memory Controller (iMC) ---------------------------------------------- Socket0CH0.Dimm0; 2133MT/2 UNKNOWN SRx8 4GB SODIMM →←: Select Screen ↓↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F9: Optimized Defaults... -
Page 49: Pch Configuration
BIOS 4.3.5 PCH Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Select S0/S5 for ACPI PCH Configuration state after a G3 ---------------------------------------------- PCH State after G3 [S0] ► PCI Express Configuration ► PCI SATA Configuration ► USB Configuration →←: Select Screen ↓↑: Select Item Enter: Select... - Page 50 BIOS 4.3.5.1 PCI Express Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup This option enalbes / PCI-E ASPM Support (Global) [Disable] disabled the ASPM PCIE Clock Gating [Disabled] support for all PCH DMI ASPM [Disabled] downstream devices. DMI Link Extended Synch Control [Disabled] Stop and Scream...
- Page 51 BIOS Enable or Disable (default) PCIe-USB Glitch W/A for PCIe-USB Glitch W/A bad USB device(s) connected behind PCIE/PEG Port. Enable or Disable (default) PCIe root port function PCIe Root Port Function swapping feature to dynamically assin function 0 to Swapping enabled root port.
- Page 52 BIOS 4.3.5.2 PCI SATA Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Enable or Disable PCH SATA Configuration SATA Controller --------------------------------------------- SATA Controller [Enabled] SATA Port 0 [Not Installed] SATA Device Type [Solid State Drive] SATA Port 1 [Not Installed] SATA Device Type [Solid State Drive]...
- Page 53 BIOS 4.3.5.3 USB Configuration Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. IntelRCSetup Precondition work on USB Precondition [Disabled] USB host controller XHCI Mode [Auto] and root ports for Trunk Clock Gating (BTCG) [Enabled] faster enumeration. USB Ports Per-Port Disable Control [Disabled] XHCI Idle L1 [Enabled]...
-
Page 54: Security
BIOS 4.4 Security Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Boot Main Advanced IntelRCSetup Save & Exit Security Set Administrator Password Description Password Minimum length Maximum length Administrator Password →←: Select Screen ↓↑: Select Item Enter: Select +/-: Change Opt. -
Page 55: Boot
BIOS 4.5 Boot Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Select the keyboard Boot Configuration NumLock state Bootup NumLock State [On] Quiet Boot [Disabled] Boot Option Priorities Boot Option #1 [MMC - DG4032] →←: Select Screen ↓↑: Select Item... -
Page 56: Save & Exit
BIOS 4.6 Save & Exit Aptio Setup Utility - Copyright (C) 2019 American Megatrends, Inc. Main Advanced IntelRCSetup Security Boot Save & Exit Exit system setup Save Options after saving the Save Changes and Exit changes. Discard Changes and Exit Default Options Restore Defaults →←: Select Screen... -
Page 57: Appendix
Appendix Appendix - 49 -... -
Page 58: Appendix A: Watchdog Timer (Wdt) Setting
Appendix Appendix A: Watchdog Timer (WDT) Setting WDT is widely used for industry application to monitor the activity of CPU. Ap- plication software depends on its requirement to trigger WDT with adequate timer setting. Before WDT time out, the functional normal system will reload the WDT. - Page 59 Appendix void WDT_Stop(void) outportb(0x66,0xBB); /* Disable Watch Dog */ void WDT_Clear(void) outportb(0x66,0xBA); /* Enable Watch Dog */ delay(2000); outportb(0x62, WDTCount); /* Number is Watch Dog Down count number */ delay(2000); outportb(0x62, 0x00); /* Minute is 1 count unit by minute */ /* Minute is 0 count unit by second */ - 51 -...
-
Page 60: Appendix B: Dio Sample Code
Appendix Appendix B: DIO Sample Code /*---------------------------------------------------------------------------*/ #include “math.h” #include “stdio.h” #include “dos.h” void GPIOMode(int iMode); void GPIOData(int iData); GPIOStatus(); int main(void) int iInput; GPIOMode(0xF); delay(10000); GPIOData(0x0A); delay(30000); iInput = GPIOStatus(); printf(“ Data : %2x \n”,iInput); GPIOData(0x05); delay(30000); iInput = GPIOStatus(); printf(“...
