Arbor Technology EmCORE-v7002 User Manual

Via eden 3.5" embedded board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EmCORE-v7002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arbor Technology EmCORE-v7002

Summary of Contents for Arbor Technology EmCORE-v7002

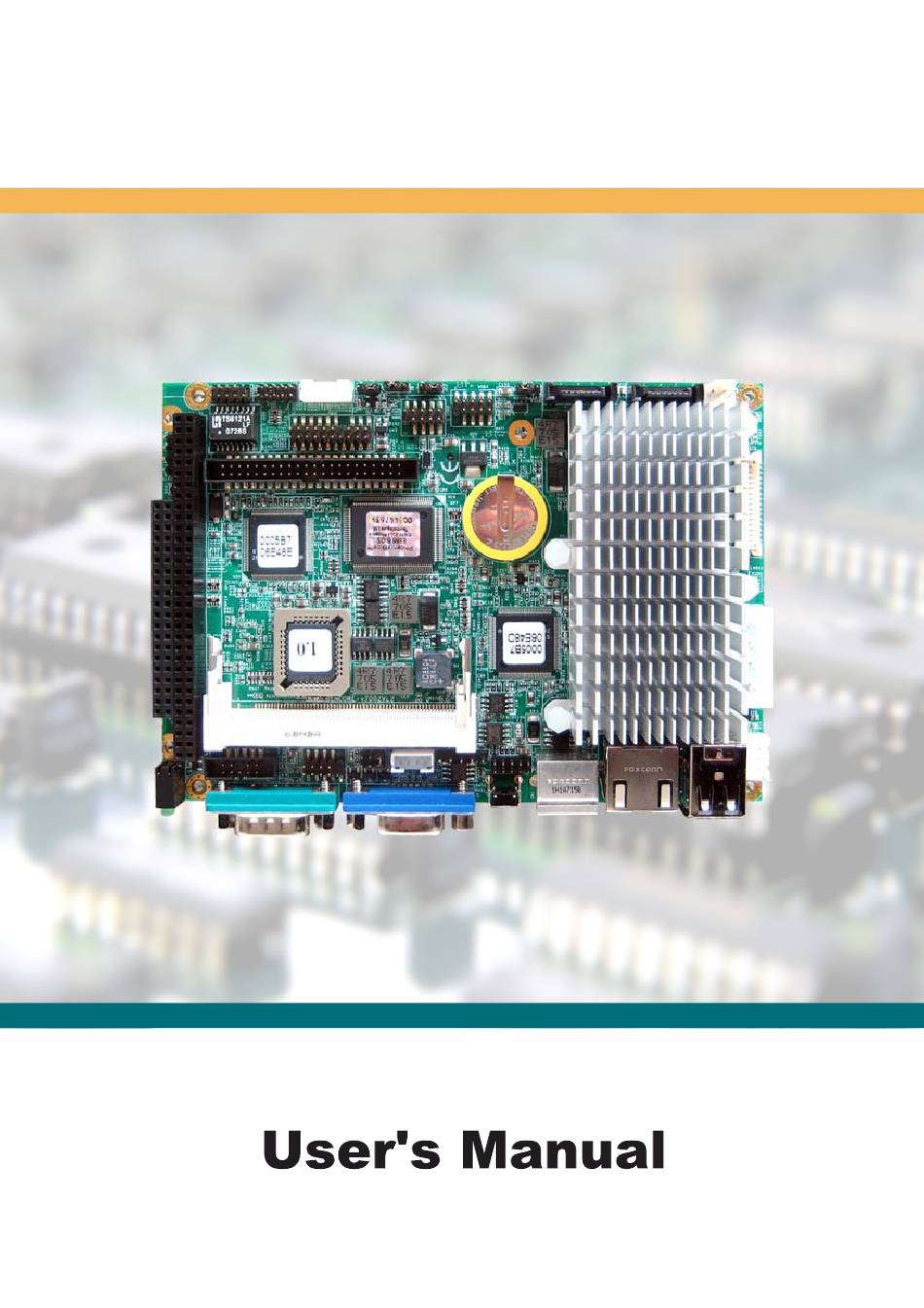

  • Page 2 EmCORE-v7002 VIA Eden 3.5" Embedded Board User's Manual Version 1.0 2008.04...

  • Page 3: Table Of Contents

    Index Table of Contents Chapter 1 Introduction 1.1 Copyright Notice 1.2 About this User Manual 1.3 Warning 1.4 Replacing the lithium battery 1.5 Technical Support 1.6 Warranty 1.7 Packing list 1.8 Cable Kit 1.9 Ordering Information 1.10 Specification 1.11 Board dimensions Chapter 2 Installation 2.1 Board layout 2.2 Jumpers and Connectors...

  • Page 4: Chapter 1 Introduction

    Introduction Chapter 1 Introduction - 1 -...

  • Page 5: Copyright Notice

    Introduction 1.1 Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 6: Replacing The Lithium Battery

    Introduction 1.4 Replacing the lithium battery Incorrect replacement of the lithium battery may lead to a risk of explosion. The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. Do not throw lithium batteries into the trashcan.

  • Page 7: Packing List

    Introduction 1.7 Packing List Before you begin installing your single board computer, please make sure that the following materials have been shipped: 1 x EmCORE-v7002VL2 3.5" Embedded Board 1 x Quick Installation Guide 1 x CD-ROM (for Driver used) 1 x Single Warranty Card 2 x RJ45 Cover 1.8 Cable Kit EmCORE-v7002VL2 (Standard Version) Cable Kit (6911170020000P)

  • Page 8: Ordering Information

    Introduction 1.9 Ordering Information EmCORE-v7002VL2 3.5" Embeded Board With CPU, LAN, Audio, VGA, PC/104, SATA CBK-11-7002-00 NOTE: BOX header version and all other specifications are available up on OEM request. 1.10 Specification - 5 -...
  • Page 9 Introduction Product Name EmCORE-v7002 Form Factor 3.5" Embedded Board Size (145mm x 102mm) Processor VIA Fanless Eden 1GHz (FSB400); Max. Power 5W Chipset VIA CX700 + ITE8888G System Memory Support 1 x 200Pin DDR2 SDRAM SO-DIMM Socket Up to 1GB...

  • Page 10: Board Dimensions

    Introduction 1.11 Board Dimensions - 7 -...

  • Page 11: Chapter 2 Installation

    Installation Chapter 2 Installation - 8 -...

  • Page 12: Board Layout

    Installation 2.1 Board layout DIO1 CN3 J5 J6 JC2 SATA1 SATA2 FAN2 JBAT USB5.6 USB3.4 MPCI1 AUDIO COM1 JCOM1 USB1.2 KB/MS COM2 - 9 -...

  • Page 13: Jumpers And Connectors

    Installation 2.2 Jumpers and Connectors Jumpers Setting Function Label CMOS Jumper Settings JBAT1 Clear CMOS COM1 RS-232 / 422 / 485 Select LCD Power Select AT/ATX Power Select CF Card Master or Slave Select JBAT1: CMOS Jumper Settings Type: onboard 3-pin header JBAT1 CMOS Setup (JBAT1) JBAT...
  • Page 14 Installation JC2: LCD Power Select Type: onboard 1*3-pin header LCD Power +3.3V Default setting: +3.3V J5: AT/ATX Power Select Type: onboard 1*3-pin header Power Default setting: ATX J6: CF Card Master or Slave Select Type: onboard 1*3-pin header Power Slave Master Default setting: Slave - 11 -...
  • Page 15 Installation Connectors Label Function IDE1 Primary IDE Connector Fan connector FAN2 COM1 Serial Port 1 JCOM1 RS-422 / 485 Output Front Panel (Switches and Indicators) LPT1 Parallel Port USB 3/4 Connector USB2 USB3 USB 5/6 Connector PWR1 Power Connecter Power Connecter PWR2 LVDS1 LVDS LCD Panel Connector...
  • Page 16 Installation IDE1 : Enhanced IDE Connector Type onboard 40-pin 2.54mm box headers Description Description IDE RESET DATA7 DATA8 DATA6 DATA9 DATA5 DATA10 DATA4 DATA11 DATA3 DATA12 DATA2 DATA13 DATA1 DATA14 DATA0 DATA15 HD_DREQ HD_IOW HD_IOR HD_RDY HD_DACK ADDR1 ADDR0 ADDR2 HD_CS0 HD_CS1 HD_ACT...
  • Page 17 Installation COM1 : Serial Port Type: onboard 2*5-pin header connector Description Description COM1 JCOM1 : RS422/485 Output Connector Type: onboard 2.0pitch 4-pin header Description RS485RTX+ JCOM1 RS485RTX- RS422RX+ RS422RX- J1 : Front Panel Type: onboard 2.0pitch 10-pin (2*5) header Description Description RESET + RESET -...
  • Page 18 Installation Parallel Port (LPT1) Type: onboard 2*10-pin HEADER(2.0mm) Description Description #STB P_AFD PDR0 P_ERR PDR1 P_INIT PDR2 P_SLIN PDR3 PDR4 PDR5 PDR6 P_BUSY PDR7 P_PE P_ACK P_SLCT USB3,4: USB Connector Type: onboard 2.0pitch 10-pin header for two USB ports Description Description USB3.4 USBD3-...
  • Page 19 Installation PWR1 : Power Connector Type : onboard 1*4-pin connector Description PWR1 +12V PWR2 : Power Connector Type : onboard 1*3-pin connector Description PS_ON PWR2 5VSB LVDS1 : LVDS LCD Connector Type: onboard DF13 30-pin header Description Description TX1CLK+ TX2CLK+ TX1CLK- TX2CLK- TX1O0+...
  • Page 20 Installation IR1: Infrared (IR) Connector Type: onboard 2.54pitch 5-pin header Description IRRX IRTX LAN1 : Ethernet Connector Type: onboard 2.54pitch 10-pin header Description Description LAN_GND LLED1 : LAN LED Indicator Type :onboard 1*4pin 2.54mm header Description ACT- ACT+ LLED1 LILED- LILED+ - 17 -...
  • Page 21 Installation Audio1 : Audio Port Type: onboard 2*5pin 2.0mm BOX header Description Description LINL LINR AUDIO MIC1 MIC2 LOUT_L LOUT_R CN3 : LVDS Panel Inverter Connector Type: onboard 5-pin wafer Description GND1 On/Off Brightness GND2 - 18 -...

  • Page 22: Chapter 3 Bios

    BIOS Chapter 3 BIOS - 19 -...

  • Page 23: Bios Introduction

    BIOS 3.1 BIOS Introduction The Award BIOS (Basic Input/Output System) installed in your computer system. The BIOS provides for a standard device such as disk drives, serial ports and parallel ports. It also adds password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

  • Page 24: Standard Cmos Features

    BIOS 3.3 Standard CMOS Features " Standard CMOS Features allows you to record some basic hardware " configurations in your computer system and set the system clock and error handling. If the CPU card is already installed in a working system, you will not need to select this option.
  • Page 25 BIOS IDE Channel 0 HDDs / IDE Channel 1 HDDs >>> The onboard PCI IDE connectors provide Primary and Secondary channels for connecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the Master and the second is "...

  • Page 26: Advance Bios Features

    BIOS Halt On This field determines whether or not the system will halt if an error is detected during power up. No errors (default) The system boot will not be halted for any error that may be detected. All errors Whenever the BIOS detects a non-fatal error, the system will stop and you will be prompted.
  • Page 27 BIOS Hard Disk Boot Priority Select hard disk boot Devices Priority. if you Press enter, you can use ( ) or ( ) to select a device, then press (+) to move it up or (-) to move it down the list, Press [ESC] to exit this menu.
  • Page 28 BIOS Third Boot Device These fields determine the third boot devices of the system. The options a vailable include Setting: Floppy, HDD-0, SCSI, CDROM, HDD-1, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN and Disabled. Setting: LS120 (default) Boot Other Device It allows the system to search for an OS from other devices other than the ones selected in the First/ Second/ Third Boot Device.

  • Page 29: Advanced Chipset Features

    BIOS Mps Version Control For OS In this field you can choose the multiprocessins system`s version. there are two options.one is v1.1 another is v1.4. Setting: 1.1,1.4 (default). OS Select For DRAM 64MB Select the operating system that is running with greater than 64MB of RAM on the system.
  • Page 30 BIOS DRAM Timing Selectable When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on DRAM timing. Setting: By SPD (default), Manual. CAS Latency Time When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing.
  • Page 31 BIOS System BIOS Cacheable Allows the system BIOS to be cached for faster system performance. Setting: Enabled (default), Disabled. Video BIOS Cacheable This item allows you to "Enabled" or "Disabled" on Video BIOS Cacheable. Setting: Enabled (default), Disabled. Memory Hole At 15M-16M In order to improve performance, certain space in memory can be reserved for ISA cards.
  • Page 32 BIOS memory (uncached) plus an equal amount of write combined memory area and an additional 12MB for virtual addressing. This is address space, not physical memory used. The physical memory is allocated and released as needed only when Direct3D makes a "create non-local surface" call. on-chip VGA Setting This field from the default value specified by the system designer.

  • Page 33: Integrated Peripherals

    BIOS 3.6 Integrated Peripherals In this menu you can specify your settings for integrated peripherals. VIA OnChip IDE Device>>> - 30 -...
  • Page 34 BIOS SATA Controller Select "Enabled" to activate SATA function or select "Disabled" disable SATA function Setting: Enable (default), Disabled. SATA Controller Mode Please select SATA working mode for your system. two choices for your system, one is IDE monde, the other one is RIAD mode. Setting: IDE (Default), RIAD.
  • Page 35 BIOS IDE HDD Block Mode If you IDE hard drive supports block mode select Enable for automatic detection of the optimal number of block read/writes per sector the drive can support . Setting: Enabled (default). VIA OnChip PCI Device>>> Onboard FDC Controller Select "Enabled"...
  • Page 36 BIOS UART Mode Select There are three options in this field. you can select the one of these options which you need. Setting: normal (default) RxD, TxD Active You can select different Active levels for Rxd, Txd. The levels are shown by the follow table.
  • Page 37 BIOS Parallel Port Mode It allows you select different operation modes for parallel port. Select an operating mode for the onboard parallel (printer) port. Select Normal, Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes. Setting: spp (default) EPP mode select You can use this feature to choose which version of EPP to use.
  • Page 38 BIOS USB 1.0 Controller Enable or disable USB1.0 function Setting: Enabled (default) USB 2.0 Controller Enable or disable USB1.0 function. Setting: Enabled (default) USB Operation Mode Enable or disable USB2.0 function. Setting: Enabled (default) USB Keyboard /Mouse Function Enable or disable USB keyboard/mouse function. If select enabled or disabled, you can use USB keyboard/mouse or not.

  • Page 39: Power Management Setup

    BIOS 3.7 Power Management Setup Power Type/PWM function It supports ACPI (Advanced Configuration and Power Interface). If you system use ATX power supply and the OS up to windows 98. Setting: ATX/ACPI (Default) Power Management Option It allows you to set the type of power saving management modes. Setting: User Define (default) Min Saving Max Saving...
  • Page 40 BIOS Suspend mode It allows you to select the type of CPU working modes .If your system not activity for a long times(by your set),all of the devices could stop work except CPU. Setting: Disable (default) Video off Option It allows you to select the type of video off modes. Controls what causes the display to be switched off.

  • Page 41: Pnp/Pci Configurations

    BIOS Wake up event detect This system can be wake up from suspend by some events. In this field you can configure you system whether detect any events to wake up your system. 3.8 PNP/PCI Configurations PNP OS Installed If you are using a Plug and Play capable operating system (like Windows9x), you can select Yes configure non-boot devices by PNP OS.
  • Page 42 BIOS Resources Controlled By This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operating system. Setting: Auto(ESCD) (Default), Manual. IRQ Resource It allows you to configure the IRQ Resources. This selection set by the designer.

  • Page 43: Pc Health Status

    BIOS Maximum payload Size In this field, you can configure the maximum payload size for your system. Setting: 4096 (default) 3.9 PC Health Status This section show you CPU Health Status of system. CPU Warning temperature This item allows you to set up the CPU CPU Warning temperature. Setting: Disabled (Default).

  • Page 44: Frequency/Voltage Control

    BIOS 3.10 Frequency/Voltage Control CPU Clock Ratio In this item, you can configure CPU Clock ratio. Please keep the default setting for your system if you do not know what the meaning of this item. Setting: 5X (default) Auto Detect PCI Clk You can select Enabled or Disabled to enable or disable automatic detect PCI clock, please keep the default setting for your system if you do not know what the meaning of this item.

  • Page 45: Load Optimized Defaults

    BIOS CPU Clock You can configure CPU clock for your system,the default value is 100MHz. Please keep the default setting for your system if you do not know what the meaning of this item. Setting: 100MHz(default) 3.11 Load Optimized Defaults It allows you to load the default values to your system configuration.

  • Page 46: Set Password

    BIOS 3.12 Set Password Useing Password to set a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>.

  • Page 47: Save & Exit Setup

    BIOS 3.13 Save & Exit Setup Typing "Y", you will quit the setup utility and save all the changes into the CMOS memory. Typing "N", you will return to Setup utility. 3.14 Exit Without Saving Typing "Y" will quit the Setup utility without saving the modifications. Typing "N"...

  • Page 48: Bios Memory Mapping

    BIOS 3.15 BIOS memory mapping Address Device Description 00000h-9FFFFh DOS Kernel Area A0000h-BFFFFh EGA and VGA Video Buffer (128KB) C0000h-CFFFFh EGA/VGA ROM D0000h-DFFFFh Adaptor ROM E0000h-FFFFFh System BIOS 3.16 Award BIOS Post Codes The following codes are not displayed on the screen. They can only be viewed on the LED display of a so called POST card.
  • Page 49 BIOS Reserved Disable PS/2 mouse interface (optional); Auto detect ports for keyboard & mouse followed by a port & interface swap (optional); Reset keyboard for Winbond 977 series Super I/O chips Reserved Reserved Reserved Test F000h segment shadow to see whether it is read/write capable or not.
  • Page 50 BIOS Check validity of RTC value; Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead; Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD's legacy information; Onboard clock generator initialization.
  • Page 51 BIOS Reserved Test 8259 interrupt mask bits for channel 1 Reserved Test 9259 interrupt mask bits for channel 2 Reserved Reserved Test 8259 functionality Reserved Reserved Reserved Initialize EISA slot Reserved Calculate total memory by testing the last double last word of each 64K page;...
  • Page 52 BIOS Show message for entering AWDFLASH.EXE from FDD (optional feature) Reserved Initialize Init_Onboard_Super_IO switch; Initialize Init_Onboard_ AUDIO switch Reserved Reserved Okay to enter Setup utility Reserved Reserved Reserved Reserved Initialize PS/2 mouse Reserved Prepare memory size information for function call: INT 15h ax=E820h Reserved Turn on L2 cache Reserved...
  • Page 53 BIOS Detect and install coprocessor Reserved Reserved Reserved Reserved Switch back to text mode if full screen logo is supported: if err or soccur, report errors & wait for keys, if no errors occur or F1 key is pressed continue - Clear EPA or customization logo Reserved Reserved Call chipset power management hook: Recover the text fond usedby...

  • Page 54: Chapter 4 Appendix

    Appendix Chapter 4 Appendix - 51 -...

  • Page 55: I/O Map

    Appendix I/O Map Item Address Description 0000h-0000Fh Direct memory access controller 0080h-009Fh 00C0h-00DFh 0020h, 0021h Programmable interrupt Controller 00A0h, 00A1h 0040h-0043h System timer 0044h-0047h Keyboard controller 0060h-0064h System CMOS/real time clock 0070h-0073h Math Co-Processor 00F0h-00FFh Primary IDE 01F0h-01F7h ISAPNP Read Data Port 0274h-0277h ISAPnP Configuration 0279h , 0A79h...

  • Page 56: Irq Map

    Appendix 4.2 IRQ Map Item Description IRQ_0 System Timer IRQ_1 Keyboard Controller IRQ_2 VGA and Link to Secondary PIC IRQ_3 COM 2 IRQ_4 COM 1 IRQ_5 PCI Device IRQ_6 Floppy Controller IRQ_7 Parallel Port IRQ_8 CMOS/RTC Timer IRQ_9 ACPI IRQ_10 PCI Device IRQ_11 PCI Device...
  • Page 57 Appendix struct product myproduct = {1, 0, "ITX-7415", 2, 3, 1, 1}; int main(void) { typedef int (*DLLPROC)(ARGS); DLLPROC BoardInit; DLLPROC BoardClose; DLLPROC WatchdogStart; DLLPROC WatchdogStop; HMODULE lib; lib = LoadLibrary("libarborpu-0.dll"); if (!lib){ fprintf(stderr,"Could not find the Arbor Platform Utilities Library ... \N"); exit(0);...
