Table of Contents

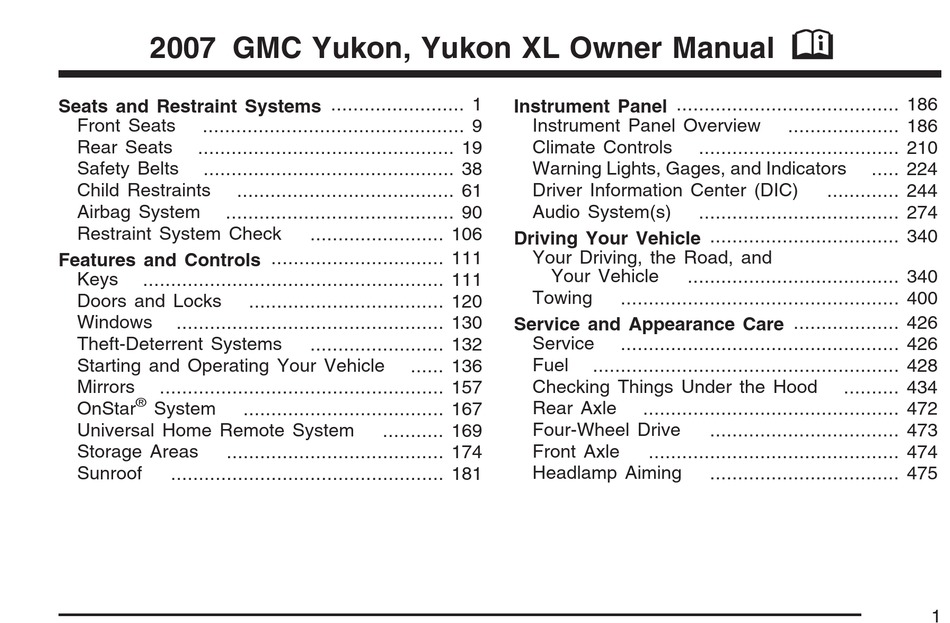

2007 GMC Yukon, Yukon XL Owner Manual
Seats and Restraint Systems ........................ 1
Front Seats
............................................... 9
Rear Seats
.............................................. 19
Safety Belts
............................................. 38
Child Restraints
Airbag System
......................................... 90
Restraint System Check
Features and Controls ............................... 111
Keys
...................................................... 111
Doors and Locks
Windows
................................................ 130
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
................................................... 157
®
OnStar
System
Universal Home Remote System
Storage Areas
....................................... 174
Sunroof
................................................. 181
....................................... 61
........................ 106
................................... 120
........................ 132
...... 136
.................................... 167
........... 169
Instrument Panel ........................................ 186
Instrument Panel Overview
Climate Controls
Warning Lights, Gages, and Indicators
Driver Information Center (DIC)
Audio System(s)
Driving Your Vehicle .................................. 340
Your Driving, the Road, and
Your Vehicle
...................................... 340
Towing
.................................................. 400
Service and Appearance Care ................... 426
Service
.................................................. 426
Fuel
....................................................... 428
Checking Things Under the Hood
Rear Axle
.............................................. 472
Four-Wheel Drive
Front Axle
............................................. 474
Headlamp Aiming
M
.................... 186
.................................... 210
..... 224
............. 244
.................................... 274
.......... 434
.................................. 473
.................................. 475
1

Advertisement

Table of Contents

   Also See for GMC 2007 Yukon XL

   Summary of Contents for GMC 2007 Yukon XL

  • Page 1 2007 GMC Yukon, Yukon XL Owner Manual Seats and Restraint Systems ... 1 Front Seats ... 9 Rear Seats ... 19 Safety Belts ... 38 Child Restraints ... 61 Airbag System ... 90 Restraint System Check Features and Controls ... 111 Keys ...
  • Page 2 Bulb Replacement ... 478 Windshield Wiper Blade Replacement Tires ... 482 Appearance Care ... 527 Vehicle Identification ... 538 Electrical System ... 539 Capacities and Specifications Maintenance Schedule ... 552 Maintenance Schedule ... 481 Customer Assistance Information ... 572 Customer Assistance and Information Reporting Safety Defects Index ...
  • Page 3: How To Use This Manual

    GENERAL MOTORS, GM, the GM Emblem, GMC, the GMC Truck Emblem, and the name YUKON are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
  • Page 4: Safety Warnings And Symbols

    Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
  • Page 5 Vehicle Damage Warnings Also, in this manual you will find these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
  • Page 6 These are some examples of symbols that may be found on the vehicle:...
  • Page 7: Table Of Contents

    Section 1 Front Seats ...9 Manual Seats ...9 Power Seats ...10 Power Lumbar ...11 Heated Seats ...12 Memory Seat, Mirrors, and Pedals ...13 Reclining Seatbacks ...15 Head Restraints ...18 Center Seat ...19 Rear Seats ...19 Heated Seats ...19 60/40 Split Bench Seat (Second Row) ...20 Bucket Seats (Second Row) ...26 Third Row Seat ...33 Safety Belts ...38...
  • Page 8 Section 1 Airbag System ...90 Where Are the Airbags? ...93 When Should an Airbag Inflate? ...96 What Makes an Airbag Inflate? ...98 How Does an Airbag Restrain? ...98 What Will You See After an Airbag Inflates? ...99 Seats and Restraint Systems Passenger Sensing System ...100 Servicing Your Airbag-Equipped Vehicle ...104 Adding Equipment to Your...
  • Page 9: Front Seats

    Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 10: Power Seats

    Power Seats Driver’s Seat with Power Seat Control, Power Recline, and Power Lumbar shown If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. To adjust the seat, do any of the following: •...
  • Page 11: Power Lumbar

    Power Lumbar If the seats have power lumbar, the controls used to operate this feature are located on the outboard side of the seats. • To increase lumbar support, press and hold the front of the control. • To decrease lumbar support, press and hold the rear of the control.
  • Page 12: Heated Seats

    Heated Seats If the seats have the heated seat feature, the buttons used to control this feature are located on the front doors near the door handle. (Heated Seatback): Press this button to turn on the heated seatback. The light on the button will come on to indicate that the feature is working.
  • Page 13: Memory Seat, Mirrors, And Pedals

    Memory Seat, Mirrors, and Pedals Your vehicle may have the memory package. The controls for this feature are located on the driver’s door panel, and are used to program and recall memory settings for the driver’s seat, outside mirrors, and the adjustable throttle and brake pedal feature if your vehicle has it.
  • Page 14 If something has blocked the driver’s seat and/or the adjustable pedals while recalling a memory position, the driver’s seat and/or the adjustable pedals recall may stop working. If this happens, press the appropriate control for the area that is not recalling for two seconds, after the obstruction is removed.
  • Page 15: Reclining Seatbacks

    Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
  • Page 16 To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
  • Page 17 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
  • Page 18: Head Restraints

    Head Restraints Adjust the head restraint so that the top of the restraint is at the same height as the top of the occupant’s head. This position reduces the chance of a neck injury in a crash. Pull the head restraint up to raise it.
  • Page 19: Center Seat

    Center Seat Your vehicle may have a front center seat. The seatback doubles as an armrest and cupholder/ storage area for the driver and passenger when the center seat is not used. Do not use it as a seating position when the seatback is folded down. For information on safety belts for this position, see Center Front Passenger Position on page 53.
  • Page 20: 60/40 Split Bench Seat (second Row)

    60/40 Split Bench Seat (Second Row) If your vehicle has a 60/40 split bench, the seat(s) can be folded for additional cargo space or folded and tumbled for easy entry and exit to the third row seats, if your vehicle has them. These seats will have either the manual fold and tumble feature or the automatic seat release fold and tumble feature.
  • Page 21 The seatback will fold forward automatically. Leaving the seatback in this position creates a flat load floor. If the seatback cannot fold flat, try moving the front seat forward and/or put the front seatback in the upright position. 3. Lift the same lever again to release the rear of the seat from the floor.
  • Page 22 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the floor. The seatback cannot be raised if the seat is not latched to the floor. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
  • Page 23 Folding and Tumbling the Seat(s) from the Third Row Seats CAUTION: Be sure to return the seat to the passenger seating position when finished. Push and pull on the seat to make sure it is locked in place. Never use the third row seating position while the second row is folded or folded and tumbled.
  • Page 24 Automatic Release Fold and Tumble Feature The transmission must be in PARK (P) for this feature to work. Folding and Tumbling the Seat(s) CAUTION: Automatically folding and tumbling the seat, when someone is sitting in the seat, could cause injury to the person sitting there.
  • Page 25 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the floor. The seatback cannot be raised if the seat is not latched to the floor. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
  • Page 26: Bucket Seats (second Row)

    Folding and Tumbling the Second Row Seat(s) from the Third Row Seats or Outside CAUTION: Be sure to return the seat to the passenger seating position when finished. Push and pull on the seat to make sure it is locked in place. Never use the third row seating position while the second row is folded or folded and tumbled.
  • Page 27 Reclining Seatbacks To recline the seatback, do the following: 1. Lift the lever located on the outboard side of the seat. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked.
  • Page 28 Manual Fold and Tumble Feature Folding and Tumbling the Seat(s) To fold and tumble the seat, do the following: 1. Make sure that there is nothing under, in front of, or on the seat. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts.
  • Page 29 Returning the Seat(s) to the Sitting 3. Lift the lever again to release the rear Position of the seat from To return the seat to the sitting position, do the the floor. The seat following: will tumble forward. 1. Pull the seat down until it latches to the floor. 2.
  • Page 30 Folding and Tumbling the Seat(s) from the Third Row Seats CAUTION: Be sure to return the seat to the passenger seating position when finished. Push and pull on the seat to make sure it is locked in place. Never use the third row seating position while the second row is folded or folded and tumbled.
  • Page 31 Automatic Release Fold and Tumble Feature The transmission must be in PARK (P) for this feature to work. Folding and Tumbling the Seat(s) CAUTION: Automatically folding and tumbling the seat, when someone is sitting in the seat, could cause injury to the person sitting there.
  • Page 32 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the floor. The seatback cannot be raised if the seat is not latched to the floor. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
  • Page 33: Third Row Seat

    2. Press the automatic Driver’s Side Rear Panel Button shown Third Row Seat If the vehicle has a third row seat, the seatback(s) can be folded and the entire seat can be tumbled, or removed from the vehicle. Folding the Seatback(s) seat release button To fold the seatback, do the following: located on the...
  • Page 34 Unfolding the Seatback(s) To return the seatback to the upright position, do the following: 1. Open the liftgate to access the controls for the seat. 2. Pull up on the seatback until it locks into the upright position. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash.
  • Page 35 4. Unlatch the seat from the floor by lifting the lever located next to the carrying handle on the rear of the seat near the bottom. 5. Lift the rear of the seat up from the floor. 6. Tilt the seat fully forward to lock it into place. 7.
  • Page 36 Removing the Third Row Seat To remove the seat, do the following: 1. Open the liftgate to access the controls for the seat. 2. Fold the seatback forward using the instructions listed under “Folding the Seatbacks” previously. The seat cannot be removed unless the seatback is folded.
  • Page 37 5. Pull up on the seatback until it locks into the upright position. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
  • Page 38: Safety Belts

    Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
  • Page 39: Why Safety Belts Work

    You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
  • Page 40 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop.
  • Page 41 The person keeps going until stopped by or the instrument panel... something. In a real vehicle, it could be the windshield...
  • Page 42: Questions And Answers About Safety Belts

    or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an...
  • Page 43: How To Wear Safety Belts Properly

    If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt. Being a good driver does not protect you from things beyond your control, such as bad drivers.
  • Page 44: Driver Position

    Driver Position Lap-Shoulder Belt The driver has a lap-shoulder belt. Here is how to wear it properly. 1. Close and lock the door. 2. Adjust the seat so you can sit up straight. To see how, see “Seats” in the Index. 3.
  • Page 45 4. Push the latch plate into the buckle until it clicks. Pull up on the latch plate to make sure it is secure. If the belt is not long enough, see Safety Belt Extender on page 60. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 46 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
  • Page 47 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
  • Page 48 What is wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen.
  • Page 49 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
  • Page 50 What is wrong with this? The belt is twisted across the body. CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 51: Shoulder Belt Height Adjustment

    To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
  • Page 52: Safety Belt Use During Pregnancy

    Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
  • Page 53: Center Front Passenger Position

    Center Front Passenger Position Lap Belt If your vehicle has a front bench seat, someone can sit in the center position. When you sit in the center front seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt.
  • Page 54: Rear Seat Passengers

    Rear Seat Passengers It is very important for rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who are not safety belted can be thrown out of the vehicle in a crash.
  • Page 55 If the belt is not long enough, see Safety Belt Extender on page 60. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to. 3.
  • Page 56: Rear Safety Belt Comfort Guides

    The safety belt locks if there is a sudden stop or a crash, or if you pull the belt very quickly out of the retractor. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
  • Page 57 There is one guide for each outside passenger position in the second row seat and the third row, if your vehicle has one. Here is how to install a comfort guide and use the safety belt: Second Row 1. For the second row, remove the guide from its storage clip on the interior body.
  • Page 58 2. Slide the guide under and past the belt. The elastic cord must be under the belt. Then, place the guide over the belt, and insert the two edges of the belt into the slots of the guide. 3. Be sure that the belt is not twisted and it lies flat.
  • Page 59 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
  • Page 60: Safety Belt Pretensioners

    Safety Belt Pretensioners Your vehicle has safety belt pretensioners for the driver and right front passenger. Although you cannot see them, they are located on the retractor part of the safety belts. They help the safety belts reduce a person’s forward movement in a moderate to severe frontal, near frontal, rear or side crash, or a rollover.
  • Page 61: Child Restraints

    Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. If you have the choice, a child should sit in a seat that has a lap-shoulder belt and get the additional restraint a shoulder belt can provide. What is the proper way to wear safety belts? If possible, an older child should wear a...
  • Page 62 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time.
  • Page 63 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
  • Page 64: Infants And Young Children

    Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
  • Page 65 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
  • Page 66 CAUTION: Children who are up against, or very close to, any airbag when it inflates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. CAUTION: (Continued) CAUTION: (Continued) Neither the vehicle’s safety belt system nor its airbag system is designed for...
  • Page 67 The restraint manufacturer’s instructions that come with the restraint, state the weight and height limitations for a particular child restraint. In addition, there are many kinds of restraints available for children with special needs. CAUTION: Newborn infants need complete support, including support for the head and neck.
  • Page 68: Child Restraint Systems

    Child Restraint Systems An infant car bed (A), a special bed made for use in a motor vehicle, is an infant restraint system designed to restrain or position a child on a continuous flat surface. Make sure that the infant’s head rests toward the center of the vehicle.
  • Page 69 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields. A booster seat (F-G) is a child restraint designed to improve the fit of the vehicle’s safety belt system.
  • Page 70 How Should I Use a Child Restraint? A child restraint system is any device designed for use in a motor vehicle to restrain, seat, or position children. A built-in child restraint system is a permanent part of the motor vehicle. An add-on child restraint system is a portable one, which is purchased by the vehicle’s owner.
  • Page 71 When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
  • Page 72: Where To Put The Restraint

    Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
  • Page 73: Lower Anchors And Tethers For Children (latch)
