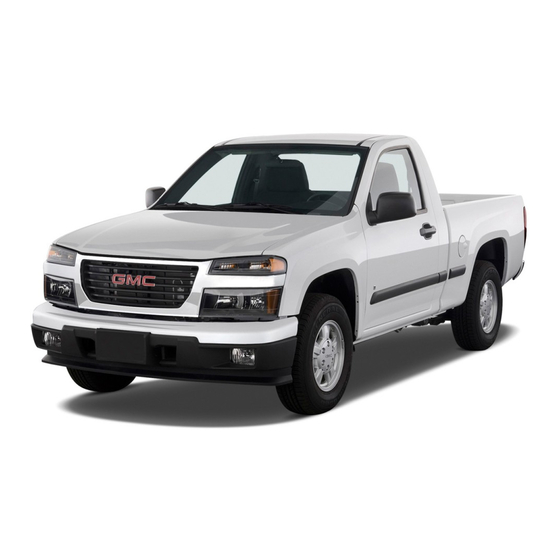

Page 1 2008 GMC Canyon Owner Manual Seats and Restraint Systems ... 1-1 Front Seats ... 1-2 Rear Seats ... 1-9 Safety Belts ... 1-12 Child Restraints ... 1-33 Airbag System ... 1-60 Restraint System Check ... 1-75 Features and Controls ... 2-1 Keys ...
Page 2 For vehicles ﬁrst sold in Canada, substitute the name “General Motors of Canada Limited” for GMC whenever it appears in this manual. This manual describes features that may be available in this model, but your vehicle may not have all of them.
Page 3: Using This Manual
Using this Manual Many people read the owner manual from beginning to end when they ﬁrst receive their new vehicle to learn about the vehicle’s features and controls. Pictures and words work together to explain things. Index A good place to quickly locate information about the vehicle is the Index in the back of the manual.
Page 4 Vehicle Damage Warnings You will also ﬁnd notices in this manual. Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Power Seats ...1-3 Manual Lumbar ...1-3 Power Lumbar ...1-4 Heated Seats ...1-4 Reclining Seatbacks ...1-5 Head Restraints ...1-7 Seatback Latches ...1-8 Rear Seats ...1-9 Rear Seat Operation (Extended Cab) ...1-9 Rear Seat Operation (Crew Cab) ...1-10 Safety Belts ...1-12 Safety Belts: They Are for Everyone ...1-12 How to Wear Safety Belts Properly ...1-17...
Page 6: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 7: Power Seats
Power Seats If the vehicle has power seats, the controls used to operate them are located on the outboard side of the seats. To adjust the seat, do any of the following: • Move the seat forward or rearward by sliding the horizontal control forward or rearward.
Page 8: Power Lumbar
Power Lumbar If your vehicle has this feature, the control is located on the outboard side of the seat(s). Press and hold the front of the control until you have the desired lumbar support. To decrease lumbar support, press and hold the rear of the control. Heated Seats If your vehicle has this feature, the controls are...
Page 9: Reclining Seatbacks
Reclining Seatbacks Manual Reclining Seatbacks CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 10: Power Reclining Seatbacks
To return the seatback to an upright position, do the following: 1. Lift the lever fully without applying pressure to the seatback and the seatback will return to the upright position. 2. Push and pull on the seatback to make sure it is locked.
Page 11: Head Restraints
CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 12: Seatback Latches
Pull up on the head restraint to raise it. To lower the head restraint, press the button located on top of the seatback and push down on the head restraint. Seatback Latches Your vehicle may have front seatbacks that fold forward for easy access to the rear seats or the storage area behind the seats.
Page 13: Rear Seats
Rear Seats Rear Seat Operation (Extended Cab) If your vehicle has an extended cab, there may be forward folding seats in the rear area. To fold the rear seat cushion(s) from the stored position to the sitting position, pull the front of the seat cushion down completely.
Page 14: Rear Seat Operation (Crew Cab)
Rear Seat Operation (Crew Cab) The rear seatback(s) in the crew cab can be folded forward. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts. Always unbuckle the safety belts and return them to their normal stowed position before folding a rear seat.
Page 15 To return the seatback(s) to the upright position, do the following: 1. Lift the seatback(s) and push it into place. CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked.
Page 16: Safety Belts
Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 17: Why Safety Belts Work
In most states and in all Canadian provinces, the law requires wearing safety belts. Here is why: You never know if you will be in a crash. If you do have a crash, you do not know if it will be a serious one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 18 Put someone on it. 1-14 Get it up to speed. Then stop the vehicle. The rider does not stop.
Page 19 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-15...
Page 20: Questions And Answers About Safety Belts
or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-16 Questions and Answers About Safety Belts...
Page 21: How To Wear Safety Belts Properly
If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in a crash — even one that is not your fault — you and your passenger(s) can be hurt.
Page 22 The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces. The shoulder belt locks if there is a sudden stop or crash. What is wrong with this? The shoulder belt is too loose.
Page 23 What is wrong with this? The lap belt is too loose. It will not give as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 24 What is wrong with this? The belt is buckled in the wrong place. 1-20 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 25 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt.
Page 26 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-22 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 27 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 28 What is wrong with this? The belt is twisted across the body. 1-24 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 29: Lap-Shoulder Belt
Lap-Shoulder Belt All seating positions in your vehicle have a lap-shoulder belt except for the center front passenger position (if equipped), which has a lap belt. See Lap Belt on page 1-31 for more information. Here is how to wear a lap-shoulder belt properly. 1.
Page 30 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. 1-26 To unlatch the belt, push the button on the buckle. The belt should go back out of the way.
Page 31 Shoulder Belt Height Adjuster Your vehicle has a shoulder belt height adjuster for the driver and right front passenger position. Adjust the height so that the shoulder portion of the belt is centered on your shoulder. The belt should be away from your face and neck, but not falling off your shoulder.
Page 32: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Your vehicle may have rear shoulder belt comfort guides for the rear outside positions. Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 33 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies ﬂat. edges of the belt into the slots of the guide. The elastic cord must be under the belt and the guide on top.
Page 34 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 35: Safety Belt Use During Pregnancy
Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 36: Safety Belt Extender
To make the belt shorter, pull its free end as shown until the belt is snug. If the belt is not long enough, see Safety Belt Extender on page 1-32. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 37: Child Restraints
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 38 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 39 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. In a crash, the child would not be restrained by the shoulder belt. The child might slide under the lap belt. The belt force would then be applied right on the abdomen.
Page 40: Infants And Young Children
Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 41 CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older CAUTION: (Continued) CAUTION: (Continued) children, but not for young children and infants.
Page 42 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 43: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 44 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-40 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly...
Page 45 When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 46: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. We recommend that children and child restraints be secured in a rear seat, including: an infant or a child riding in a rear-facing child restraint;...
Page 47: Lower Anchors And Tethers For Children (Latch)
CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat. It is always better to secure a child restraint in a rear seat.
Page 48 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-44 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 49 Some child restraints that have a top tether are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 50 For crew cab models, there are exposed metal lower anchors for each rear outboard seating position, located where the seatback meets the back of the seat cushion. For extended cab models with rear seats, there are exposed metal lower anchors for each rear seating position, attached to the back wall, near the seat cushion.
Page 51 Extended Cab — Rear Seat The top tether anchors in an extended cab model are located on the center of the back wall behind a removable cover for the rear seating positions. Be sure to use an anchor located nearest to the seating position where the child restraint will be placed.
Page 52: Securing A Child Restraint Designed For The Latch System
Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. See Where to Put the Restraint on page 1-42 for additional information. Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to anchors, the restraint will not be able to protect...
Page 53 CAUTION: Children can be seriously injured or strangled if a shoulder belt is wrapped around their neck and the safety belt continues to tighten. Secure any unused safety belts behind the child restraint so children cannot reach them. Pull the shoulder belt all the way out of the retractor to set the lock, if your vehicle has one, after the child restraint has been installed.
Page 54 2.2. Route the top tether according to your child restraint instructions and the following instructions: If the position you are using has a ﬁxed headrest or head restraint and you are using a single tether, route the tether over the head restraint.
Page 55 3. Attach and tighten the lower attachments to the lower anchors. If the child restraint does not have lower attachments or the desired seating position does not have lower anchors, secure the child restraint with the top tether and the safety belts. Refer to your child restraint manufacturer instructions and the instructions in this manual.
Page 56 2. If the child restraint manufacturer recommends that the top tether be attached, attach and tighten the top tether to the top tether anchor (C). Refer to the child restraint instructions and the following steps: 2.1. Pull on the ﬁnger access tab to remove the cover to access the top tether anchors (C).
Page 57 2.3. Route the top tether according to your child restraint instructions and the following instructions: If the position you are using has a ﬁxed headrest or head restraint and you are using a single tether, route the tether over the headrest or head restraint.
Page 58: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with your child restraint to make sure it is compatible with this vehicle. If your child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-43 for how to install your child restraint using LATCH.
Page 59 4. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 5. If your child restraint has a top tether, attach the top tether to the top tether anchor. See Lower Anchors and Tethers for Children (LATCH) on page 1-43.
Page 60: Securing A Child Restraint In The Center Front Seat Position
Securing a Child Restraint in the Center Front Seat Position CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat. It is always better to secure a child restraint in a rear seat.
Page 61 CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger’s airbag inﬂates. This is because the back of the rear-facing child restraint would be very close to the inﬂating airbag. Even though the passenger sensing system is designed to turn off the right front passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no...
Page 62 2. Put the child restraint on the seat. 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint. The child restraint instructions will show you how. 4. Push the latch plate into the buckle until it clicks. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 63 7. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 64: Airbag System
Airbag System Your vehicle has the following airbags: • A frontal airbag for the driver. • A frontal airbag for the right front passenger Your vehicle may also have the following airbags: • A roof-rail airbag for the driver and the passenger seated directly behind the driver.
Page 65 CAUTION: Frontal airbags are designed to deploy in moderate to severe frontal and near frontal crashes. They are not designed to inﬂate in rollover, rear crashes, or in many side crashes. Roof-rail airbags are designed to inﬂate in moderate to severe crashes where something hits the side of your vehicle.
Page 66 CAUTION: Airbags plus lap-shoulder belts offer the best protection for adults, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them. Young children and infants need the protection that a child restraint system can provide.
Page 67: Where Are The Airbags
Where Are the Airbags? The driver’s airbag is in the middle of the steering wheel. The right front passenger’s airbag is in the instrument panel on the passenger’s side. 1-63...
Page 68 Driver Side shown, Passenger Side similar If your vehicle has roof-rail airbags for the driver, right front passenger, and second row outboard passengers, they are in the ceiling above the side windows. 1-64 CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 69: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 70 Your vehicle has seat position sensors which enables the sensing system to monitor the position of the driver’s seat and the right front passenger’s seat. Seat position sensors provide information that is used to determine if the airbags should deploy at a reduced level or at full deployment.
Page 71: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In a deployment event, the sensing system sends an electrical signal triggering a release of gas from the inﬂator. Gas from the inﬂator ﬁlls the airbag causing the bag to break out of the cover and deploy. The inﬂator, the airbag, and related hardware are all part of the airbag module.
Page 72: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize the airbags inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy. Some components of the airbag module may be hot for several minutes.
Page 73: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 74 The passenger sensing system works with sensors that are part of the right front passenger’s seat. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger’s frontal airbag should be enabled (may inﬂate) or not. Accident statistics show that children are safer if they are restrained in the rear rather than the front seat.
Page 75 If your vehicle does not have a rear seat that will accommodate a rear-facing child restraint, we recommend that rear-facing child restraints not be transported in your vehicle, even if the airbag is off. The passenger sensing system is designed to turn off the right front passenger’s frontal airbag if: •...
Page 76 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat. When the passenger sensing system has allowed the airbag to be enabled, the on indicator will light and stay lit to remind you that the airbag is active.
Page 77 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the airbag(s).
Page 78: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer/retailer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-15.
Page 79: Restraint System Check
Any object, such as an aftermarket seat heater or a comfort enhancing pad or device, installed under or on top of the seat fabric, could also interfere with the operation of the passenger sensing system. This could either prevent proper deployment of the passenger airbag(s) or prevent the passenger sensing system from properly turning off the passenger airbag(s).
Page 80: Replacing Restraint System Parts After A Crash
Airbags The airbag system does not need regularly scheduled maintenance or replacement. Make sure the airbag readiness light is working. See Airbag Readiness Light on page 3-27 for more information. Notice: If an airbag covering is damaged, opened, or broken, the airbag may not work properly. Do not open or break the airbag coverings.
Page 81: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Doors and Locks ...2-7 Door Locks ...2-7 Power Door Locks ...2-8 Programmable Automatic Door Locks ...2-8 Rear Door Security Locks (Crew Cab) ...2-9 Lockout Protection ...2-9 Rear Doors (Extended Cab) ...2-9 Tailgate ...2-10...
Page 82 Section 2 Mirrors ...2-39 Manual Rearview Mirror ...2-39 Manual Rearview Mirror with OnStar Automatic Dimming Rearview Mirror ...2-40 Automatic Dimming Rearview Mirror ® with OnStar , Compass and Temperature Display ...2-40 Automatic Dimming Rearview Mirror with Compass and Temperature Display ...2-43 Outside Manual Mirrors ...2-45 Outside Power Mirrors ...2-46 Outside Convex Mirror ...2-46...
Page 83: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and they could be seriously injured or killed if caught in the path of a closing window.
Page 84: Remote Keyless Entry (Rke) System
The key can be used for the ignition, all door locks, and the tailgate. The key has a bar-coded key tag that the dealer/retailer or qualiﬁed locksmith can use to make new keys. Store this information in a safe place, not in your vehicle. Notice: If you ever lock your keys in your vehicle, you may have to damage the vehicle to get in.
Page 85: System Operation
Remote Keyless Entry (RKE) System Operation If your vehicle has this feature you can lock and unlock your doors and disarm or arm your theft-deterrent system from about 3 feet (1 m) up to 30 feet (9 m) away using the Remote Keyless Entry (RKE) transmitter. See Content Theft-Deterrent on page 2-15 for additional information.
Page 86: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each RKE transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer/retailer. Remember to bring any remaining transmitters with you when you go to your dealer/retailer.
Page 87: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 88: Power Door Locks
Power Door Locks If your vehicle has power door locks, the switches are located on the driver’s and the front passenger’s armrests. Driver’s Switch Shown, Front Passenger’s Switch Similar Press L (lock) to lock all the doors at once. To unlock all the doors, press U (unlock).
Page 89: Rear Door Security Locks (Crew Cab)
Rear Door Security Locks (Crew Cab) If your vehicle is a crew cab model, it may have rear door security locks. With this feature, you can lock the rear doors so they cannot be opened from the inside. The rear door security lock is located on the inside edge of each rear door below the security...
Page 90: Tailgate
Tailgate CAUTION: It is extremely dangerous to ride on the tailgate, even when the vehicle is operated at low speeds. People riding on the tailgate can easily lose their balance and fall in response to vehicle maneuvers. Falling from a moving vehicle may result in serious injuries or death.
Page 91 Removing the Tailgate Follow these steps if you want to remove the tailgate: 1. With the tailgate fully open, lift up slightly on the entire tailgate assembly. Remove the retaining cables from both sides of the tailgate by pulling the clips away from the bolt heads while pushing the cable bracket forward.
Page 92: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 93: Power Windows
Power Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome from extreme heat in warm or hot weather and suffer permanent injuries or even death from heat stroke. Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed.
Page 94: Sliding Rear Window
Express-Down Windows The driver’s window has an express-down feature that allows the window to be lowered fully without continuously holding the switch. Press the front of the switch past the ﬁrst position to activate the express-down mode. The express-down mode can be canceled at any time by pulling up on the switch.
Page 95: Theft-Deterrent Systems
Visor Vanity Mirror The passenger’s side sun visor may have a mirror. Pull down the visor to access the mirror. Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent features, we know that nothing we put on it can make it impossible to steal.
Page 96: Theft-Deterrent Systems
Here is how to avoid setting off the alarm by accident: • If you do not want to activate the theft-deterrent system, the vehicle should be locked with the door key after the doors are closed. • Always unlock a door with the RKE transmitter. Unlocking a door any other way will set off the alarm.
Page 97: Pass-Key ® Iii+ Operation (Canada Only)
® PASS-Key III+ ® The PASS-Key III+ system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 98 If your vehicle does start, the ﬁrst key may be faulty. See your dealer/retailer who can service the theft-deterrent system and have a new key made. It is possible for the theft-deterrent system decoder to learn the transponder value of a new or replacement key.
Page 99: Starting And Operating Your Vehicle
Starting and Operating Your Vehicle New Vehicle Break-In Notice: Your vehicle does not need an elaborate break-in. But it will perform better in the long run if you follow these guidelines: • Keep your speed at 55 mph (88 km/h) or less for the ﬁrst 500 miles (805 km).
Page 100 If you have an automatic transmission, the ignition switch cannot be turned to LOCK/OFF unless the shift lever is in PARK (P). If the steering wheel is locked, move it from right to left and turn the key to ACC/ACCESSORY. If none of this works, then your vehicle needs service.
Page 101: Retained Accessory Power (Rap)
Retained Accessory Power (RAP) These vehicle accessories can be used for up to 20 minutes after the engine is turned off: • Audio System • Wipers • Power Windows These features work when the key is in ON/RUN or ACC/ACCESSORY. Once the key is turned from ON/RUN to LOCK/OFF, power to these features continue to work for up to 20 minutes or until a door is opened.
Page 102: Engine Coolant Heater
If the engine does not start and the key is held in START for many seconds, cranking will be stopped after 15 seconds to prevent cranking motor damage. To prevent gear damage, this system also prevents cranking if the engine is already running. Engine cranking can be stopped by turning the ignition switch to ACC/ACCESSORY or LOCK/OFF.
Page 103: Automatic Transmission Operation
CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured. Plug the cord into a properly grounded three-prong 110-volt AC outlet. If the cord will not reach, use a heavy-duty three-prong extension cord rated for at least 15 amps.
Page 104 There are several different positions for your shift lever. PARK (P): This position locks your rear wheels. It is the best position to use when you start your engine because your vehicle cannot move easily. CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set.
Page 105 CAUTION: Shifting into a drive gear while the engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly. You could lose control and hit people or objects. Do not shift into a drive gear while your engine is running at high speed.
Page 106: Manual Transmission Operation
Manual Transmission Operation This is your shift pattern. Here is how to operate your manual transmission: FIRST (1): Press the clutch pedal and shift into FIRST (1). Then, slowly let up on the clutch pedal as you slowly press down on the accelerator pedal. You can shift into FIRST (1) when you are going less than 20 mph (30 km/h).
Page 107 Notice: Shifting to REVERSE (R) while your vehicle is moving forward could damage the transmission. The repairs would not be covered by your warranty. Shift to REVERSE (R) only after your vehicle is stopped. Use REVERSE (R), along with the parking brake, for parking your vehicle.
Page 108: Four-Wheel Drive
Four-Wheel Drive If your vehicle has four-wheel drive, you can send your engine’s driving power to all four wheels for extra traction. To get the best performance out of four-wheel drive, you must be familiar with its operation. Read the part that follows before using four-wheel drive.
Page 109 Use these buttons to shift into and out of four-wheel drive. You can choose from the following: (Two-Wheel High): This setting is for driving in most street and highway situations. Your front axle is not engaged in two-wheel drive. CAUTION: Shifting the transfer case to NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P), or if you have a...
Page 110 Shifting from Two-Wheel High to Four-Wheel High Press and release the Four-Wheel High button. This can be done at any speed, and the front axle will lock automatically. Shifting from Four-Wheel High to Two-Wheel High Press and release the Two-Wheel High button. This can be done at any speed, and the front axle will unlock automatically.
Page 111 Shifting from Four-Wheel Low to Two-Wheel High or Four-Wheel High To shift from Four-Wheel Low to Two-Wheel High or Four-Wheel High, your vehicle must be stopped or moving less than 3 mph (5 km/h) with the transmission in NEUTRAL (N) for an automatic transmission or the clutch pedal pressed for a manual transmission.
Page 112: Parking Brake
7. Turn the engine off by turning the key to ACC. 8. Place the transmission shift lever in PARK (P), or FIRST (1) for vehicles that have a manual transmission. 9. Turn the ignition to LOCK. Shifting Out of NEUTRAL After towing your vehicle, you will have to shift out of NEUTRAL in order to drive.
Page 113 To release the parking brake, hold the regular brake pedal down. Pull the bottom edge of the lever, located above the parking brake pedal, with the parking brake symbol, directly rearward to release the parking brake. If the ignition is on when the parking brake is released, the brake system warning light will go off.
Page 114: Shifting Into Park (P) (Automatic Transmission)
Shifting Into PARK (P) (Automatic Transmission) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 115 Leaving Your Vehicle With the Engine Running (Automatic Transmission) CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch ﬁre.
Page 116: Shifting Out Of Park (P) (Automatic Transmission)
Shifting Out of PARK (P) (Automatic Transmission) Your vehicle has an automatic transaxle shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) when the ignition is RUN. See Automatic Transmission Operation on page 2-23.
Page 117: Parking Your Vehicle (Manual Transmission)
Parking Your Vehicle (Manual Transmission) Your vehicle has a manual transmission. Before you get out of your vehicle, move the shift lever into REVERSE (R), and ﬁrmly apply the parking brake. Once the shift lever has been placed into REVERSE (R) with the clutch pedal pressed in, turn the ignition key to LOCK, remove the key and release the clutch.
Page 118: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 119: Mirrors
CAUTION: Four-wheel drive vehicles with the transfer case in NEUTRAL will allow the vehicle to roll, even if the automatic transmission shift lever is in PARK (P). So, be sure the transfer case is in a drive gear — not in NEUTRAL. Always set the parking brake.
Page 120: Cleaning The Mirror
® There are also OnStar buttons located at the bottom of the mirror face. See your dealer/retailer for more information on the system and how to subscribe ® ® to OnStar . See OnStar System on page 2-47 for more information about the services OnStar Cleaning the Mirror While cleaning the mirror, use a paper towel or similar material dampened with glass cleaner.
Page 121: Temperature And Compass Display
Temperature and Compass Display Press the on/off button, located to the far left, brieﬂy to turn the compass/temperature display on or off. If the display reads CAL, the compass needs to be calibrated. For more information, see “Compass Calibration” following. To adjust between Fahrenheit and Celsius: 1.
Page 122: Compass Variance
Compass Variance The mirror is set in zone eight upon leaving the factory. It will be necessary to adjust the compass to compensate for compass variance if the vehicle is outside of zone eight. Under certain circumstances, as during a long distance cross-country trip, it will be necessary to adjust for compass variance.
Page 123: Automatic Dimming Rearview Mirror With Compass And Temperature Display
Cleaning the Mirror When cleaning the mirror, use a paper towel or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as that may cause the liquid cleaner to enter the mirror housing. Automatic Dimming Rearview Mirror with Compass and Temperature Display Your vehicle may have this mirror.
Page 124: Compass Operation
Compass Operation Press the compass/temperature button once brieﬂy to turn the display on or off. Compass Calibration The compass may need calibration if one of the following occurs: • If CAL is displayed while driving in the vehicle. • After approximately ﬁve seconds, the display does not show a compass heading, N for North, for example, there may be a strong magnetic ﬁeld interfering with the compass.
Page 125: Outside Manual Mirrors
2. Press and hold the compass/temperature button for six seconds until a zone number appears in the display. 3. Press the compass/temperature button on the bottom of the mirror until the new zone number appears in the display. After you stop pressing the button, the display will show a compass direction within a few seconds.
Page 126: Outside Power Mirrors
Outside Power Mirrors If your vehicle has this feature, the controls are located on the driver’s door armrest. To adjust the power mirrors, do the following: 1. Move the selector switch to the L (left) or R (right) to choose the driver’s or passenger’s mirror. 2.
Page 127: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 128 Available Services with Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • AccidentAssist • Remote Door Unlock/Vehicle Alert •...
Page 129: How Onstar Service Works
OnStar Virtual Advisor OnStar Virtual Advisor is a feature of OnStar Hands-Free Calling that uses your minutes to access location-based weather, local traffic reports, and stock quotes. By pressing the phone button and giving a few simple voice commands, you can browse through the various topics.
Page 130: Storage Areas
Your Responsibility You may need to increase the volume of your radio to hear the OnStar advisor. If the light next to the OnStar buttons is red, this means that your system is not functioning properly and should be checked by a dealer/retailer.
Page 131: Assist Handles
Assist Handles Your vehicle may have assist handles to be used when getting out of your vehicle. If your vehicle has assist handles, they are located above the doors. If your vehicle has roof-mounted side impact air bags, there are assist handles located above both the driver’s and front passenger’s doors.
Page 132: Sunroof
Lift the lid from the center area to access the storage box. 2-52 Sunroof Your vehicle may have a sunroof. The sunroof control buttons are located on the headliner. (Open/Vent): Press and hold this button to vent, and open the sunroof. Release the button when the desired position is reached.
Page 133 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-7 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Windshield Washer ...3-10 Cruise Control ...3-10 Exterior Lamps ...3-13 Headlamps on Reminder ...3-14...
Page 134 Section 3 Up-Shift Light ...3-30 Brake System Warning Light ...3-31 Antilock Brake System Warning Light ...3-32 Traction Control System (TCS) Warning Light ...3-32 Engine Coolant Temperature Gage ...3-33 Tire Pressure Light ...3-33 Malfunction Indicator Lamp ...3-34 Oil Pressure Light ...3-36 Security Light ...3-37 Cruise Control Light ...3-37 Highbeam On Light ...3-37...
Page 135 NOTES...
Page 136: Instrument Panel Overview
Instrument Panel Overview Manual Transmission shown, Automatic Transmission similar...
Page 137 The main components of your vehicle’s instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-22. B. Turn Signal/Multifunction Lever. See Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-24. D.
Page 138: Hazard Warning Flashers
Hazard Warning Flashers The hazard warning ﬂashers let you warn the police and others that you have a problem. The front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located on the instrument panel, between the two air vents in the center.
Page 139: Tilt Wheel
Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. The tilt steering wheel can be raised to the highest level to allow more room for the driver to enter and exit the vehicle. The tilt lever is located on the left side of the steering column, under the turn signal lever.
Page 140: Turn And Lane-Change Signals
Turn and Lane-Change Signals The turn signal has two upward (for right) and two downward (for left) positions. These positions allow you to signal a turn or a lane change. To signal a turn, move the lever all the way up or down. When the turn is ﬁnished, the lever will automatically return to the off position.
Page 141: Flash-To-Pass
Flash-to-Pass This feature lets you use the high-beam headlamps to signal a driver in front of you that you want to pass. It works even if the headlamps are in the automatic position. To use it, pull the turn signal lever toward you, then release it.
Page 142: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): There is a paddle marked with the windshield washer symbol at the top of the multifunction lever.
Page 143: Setting Cruise Control
With cruise control, the vehicle can maintain a speed of about 25 mph (40 km/h) or more without keeping your foot on the accelerator. This can really help on long trips. Cruise control does not work at speeds below about 25 mph (40 km/h).
Page 144 Resuming a Set Speed Suppose you set the cruise control to a desired speed and then you apply the brake. This turns off the cruise control. But it does not need to be reset. Once you are going about 25 mph (40 km/h) or more, you can move the cruise control switch brieﬂy from on to resume/accelerate.
Page 145: Exterior Lamps
Using Cruise Control on Hills How well the cruise control will work on hills depends upon the vehicle speed, load, and the steepness of the hills. When going up steep hills, you might want to step on the accelerator pedal to maintain the vehicle speed. When going downhill, you might have to brake or shift to a lower gear to keep the vehicle speed down.
Page 146: Headlamps On Reminder
AUTO: Turn the knob to this position to automatically turn on the headlamps at normal brightness, together with the following: • Sidemarker Lamps • Taillamps • Parking Lamps • Instrument Panel Lights See Automatic Headlamp System on page 3-15 for more information.
Page 147: Automatic Headlamp System
Your vehicle will have either the parking lamps or reduced intensity low beams used as the DRL. When the DRL are on, only those lamps will be on. The taillamps, sidemarkers, and other lamps will not be on. The instrument panel will not be lit up either. When it begins to get dark, the headlamps will automatically switch from DRL to the regular headlamps.
Page 148: Fog Lamps
Fog Lamps If your vehicle has fog lamps, you can use them for better vision in foggy or misty conditions. Your parking lamps and/or low-beam headlamps must be on for your fog lamps to work. The fog lamp button is located near the exterior lamps control.
Page 149: Instrument Panel Brightness
Instrument Panel Brightness (Instrument Panel Lights): Turn the thumbwheel up or down to brighten or dim the instrument panel lights and the radio display. The instrument panel lights, cluster, and radio display do not dim to complete darkness. The instrument panel light brightness control will only work if the headlamps or parking lamps are on.
Page 150: Electric Power Management
Electric Power Management The vehicle has Electric Power Management (EPM) that estimates the battery’s temperature and state of charge. It then adjusts the voltage for best performance and extended life of the battery. When the battery’s state of charge is low, the voltage is raised slightly to quickly put the charge back in.
Page 151: Ashtray(S) And Cigarette Lighter
Certain electrical accessories may not be compatible with the accessory power outlet and could result in blown vehicle or adapter fuses. If you experience a problem, see your dealer/retailer for additional information on accessory power outlets. Notice: Adding any electrical equipment to your vehicle may damage it or keep other components from working as they should.
Page 152: Climate Controls
Climate Controls Climate Control System The heating, cooling, and ventilation for your vehicle can be controlled with this system. Temperature Knob The left knob on the control panel is used to adjust the temperature of the air in the vehicle. Turn the knob clockwise or counterclockwise to increase or decrease the temperature.
Page 153 Mode Buttons (Recirculation): Press this button to turn the recirculation mode on or off. An indicator light on the button comes on to show that the recirculation mode is activated. This mode recirculates air inside the cabin, and prevents outside air from coming in the vehicle. It can be used to cool the air inside the vehicle more quickly.
Page 154: Outlet Adjustment
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog or frost from the windshield and side windows.
Page 155: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 156: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let you know at a glance how your vehicle is running. You will know how fast you are going, about how much fuel you have used, and many other things you will need to know to drive safely and economically.
Page 157: Speedometer And Odometer
Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). The odometer shows how far your vehicle has been driven, in either miles (used in the United States) or kilometers (used in Canada). The odometer mileage can be checked without the vehicle running by pressing the trip information stem.
Page 158: Safety Belt Reminders
Safety Belt Reminders Safety Belt Reminder Light When the engine is started, a chime will come on for several seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for several seconds, then it will ﬂash for several more.
Page 159: Airbag Readiness Light
Airbag Readiness Light There is an airbag readiness light on the instrument panel cluster, which shows the airbag symbol. The system checks the airbag’s electrical system for malfunctions. The light tells you if there is an electrical problem. The system check includes the airbag sensor, the pretensioners, the airbag modules, the wiring and the crash sensing and diagnostic module.
Page 160: Passenger Airbag Status Indicator
Passenger Airbag Status Indicator Your vehicle has the passenger sensing system. Your instrument panel has a passenger airbag status indicator. United States When you start the vehicle, the passenger airbag status indicator will light ON and OFF, or the symbol for on and off, for several seconds as a system check.
Page 161 CAUTION: Even though the passenger sensing system is designed to turn off the right front passenger’s frontal airbag if the system detects a rear-facing child restraint, no system is fail-safe, and no one can guarantee that an airbag will not deploy under some unusual circumstance, even though it is turned off.
Page 162: Charging System Light
Charging System Light This light will come on brieﬂy when you turn on the ignition, but the engine is not running, as a check to show you it is working. It should go out once the engine is running. If it stays on, or comes on while you are driving, you may have a problem with the charging system.
Page 163: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part is not working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there could be a brake problem.
Page 164: Antilock Brake System Warning Light
Antilock Brake System Warning Light For vehicles with the Antilock Brake System (ABS), this light will come on brieﬂy when you start the engine. That is normal. If the light does not come on then, have it ﬁxed so it will be ready to warn you if there is a problem. If the ABS light stays on, turn the ignition off, if the light comes on when you are driving, stop as soon as it is safely possible and turn the ignition off.
Page 165: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the gage pointer is near the top of the gage, the engine is too hot. It means that your engine coolant has overheated. If you have been operating your vehicle under normal driving conditions, you should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 166: Malfunction Indicator Lamp
Malfunction Indicator Lamp Check Engine Light A computer system called OBD II (On-Board Diagnostics-Second Generation) monitors operation of the fuel, ignition, and emission control systems. It makes sure that emissions are at acceptable levels for the life of the vehicle, helping to produce a cleaner environment.
Page 167: If The Light Is Flashing
If the Light is Flashing The following can prevent more serious damage to your vehicle: • Reduce vehicle speed. • Avoid hard accelerations. • Avoid steep uphill grades. • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible. If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 168: Maintenance Schedule
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the check engine light is on or not working properly.
Page 169: Security Light
Security Light For information regarding this light and the vehicle’s security system, see Content Theft-Deterrent on page 2-15. Cruise Control Light This light comes on whenever you set the cruise control. The light goes out when the cruise control is turned off. See Cruise Control on page 3-10 for more information.
Page 170: Fuel Gage
Fuel Gage When the ignition is on, the fuel gage tells you about how much fuel you have remaining in the fuel tank. Here are four things that some owners ask about. None of these indicate a problem with your fuel gage: •...
Page 171: Trip Information
Trip Information Odometer The odometer is automatically displayed on the DIC when you start the vehicle. The odometer shows the total distance the vehicle has been driven in either miles for the United States or kilometers for Canada. Trip Odometer Press and release the reset stem until TRIP appears on the DIC display.
Page 172: Automatic Door Locks
Automatic Door Locks This feature allows you to program the door locks to a preferred setting. To set your choice for this feature: 1. With the engine off, turn the key to LOCK/OFF. Do not remove the key from the ignition. 2.
Page 173 Remote Keyless Entry (RKE) Feedback This feature allows you to program the Remote Keyless Entry (RKE) feedback to a preferred setting. To set your choice for this feature: 1. With the engine off, turn the key to LOCK/OFF. Do not remove the key from the ignition. 2.
Page 174: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 175: Fuel Cap
DOORS This message displays when one or more of the doors is ajar. Check all the doors on your vehicle to make sure they are closed. The message clears from the display after all of the doors are closed. ENG (Engine) HOT This message displays when the engine coolant temperature is hot.
Page 176 LOW TRAC (Traction) If your vehicle has the Traction Control System (TCS), this message displays when a low traction condition is detected. See Traction Control System (TCS) on page 4-5 for more information. Press and release the reset stem to acknowledge the message and clear it from the display.
Page 177 SERV (Service) VEH (Vehicle) This message displays if your vehicle needs service. Have your vehicle serviced by your dealer/retailer as soon as possible. SERVICE CHARG (Charge) SYS (System) This message displays if there is a problem with the battery charging system. Under certain conditions, the battery warning light may also turn on in the instrument panel cluster.
Page 178: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. CAUTION: This system provides you with far greater access to audio stations and song listings. Giving extended attention to entertainment tasks while driving can cause a crash and you or others can be injured or killed.
Page 179: Setting The Time
Notice: The chime signals related to safety belts, parking brake, and other functions of your vehicle operate through the radio/entertainment system. If that equipment is replaced or additional equipment is added to your vehicle, the chimes may not work. Make sure that replacement or additional equipment is compatible with your vehicle before installing it.
Page 180: Radio(S)
Radio(s) Radio with CD (MP3/WMA) AM-FM Radio 3-48...
Page 181 Radio with Six-Disc CD Player Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: •...
Page 182: Playing The Radio
Playing the Radio PWR (Power): Press to turn the system on and off. VOL/VOLUME: Turn to increase or to decrease the volume. RCL (Recall) (AM-FM Radio): Press to switch the display between the radio station frequency, band, and the time. When the ignition is off, press to display the time.
Page 183: Finding A Station
Finding a Station AM FM (AM-FM Radio): Press to switch between FM1, FM2, or AM. The selection displays. BAND: Press to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The selection displays. TUNE: Turn to select radio stations. SEEK : Press the arrows to go to the previous or to the next station and stay there.
Page 184: Setting Preset Stations
Setting Preset Stations If your radio does not have XM™, up to 18 stations (six FM1, six FM2, and six AM) can be programmed on the six numbered pushbuttons. If your radio has XM™, up to 30 stations (six FM1, six FM2, six AM, six XM1 and six XM2 (if equipped)) can be programmed on the six numbered pushbuttons.
Page 185: Adjusting The Speakers (Balance/Fade)
AUTO EQ (Automatic Equalization): Press to select customized equalization settings designed for country/western, jazz, talk, pop, rock, and classical. To return to the manual mode, press the AUTO EQ button until CUSTOM displays. Then manually adjust the bass/treble, or bass/midrange/treble by using the AUDIO knob.
Page 186 Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press the P-TYPE or depending on the radio, TYPE knob to activate program type select mode. P-TYPE or TYPE and a PTY displays. 2.
Page 187: Rds Messages
Setting Preset PTYs (RDS Only) For the Radio with Six-Disc CD player, the six pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the numbered pushbuttons, by performing the following steps: 1.
Page 188: Radio Messages
Once the complete message has displayed, the information symbol or INFO disappears from the display until another new message is received. The last message can be displayed by pressing the INFO button. The last message stays on the display until a new message is received or the radio is tuned to a different station.
Page 189 Radio Messages for XM™ Only See XM Radio Messages on page 3-68 later in this section for further detail. Playing a CD (Radio with Single CD Player) Insert a CD partway into the slot, label side up. The player pulls it in, and READING displays. The CD should begin playing.
Page 190 Care of Your CD Player Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen.
Page 191 SEEK : Press the left arrow to go to the start of the current or the previous track. Press the right arrow to go to the start of the next track. Pressing either arrow for more than two seconds scans the next tracks, playing the ﬁrst eight seconds of each track until all of the tracks have been previewed.
Page 192 To load more than one CD but less than six, complete Steps 1 through 3. When ﬁnished loading CDs, press the LOAD button to cancel the loading function. The radio begins to play the last CD loaded. If more than one CD has been loaded, a number for each CD displays.
Page 193 To use repeat, do the following: • To repeat the track you are listening to, press and release the RPT button. RPT displays. Press again to turn off repeat play. • To repeat the CD you are listening to, press and hold the RPT button for two seconds.
Page 194 Using Song List Mode (Radio with Six-Disc CD Player) The six-disc CD changer has a feature called song list. This feature is capable of saving 20 track selections. To save tracks into the song list feature: 1. Turn the CD player on and load it with at least one CD.
Page 195 To delete the entire song list, perform the following steps: 1. Turn the CD player on. 2. Press the SONG LIST button to turn song list on. S-LIST displays. 3. Press and hold the SONG LIST button for more than four seconds. One beep sounds, followed by two beeps after two seconds, and a ﬁnal beep sounds after four seconds.
Page 196: Using An Mp3
Using an MP3 MP3/WMA CD-R Disc MP3/WMA Format If you burn your own MP3/WMA disc on a personal computer: • Make sure the MP3/WMA ﬁles are recorded on a CD-R disc. • Make sure playlists have a .mp3 or .wpl extension, other ﬁle extensions might not work.
Page 197 Empty Directory or Folder If a root directory or a folder exists somewhere in the ﬁle structure that contains only folders/subfolders and no compressed ﬁles directly beneath them, the player advances to the next folder in the ﬁle structure that contains compressed audio ﬁles. The empty folder does not display.
Page 198 File System and Naming The song name that displays is the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio displays the ﬁle name without the extension (such as .mp3) as the track name. Track names longer than 32 characters or four pages are shortened.
Page 199 6 RDM (Random): To play the tracks in random order in the current folder or playlist, press and release this button. FLDR RDM (folder random) displays. Once all of the tracks in the current folder or playlist have played, the system moves to the next folder or playlist and plays all of the tracks in random order.
Page 200: Xm Radio Messages
CD AUX (Auxiliary): Press this button to play a CD when listening to the radio. The CD symbol illuminates on the display when a CD is loaded. (Eject): Press this button to eject a CD. Eject can activate while either the ignition or radio is off. CDs can be loaded with the ignition and radio off if this button is pressed ﬁrst.
Page 201: Theft-Deterrent Feature
Theft-Deterrent Feature Non-RDS Radios ® THEFTLOCK is designed to discourage theft of your vehicle’s radio. The feature works automatically by learning a portion of the Vehicle Identiﬁcation Number (VIN). If the radio is moved to a different vehicle, it does not operate and LOC displays. ®...
Page 202: Fixed Mast Antenna
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the XM™...
Page 203 Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunk Driving ...4-2 Control of a Vehicle ...4-3 Braking ...4-3 Antilock Brake System (ABS) ...4-4 Braking in Emergencies ...4-5 Traction Control System (TCS) ...4-5 Limited-Slip Rear Axle ...4-6 Steering ...4-7 Off-Road Recovery ...4-9 Passing ...4-9...
Page 204: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving Defensive driving means “always expect the unexpected.” The ﬁrst step in driving defensively is to wear your safety belt — See Safety Belts: They Are for Everyone on page 1-12. CAUTION: Assume that other road users (pedestrians, bicyclists, and other drivers) are going to be careless and make mistakes.
Page 205: Control Of A Vehicle
Police records show that almost 40 percent of all motor vehicle-related deaths involve alcohol. In most cases, these deaths are the result of someone who was drinking and driving. In recent years, more than 17,000 annual motor vehicle-related deaths have been associated with the use of alcohol, with about 250,000 people injured.
Page 206: Antilock Brake System (Abs)
And, of course, actual stopping distances vary greatly with the surface of the road, whether it is pavement or gravel; the condition of the road, whether it is wet, dry, or icy; tire tread; the condition of the brakes; the weight of the vehicle;...
Page 207: Braking In Emergencies
ABS can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. As you brake, the computer keeps receiving updates on wheel speed and controls braking pressure accordingly.
Page 208: Limited-Slip Rear Axle
The TCS button is located on your instrument panel. Press this button to turn the TCS off and on. If your vehicle is in cruise control when the traction control system begins to limit wheel spin, the cruise control will automatically disengage. When road conditions allow you to safely use it again, you may re-engage the cruise control.
Page 209: Steering
Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort. Steering Tips It is important to take curves at a reasonable speed. A lot of the “driver lost control”...
Page 210: Steering In Emergencies
Steering in Emergencies There are times when steering can be more effective than braking. For example, you come over a hill and ﬁnd a truck stopped in your lane, or a car suddenly pulls out from nowhere, or a child darts out from between parked cars and stops right in front of you.
Page 211: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 212 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 213: Off-Road Driving
Off-Road Driving This off-road guide is for vehicles that have four-wheel drive. Also, see Braking on page 4-3 and Antilock Brake System (ABS) on page 4-4. If your vehicle does not have four-wheel drive, you should not drive off-road unless you are on a level, solid surface.
Page 214 Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks. •...
Page 215: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving;...
Page 216: Scanning The Terrain
Controlling your vehicle is the key to successful off-road driving. One of the best ways to control your vehicle is to control your speed. Here are some things to keep in mind. At higher speeds: • You approach things faster and you have less time to scan the terrain for obstacles.
Page 217 When you drive over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs, or other surface features can jerk the wheel out of your hands if you are not prepared. When you drive over bumps, rocks, or other obstacles, the wheels can leave the ground.
Page 218: Driving Uphill
Approaching a Hill When you approach a hill, you need to decide if it is one of those hills that is just too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 219 • Attach a ﬂag to the vehicle to make you more visible to approaching traffic on trails or hills. • Sound the horn as you approach the top of the hill to let opposing traffic know you are there. • Use your headlamps even during the day.
Page 220: Driving Downhill
There are also some things you must not do if you stall, or are about to stall, when going up a hill: • Never attempt to prevent a stall by shifting into NEUTRAL (N), or pressing the clutch if your vehicle has a manual transmission, to rev-up the engine and regain forward momentum.
Page 221 CAUTION: Heavy braking when going down a hill can cause your brakes to overheat and fade. This could cause loss of control and a serious accident. Apply the brakes lightly when descending a hill and use a low gear to keep vehicle speed under control.
Page 222: Driving Across An Incline
Driving Across an Incline Sooner or later, an off-road trail will probably go across the incline of a hill. If this happens, you have to decide whether to try to drive across the incline. Here are some things to consider: CAUTION: Driving across an incline that is too steep will make your vehicle roll over.
Page 223: Stalling On An Incline
Stalling on an Incline CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path.
Page 224 Driving in Mud, Sand, Snow, or Ice When you drive in mud, snow, or sand, your wheels will not get good traction. You cannot accelerate as quickly, turning is more difficult, and you will need longer braking distances. It is best to use a low gear when you are in mud — the deeper the mud, the lower the gear.
Page 225: Driving In Water
Driving in Water CAUTION: Driving through rushing water can be dangerous. Deep water can sweep your vehicle downstream and you and your passengers could drown. If it is only shallow water, it can still wash away the ground from under your tires, and you could lose traction and roll the vehicle over.
Page 226: Driving At Night
Driving at Night Night driving is more dangerous than day driving because some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Night driving tips include: • Drive defensively. • Do not drink and drive. •...
Page 227: Before Leaving On A Long Trip
Hydroplaning Hydroplaning is dangerous. Water can build up under your vehicle’s tires so they actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road. There is no hard and fast rule about hydroplaning.
Page 228: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep your vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 229: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You might want to put winter emergency supplies in your vehicle. Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 230: If You Are Caught In A Blizzard
Accelerate gently. Try not to break the fragile traction. If you accelerate too fast, the drive wheels will spin and polish the surface under the tires even more. The Antilock Brake System (ABS) improves your vehicle’s stability when you make a hard stop on a slippery road.
Page 231 You can run the engine to keep warm, but be careful. CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 232: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible. Preserve the fuel as long as you can. To help keep warm, you can get out of the vehicle and do some fairly vigorous exercises every half hour or so until help comes.
Page 233: Recovery Hooks
To prevent transmission wear, wait until the wheels stop spinning before shifting gears. Release the accelerator pedal while you shift, and press lightly on the accelerator pedal when the transmission is in gear. By slowly spinning the wheels in the forward and reverse directions, you will cause a rocking motion that could free your vehicle.
Page 234: Loading Your Vehicle
Loading Your Vehicle It is very important to know how much weight your vehicle can carry. This weight is called the vehicle capacity weight and includes the weight of all occupants, cargo, and all nonfactory-installed options. Two labels on your vehicle show how much weight it may properly carry, the Tire and Loading Information label and the Certiﬁcation/Tire label.
Page 235 The Tire and Loading Information label also shows the size of the original equipment tires (C) and the recommended cold tire inﬂation pressures (D). For more information on tires and inﬂation see Tires on page 5-56 and Inﬂation - Tire Pressure on page 5-62.
Page 236 Example 1 Item Description Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) x 2 = Available Cargo Weight = 4-34 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg) Example 2 Description Vehicle Capacity...
Page 237 Example 3 Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) x 5 = Available Cargo Weight = Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 238 The Certiﬁcation/Tire label also tells you the maximum weights for the front and rear axles, called Gross Axle Weight Rating (GAWR). To ﬁnd out the actual loads on your front and rear axles, you need to go to a weigh station and weigh your vehicle.
Page 239 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop...
Page 240: Truck-Camper Loading Information
Add-On Equipment When you carry removable items, you may need to put a limit on how many people you carry inside your vehicle. Be sure to weigh your vehicle before you buy and install the new equipment. Notice: Overloading your vehicle may cause damage.
Page 241: Dinghy Towing
Here are some important things to consider before you do recreational vehicle towing: • What’s the towing capacity of the towing vehicle? Be sure you read the tow vehicle manufacturer’s recommendations. • How far will you tow? Some vehicles have restrictions on how far and how long they can tow.
Page 242: Dolly Towing
4. Securely attach the vehicle being towed to the tow vehicle. CAUTION: Shifting a four-wheel-drive vehicle’s transfer case into NEUTRAL can cause your vehicle to roll even if the transmission is in PARK (P) for an automatic transmission, or if your vehicle is in gear, for a manual transmission.
Page 243 Four-Wheel-Drive Vehicles Use the following procedure to dolly tow your vehicle from the front: 1. Drive the vehicle onto the dolly. 2. Firmly set the parking brake. See Parking Brake on page 2-32 for more information. 3. Put an automatic transmission in PARK (P) or a manual transmission in FIRST (1).
Page 244 Rear Towing (Rear Wheels Off the Ground) Two-Wheel-Drive Vehicles Use the following procedure to tow your vehicle from the rear: 1. Drive the vehicle onto the dolly. 2. Firmly set the parking brake. See Parking Brake on page 2-32 for more information. 4-42 3.
Page 245 Four-Wheel-Drive Vehicles Use the following procedure to tow your vehicle from the rear: 1. Drive the vehicle onto the dolly. 2. Firmly set the parking brake. See Parking Brake on page 2-32 for more information. 3. Put an automatic transmission in PARK (P) or a manual transmission in FIRST (1).
Page 246: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 247: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 248 The following charts show how much your trailer can weigh, based upon your vehicle model and options. 2WD Regular Cab Axle Ratio Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 3.73 3.7L Engine Manual Transmission, 3.73 2.9L Engine *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
Page 249 2WD Extended Cab Axle Ratio Automatic Transmission, 3.42 5.3L Engine ** Manual Transmission, 3.73 2.9L Engine *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions. The GCWR for your vehicle should not be exceeded.
Page 250 4WD Regular Cab Axle Ratio Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 3.73 2.9L Engine Automatic Transmission, 3.73 3.7L Engine Manual Transmission, 3.73 2.9L Engine Manual Transmission, 4.10 2.9L Engine *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions.
Page 251 4WD Extended Cab Axle Ratio Manual Transmission, 3.73 2.9L Engine Manual Transmission, 4.10 2.9L Engine *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions. The GCWR for your vehicle should not be exceeded.
Page 252: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total or gross weight of your vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo you may carry in it, and the people who will be riding in the vehicle.
Page 253 Consider the following example: A vehicle model base weight is 5,500 lbs (2 495 kg); 2,800 lbs (1 270 kg) at the front axle and 2,700 lbs (1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs (3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a GCWR (Gross Combination Weight Rating) of 14,000 lbs (6 350 kg).
Page 254: Safety Chains
The effect of tongue weight is about 1.5 times the actual weight. Dividing the 900 lbs (408 kg) by 1.5 leaves you with being able to handle only 600 lbs (272 kg) of tongue weight. Since tongue weight is usually at least 10 percent of total loaded trailer weight, you can expect that the largest trailer your vehicle can properly handle is 6,000 lbs (2 721 kg).
Page 255: Trailer Brakes
Trailer Brakes If your trailer weighs more than 1,000 lbs (450 kg) loaded, then it needs its own brakes — and they must be adequate. Be sure to read and follow the instructions for the trailer brakes so you’ll be able to install, adjust and maintain them properly.
Page 256: Turn Signals When Towing A Trailer
Passing You’ll need more passing distance up ahead when you’re towing a trailer. And, because you’re a good deal longer, you’ll need to go much farther beyond the passed vehicle before you can return to your lane. Backing Up Hold the bottom of the steering wheel with one hand. Then, to move the trailer to the left, just move that hand to the left.
Page 257: Parking On Hills
When towing at high altitude on steep uphill grades, consider the following: Engine coolant will boil at a lower temperature than at normal altitudes. If you turn your engine off immediately after towing at high altitude on steep uphill grades, your vehicle may show signs similar to engine overheating.
Page 258: Trailer Wiring Harness
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine, • shift into a gear, and • release the parking brake. 2. Let up on the brake pedal. 3.
Page 259: Trailer Recommendations
• White: Ground • Light Green: Back-up Lamps • Red: Battery Feed • Dark Blue: Trailer Brake If you are charging a remote (non-vehicle) battery, turn on the headlamps to boost the vehicle system voltage to properly charge the battery. Trailer Brake Control Wiring Harness The wires for the trailer brake control are taped to a wiring harness under the instrument panel.
Page 260 NOTES 4-58...
Page 261: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 California Perchlorate Materials Requirements ...5-4 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-5 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7...
Page 262 Section 5 Tires ...5-56 Tire Sidewall Labeling ...5-57 Tire Terminology and Deﬁnitions ...5-59 Inﬂation - Tire Pressure ...5-62 High-Speed Operation ...5-64 Tire Pressure Monitor System ...5-65 Tire Pressure Monitor Operation ...5-66 Tire Inspection and Rotation ...5-70 When It Is Time for New Tires ...5-71 Buying New Tires ...5-72 Different Size Tires and Wheels ...5-74 Uniform Tire Quality Grading ...5-74...
Page 263: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to your vehicle they can affect your vehicle’s performance and safety, including such things as, airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like...
Page 264: California Perchlorate Materials Requirements
California Perchlorate Materials Requirements Certain types of automotive applications, such as airbag initiators, seat belt pretensioners, and lithium batteries contained in remote keyless entry transmitters, may contain perchlorate materials. Special handling may be necessary. For additional information, see www.dtsc.ca.gov/hazardouswaste/perchlorate. Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a...
Page 265: Adding Equipment To The Outside
You should keep a record with all parts receipts and list the mileage and the date of any service work you perform. See Maintenance Record on page 6-16. Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it.
Page 266: California Fuel
California Fuel If your vehicle is certiﬁed to meet California Emissions Standards, it is designed to operate on fuels that meet California speciﬁcations. See the underhood emission control label. If this fuel is not available in states adopting California emissions standards, your vehicle will operate satisfactorily on fuels meeting federal speciﬁcations, but emission control system performance might be affected.
Page 267: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in the fuel system and also damage plastic and rubber parts. That damage would not be covered under your warranty.
Page 268: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 269 CAUTION: Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop.
Page 270: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 271: Hood Release
Hood Release To open the hood, do the following: 1. Pull the handle with this symbol on it. It is located inside the vehicle on the lower left side of the instrument panel. 2. Release the secondary latch on the hood. It is located below the front center of the hood.
Page 272: Engine Compartment Overview
Engine Compartment Overview When you open the hood on the 2.9L engine (3.7L engine similar), you will see the following: 5-12...
Page 273 A. Windshield Washer Fluid. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-37. B. Engine Coolant Recovery Tank. See Engine Coolant on page 5-26. C. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-19. D. Power Steering Fluid Reservoir (low in engine compartment).
Page 274 When you open the hood on the 5.3L engine, you will see the following: 5-14...
Page 275: Engine Oil
A. Engine Air Cleaner/Filter. See Engine Air Cleaner/Filter on page 5-19. B. Air Filter Restriction Indicator (If Equipped). See Engine Air Cleaner/Filter on page 5-19. C. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-37. D.
Page 276: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area (L), add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 5-116.
Page 277: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. Look for and use only an oil that meets GM Standard GM6094M. • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 278: Engine Oil Life System
Engine Oil Additives Do not add anything to the oil. The recommended oils with the starburst symbol that meet GM Standard GM6094M are all you need for good performance and engine protection. Engine Oil Life System When to Change Engine Oil Your vehicle has a computer system that lets you know when to change the engine oil and ﬁlter.
Page 279: Engine Air Cleaner/Filter
If the CHANGE OIL message comes back on when you start your vehicle, the engine oil life system has not reset. Repeat the procedure. See DIC Warnings and Messages on page 3-42. What to Do with Used Oil Used engine oil contains certain elements that can be unhealthy for your skin and could even cause cancer.
Page 280: How To Inspect The Engine Air Cleaner/Filter
When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/ﬁlter at the Maintenance II intervals and replace it at the ﬁrst oil change after each 50,000 mile (80 000 km) interval. See Scheduled Maintenance on page 6-4 for more information. If you are driving in dusty/dirty conditions, inspect the ﬁlter at each engine oil change.
Page 281: Automatic Transmission Fluid
Automatic Transmission Fluid When to Check and Change Automatic Transmission Fluid A good time to check your automatic transmission ﬂuid level is when the engine oil is changed. Change the ﬂuid and ﬁlter at the intervals listed in Additional Required Services on page 6-6, and be sure to use the transmission ﬂuid listed in Recommended Fluids and Lubricants on page 6-12.
Page 282: Checking The Fluid Level
Checking the Fluid Level Prepare your vehicle as follows: 1. Park your vehicle on a level place. Keep the engine running. 2. With the parking brake applied, place the shift lever in PARK (P). 3. With your foot on the brake pedal, move the shift lever through each gear range, pausing for about three seconds in each range.
Page 283: Manual Transmission Fluid
How to Add Automatic Transmission Fluid Refer to the Maintenance Schedule to determine what kind of transmission ﬂuid to use. See Recommended Fluids and Lubricants on page 6-12. Add ﬂuid only after checking the transmission ﬂuid while it is hot. A cold check is used only as a reference. If the ﬂuid level is low, add only enough of the proper ﬂuid to bring the level up to the HOT area for a hot check.
Page 284: Hydraulic Clutch
Then, follow these steps: 1. Remove the ﬁller plug. 2. Check that the lubricant level is up to the bottom of the ﬁller plug hole. 3. If the ﬂuid level is good, install the plug and be sure it is fully seated. If the ﬂuid level is low, add more ﬂuid as described in the next steps.
Page 285: How To Check And Add Fluid
The hydraulic clutch ﬂuid reservoir cap has this symbol on it. See Engine Compartment Overview on page 5-12 for reservoir location. It is not necessary to regularly check clutch ﬂuid unless you suspect there is a leak in the system. Adding ﬂuid will not correct a leak.
Page 286: Engine Coolant
Engine Coolant The cooling system in your vehicle is ﬁlled with ® DEX-COOL engine coolant. This coolant is designed to remain in your vehicle for ﬁve years or 150,000 miles (240 000 km), whichever occurs ﬁrst, if you add only ®...
Page 287: Checking Coolant
CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. Your vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, your engine could get too hot but you would not get the overheat warning.
Page 288 Adding Coolant If you need more coolant, add the proper DEX-COOL coolant mixture at the coolant recovery tank. CAUTION: Turning the radiator pressure cap when the engine and radiator are hot can allow steam and scalding liquids to blow out and burn you badly.
Page 289: Radiator Pressure Cap
Radiator Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. See Engine Compartment Overview on page 5-12 for more information on location. Engine Overheating A coolant temperature gage is on the instrument panel.
Page 290: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 291: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: 2.9L Engine Shown (3.7L Engine Similar) A. Coolant Recovery Tank B. Engine Cooling Fan C. Radiator Pressure Cap When you decide it is safe to lift the hood, here is what you will see: 5.3L Engine A.
Page 292 When the engine is cold, the coolant level should be at least up to the FULL COLD mark. If it is not, you may have a leak at the pressure cap or in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system.
Page 293 How to Add Coolant to the Coolant Recovery Tank If you have not found a problem yet, but the coolant level is not at the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL engine coolant at the coolant recovery tank. See Engine Coolant on page 5-26 for more information.
Page 294: How To Add Coolant To The Radiator
If the overheat warning continues, there is one more thing you can try. Add the proper mixture directly to the radiator, but be sure the cooling system is cool before you do it. CAUTION: Steam and scalding liquids from a hot cooling system can blow out and burn you badly.
Page 295 4. Fill the coolant recovery tank to the FULL COLD mark. 5. Reinstall the cap on the coolant recovery tank, but leave the radiator pressure cap off. 6. Start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan.
Page 296: Engine Fan Noise
Engine Fan Noise This vehicle has a clutched engine cooling fan. When the clutch is engaged, the fan spins faster to provide more air to cool the engine. In most everyday driving conditions, the clutch is not engaged. This improves fuel economy and reduces fan noise. Under heavy vehicle loading, trailer towing and/or high outside temperatures, the fan speed increases when the clutch engages.
Page 297: Windshield Washer Fluid
3. Unscrew the cap and wipe the dipstick with a clean rag. 4. Replace the cap and completely tighten it. 5. Then remove the cap again and look at the ﬂuid level on the dipstick. The level should be between the ADD and FULL marks. If necessary, add only enough ﬂuid to bring the level up to the proper range.
Page 298: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down. The ﬁrst is that the brake ﬂuid goes down to an acceptable level during normal brake lining wear.
Page 299: Checking Brake Fluid
Checking Brake Fluid The brake ﬂuid can be checked without taking off the cap by looking at the brake ﬂuid reservoir. The ﬂuid level should be above MIN. If it is not, have the brake hydraulic system checked to see if there is a leak. After work is done on the brake hydraulic system, make sure the level is above the MIN but not over the MAX mark.
Page 300: Brake Wear
Brake Wear Your vehicle has front disc brakes and rear drum brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound can come and go or be heard all the time your vehicle is moving, except when you are pushing on the brake pedal ﬁrmly.
Page 301: Battery
Brake Pedal Travel See your dealer/retailer if the brake pedal does not return to normal height, or if there is a rapid increase in pedal travel. This could be a sign that brake service might be required. Brake Adjustment Every time you make a brake stop, the brakes adjust for wear.
Page 302: Jump Starting
Vehicle Storage CAUTION: Batteries have acid that can burn you and gas that can explode. You can be badly hurt if you are not careful. See Jump Starting on page 5-42 for tips on working around a battery without getting hurt. Infrequent Usage: If you drive your vehicle infrequently, remove the black, negative (−) cable from the battery.
Page 303 Notice: Ignoring these steps could result in costly damage to your vehicle that would not be covered by your warranty. Trying to start your vehicle by pushing or pulling it will not work, and it could damage your vehicle. 1. Check the other vehicle. It must have a 12-volt battery with a negative ground system.
Page 304 4. Open the hoods and locate the positive (+) and negative (−) terminal locations on the other vehicle. Your vehicle has a remote positive (+) and a remote negative (−) jump starting terminal. See Engine Compartment Overview on page 5-12 for more information on the terminal locations.
Page 305 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote positive (+) terminal if the vehicle has one. 7. Do not let the other end touch metal. Connect it to the positive (+) terminal of the good battery. Use a remote positive (+) terminal if the vehicle has one.
Page 306: Rear Axle
Notice: If the jumper cables are connected or removed in the wrong order, electrical shorting may occur and damage the vehicle. The repairs would not be covered by your warranty. Always connect and remove the jumper cables in the correct order, making sure that the cables do not touch each other or other metal.
Page 307: Four-Wheel Drive
How to Check Lubricant To get an accurate reading, the vehicle should be on a level surface. The proper level is from 0 to 3/8 inch (0 mm to 10 mm) below the bottom of the ﬁller plug hole, located on the rear axle.
Page 308: Front Axle
A. Drain Plug B. Filler Plug If the level is below the bottom of the ﬁller plug hole, located on the transfer case, you’ll need to add some lubricant. Remove the plug and add enough lubricant to raise the level to the bottom of the ﬁller plug hole.
Page 309: Headlamp Aiming
When the differential is cold, add enough lubricant to raise the level to 1/2 inch (12 mm) below the ﬁller plug hole. When the differential is at operating temperature (warm), add enough lubricant to raise the level to the bottom of the ﬁller plug hole. What to Use See Recommended Fluids and Lubricants on page 6-12 to determine what kind of lubricant to use.
Page 310: Headlamps
Headlamps A. Low-Beam Headlamp/Daytime Running Lamps (DRL) B. High-Beam Headlamp To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Reach in and access the bulb sockets from inside the engine compartment. 5-50 3.
Page 311: Front Turn Signal, Parking And Daytime Running Lamps (Drl)
Front Turn Signal, Parking and Daytime Running Lamps (DRL) To replace one of these bulbs: 1. Open the hood. See Hood Release on page 5-11 for more information. 2. Reach in to access either one of the bulb sockets in the engine compartment. 3.
Page 312: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps
Taillamps, Turn Signal, Stoplamps and Back-up Lamps A. Stoplamp/Taillamp B. Turn Signal/Taillamp C. Back-up Lamp To replace one of these bulbs: 1. Open the tailgate. See Tailgate on page 2-10 for more information. 5-52 2. Remove the two rear lamp assembly screws near the tailgate latch.
Page 313: License Plate Lamp
License Plate Lamp To replace one of these bulbs: 1. Reach under the rear bumper for the bulb socket. 2. Turn the bulb socket counterclockwise and pull the bulb socket out of the connector. 3. Pull the old bulb straight out from the bulb socket. 4.
Page 314: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear and cracking. See Scheduled Maintenance on page 6-4 for more information. Replacement blades come in different types and are removed in different ways. For proper type and length, see Normal Maintenance Replacement Parts on page 6-14.
Page 315 4. To install the new wiper insert, slide the insert (D), notched end last, into the end with two blade claws (A). Slide the insert all the way through the blade claws at the opposite end (B). The plastic caps (C) will be forced off as the insert is fully inserted.
Page 316: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
Page 317: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger vehicle tire and a compact spare tire sidewall. Passenger Vehicle Tire Example (A) Tire Size The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 318 Compact Spare Tire Example (A) Temporary Use Only The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 319: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger vehicle tire size. (A) P-Metric Tire The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.S.
Page 320 Aspect Ratio The relationship of a tire’s height to its width. Belt A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
Page 321 Maximum Loaded Vehicle Weight curb weight, accessory weight, vehicle capacity weight, and production options weight. Normal Occupant Weight The number of occupants a vehicle is designed to seat multiplied by 150 lbs (68 kg). See Loading Your Vehicle on page 4-32. Occupant Distribution Designated seating positions.
Page 322: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards) A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 5-74.
Page 323 A vehicle speciﬁc Tire and Loading Information label is attached to your vehicle. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 324: High-Speed Operation
High-Speed Operation CAUTION: Driving at high speeds, 100 mph (160 km/h) or higher, puts an additional strain on tires. Sustained high-speed driving causes excessive heat build up and can cause sudden tire failure. You could have a crash and you or others could be killed.
Page 325: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check tire pressure levels. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle. Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer...
Page 326: Tire Pressure Monitor Operation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
Page 327: Tpms Malfunction Light And Message
For additional information and details about the DIC operation and displays see DIC Operation and Displays on page 3-38 and DIC Warnings and Messages on page 3-42. The low tire pressure warning light may come on in cool weather when the vehicle is ﬁrst started, and then turn off as you start to drive.
Page 328: Tpms Sensor Matching Process
• One or more TPMS sensors are missing or damaged. The DIC message and the TPMS malfunction light should go off when the TPMS sensors are installed and the sensor matching process is performed successfully. See your dealer/retailer for service. •...
Page 329 The TPMS sensor matching procedure is outlined below: 1. Set the parking brake. 2. Turn the ignition switch to ON/RUN with the engine off. 3. Turn the exterior lamp switch from AUTO to OFF four times within three seconds. A double horn chirp will sound and the TPMS low tire warning light starts ﬂashing.
Page 330: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires, including the spare tire, for signs of wear or damage. See When It Is Time for New Tires on page 5-71 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
Page 331: When It Is Time For New Tires
CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 332: Buying New Tires
The rubber in tires degrades over time, even if they are not being used. This is also true for the spare tire, if your vehicle has one. Multiple conditions affect how fast this aging takes place, including temperatures, loading conditions, and inﬂation pressure maintenance. With proper care and maintenance tires will typically wear out before they degrade due to age.
Page 333 CAUTION: Mixing tires could cause you to lose control of your vehicle while driving. If you mix tires of different sizes, brands, or types (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. Using tires of different sizes, brands, or types may also cause damage to your vehicle.
Page 334: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this may affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover. Additionally, if your vehicle has electronic systems such as, anti-lock brakes, traction control, and electronic stability control, the performance of these systems can be affected.
Page 335 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 336: Wheel Alignment And Tire Balance
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis. However, if you notice unusual tire wear or your vehicle pulling to one side or the other, the alignment might need to be checked.
Page 337: Used Replacement Wheels
CAUTION: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be dangerous. It could affect the braking and handling of your vehicle, make your tires lose air and make you lose control. You could have a collision in which you or others could be injured.
Page 338: Tire Chains
Tire Chains CAUTION: If your vehicle has P225/75R15, P265/75R15, P235/75R15, P265/70R17, or P235/50R18 size tires, do not use tire chains. They can damage your vehicle because there is not enough clearance. Tire chains used on a vehicle without the proper amount of clearance can cause damage to the brakes, suspension, or other vehicle parts.
Page 339: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 340: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. See Hazard Warning Flashers on page 3-6 for more information. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 341: Removing The Spare Tire And Tools
When your vehicle has a ﬂat tire, use the following example as a guide to assist you in the placement of the wheel blocks. The following information will tell you next how to use the jack and change a tire. Removing the Spare Tire and Tools The tools you will need are located under the passenger’s seat.
Page 342 For regular and extended cab vehicles, the jack and wheel blocks are located under the cover at the center of the vehicle behind the front seats. Regular/Extended Cab To access the tools: 1. Move the seats forward to access the cover. Extended/Regular Cab 5-82 2.
Page 343 A. Jack Handle C. Extension Tool Extensions D. Wheel Wrench B. Jack E. Wheel Blocks 1. Assemble the wheel wrench (D) and the jack handle extensions (A). 2. Insert the hoist end (chiseled end) of the extension tool (C) through the hole in the rear bumper and into the funnel-shaped guide.
Page 344: Removing The Flat Tire And Installing The Spare Tire
4. Tilt the retainer when the tire has been lowered, and slide it up the cable so it can be pulled up through the wheel opening. 5. Put the spare tire near the ﬂat tire. 5-84 Removing the Flat Tire and Installing the Spare Tire Use the following pictures and instructions to remove the ﬂat tire and raise the vehicle.
Page 345 2. Remove the center cap by placing the chisel end of the wheel wrench (E) into one of the slots on the wheel and gently prying the cap out. 3. Use the wheel wrench to loosen all the wheel nuts by turning it counterclockwise.
Page 346 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 347 Front Position If the ﬂat tire is on the front of the vehicle, position the jack to the rear of the front tire in the pocket off of the frame. Rear Position If the ﬂat tire is on the rear, position the jack under the rear axle and get as close as possible to the shock absorber.
Page 348 7. Remove all the wheel nuts and the ﬂat tire. 5-88 CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident.
Page 349 9. Install the spare tire. CAUTION: Never use oil or grease on studs or nuts. Because the nuts might come loose. The vehicle’s wheel could fall off, causing a crash. 10. Put the wheel nuts back on with the rounded end of the nuts toward the wheel.
Page 350 Rear Position 11. Turn the wheel wrench counterclockwise to lower the vehicle. Lower the jack completely. 5-90 CAUTION: Incorrect or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to a crash. If you have to replace them, be sure to get new original equipment wheel nuts.
Page 351: Secondary Latch System
12. Tighten the wheel nuts ﬁrmly in a crisscross sequence as shown by turning the wheel wrench clockwise. When you reinstall the regular wheel and tire, you must also reinstall the center cap. Place the cap on the wheel and tap it into place until it seats ﬂush with the wheel. The cap only goes on one way.
Page 352 3. Loosen the cable by turning the wrench counterclockwise three or four turns. 4. Repeat this procedure at least two times. If the spare tire lowers to the ground, continue with Step 5 of Removing the Spare Tire and Tools on page 5-81. 5.
Page 353 9. Position the center lift point of the jack under the center of the spare tire. 10. Turn the wrench clockwise to raise the jack until it lifts the end ﬁtting. 11. Continue raising the jack until the spare tire stops moving upward and is held ﬁrmly in place.
Page 354: Storing A Flat Or Spare Tire And Tools
14. Tilt the tire retainer at the end of the cable and pull it through the wheel opening. Pull the tire out from under the vehicle. 15. Turn the wheel wrench in the hoist shaft hole in the bumper clockwise to raise the cable back up if the cable is hanging under the vehicle.
Page 355 Store the tire under the rear of the vehicle in the spare tire carrier. 1. Put the tire on the ground at the rear of the vehicle with the valve stem pointed down. 2. Tilt the retainer downward and through the wheel opening.
Page 356 4. Insert the hoist end of the extension through the hole in the rear bumper and into the funnel-shaped guide. 5. Turn the wheel wrench clockwise to raise the tire part way up. Make sure the retainer is seated in the wheel opening and the valve stem is pointed down.
Page 357 To store the tools, do the following: 1. Return the wheel wrench, jack extensions and the storage bag to the locations described under Removing the Spare Tire and Tools on page 5-81. 2. Install the wheel blocks ﬁrst. Then install the jack. 3.
Page 358: Spare Tire
Spare Tire Compact Spare Tire Your vehicle may have a compact spare tire. Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air over time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). Notice: If your vehicle has four-wheel drive and the compact spare tire is installed on your vehicle, do not drive in four-wheel drive until you can...
Page 359: Appearance Care
Your vehicle may have a different size spare tire than the road tires originally installed on your vehicle. This spare was developed for use on your vehicle, so it is all right to drive on it. If your vehicle has four-wheel drive and the different size spare tire is installed, keep the vehicle in two-wheel drive.
Page 360 When cleaning your vehicle’s interior, only use cleaners speciﬁcally designed for the surfaces being cleaned. Permanent damage may result from using cleaners on surfaces for which they were not intended. Use glass cleaner only on glass. Remove any accidental over-spray from other surfaces immediately.
Page 361: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For soils, always try to remove them ﬁrst with plain water or club soda.
Page 362: Leather
Leather A soft cloth dampened with water can be used to remove dust. If a more thorough cleaning is necessary, a soft cloth dampened with a mild soap solution can be used. Allow the leather to dry naturally. Do not use heat to dry.
Page 363: Care Of Safety Belts
Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash, they might not be able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water.
Page 364: Cleaning Exterior Lamps/Lenses
Rinse the vehicle well, before washing and after to remove all cleaning agents completely. If they are allowed to dry on the surface, they could stain. Dry the ﬁnish with a soft, clean chamois or an all-cotton towel to avoid surface scratches and water spotting High pressure car washes may cause water to enter the vehicle.
Page 365: Windshield And Wiper Blades
Exterior painted surfaces are subject to aging, weather and chemical fallout that can take their toll over a period of years. You can help to keep the paint ﬁnish looking new by keeping your vehicle garaged or covered whenever possible. Protecting Exterior Bright Metal Parts Bright metal parts should be cleaned regularly to keep their luster.
Page 366: Aluminum Or Chrome-Plated Wheels And Trim
Aluminum or Chrome-Plated Wheels and Trim Your vehicle may have either aluminum or chrome-plated wheels. Keep the wheels clean using a soft clean cloth with mild soap and water. Rinse with clean water. After rinsing thoroughly, dry with a soft clean towel. A wax may then be applied.
Page 367: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
Page 368: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Interior and exterior Polishing Cloth polishing cloth. Tar and Road Oil Removes tar, road oil, Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. Removes soil and black White Sidewall marks from whitewalls Tire Cleaner and raised white lettering.
Page 369: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Certiﬁcation/Tire and Service Parts labels and the certiﬁcates of title and registration.
Page 370: Electrical System
Electrical System Add-On Electrical Equipment Notice: Do not add anything electrical to your vehicle unless you check with your dealer/retailer ﬁrst. Some electrical equipment can damage your vehicle and the damage would not be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 371: Engine Compartment Fuse Block
Engine Compartment Fuse Block The engine compartment fuse block is located on the driver side of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. To remove the cover, push in on the tab on the end of the cover and lift.
Page 372 Fuses Daylight Running Lamps AUX PWR 1 Accessory Power 1 5-112 Usage BLWR S/ROOF Fuses Usage Climate Control Fan Sunroof (If Equipped)
Page 373 Fuses Usage Air Conditioning Control Head, Power Seats Power Seat Circuit Breaker PWR/SEAT (If Equipped) RT HDLP Passenger Side Headlamp LT HDLP Driver Side Headlamp AUX PWR 2 Accessory Power 2 FOG/LAMP Fog Lamps (If Equipped) A/C CMPRSR Air Conditioning Compressor Wiper/Washer Switch Regulated Voltage Control PWR/WNDW...
Page 374 Fuses Mass Air Flow (MAF) Sensor, ERLS Can Purge Solenoid, Air Injection Reactor (AIR) Relay PCMI Powertrain Control Module (PCM) TRANS Transmission Solenoid Ignition, Clutch Starter Switch, Neutral Safety Back-Up Switch, Ignition Coils 1-5, Air Conditioning Relay Injectors Antilock Brake System 1 ABS 1 (ABS Logic) Front Park/Turn Lamps,...
Page 375 Relays Usage Daylight Running Lamps BEAM SEL Beam Selection Ignition 3, Climate Control, IGN 3 HVAC Climate Control Head Fuse, Power Seat Fuse Retained Accessory Power (Power Window Fuse, Wiper/Washer Switch Fuse), Sunroof Fuse Front Parking Lamp Fuse, PRK/LAMP Rear Parking Lamps HDLP Headlamps FOG/LAMP...
Page 376: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate conversion capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 6-12 for more information. Application Air Conditioning Refrigerant R134a Cooling System 2.9L Engine 3.7L Engine 5.3L Engine Engine Oil with Filter 2.9L Engine 3.7L and 5.3LEngines Fuel Tank...
Page 377 Capacities and Speciﬁcations (cont’d) Application Transmission (Drain and Reﬁll) Automatic Manual – Rear-Wheel Drive Manual – Four-Wheel Drive Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the appropriate level or as recommended in this manual.
Page 378 NOTES 5-118...
Page 379 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 Using the Maintenance Schedule ...6-2 Scheduled Maintenance ...6-4 Additional Required Services ...6-6 Maintenance Footnotes ...6-7 Maintenance Schedule Owner Checks and Services ...6-8 At Each Fuel Fill ...6-9 At Least Once a Month ...6-9 At Least Once a Year ...6-10 Recommended Fluids and Lubricants ...6-12...
Page 380: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 381 This schedule is for vehicles that: • carry passengers and cargo within recommended limits. You will ﬁnd these limits on the Tire and Loading Information label. See Loading Your Vehicle on page 4-32. • are driven on reasonable road surfaces within legal driving limits.
Page 382: Scheduled Maintenance
Scheduled Maintenance When the CHANGE OIL message comes on, it means that service is required for your vehicle. See DIC Warnings and Messages on page 3-42. Have your vehicle serviced as soon as possible within the next 600 miles (1 000 km). It is possible that, if you are driving under the best conditions, the engine oil life system may not indicate that vehicle service is necessary for over a year.
Page 383 Change engine oil and ﬁlter. See Engine Oil on page 5-15. Reset oil life system. See Engine Oil Life System on page 5-18. An Emission Control Service. Visually check for any leaks or damage. See footnote (g). Inspect engine air cleaner ﬁlter. If necessary, replace ﬁlter. See Engine Air Cleaner/Filter on page 5-19.
Page 384: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service (I or II) after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 385: Maintenance Footnotes
Maintenance Footnotes (a) Visually inspect brake lines and hoses for proper hook-up, binding, leaks, cracks, chaﬁng, etc. Inspect disc brake pads for wear and rotors for surface condition. Inspect drum brake linings/shoes for wear or cracks. Inspect other brake parts, including drums, wheel cylinders, calipers, parking brake, etc.
Page 386: Owner Checks And Services
(g) A ﬂuid loss in any vehicle system could indicate a problem. Have the system inspected and repaired and the ﬂuid level checked. Add ﬂuid if needed. (h) Change automatic transmission ﬂuid and ﬁlter if the vehicle is mainly driven under one or more of these conditions: −...
Page 387: At Each Fuel Fill
At Each Fuel Fill It is important to perform these underhood checks at each fuel ﬁll. Engine Oil Level Check Notice: It is important to check the engine oil regularly and keep it at the proper level. Failure to keep the engine oil at the proper level can cause damage to the engine not covered by your warranty.
Page 388: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle.
Page 389: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK/OFF in each shift lever position. • With an automatic transmission, the ignition should turn to LOCK/OFF only when the shift lever is in PARK (P).
Page 390: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Engine Oil Certiﬁed for Gasoline Engines starburst symbol.
Page 391 Usage Fluid/Lubricant SAE 75W-90 Synthetic Axle Lubricant Front and (GM Part No. U.S. 89021677, Rear Axle in Canada 89021678) meeting GM Speciﬁcation 9986115. Synchromesh Transmission Fluid Transfer Case (GM Part No. U.S. 12345349, in Canada 10953465). Chassis Lubricant Rear Driveline (GM Part No.
Page 392: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Engine Oil Filter 2.9L Engine 3.7L Engine 5.3L Engine Spark Plugs 2.9L and 3.7L Engines 5.3L Engine Windshield Wiper Blades Driver’s Side —...
Page 393: Engine Drive Belt Routing
Engine Drive Belt Routing 5.3L Engine 2.9L and 3.7L Engines 6-15...
Page 394: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 6-2. Any additional information from Owner Checks and Services on page 6-8 can be added on the following record pages. You should retain all maintenance receipts.
Page 395 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-17...
Page 396 Maintenance Record (cont’d) Odometer Maintenance I or Date Serviced By Services Performed Reading Maintenance II 6-18...
Page 397: Customer Assistance Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-4 Customer Assistance for Text Telephone (TTY) Users ...7-5 Customer Assistance Offices ...7-5 GM Mobility Reimbursement Program ...7-6 Roadside Assistance Program ...7-7 Scheduling Service Appointments ...7-9 Courtesy Transportation ...7-9 Collision Damage Repair ...7-11 Customer Assistance Information...
Page 398: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to GMC. Normally, any concerns with the sales transaction or the operation of the vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 399 Although you may be required to resort to this informal dispute resolution program prior to ﬁlling out a court action, use of the program is free of charge and your case will generally be heard within 40 days. If you do not agree with the decision given in your case, you may reject it and proceed with any other venue for relief available to you.
Page 400: Online Owner Center
Online Owner Center Online Owner Center (United States only) The Owner Center is a resource for your GM ownership needs. Speciﬁc vehicle information can be found in one place. The Online Owner Center allows you to: • Get e-mail service reminders. •...
Page 401: Customer Assistance For Text Telephone (Tty) Users
Text Telephone (TTY) Users To assist customers who are deaf, hard of hearing, or speech-impaired and who use the Text Telephones (TTYs), GMC has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with GMC by dialing: 1-800-GMC-8583 (462-8583).
Page 402: Gm Mobility Reimbursement Program
All Overseas Locations Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma # 2740 Col.
Page 403: Roadside Assistance Program
(Text telephone (TTY): 1-888-889-2438). For vehicles purchased in Canada, call 1-800-268-6800. Service is available 24 hours a day, 365 days a year. As the owner of a new GMC vehicle, you are automatically enrolled in the GMC Roadside Assistance program.
Page 404 However, when other services are utilized, our Roadside Assistance Representatives will explain any payment obligations you might incur. GMC and General Motors of Canada Limited reserve the right to limit services or reimbursement to an owner or driver when, in their sole discretion, the claims become excessive in frequency or type of occurrence.
Page 405: Scheduling Service Appointments
Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty. GMC and General Motors of Canada Limited reserve the right to make any changes or discontinue the Roadside Assistance program at any time without notiﬁcation.
Page 406: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Shuttle service is the preferred means of offering Courtesy Transportation.
Page 407: Collision Damage Repair
Additional Program Information All program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. General Motors reserves the right to unilaterally modify, change or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described...
Page 408: If A Crash Occurs
Repair Facility GM also recommends that you choose a collision repair facility that meets your needs before you ever need collision repairs. Your dealer/retailer may have a collision repair center with GM-trained technicians and state of the art equipment, or be able to recommend a collision repair center that has GM-trained technicians and comparable equipment.
Page 409 • Gather the important information you will need from the other driver. Things like name, address, phone number, driver’s license number, vehicle license plate, vehicle make, model and model year, Vehicle Identiﬁcation Number (VIN), insurance company and policy number, and a general description of the damage to the other vehicle.
Page 410: Reporting Safety Defects
Reporting Safety Defects to General Motors In addition to notifying NHTSA (or Transport Canada) in a situation like this, please notify General Motors. Call 1-800-GMC-8782 (1-800-462-8782), or write: GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, call 1-800-263-3777 (English) or...
Page 411: Service Publications Ordering Information
Service Publications Ordering Information Service Manuals Service Manuals have the diagnosis and repair information on engines, transmission, axle suspension, brakes, electrical, steering, body, etc. Service Bulletins Service Bulletins’ give additional technical service information needed to knowledgeably service General Motors cars and trucks. Each bulletin contains instructions to assist in the diagnosis and service of your vehicle.
Page 412: Vehicle Data Recording And Privacy
Vehicle Data Recording and Privacy Your GM vehicle has a number of sophisticated computers that record information about the vehicle’s performance and how it is driven. For example, your vehicle uses computer modules to monitor and control engine and transmission performance, to monitor the conditions for airbag deployment and deploy airbags in a crash and, if so equipped, to provide antilock braking to help the driver control the vehicle.
Page 413: Onstar
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
Page 414 NOTES 7-18...
Page 415 Accessories and Modiﬁcations ... 5-3 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-74 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-110 Air Cleaner/Filter, Engine ... 5-19 Air Conditioning ... 3-20 Airbag Passenger Status Indicator ... 3-28 Readiness Light ... 3-27 Airbag System ...
Page 416 Audio System (cont.) Theft-Deterrent Feature ... 3-69 XM™ Satellite Radio Antenna System ... 3-70 Audio System(s) ... 3-48 Automatic Headlamp System ... 3-15 Automatic Transmission Fluid ... 5-21 Operation ... 2-23 Battery ... 5-41 Electric Power Management ... 3-18 Run-Down Protection ... 3-18 Brake Emergencies ...
Page 417 Child Restraints Child Restraint Systems ... 1-39 Infants and Young Children ... 1-36 Lower Anchors and Tethers for Children ... 1-43 Older Children ... 1-33 Securing a Child Restraint in a Rear Seat Position ... 1-54 Securing a Child Restraint in the Center Front Seat Position ...
Page 418 Daytime Running Lamps ... 3-14 Defensive Driving ... 4-2 Disc, MP3 ... 3-64 Doing Your Own Service Work ... 5-4 Dome Lamp ... 3-17 Dome Lamp Override ... 3-17 Door Locks ... 2-7 Power Door Locks ... 2-8 Programmable Automatic Door Locks ... 2-8 Rear Door Security Locks ...
Page 419 Filter Engine Air Cleaner ... 5-19 Finish Damage ... 5-107 Fixed Mast Antenna ... 3-70 Flashers, Hazard Warning ... 3-6 Flash-to-Pass ... 3-9 Flat Tire ... 5-79 Flat Tire, Changing ... 5-80 Flat Tire, Storing ... 5-94 Fluid ... 5-21, 5-23 Power Steering ...
Page 420 Hazard Warning Flashers ... 3-6 Head Restraints ... 1-7 Headlamp Aiming ... 5-49 Headlamps ... 5-50 Bulb Replacement ... 5-49 Daytime Running Lamps ... 3-14 Exterior Lamps ... 3-13 Flash-to-Pass ... 3-9 Halogen Bulbs ... 5-49 High/Low Beam Changer ... 3-8 On Reminder ...
Page 421 Labeling, Tire Sidewall ... 5-57 Lamps Dome ... 3-17 Dome Lamp Override ... 3-17 Exterior Cargo ... 3-16 Lap Belt ... 1-31 Lap-Shoulder Belt ... 1-25 LATCH System Child Restraints ... 1-43 Latches, Seatback ... 1-8 License Plate Lamps ... 5-53 Light Airbag Readiness ...
Page 422 Maintenance Schedule Additional Required Services ... 6-6 At Each Fuel Fill ... 6-9 At Least Once a Month ... 6-9 At Least Once a Year ... 6-10 Introduction ... 6-2 Maintenance Footnotes ... 6-7 Maintenance Record ... 6-16 Maintenance Replacement Parts ... 6-14 Maintenance Requirements ...
Page 423 Odometer ... 3-25 Odometer, Trip ... 3-25 Off-Road Driving ... 4-11 Off-Road Recovery ... 4-9 Engine ... 5-15 Pressure Light ... 3-36 Oil, Engine Oil Life System ... 5-18 Older Children, Restraints ... 1-33 Online Owner Center ... 7-4 OnStar, Privacy ... 7-17 ®...
Page 424 Privacy ... 7-16 Event Data Recorders ... 7-16 Navigation System ... 7-17 OnStar ... 7-17 Radio Frequency Identiﬁcation ... 7-17 Programmable Automatic Door Locks ... 2-8 Radiator Pressure Cap ... 5-29 Radio Frequency Identiﬁcation (RFID), Privacy ... 7-17 Radios ... 3-46 Radio(s) ...
Page 425 Safety Belt Reminder Light ... 3-26 Safety Belts Care of ... 5-103 How to Wear Safety Belts Properly ... 1-17 Lap Belt ... 1-31 Lap-Shoulder Belt ... 1-25 Safety Belt Extender ... 1-32 Safety Belt Use During Pregnancy ... 1-31 Safety Belts Are for Everyone ...
Page 426 Speciﬁcations, Capacities ... 5-116 Speedometer ... 3-25 Starting the Engine ... 2-21 Steering ... 4-7 Steering Wheel, Tilt Wheel ... 3-7 Storage Areas Center Console Storage Area ... 2-50 Cupholder(s) ... 2-50 Glove Box ... 2-50 Rear Storage Area ... 2-51 Stuck in Sand, Mud, Ice, or Snow ...
Page 427 Tires (cont.) Wheel Replacement ... 5-76 When It Is Time for New Tires ... 5-71 Towing Recreational Vehicle ... 4-38 Towing a Trailer ... 4-44 Your Vehicle ... 4-38 Traction Control System (TCS) ... 4-5 Control System Warning Light ... 3-32 Limited-Slip Rear Axle ...
Page 428 Warning Lights, Gages and Indicators ... 3-23 Warnings DIC Warnings and Messages ... 3-42 Hazard Warning Flashers ... 3-6 Other Warning Devices ... 3-6 Safety and Symbols ... iii Vehicle Damage ... iv Wheels Alignment and Tire Balance ... 5-76 Different Size ...

This manual is also suitable for:

2008 canyon

GMC 2007 Canyon Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraints

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Driver Information Center (DIC)

Audio System(S)

Section 4 Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Service

Fuel

Checking Things under the Hood

Rear Axle

Four-Wheel Drive

Front Axle

Headlamp Aiming

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Capacities and Speciﬁcations

Quick Links

Chapters

Related Manuals for GMC 2007 Canyon

Summary of Contents for GMC 2007 Canyon
