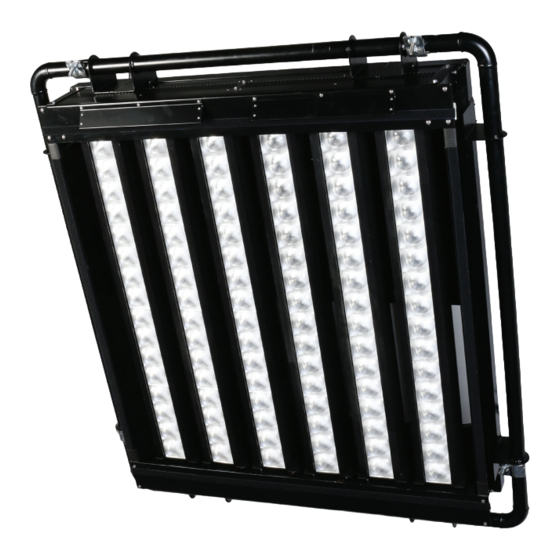

- Page 1 Chroma-Q Brute Force ® ™ Assembly guide chroma-q.com...
-
Page 3: Table Of Contents
Lamp Fitting When Using Rain Protection Housing Rain Protection Housing Effective Tilt Range Vinyl Covers Rigging Options - Brute Force 6 Rigging Options - Brute Force 4 Fan Unit - Connection Brute Force 6 Connection Options 13-16 Brute Force 4 Connection Options... -
Page 4: Safety Information
If you experience difficulties with any Chroma-Q products please contact your local dealer. If your local support@chroma-q.com dealer is unable to help then please contact If you are having trouble finding what you are looking for on our website, then contact our Chroma-Q marketing department by sending an email to marketing@chroma-q.com. -
Page 5: Lamp Fitting
Lamp Fitting M10 locking nut M10 washer M10 x 30 hex bolt • Use M10 x 30 stainless steel hex bolts, washers and locking nuts provided • For ease of assembly, fit top bolts & centre units first... -
Page 6: Rain Protection Housing Fitting
Rain Protection Housing Fitting M8 x 25 hex bolt M8 washer M8 locking nut • Use M8 x 25 stainless steel bolts, washers and locking nuts provided • Fit housing before fitting lamp units • Ensure foam seals are in good condition... -
Page 7: Lamp Fitting When Using Rain Protection Housing
Lamp Fitting When Using Rain Protection Housing M10 locking nut M10 washer M10 x 30 hex bolt M5 washer M5 x 12 hex bolt • Disconnect mains supply • Remove back panel • Use M10 x 30 stainless steel hex bolts, washers and locking nuts provided •... -
Page 8: Rain Protection Housing Effective Tilt Range
Rain Protection Housing Effective Tilt Range 50˚ • Unit must not exceed 50˚ forward tilt • Ensure vinyl covers are fitted securely • In severe conditions take additional precautions • Be aware of heat gain in direct sunlight when vinyl covers are fitted •... -
Page 9: Vinyl Covers
Vinyl Covers Front Back • Ensure vinyl cover is fitted correctly to create a seal with the rain protection housing • If not required remove covers for additional cooling... -
Page 10: Rigging Options - Brute Force 6
Rigging Options - Brute Force 6 Secondary safety • Use minimum 2 points of suspension • Always use secondary safety precautions... - Page 11 Rigging Options - Brute Force 4 Secondary safety • Always use secondary safety precautions • Suspension Spigot / Junior Pin will be damaged by excesive side loading • Spigot / Junior pin is factory fitted. If removed it must be re-installed following the factory instructions •...
-
Page 12: Fan Unit - Connection
Fan Unit - Connection Fan on/off switch Fuse 3A(T) 6.3x32 • Disconnect mains supply before removing covers • Remove back panel • Make fan unit connection to final lamp unit • Fan unit protection fuse 3A(T) 6.3x32 • Replace back panel... -
Page 13: Brute Force 6 Connection Options
Brute Force 6 Connection Options Three Mains Feed 3 x hybrid link cable 1.6m (115 V) MULPCTM/X5SM-PCTF/X5SFDHD-1.6 3 x DMX link cable 1.6m RGBW X1 MUCX5SD1-1.6 (384 Channels) 1 x DMX in cable 5pin X.L.R Customer Specified 3 x Power in Cable Neutrik True 1 TOP Customer Specified... - Page 14 Brute Force 6 Connection Options Three Mains Feed 3 x hybrid link cable 1.6m (115 V) MULPCTM/X5SM-PCTF/X5SFDHD-1.6 3 x DMX link cable 1.6m CineQ 8bit X1 MUCX5SD1-1.6 (512+256 Channels) 2 x DMX in cable 5pin X.L.R Customer Specified 3 x Power in Cable Neutrik True 1 TOP Customer Specified...
- Page 15 Brute Force 6 Connection Options Two Mains Feed 4 x Hybrid Link Cable 1.6m (230 V) MULPCTM/X5SM-PCTF/X5SFDHD-1.6 2 x DMX Link Cable 1.6m RGBW X1 MUCX5SD1-1.6 (384 Channels) 1 x DMX in cable 5pin X.L.R Customer Specified 2 x Power in Cable Neutrik True 1 TOP Customer Specified...
- Page 16 Brute Force 6 Connection Options Two Mains Feed 4 x Hybrid Link Cable 1.6m (230 V) MULPCTM/X5SM-PCTF/X5SFDHD-1.6 2 x DMX Link Cable 1.6m CineQ 8bit X1 MUCX5SD1-1.6 (384+384 Channels) 2 x DMX in cable 5pin X.L.R Customer Specified 2 x Power in Cable Neutrik True 1 TOP Customer Specified...
-
Page 17: Brute Force 4 Connection Options
Brute Force 4 Connection Options Two Mains Feed 2 x Hybrid Link Cable 1.6m MULPCTM/X5SM-PCTF/X5SFDHD-1.6 (115 V) 2 x DMX Link Cable 1.6m CineQ 8bit X1 MUCX5SD1-1.6 (512 Channels) 1 x DMX in cable RGBW X1 5pin X.L.R Customer Specified... - Page 18 Brute Force 4 Connection Options One Mains Feed 3 x Hybrid Link Cable 1.6m MULPCTM/X5SM-PCTF/X5SFDHD-1.6 (230 V) 1 x DMX Link Cable 1.6m CineQ 8bit X1 MUCX5SD1-1.6 (512 Channels) 1 x DMX in cable 5pin X.L.R Customer Specified 1 x Power in Cable...
-
Page 19: Disclaimer
Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. - Page 20 Chroma-Q and all associated product names are recognised trademarks, for more information visit www.chroma-q.com/trademarks. The rights and ownership of all trademarks are recognised. Whilst every effort has been made to ensure that the information is correct, Chroma-Q accepts no liability for errors or omissions.
