RTKA211250DE0000BU

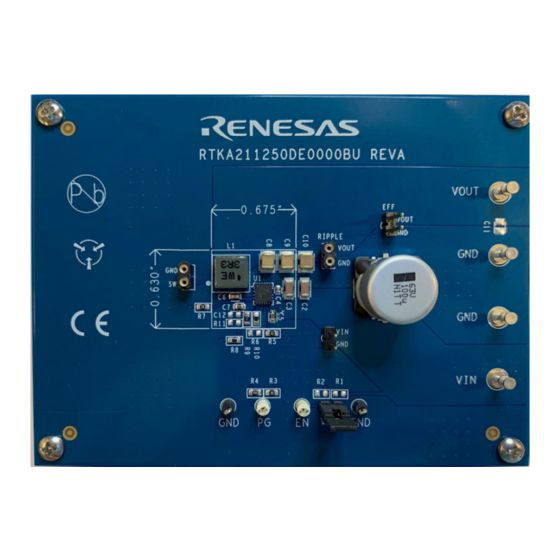

The RTKA211250DE0000BU board evaluates the
RAA211250
(QFN version), a DC/DC synchronous
step-down regulator with programmable switching
frequency.
The RAA211250 supports a wide input voltage range
(from 4.5V to 30V) and adjustable output voltage. It
delivers up to continuous 3A output current with
premium load regulation and line regulation
performance.
V
Up to 30V
C
IN
R16UZ0039EU0101 Rev.1.01
Oct 7, 2022
IN
VIN
R
IN1
EN
R
IN2
RAA211250
PGND
FS
R
FS
AGND

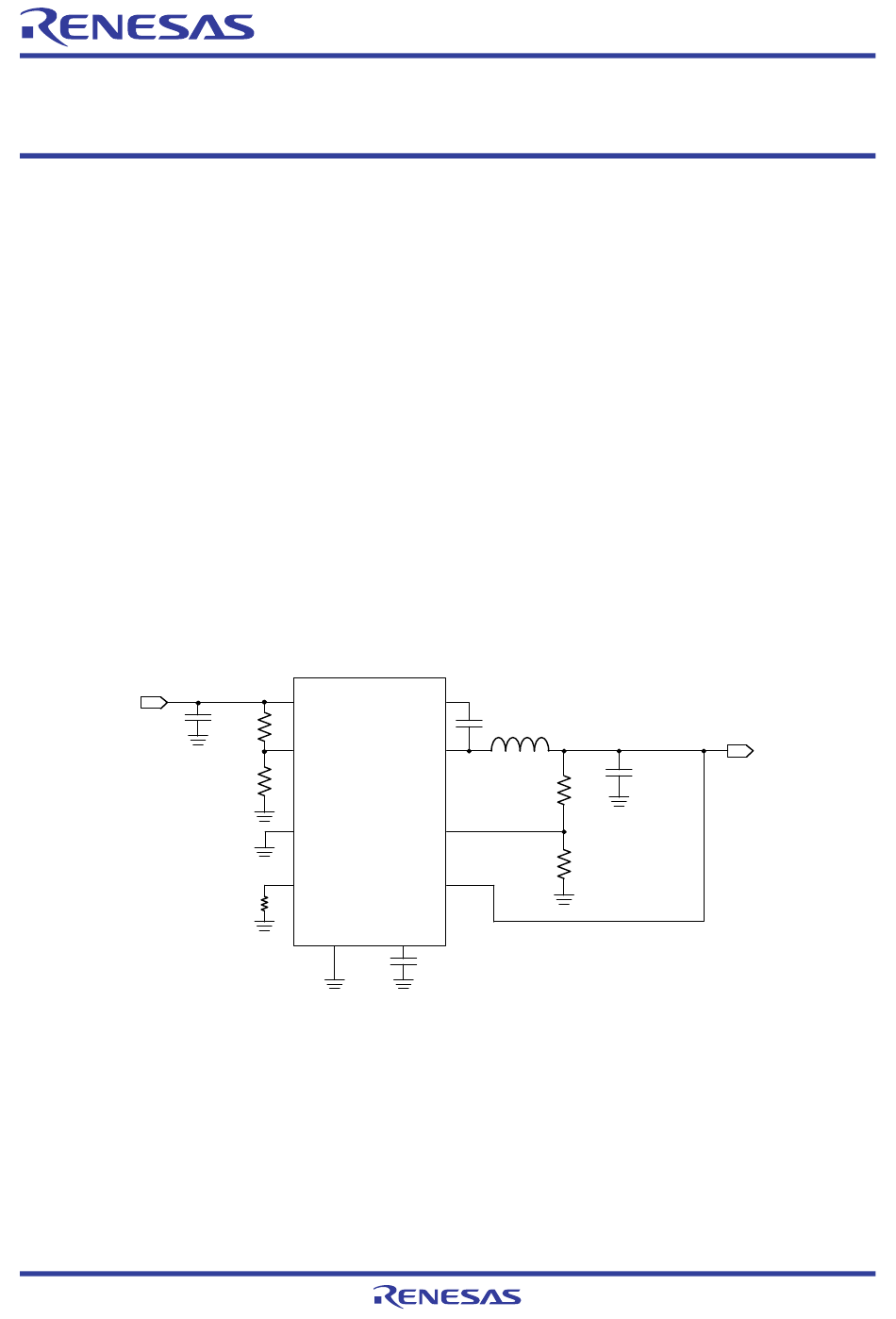

Figure 1. Simplified Circuit
Features
▪ Simple and flexible design
▪ 4.5V to 30V V
▪ Convenient power conversion
Specifications
The following are the design specifications for the
RTKA211250DE0000BU:
▪ Input voltage (V
▪ Output voltage (V
▪ Maximum output current: 5A
BST
C
BOOT
SW
L
R
FB1
FB
R
FB2
EBIAS
VCC
Evaluation Board Manual
range
IN
): 4.5V to 30V
IN
): 3.3V
OUT
V
OUT
3.3V
C
OUT
3×47µF
© 2022 Renesas Electronics
Page 1
