Renogy Rover Series 20A/30A/40A - Controller Manual

General Information

The Rover Series charge controllers are intelligent controllers suitable for various off-grid solar applications. It protects the battery from being over-charged by the solar modules and over-discharged by the loads. The controller features a smart tracking algorithm that maximizes the energy from the solar PV module(s) and charge the battery. At the same time, the low voltage disconnect function (LVD) will prevent the battery from over discharging.

The Rover's charging process has been optimized for long battery life and improved system performance. The comprehensive self-diagnostics and electronic protection functions can prevent damage from installation mistakes or system faults.

Key Features

• Automatically detect 12V or 24V DC system voltages
• Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
• Deep cycle Sealed, Gel, Flooded and Lithium (12.8V LFP) battery option ready
• Electronic protection: Overcharging, over-discharging, overload, and short circuit
• Reverse protection: Any combination of solar module and battery, without causing damage to any component
• Customizable charging voltages
• Charges over-discharged lithium batteries
• RS232 port to communicate with BT-1 Bluetooth module

MPPT Technology

The MPPT Charge Controller utilizes Maximum Power Point Tracking technology to extract maximum power from the solar module(s). The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology will track the array'smaximum power point voltage (Vmp) as it varies with weather conditions, ensuring that the maximum power is harvested from the array throughout the course of the day.

Current Boost

In many cases, the MPPT charge controller will "boost" up the current in the solar system. The current does not come out of thin air. Instead, the power generated in the solar panels is the same power that is transmitted into the battery bank. Power is the product of Voltage (V) x Amperage (A).

Therefore, assuming 100% efficiency:
Power In = Power Out
Volts In * Amps In = Volts out * Amps out

Although MPPT controllers are not 100% efficient, they are very close at about 92-95% efficient. Therefore, when the user has a solar system whose Vmp is greater than the battery bank voltage, then that potential difference is proportional to the current boost. The voltage generated at the solar module needs to be stepped down to a rate that could charge the battery in a stable fashion by which the amperage is boosted accordingly to the drop. It is entirely possible to have a solar module generate 8 amps going into the charge controller and likewise have the charge controller send 10 amps to the battery bank. This is the essence of the MPPT charge controllers and their advantage over traditional charge controllers. In traditional charge controllers, that stepped down voltage amount is wasted because the controller algorithm can only dissipate it as heat. The following demonstrates a graphical point regarding the output of MPPT technology.

Limiting Effectiveness

Temperature is a huge enemy of solar modules. As the environmental temperature increases, the operating voltage (Vmp) is reduced and limits the power generation of the solar module. Despite the effectiveness of MPPT technology, the charging algorithm will possibly not have much to work with and therefore there is an inevitable decrease in performance. In this scenario, it would be preferred to have modules with higher nominal voltage, so that despite the drop in performance of the panel, the battery is still receiving a current boost because of the proportional drop in module voltage.

Four Charging Stages

The Rover MPPT charge controller has a 4-stage battery charging algorithm for a rapid, efficient, and safe battery charging. They include: Bulk Charge, Boost Charge, Float Charge, and Equalization.

Bulk Charge: This algorithm is used for day to day charging. It uses 100% of available solar power to recharge the battery and is equivalent to constant current. In this stage the battery voltage has not yet reached constant voltage (Equalize or Boost), the controller operates in constant current mode, delivering its maximum current to the batteries (MPPT Charging).

Constant Charging: When the battery reaches the constant voltage set point, the controller will start to operate in constant charging mode, where it is no longer MPPT charging. The current will drop gradually. This has two stages, equalize and boost and they are not carried out constantly in a full charge process to avoid too much gas precipitation or overheating of the battery.

Boost Charge: Boost stage maintains a charge for 2 hours by default. The user can adjust the constant time and preset value of boost per their demand.

Float Charge: After the constant voltage stage, the controller will reduce the battery voltage to a float voltage set point. Once the battery is fully charged, there will be no more chemical reactions and all the charge current would turn into heat or gas. Because of this,

The charge controller will reduce the voltage charge to smaller quantity, while lightly charging the battery. The purpose for this is to offset the power consumption while maintaining a full battery storage capacity. In the event that a load drawn from the battery exceeds the charge current, the controller will no longer be able to maintain the battery to a Float set point and the controller will end the float charge stage and refer back to bulk charging.

Equalization: Is carried out every 28 days of the month. It is intentional overcharging of the battery for a controlled period of time. Certain types of batteries benefit from periodic equalizing charge, which can stir the electrolyte, balance battery voltage and complete chemical reaction. Equalizing charge increases the battery voltage, higher than the standard complement voltage, which gasifies the battery electrolyte.

Once equalization is active in the battery charging, it will not exit this stage unless there is adequate charging current from the solar panel. There should be NO load on the batteries when in equalization charging stage.

Over-charging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high of equalizing charge or for too long may cause damage. Please carefully review the specific requirements of the battery used in the system.

Equalization may increase battery voltage to a level damaging to sensitive DC loads. Ensure that all load allowable input voltages are greater than the equalizing charging set point voltage.

Lithium Battery Activation

The Rover MPPT charge controller has a reactivation feature to awaken a sleeping lithium battery. The protection circuit of lithium battery will typically turn the battery off and make it unusable if over-discharged. This can happen when storing a lithium battery pack in a discharged state for any length of time as self-discharge would gradually deplete the remaining charge. Without the wake-up feature to reactivate and recharge batteries, these batteries would become unserviceable and the packs would be discarded. The Rover will apply a small charge current to activate the protection circuit and if a correct cell voltage can be reached, it starts a normal charge.

When using the Rover to charge a 24V lithium battery bank, set the system voltage to 24V instead of auto recognition. If auto recognition is accidently selected the Rover will allow you to change it to 24V when the lithium battery activation. In the activation interface press and hold the enter button to trigger the system voltage selector. To change the system voltage, press the Up or Down buttons then long press Enter to save the selected system voltage.

Additional Components

Additional components included in the package:

Remote Temperature Sensor:
This sensor measures the temperature at the battery and uses this data for very accurate temperature compensation. The sensor is supplied with a 9.8ft cable length that connects to the charge controller. Simply connect the cable and adhere the sensor on top or the side of the battery to record ambient temperature around the battery.

NOTE
Do Not use this sensor when charging lithium battery.

Mounting Brackets
These brackets can be used to mount the Rover charge controller on any flat surface. The screws to mount the brackets to the charge controller are included, screws to mount charge controller to surface are not included.
Mounting Oval: 7.66 x 4.70mm (0.30 x 0.18in)

Optional Components

Optional components that require a separate purchase:

Renogy BT-1 Bluetooth Module:
The BT-1 Bluetooth module is a great addition to any Renogy charge controllers with a RS232 port and is used to pair charge controllers with the Renogy BT App. After pairing is done you can monitor your system and change parameters directly from you cell phone or tablet. No more wondering how your system is performing, now you can see performance in real time without the need of checking on the controller's LCD.

Renogy DM-1 4G Data Module:
The DM-1 4G Module is capable of connecting to select Renogy charge controllers through an RS232, and is used to pair charge controllers with Renogy 4G monitoring app. This app allows you to conveniently monitor your system and charge syeters parameters remotely from anywhere 4G LTE network service is available.

Identification of Parts

Key Parts

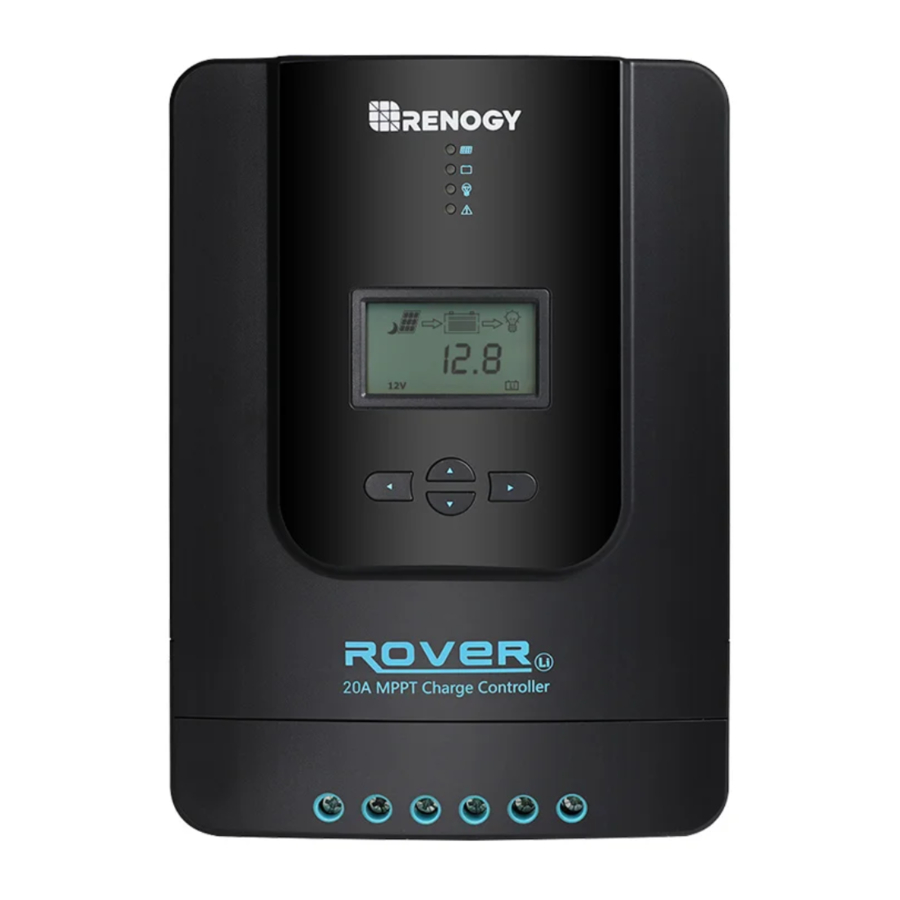

1. PV LED Indicator
2. Battery LED Indicator
3. Load LED Indicator
4. System Error LED Indicator
5. LCD Screen
6. Operating Keys
7. Mounting Holes
8. Remote Temperature Sensor Port (optional accessory)
9. PV Terminals
10. Battery Terminals
11. Load Terminals
12. RS-232 Port (optional accessory)

Installation

Recommended tools to have before installation

Connect battery terminal wires to the charge controller FIRST then connect the solar panel(s) to the charge controller. NEVER connect solar panel to charge controller before the battery.

Do NOT connect any inverters or battery chargers into the LOAD TERMINAL of the charge controller.

Do not over tighten the screw terminals. This could potentially break the piece that holds the wire to the charge controller.

Refer to the technical specifications for max wire sizes on the controller and for the maximum amperage going through wires.

You are now ready to begin connecting your battery to your charge controller.

Battery

Load

(optional)

Solar Panels

Bluetooth Module communication

(Optional)

Temperature Sensor

(Optional, not polarity sensitive)

3. Place the sensor close to the battery

NOTE
Do NOT place the Temperature Sensor lug inside the battery cell.

Mounting Recommendations

Never install the controller in a sealed enclosure with flooded batteries. Gas can accumulate and there is a risk of explosion.

1. Choose Mounting Location—place the controller on a vertical surface protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation.
2. Check for Clearance—verify that there is sufficient room to run wires, as well as clearance above and below the controller for ventilation. The clearance should be at least 6 inches (150mm).

3. Mark Holes
4. Drill Holes
5. Secure the charge controller.

Mounting Methods

The controller can be mounted using the existing mounting holes or using the included mounting brackets.

Using Mounting Hole

1. Measure the distance between each mounting hole on the Rover. Using that distance drill 4 screws onto desired surface.

2. Align the Rovers mounting holes with the screws

3. Verify all screw heads are inside the mounting holes. Release controller and check if mounting feels secure.


Using Mounting Brackets

1. Install the brackets using the provided components

2. Align the mounting brackets to desired surface and use the appropriate screws to drill into surface (screws not included)

3. Verify mounting is secure


Operation

Rover is very simple to use. Simply connect the batteries, and the controller will automatically determine the battery voltage. The controller comes equipped with an LCD screen and 4 buttons to maneuver though the menus.

NOTE: Please set the correct battery type the first time you use.

Startup Interface

Main Display

NOTE
The Battery Capacity (SOC%) is estimated based on the charging voltage.

	Page Up/Increase parameter value
	Page Down/Decrease parameter value
	Return to the previous menu
	Enter sub menu/save parameter value/ turn load on or off in manual mode

Programming Battery Type

To enter the battery programming settings hover over the Battery Voltage screen and press down the Enter button. When the battery type starts to flash press the Select button to cycle through the battery types and press Enter to finalize selection. When selecting the Lithium setting the user can change battery voltage from 12V to 24V and select the charging voltage.

Programming Parameters

To enter the programming interface simply press and hold the right arrow button. After entering this feature press the Enter/Right button to switch between parameters. To change the parameters, press the Up or Down button. To save the parameter press and hold the Enter/Right button.

The charging parameter setting (Equalizing voltage, Boost voltage, Floating charging voltage, over-discharge return voltage, Over-discharge voltage) are only available under the battery "USER" mode. Press and hold the right arrow to enter the programming settings and continue pressing the right arrow button until you see the desired voltage screen.

NOTE
Battery charging parameters can also be programmed using the Renogy BT APP. Read the corresponding user manuals for more information.

Programming Load Terminal

1. This screen is displaying the current Load Mode.
2. To enter screen 2 press and hold the Enter button. This screen will allow you to change the load mode.
3. To change the load mode press the up or down button.
4. Once you have selected the desired load mode press the Enter button to save the setting.
5. To exit the programming setting press the left button.

Load Mode Options

Setting	Mode	Description
0	Automatic(On/Off)	The load will turn on at night when the solar panel is no longer producing any power after a short time delay. The load will turn off when the panel starts producing power.
1-14	Time control	When the panel is no longer producing power the load will be ON for 1-14 hours or until the panel starts producing power.
15	Manual	In this mode, the user can turn the Load On/Off by pressing the Enter button at any time.
16	Test	Used to troubleshoot load terminal (No Time Delay). When voltage is detected load will be off and when no voltage is detected load will be on.
17	24Hr	The load will be on for 24 hours a day.

LCD Indicators

LED Indicators

	PV array indicator	Indicating the controller's current charging mode.
	BAT indicator	Indicating the battery's current state.
	LOAD indicator	Indicating the loads' On/ Off state.
	ERROR indicator	Indicating whether the controller is functioning normally.
PV Indicator		Status
	WhiteSolid	The PV system is charging the battery bank
	White Slow Flashing	The Controller is undergoing boost stage
	White Single Flashing	The Controller is undergoing float stage
	White Fast Flashing	The Controller is undergoing equalization stage
	White Double Flashing	The oversized PV system is charging the battery bank at the rated current.
	Off	The PV system is not charging the battery bank. PV not detected.
BATT Indicator		Status
	White Solid	Battery is normal
	White Slow Flashing	Battery over-discharged
	White Fast Flashing	Battery over-voltage
LOAD Indicator		Status
	White Solid	Load is on
	White Fast Flashing	Load is over-loaded or short-circuited
	Off	Load is off
ERROR Indicator		Status
	White Solid	System Error. Please check LCD for Error code
	Off	System is operating normally

Rover Protections

Protection	Behavior
PV Array Short Circuit	When PV shot circuit occurs, the controller will stop charging. Clear it to resume normal operation.
PV Overvoltage	if the PV voltage is larger than maximum input open voltage 100VDC. PV will remain disconnected until the voltage drops below 100VDC.
PV Overcurrent	The controller will limit the battery charging current to the maximum battery current rating. Therefore, an over-sized solar array will not operate at peak power.
Load Overload	If the current exceeds the maximum load current rating 1.05 times, the controller will disconnect the load. Overloading must be cleared up by reducing the load and restarting the controller.
Load Short Circuit	Fully protected against the load wiring short-circuit. Once the load short (more than quadruple rate current), the load short protection will start automatically. After 5 automatic load reconnect attempts, the faults must be cleared by restarting the controller.
PV Reverse Polarity	The controller will not operate if the PV wires are switched. Wire them correctly to resume normal controller operation.
Battery Reverse Polarity	The controller will not operate if the battery wires are switched. Wire them correctly to resume normal controller operation.
Over-Temperature	If the temperature of the controller heat sink exceeds 65℃, the controller will automatically start reducing the charging current. The controller will shut down when the temperature exceeds 85℃.

System Status Troubleshooting

PV indicator	Troubleshoot
Off during daylight	Ensure that the PV wires are correctly and tightly secured inside the charge controller PV terminals. Use a multi-meter to make sure the poles are correctly connected to the charge controller.
BATT Indicator	Troubleshoot
White Slow Flashing	Disconnect loads, if any, and let the PV modules charge the battery bank. Use a multi-meter to frequently check on any change in battery voltage to see if condition improves. This should ensure a fast charge. Otherwise, monitor the system and check to see if system improves.
White Fast Flashing	Using a multimeter check the battery voltage and verify it is not exceeding 32 volts.
Load Indicator	Troubleshoot
White Fast Flashing	The Load circuit on the controller is being shorted or overloaded. Please ensure the device is properly connected to the controller and make sure it does not exceed 20A (DC).
Error Indicator	Troubleshoot
WhiteSolid	System Error. Please check LCD for Error code

Error Codes

Error Number	Description
E0	No error detected
E1	Battery over-discharged
E2	Battery over-voltage
E3	Battery under-voltage
E4	Load short circuit
E5	Load overloaded
E6	Controller over-temperature
E8	PV input over-current
E10	PV over-voltage

Maintenance

Risk of Electric Shock! Make sure that all power is turned off before touching the terminals on the charge controller.

For best controller performance, it is recommended that these tasks be performed from time to time.

1. Check that controller is mounted in a clean, dry, and ventilated area.
2. Check wiring going into the charge controller and make sure there is no wire damage or wear.
3. Tighten all terminals and inspect any loose, broken, or burnt up connections.
4. Make sure LED readings are consistent. Take necessary corrective action.
5. Check to make sure none of the terminals have any corrosion, insulation damage, high temperature, or any burnt/discoloration marks.

Fusing

Fusing is recommended in PV systems to provide a safety measure for connections going from panel to controller and controller to battery. Remember to always use the recommended wire gauge size based on the PV system and the controller.

NEC Maximum Current for different Copper Wire Sizes
AWG	16	14	12	10	8	6	4	2	0
Max. Current	18A	25A	30A	40A	55A	75A	95A	130A	170A

Note: The NEC code requires the overcurrent protection shall not exceed 15A for 14AWG, 20A for 12 AWG, and 30A for 10AWG copper wire.

Fuse from Controller to Battery
Controller to Battery Fuse = Current Rating of Charge Controller Ex. 20A MPPT CC = 20A fuse from Controller to Battery
Fuse from Solar Panel(s) to Controller
Ex. 200W; 2 X 100 W panels **Utilize 1.56 Sizing Factor (SF) NOTE Different safety factors could be used. The purpose is to oversize.
Series: Total Amperage= Isc1 = Isc2 * SF = 5.75A * 1.56 = 8.97 Fuse = 9A fuse	Parallel Total Amperage= (Isc1 + Isc2) * SF =(5.75A + 5.75A)* 1.56 = 17.94 Fuse = 18A fuse

Technical Specifications

Electrical Parameters

Model	RVR-20	RVR-30		RVR-40
Nominal system voltage	12V/24V Auto Recognition
Rated Battery Current	20A	30A		40A
Rated Load Current	20A	20A		20A
Max. Battery Voltage	32V
Max Solar Input Voltage	100 VDC
Max. Solar Input Power	12V @ 260W	12V @ 400W		12V @ 520W
	24V @ 520W	24V @ 800W		24V @ 1040W
Self-Consumption	≤100mA @ 12V ≤58mA @ 24V
Charge circuit voltage drop	≤ 0.26V
Discharge circuit voltage drop	≤ 0.15V
Temp. Compensation	-3mV/°C/2V (default)

General

Model	RVR-20	RVR-30/40
Dimensions	210*151*68.2mm 8.27*5.95*2.69in	238*172*77.3mm 9.38*6.78*3.05in
Mounting Oval	7.66 x 4.70mm 0.30 x 0.18in
Max Terminal Size	10mm2 8 AWG	10mm2 8 AWG
Net Weight	1.4kg 3.08 lb.	2.0kg 4.41 lb.
Working Temperature	-35°C to +45°C
Storage Temperature	-35°C to +75°C
Rated Load Current	10% to 90% NC
Humidity Range	≤ 95% (NC)
Enclosure	IP32
Altitude	< 3000m
Communication	RS232
Certification	FCC Part 15 Class B; CE; RoHS; RCM

Battery Charging Parameters

Battery	GEL	SEALED	FLOODED	LI (LFP)	USER
Over-voltage Warning	16 V	16 V	16 V	16 V	9-17 V
Equalization Voltage	-----	14.6 V	14.8V	-----	9-17 V
Boost Voltage	14.2 V	14.4 V	14.6 V	14.4 V	9-17 V
Float Voltage	13.8 V	13.8 V	13.8 V	-----	9-17 V
Boost Return Voltage	13.2 V	13.2 V	13.2 V	13.2 V	9-17 V
Under Voltage Warning	12V	12V	12V	12V	9-17 V
Under Voltage Recover	12.2 V	12.2 V	12.2 V	12.2 V	9-17 V
Low Voltage Disconnect	11.0V	11.0V	11.0V	11.0V	9-17 V
Low Voltage Reconnect	12.6 V	12.6 V	12.6 V	12.6 V	9-17 V
Equalization Duration	-----	2 hours	2 hours	-----	0-10 Hrs.
Boost Duration	2 hours	2 hours	2 hours	-----	1-10 Hrs.

*Battery charging parameters in USER mode can be programmed using the Renogy BT App.
**Default charging parameters in LI mode are programmed for 12.8V LFP battery. Before using Rover to charge other types of lithium battery, set the parameters according to the suggestions from battery manufacturer.
***Parameters are multiplied by 2 for 24V systems.

Conversion Efficiency Curves

Illumination Intensity: 1000W/m² Temp 25°C

1. 12 Volt System Conversion Efficiency

2. 24 Volt System Conversion Efficiency


Dimensions

• RVR-20
  Product dimensions: 210*151*68.2mm
  Maximum Wire Gauge 8 AWG


• RVR-30/40
  Product dimensions: 238*172*77.3mm
  Maximum Wire Gauge 8 AWG



NOTE
Dimensions in millimeters (mm)

Important Safety Instructions

Please save these instructions.

This manual contains important safety, installation, and operating instructions for the charge controller. The following symbols are used throughout the manual to indicate potentially dangerous conditions or important safety information.

	Indicates a potentially dangerous condition. Use extreme caution when performing this task
	Indicates a critical procedure for safe and proper operation of the controller
NOTE	Indicates a procedure or function that is important to the safe and proper operation of the controller

General Safety Information

• Read all of the instructions and cautions in the manual before beginning the installation.
• There are no serviceable parts for this controller. Do NOT disassemble or attempt to repair the controller.
• Do NOT allow water to enter the controller.
• Make sure all connections going into and from the controller are tight.

Charge Controller Safety

• NEVER connect the solar panel array to the controller without a battery. Battery must be connected first.
• Ensure input voltage does not exceed 100 VDC to prevent permanent damage. Use the Open Circuit Voltage (Voc) to make sure the voltage does not exceed this value when connecting panels together.

Battery Safety

• Use only sealed lead-acid, flooded, gel or lithium batteries which must be deep cycle.
• Explosive battery gases may be present while charging. Be certain there is enough ventilation to release the gases.
• Be careful when working with large lead acid batteries. Wear eye protection and have fresh water available in case there is contact with the battery acid.
• Carefully read battery manuals before operation.
• Do NOT let the positive (+) and negative (-) terminals of the battery touch each other.
• Recycle battery when it is replaced.
• Over-charging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high of an equalizing charge or too long of one may cause damage. Please carefully review the specific requirements of the battery used in the system.
• Equalization is carried out only for non-sealed / vented/ flooded / wet cell lead acid batteries.
• Do NOT equalize VRLA type AGM / Gel / Lithium cell batteries UNLESS permitted by battery manufacturer.
• Default charging parameters in Li mode are programmed for 12.8V Lithium Iron Phosphate (LFP) Battery only. Before using Rover to charge other types of lithium battery, set the parameters according to the suggestions from battery manufacturer.
• Please set the correct battery type the first time you use.

Connect battery terminals to the charge controller BEFORE connecting the solar panel(s) to the charge controller. NEVER connect solar panels to charge controller until the battery is connected.
Do NOT connect any inverters or battery charger into the load terminal of the charge controller.
Once equalization is active in the battery charging, it will not exit this stage unless there is adequate charging current from the solar panel. There should be NO load on the batteries when in equalization charging stage.

US
2775 E Philadelphia St, Ontario, CA 91761, USA
909-287-7111
www.renogy.com
customerservice@renogy.com
CN
苏州高新区科技城培源路1号5号楼-4
400-6636-695
https://www.renogy.cn
sales@renogy.cn
JP
https://www.renogy.jp
onlinestorejp@renogy.com
CA
https://ca.renogy.com
onlinestoreca@renogy.com
AU
https://au.renogy.com
onlinestoreau@renogy.com
UK
https://uk.renogy.com
onlinestoreuk@renogy.com
DE
https://de.renogy.com
onlinestorede@renogy.com
FR
https://fr.renogy.com
onlinestorefr@renogy.com

Documents / Resources

References

• Renogy® Official- offer all off grid solar system products
• RENOGY如果新能源 | 让每个人拥有独立清洁的能源
• Renogy® Canada solar off-grid items, Canadian solar panels
• Solar Power Kits & Equipment for Sale | Renogy Australia
• Top off-grid solar kits, lithium batteries supplies | Renogy UK
• Renogy bietet alle Produkte für netzunabhängige Solarsysteme anRenogy DE

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Renogy Rover Series 20A/30A/40A - Controller Manual
