Step 1: Check what's in the box

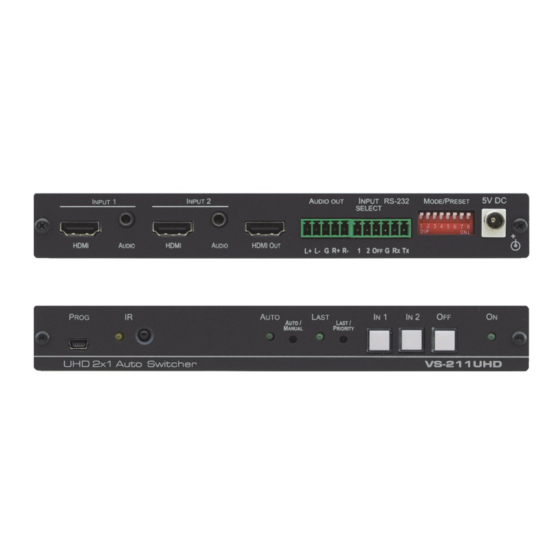

VS-211UHD UHD 2x1 Auto Switcher
1 Power supply (5V DC)
Step 2: Get to know your VS-211UHD
#
Feature
1
PROG USB Connector
2
IR Sensor and LED
3
AUTO LED
4
AUTO/MANUAL Button
5
LAST LED
6
LAST/PRIORITY Button
7
IN 1 Button
8
IN 2 Button
9
OFF Button
10
ON LED
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

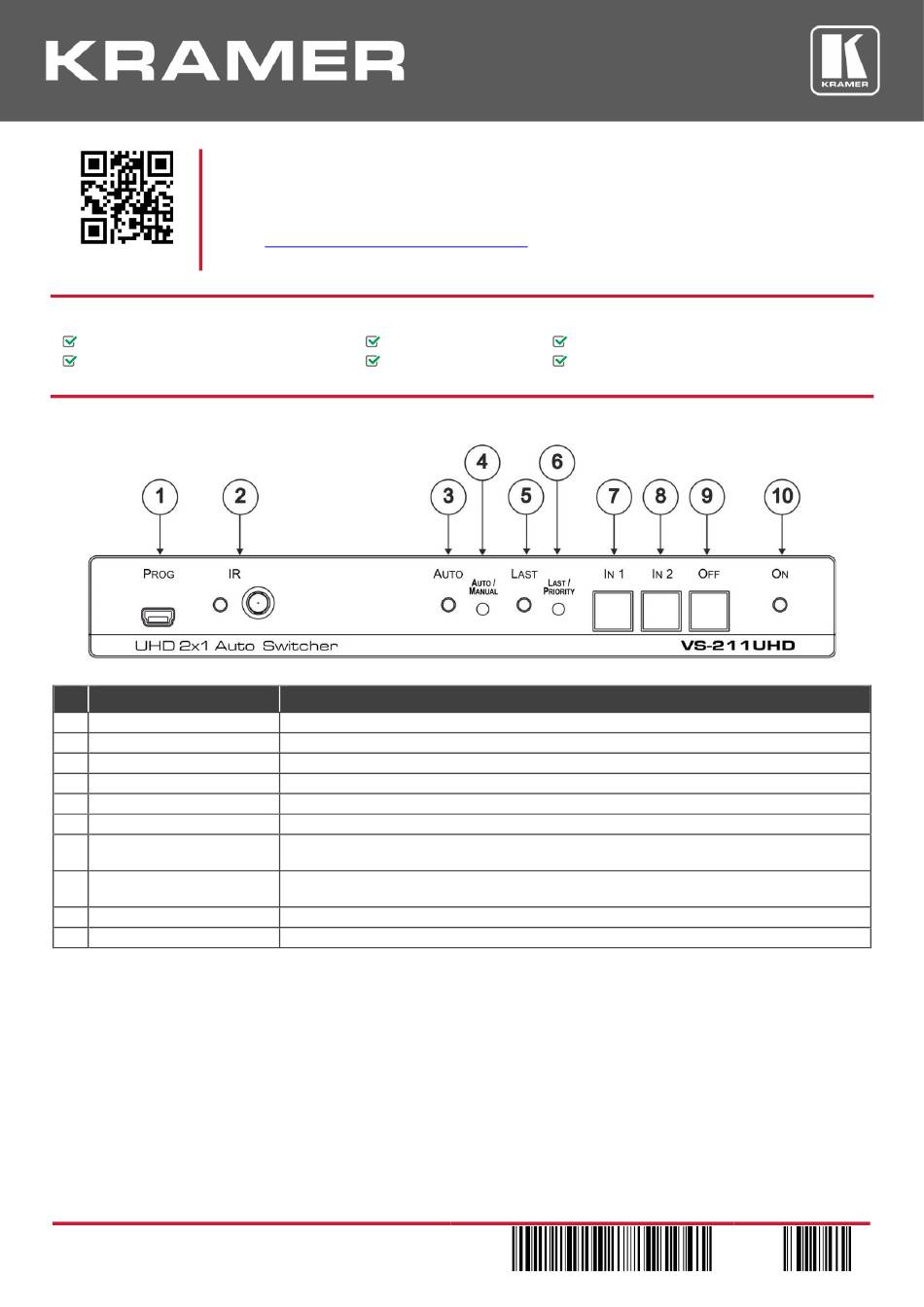

VS-211UHD Quick Start
VS-211UHD Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VS-211UHD
upgrades are available.
4 Rubber feet
1 Quick start guide
Function
Connects to a PC to upgrade the firmware
Receives and indicates IR signals from a remote control (flashes during valid IR activity)
Lights when auto switching is active, off for manual switching
Press to select between auto-switching or manual switching mode
Lights when last connected input is active, off for highest priority
When in the AUTO mode, the switch selects switching to a priority or last connected device
Press to route HDMI™ source 1 to the output (dim when active video connected, lit when
selected)
Press to route HDMI source 2 to the output (dim when active video connected, lit when
selected)
Press to mute the video output (lit when muted)
Lights when power is connected to the unit
VS-211UHD
for the first time.
to download the latest user manual and check if firmware
1 Bracket set
IR remote control transmitter with batteries
P/N: 2 9 0 0 - 3 0 1 1 0 3 QS
Rev: 5
