Page 1: User Manual
USER MANUAL MODEL: VS-211H2 Automatic HDMI Standby Switcher P/N: 2900-300581 Rev 1 www.kramerAV.com... -
Page 3: Table Of Contents
Connecting the REMOTE Terminal Block Connector Setting the VS-211H2 DIP-Switches and Operation Technical Specifications Figures Figure 1: VS-211H2 Automatic HDMI Standby Switcher Figure 2: Connecting the VS-211H2 Automatic HDMI Standby Switcher Figure 3: REMOTE Terminal Block Connector VS-211H2 – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighbouring electrical appliances that may adversely influence signal quality Position your VS-211H2 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
The VS−211H2 is a high−performance automatic switcher for HDMI video signals. Offering priority and last-connected switching options, it automatically switches according to the selected switching scheme based on active video signal detection. The VS-211H2 features: Maximum data rate of 17.82Gbps (5.94Gbps per data channel) ... -
Page 8: Defining The Vs-211H2 Automatic Hdmi Standby Switcher

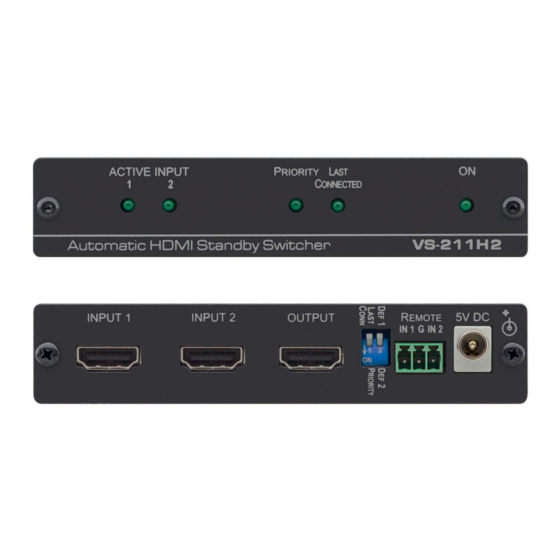

Defining the VS-211H2 Automatic HDMI Standby Switcher This section defines the VS-211H2. Figure 1: VS-211H2 Automatic HDMI Standby Switcher Feature Function ACTIVE INPUT LEDs (1 & 2) Each LED lights when each input is active, both LEDs flash when no input is active... -
Page 9: Connecting The Vs-211H2
Always switch off the power to each device before connecting it to your VS-211H2. After connecting your VS-211H2, connect its power and then switch on the power to each device. To connect the VS-211H2, as illustrated in the example in Figure 2, do the following: 1. -
Page 10: Connecting The Remote Terminal Block Connector
VS-211H2 is powered off. All automatic switching is overridden. Setting the VS-211H2 DIP-Switches and Operation When active input sources are connected to IN 1 and IN 2, the VS-211H2 switches in accordance with the DIP-switch settings on the rear of the unit. VS-211H2 - Connecting the VS-211H2... - Page 11 Manual Override: Using the REMOTE switches Controlling via the remote contact closure pushbuttons (see Figure 3) overrides all DIP-switch settings and automatic switching until the manually selected source disconnects, becomes inactive or the VS-211H2 is powered off. VS-211H2 - Connecting the VS-211H2...
-
Page 12: Technical Specifications
SHIPPING WEIGHT: 0.625kg (1.38lbs) approx. INCLUDED ACCESSORIES: Power supply 5.2V DC/4A desktop RK-3T 19” rack adapter OPTIONS: Specifications are subject to change without notice. For the most updated resolution list, go to our Web site at http://www.kramerAV.com VS-211H2 - Technical Specifications... -
Page 14: Safety Warning
SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site to find updates to this user manual. We welcome your questions, comments, and feedback.
