Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: VS-21H-IR 2x1 HDMI Switcher P/N: 2900-000671 Rev 6... -
Page 3: Table Of Contents
Operating the VS-21H-IR 2x1 HDMI Switcher Working in the PC Mode Working in the DVD Mode VS-21H-IR Factory Reset Procedure Technical Specifications Figures Figure 1: VS-21H-IR 2x1 HDMI Switcher Figure 2: Connecting the VS-21H-IR 2x1 HDMI Switcher VS-21H-IR – Contents... -
Page 4: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and GROUP 14: Collaboration. Congratulations on purchasing your Kramer VS-21H-IR 2x1 HDMI Switcher, which is ideal for the following typical applications: ... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer VS-21H-IR away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The VS-21H-IR is a high-quality switcher for HDMI signals that accepts two HDMI inputs—letting you select either HDMI input using a switch located on the panel— and routes the selected HDMI input signal to the HDMI output. In particular, the VS-21H-IR features: ... -
Page 8: Defining The Vs-21H-Ir 2X1 Hdmi Switcher

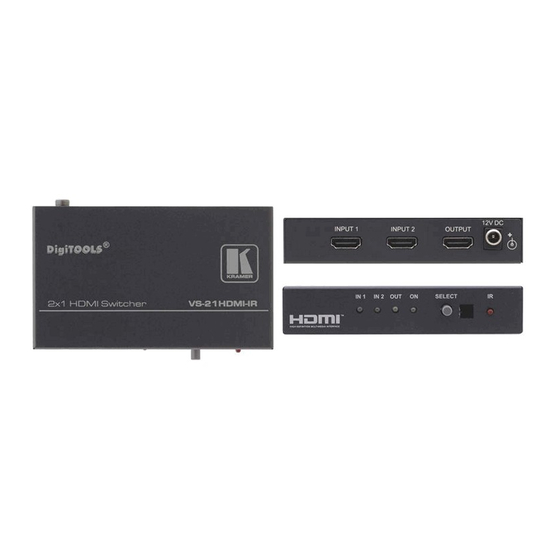

Defining the VS-21H-IR 2x1 HDMI Switcher This section defines the VS-21H-IR. Figure 1: VS-21H-IR 2x1 HDMI Switcher Feature Function INPUT 1 HDMI Connector Connects to the HDMI source 1 INPUT 2 HDMI Connector Connects to the HDMI source 2 OUTPUT HDMI Connector... -
Page 9: Connecting The Vs-21H-Ir
To connect the VS-21H-IR as illustrated in the example in Figure 1. Connect up to two HDMI sources to the INPUT connectors, using the Kramer HDMI cables: INPUT 1 connector to HDMI source 1 (for example, DVD Player 1) and INPUT 2 connector to HDMI source 2 (for example, DVD Player 2). -
Page 10: Using The Remote Control Transmitter
You can use the remote control transmitter to switch INPUT 1 or 2 to the output. Before doing so, set it to work with the VS-21H-IR by assigning a GROUP number. The setup parameters for the remote control transmitter are as follows: router number = 1 (default);... -
Page 11: Operating The Vs-21H-Ir 2X1 Hdmi Switcher
When a certain input—INPUT 1 or INPUT 2—is selected, the EDID information comes directly from the display. When the input is not selected, the VS-21H-IR uses the virtual EDID stored in the non-volatile memory. VS-21H-IR - Operating the VS-21H-IR 2x1 HDMI Switcher... -
Page 12: Working In The Dvd Mode
1. Press and hold the SELECT button until both INPUT LEDs light continuously without flashing, while the device is powered on. 2. Release the SELECT button. The VS-21HDMI-IR switches to DVD mode. VS-21H-IR - Operating the VS-21H-IR 2x1 HDMI Switcher... -
Page 13: Vs-21H-Ir Factory Reset Procedure
VS-21H-IR Factory Reset Procedure To reset the VS-21H-IR to its factory default values: 1. Connect the power to the VS-21H-IR while pressing the SELECT button. 2. Wait until LEDs IN 1 and IN 2 flash and OUT LED lights and then release the SELECT button. -
Page 14: Technical Specifications
12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. INCLUDED ACCESSORIES: Power supply, bracket installation kit, IR remote control RK−3T 19" rack adapter OPTIONS: Specifications are subject to change without notice at http://www.kramerelectronics.com VS-21H-IR - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
