Scan for full manual
Step 1: Check what's in the box

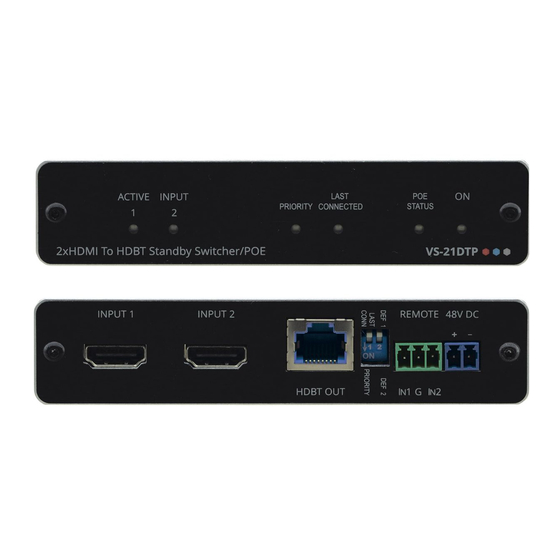

VS-21DTP
2xHDMI to HDBT Standby
Switcher/POE
1 Power adapter and cord

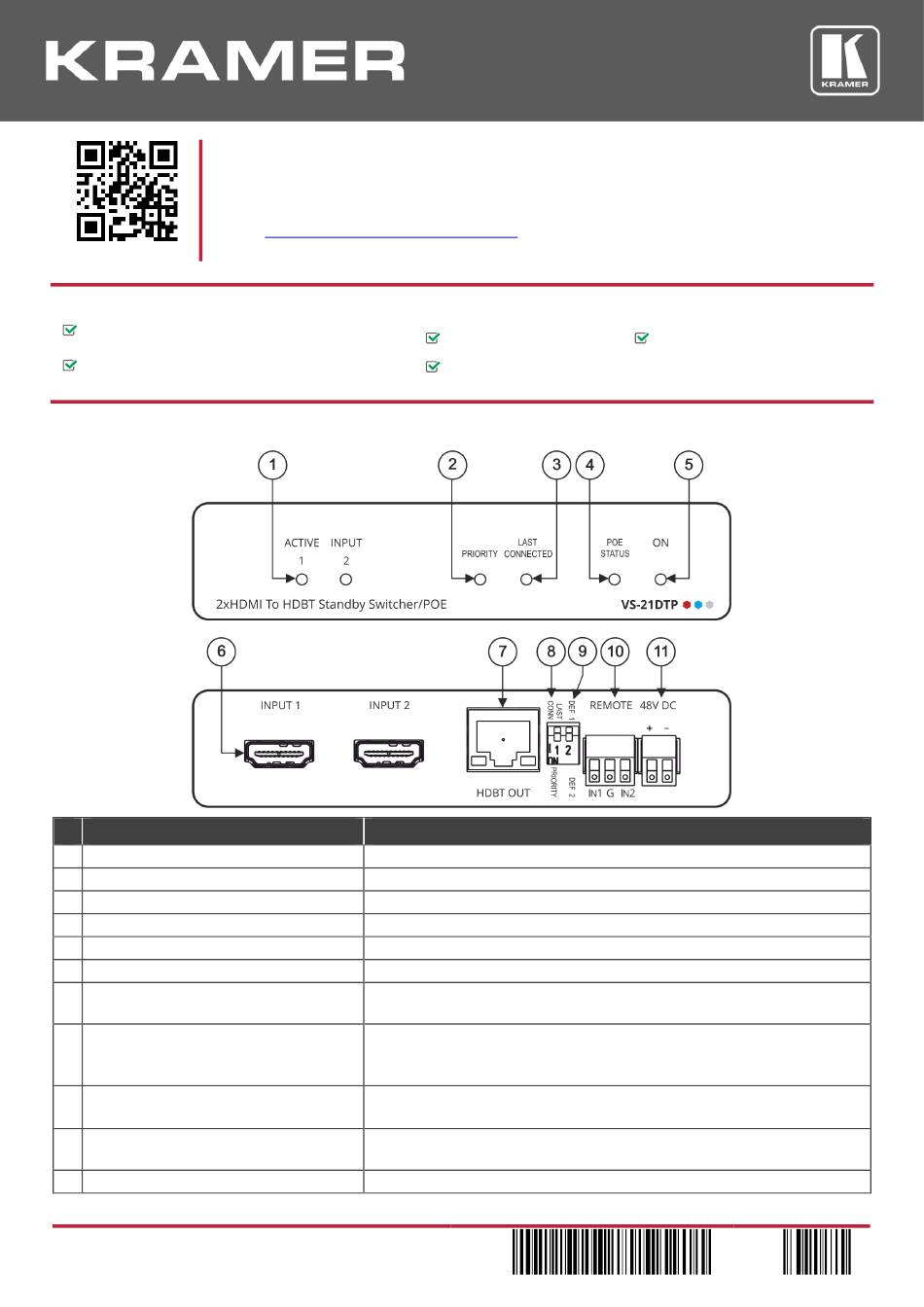

Step 2: Get to know your VS-21DTP
#
Feature
1
ACTIVE INPUT LEDs (1 to 2)
2
PRIORITY LED
3
LAST CONNECTED LED
4
POE STATUS LED
5
ON LED
6
INPUT HDMI™ Connectors (1 to 2)
7
HDBT OUT RJ-45 Connector
8
LAST CONN/PRIORITY DIP-switch 1
9
DEF 1/DEF 2 DIP-switch 2
10 REMOTE 3-pin Terminal Block Connector
11 48V DC Power Terminal Block Connector
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
VS-21DTP Quick Start
VS-21DTP Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VS-21DTP
upgrades are available.
Function
Lights green when the input is active. Both LEDs flash when no input is active.
Lights green when DIP-switch 1 is set to PRIORITY (down).
Lights green when DIP-switch 1 is set to LAST CONNECTED (up).
Lights green when the unit provides PoE.
Lights green when the unit is powered on via power adapter or PoE.
Connect to an HDMI source.
Connect to an HDBaseT receiver (for example, TP-580R) and provide or accept
power (bidirectional PoE).
Set DIP-switch 1 up (off) to select the Last Connected input.
Set DIP-switch 1 down (on) to select the Priority input determined by DIP-switch
2.
Set DIP-switch 2 up (off) to define INPUT 1 as the default (priority) input.
Set DIP-switch 2 down (on) to define INPUT 2 as the default (priority) input.
Connects to optional contact closure switches 1 or 2 for manual switching (by
momentary contact between the desired pin and the G pin).
Connect to the Kramer power adapter.
VS-21DTP
for the first time.
to download the latest user manual and check if firmware
1 Bracket set
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 9 2 4 QS
4 Rubber feet
Rev: 2
