Kramer VS-21DT Quick Start Manual

VS-21DT Quick Start Guide
This guide helps you install and use your VS-21DT for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

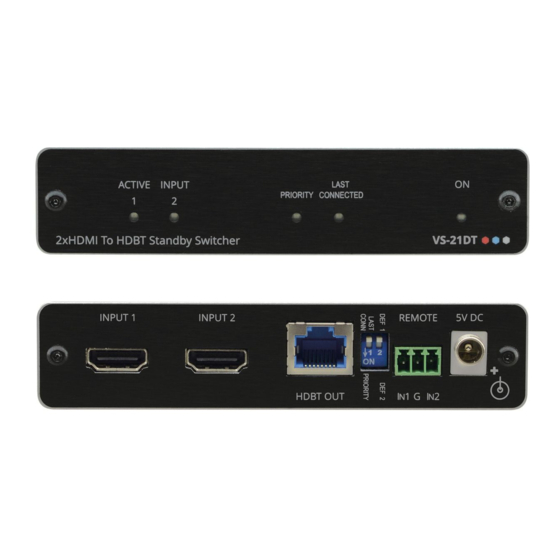

VS-21DT 2xHDMI to HDBT Standby Switcher
1 Power adapter and cord

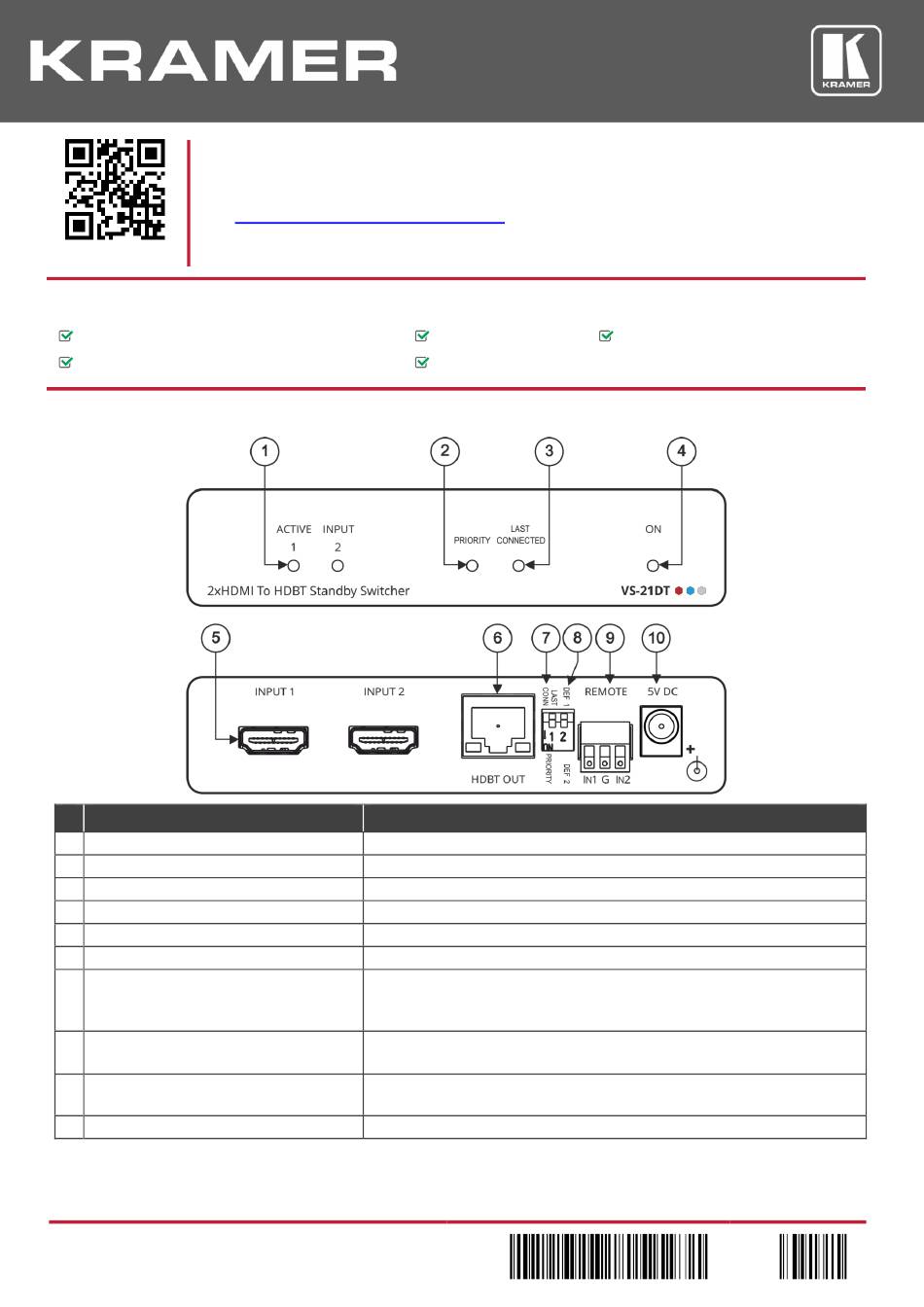

Step 2: Get to know your VS-21DT
# Feature
1 ACTIVE INPUT LEDs (1 to 2)
2 PRIORITY LED
3 LAST CONNECTED LED
4 ON LED
5 INPUT HDMI Connectors (1 to 2)
6 HDBT OUT RJ-45 Connector
7 LAST CONN/PRIORITY DIP-switch 1
8 DEF 1/DEF 2 DIP-switch 2
9 REMOTE 3-pin Terminal Block Connector
10 5V DC Power Terminal Block Connector
VS-21DT Quick Start (P/N: 2900-300925QS REV 1)
www.kramerav.com/downloads/VS-21DT
Function
Lights green when the input is active. Both LEDs flash when no input is active.
Lights green when DIP-switch 1 is set to PRIORITY (down).
Lights green when DIP-switch 1 is set to LAST CONNECTED (up).
Lights green when the unit is powered on via power adapter.
Connect to an HDMI source.
Connect to an HDBaseT receiver (for example, TP-580R).
Set DIP-switch 1 up (off) to select the Last Connected input.
Set DIP-switch 1 down (on) to select the Priority input determined by
DIP-switch 2.
Set DIP-switch 2 up (off) to define INPUT 1 as the default (priority) input.
Set DIP-switch 2 down (on) to define INPUT 2 as the default (priority) input.
Connects to optional contact closure switches 1 or 2 for manual switching (by
momentary contact between the desired pin and the G pin).
Connect to the Kramer power adapter.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 9 2 5 QS
1 Bracket set
Rev: 1
