Kramer VS-21DTP Quick Start Manual

VS-21DTP Quick Start Guide
This guide helps you install and use your VS-21DTP for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

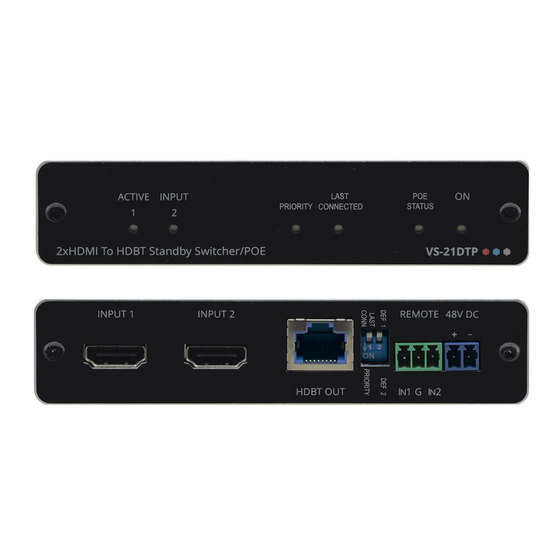

VS-21DTP 2xHDMI to HDBT Standby Switcher/POE
1 Power adapter and cord

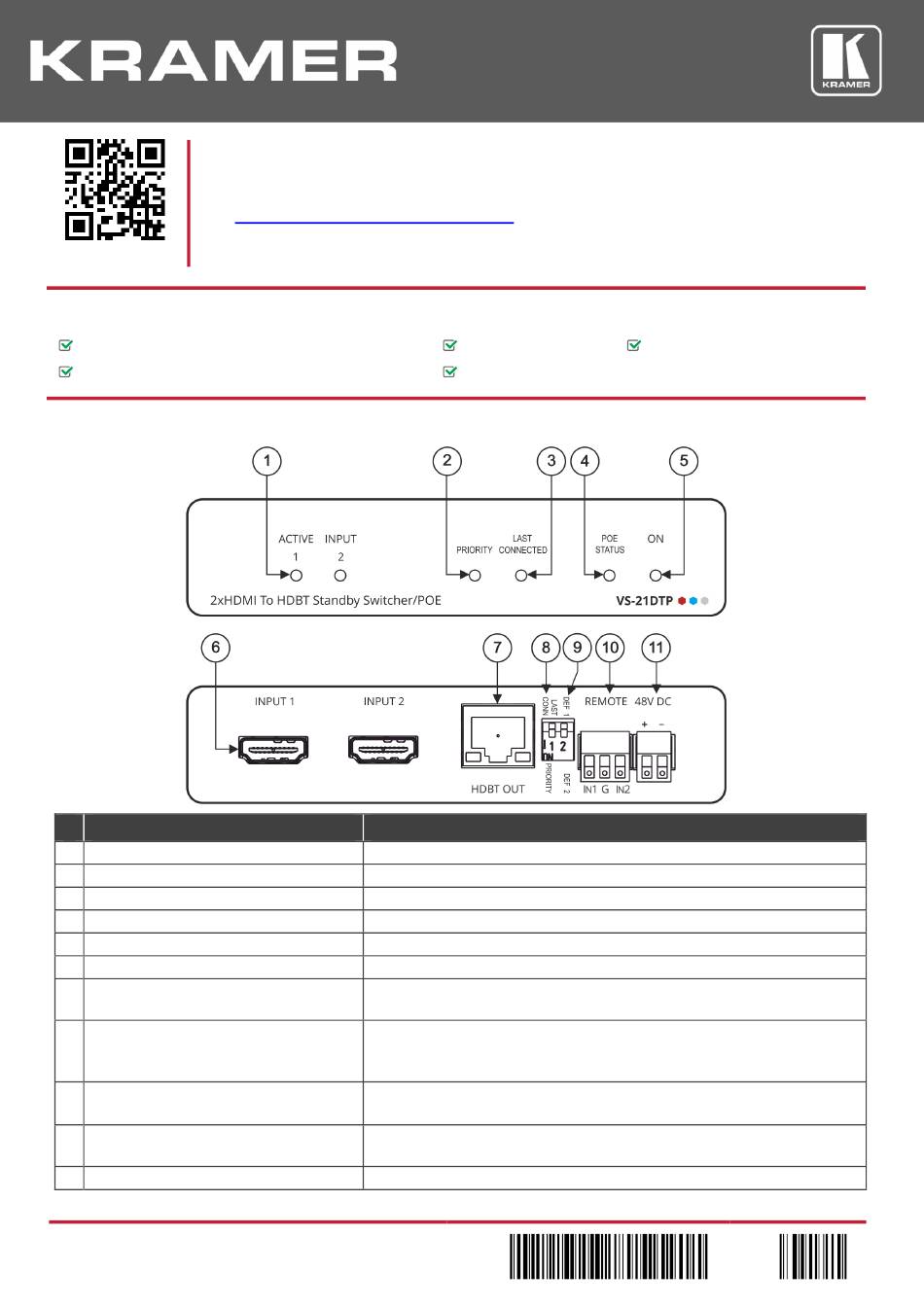

Step 2: Get to know your VS-21DTP
# Feature
1 ACTIVE INPUT LEDs (1 to 2)
2 PRIORITY LED
3 LAST CONNECTED LED
4 POE STATUS LED
5 ON LED
6 INPUT HDMI Connectors (1 to 2)
7 HDBT OUT RJ-45 Connector
8 LAST CONN/PRIORITY DIP-switch 1
9 DEF 1/DEF 2 DIP-switch 2
10 REMOTE 3-pin Terminal Block Connector
11 48V DC Power Terminal Block Connector
VS-21DTP Quick Start (P/N: 2900-300924QS REV 1)
www.kramerav.com/downloads/VS-21DTP
Function
Lights green when the input is active. Both LEDs flash when no input is active.
Lights green when DIP-switch 1 is set to PRIORITY (down).
Lights green when DIP-switch 1 is set to LAST CONNECTED (up).
Lights green when the unit provides PoE.
Lights green when the unit is powered on via power adapter or PoE.
Connect to an HDMI source.
Connect to an HDBaseT receiver (for example, TP-580R) and provide or
accept power (bidirectional PoE).
Set DIP-switch 1 up (off) to select the Last Connected input.
Set DIP-switch 1 down (on) to select the Priority input determined by
DIP-switch 2.
Set DIP-switch 2 up (off) to define INPUT 1 as the default (priority) input.
Set DIP-switch 2 down (on) to define INPUT 2 as the default (priority) input.
Connects to optional contact closure switches 1 or 2 for manual switching (by
momentary contact between the desired pin and the G pin).
Connect to the Kramer power adapter.
to download the latest user manual and check if
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 0 9 2 4 QS
1 Bracket set
Rev: 1
