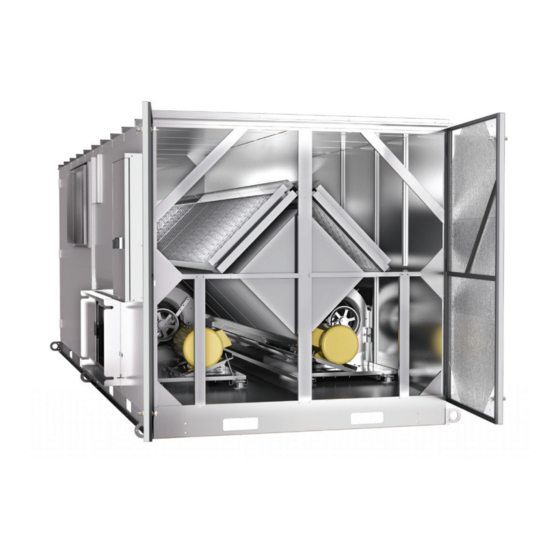

- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL ENERGY RECOVERY VENTILATOR LE10XIN Model LE10XINV Shown (also available as separate modules for field assembly) RENEWAIRE.COM...
-
Page 2: Important Safety Information
LE10XIN ERV IMPORTANT SAFETY INFORMATION WARNING CAUTION ARC FLASH AND ELECTRIC SHOCK HAZARD RISK OF CONTACT WITH HOT SURFACES Arc flash and electric shock hazard. Disconnect all electric The blower motor and other electrical components are extremely power supplies, verify with a voltmeter that electric power is off hot during operation. -
Page 3: Unit Information
LE10XIN ERV IMPORTANT USER INFORMATION SAVE THIS MANUAL IMPORTANT If this unit is installed in an area where it may draw air from a nearby fuel-burning device such as a gas furnace or water heater, verify that the air being extracted by the ERV does not conflict with proper operation of the fuel-burning device. -
Page 4: Table Of Contents
6.6 CONTROL CONNECTIONS UNIT INFORMATION 7.0 CONTROL CONTRACTOR INFORMATION 7.1 24 VAC CLASS II POWER SUPPLY CONFIGURATION CODE FOR LE10XIN MODELS 7.2 MOTOR PROTECTION LE10XINH SUBMITTAL SPECIFICATIONS 7.2.1 Units Equipped with Motor Starters 7.2.2 Units With Variable Frequency Drives (VFDs) LE10XINH DIMENSIONS 7.3 EXTERNAL CONTROL CONNECTIONS... - Page 5 LE10XINH Alternate Duct Configuration LE10XINV Standard Duct Configuration LE10XINV Alternate Duct Configuration RenewAire Microprocessor Controller Premium Microprocessor Controls Installed RenewAire Microprocessor Controller Expansion Board Carbon Dioxide Sensor, Room/Wall Mount Time Clock, Panel Mount VFDs Mounted Inside ERV Time Clock, Exterior Enclosure...
-
Page 6: Configuration Code For Le10Xin Models
LE10XIN ERV RENEWAIRE CONFIGURATION CODE CONFIGURATION CODE FOR LE10XIN MODELS L E 1 0 X MODEL NUMBER DIGIT NUMBER Digit 9: Digit 18: Orientation Flow Control "V", "H" "-" = No Isolation Dampers "D" = Motorized Damper both Airstreams "E" = Motorized Damper EA or RA Airstream... -
Page 7: Le10Xinh Submittal Specifications
Three 21.4 23.5 Three 17.1 18.8 208-230 Three 27.0-24.4 60.8 27.0-24.4 66.8 Specifications may be subject to change without notice. 10.0 Three 12.2 27.5 12.2 30.2 Three 9.76 22.0 9.76 24.2 RENEWAIRE.COM 1.800.627.4499 1.800.627.4499 INSTALLATION, OPERATION AND MAINTENANCE MANUAL RENEWAIRE.COM... -
Page 8: Le10Xinh Dimensions
LE10XINH DIMENSIONS LE10XINH DIMENSIONS RENEWAIRE.COM FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1.800.627.4499... -
Page 9: Le10Xinv Submittal Specifications
Three 21.4 23.5 Three 17.1 18.8 Specifications may be subject to change without notice. 208-230 Three 27.0-24.4 60.8 27.0-24.4 66.8 10.0 Three 12.2 27.5 12.2 30.2 Three 9.76 22.0 9.76 24.2 RENEWAIRE.COM 1.800.627.4499 1.800.627.4499 INSTALLATION, OPERATION AND MAINTENANCE MANUAL RENEWAIRE.COM... -
Page 10: Le10Xinv Dimensions
LE10XINV DIMENSIONS LE10XINV DIMENSIONS FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM RENEWAIRE.COM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1.800.627.4499... -
Page 11: Overview
LE-INH LE-INV The LE10XIN ERV is built as two modules that are to be assembled in the field. The customer may optionally order the modules to be assembled into one unit in the factory. See Digit 23 of the Config- uration Code. -
Page 12: Le10Xinv
LE-INH LE-INV LE10XIN ERV 1.3.2 LE10XINV The LE10XINV features Outside Air (OA) and Exhaust Air (EA) on one side of the unit and Room Air (RA) and Fresh Air (FA) on the other side. The standard duct configuration and the optional alternate duct configurations are shown below. -
Page 13: Component Description
Custom paint 2.2 FAN MOTORS Each LE10XIN unit is equipped with 2 belt-drive blower / motor packages as standard. The motors are TEFC Premium Efficiency. Motor sizes are specified by the customer at time of order. See Digits 14 and 15 of the Configuration Code. -
Page 14: Controls
VFD package. 2.7.1 Integrated Microprocessor Controls RenewAire offers an integrated microprocessor controller as an option for ERVs. It is available in either an Enhanced or a Premium version. See the RenewAire Integrated Microprocessor Controls Manual for further information. -
Page 15: Variable Frequency Drive
VFD Keypads Found in E-Box 2.8 OPTIONAL CONTROL ACCESSORIES RenewAire offers a number of control accessories as options that are to be field-installed and wired directly to the ERV low voltage terminal strip. When wired to the ERV low voltage terminal strip, each device functions as an ON/OFF switch for the ERV but they will not modulate the ERV. -
Page 16: Indoor Air Quality Sensor (Iaq)
COMPONENT DESCRIPTION LE10XIN ERV 2.8.3 Indoor Air Quality Sensor (IAQ) An Indoor Air Quality Sensor can be purchased to continuously monitor indoor air quality based on levels of total VOCs and function as an ON/OFF switch for the ERV or can modulate ERVs that are equipped with a VFD. -
Page 17: Unit Weights
COMPONENT DESCRIPTION LE10XIN ERV 3.0 UNIT WEIGHTS 3.1 LE10XINH CORNER WEIGHTS BASIC UNIT WEIGHTS (lbs.) 73.5" Lifting Lug Motors UNIT 70.0" BASIC UNIT WEIGHTS (lbs.) BASIC UNIT WEIGHTS (lbs.) 3 HP 2859 73.5" Lifting Lug Mounting Hole Centers 3/8" Pre-drilled... -
Page 18: Shipping / Receiving / Handling
4.1 UNIT WEIGHTS / DIMENSIONS 4.1.1 Unit Dimensions and Weight For unit dimensions and weight, see the RenewAire product submittal. Also see sections 3.3 and 3.4 Corner Weights in this manual. 4.1.2 Shipping Dimensions and Weight For unit shipping dimensions and weight, see the RenewAire product submittal. Also see sections 3.3 and 3.4 Corner Weights in this manual. -
Page 19: Unit Placement
UNIT PLACEMENT LE10XIN ERV 5.0 UNIT PLACEMENT 5.1 SOUND ATTENUATION OUTSIDE THE BUILDING The exhaust hood is the primary source of noise outside the building. When practical, orient the exhaust air hood on external building walls to point away from houses or public areas. -
Page 20: Installation
UNIT PLACEMENT LE10XIN ERV 6.0 INSTALLATION 6.1 ASSEMBLY OF MODULES Many ERVs are ordered pre-assembled at the factory. For those units that are to be assembled in the field, follow the assembly instructions found in the accompanying LE Models: Shipping, Rigging,... -
Page 21: Electrical Connections
ELECTRICAL CONNECTIONS LE10XIN ERV 6.4 ELECTRICAL CONNECTIONS WARNING ARC FLASH AND ELECTRIC SHOCK HAZARD Arc flash and electric shock hazard. Disconnect all electric power supplies, verify with a voltmeter that electric power is off and wear protective equipment per NFPA 70E before working within electric control enclosure. -
Page 22: Wiring Schematics
ELECTRICAL CONNECTIONS LE10XIN ERV 6.5 WIRING SCHEMATICS Single Phase Wiring Schematic RENEWAIRE.COM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1.800.627.4499... -
Page 23: Three Phase Wiring Schematic
ELECTRICAL CONNECTIONS LE10XIN ERV Three Phase Wiring Schematic 1.800.627.4499 INSTALLATION, OPERATION AND MAINTENANCE MANUAL RENEWAIRE.COM... -
Page 24: Control Connections
ELECTRICAL CONNECTIONS LE10XIN ERV 6.6 CONTROL CONNECTIONS Control wiring is to enter the E-Box through a knockout at the bottom of the E-Box and is then terminated on the low voltage terminal strip. See Section 6.5 Wiring Schematics for further information. -
Page 25: Motor Protection
ELECTRICAL CONNECTIONS LE10XIN ERV CAUTION RISK OF DAMAGE TO POWER SUPPLY AND CONNECTED COMPONENTS UNITS WITH 230 VAC POWER SOURCE: The ERV is shipped from the factory with the transformer set for 208 VAC primary power. If the actual power source is 230 VAC, move the black primary-side lead from the transformer’s “208 V”... -
Page 26: Units With Variable Frequency Drives (Vfds)
ELECTRICAL CONNECTIONS LE10XIN ERV Contactors Overload Adjusting Screws Relay Manual Reset Button Overload Relays Dry Contactors and Overload Relays 7.2.2 Units With Variable Frequency Drives (VFDs) In units equipped with a VFD(s), motor overload protection is provided by the VFD. See separate documentation supplements. -
Page 27: Single 2 - Wire Control, Separate Power
ELECTRICAL CONNECTIONS LE10XIN ERV 7.3.2 Single 2 - Wire Control, Separate Power Use the schematic shown in Section 7.3.1 if the control is on a separate power supply with no power present at control output. 7.3.3 Control Sending 24 VAC “ON” Signal Use the schematic below if a 24 VAC “ON”... -
Page 28: Control With 2 "On" Signals, External Power
ELECTRICAL CONNECTIONS LE10XIN ERV Control with 2 Non-Powered Relay Contacts 7.3.6 Control with 2 “ON” Signals, External Power Use the following schematic if the controller is sending two 24 VAC “ON” signals from an external power source. • Verify there is NO jumper between terminals 2 and 3. - Page 29 ELECTRICAL CONNECTIONS LE10XIN ERV Dampers When one or both of the airstreams are factory-provided with Dampers, the control sequence for that airstream’s blower is as follows: • External control calls for operation and damper immediately starts to open. • After about 30 seconds, damper is open fully and the damper actuator end switch closes.
-
Page 30: Pre Start-Up
PRE START-UP LE10XIN ERV 8.0 PRE START-UP 8.1 VERIFY VOLTAGES Using a voltmeter, test the input voltages as supplied to the disconnect switch. Refer to Digit 13 of the unit Configuration Code to find the rated voltage. The supplied voltage must be within +/- 10% of the rated voltage. -
Page 31: Start-Up
START-UP LE10XIN ERV 9.0 START-UP 9.1 VERIFY CORRECT FAN ROTATION DIRECTION The first time power is applied to the fan motors, it should be just a brief pulse so that the fans will begin spinning. Verify that the fans are turning the correct direction. If a fan is turning the wrong direction, it will be because a three-phase power source has been improperly connected. -
Page 32: Adjust Motor Sheaves
11.7 and 11.8 for more detailed adjustment information. 10.0 MAINTENANCE RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the prima- ry areas of attention are the air filters and periodic lubrication of the fan motors and fan bearings. -
Page 33: Electric Motor Maintenance
MAINTENANCE LE10XIN ERV 10.5 ELECTRIC MOTOR MAINTENANCE The most important issues in motor maintenance are: • Belt condition and belt tension • Sheave condition • Motor cleanliness • Motor lubrication 10.5.1 Belt Tension Premature or frequent belt failures can be caused by improper belt tension (either too loose or too tight) or misaligned sheaves. - Page 34 The most commonly used motors in RenewAire ERVs are made by Baldor. If you are viewing this document on a computer connected to the internet, click the button below to go directly to their web site.
-
Page 35: Pillow Blocks
MAINTENANCE LE10XIN ERV Greasing process: • Run the motor and get it up to normal operating temperature. • Make sure the grease gun has the correct type of grease. • Clean the areas around the grease fill fittings. • Grease the bearing with the correct amount of grease as shown on the lubrication schedule you have determined. -
Page 36: Enthalpic Core Maintenance
MAINTENANCE LE10XIN ERV 10.7 ENTHALPIC CORE MAINTENANCE The enthalpic core media is a fibrous material that must be kept clean at all times. As a minimum, cores should be cleaned once per year. When cores are removed from the •... -
Page 37: Service Parts
MAINTENANCE LE10XIN ERV 10.8 SERVICE PARTS LE10XINH and LE10XINV Service Parts 1.800.627.4499 INSTALLATION, OPERATION AND MAINTENANCE MANUAL RENEWAIRE.COM... -
Page 38: Maintenance Reference
MAINTENANCE LE10XIN ERV 11.0 MAINTENANCE REFERENCE 11.1 PLENUM DIVIDERS CAUTION RISK OF DAMAGE TO PLENUM DIVIDERS Whenever working within the ERV cabinet, do not place significant weight on the plenum dividers. They are not intended to be load-bearing. Inside each ERV, there are two vertical and two horizontal metal panels that separate the plenums. -
Page 39: Risk Of Core Damage
11.5 FILTER REPLACEMENT PRACTICES RenewAire has provided a filter replacement tool called a filter extractor hook. See picture below. In addition, the filter spacers have a tab on the ends where a pull cord can be inserted. With a cord installed in the tab holes, it is possible to simply pull the cords and withdraw ten filters at once. -
Page 40: Door Latch Adjustment
MAINTENANCE LE10XIN ERV 11.6 DOOR LATCH ADJUSTMENT With age and use, the door gaskets may become compressed and no longer provide a complete seal against air leakage. The door latches can be easily adjusted by changing the position of the swing arm on the inside of the door. -
Page 41: Sheave Adjustment
MAINTENANCE LE10XIN ERV Differential Pressure Measured Across Core LE10XIN FA Airflow (CFM) 1520 2260 3010 3750 4490 5320 5970 6700 7440 Use only BX-type RA Airflow (CFM) 2050 2830 3610 4390 5160 5940 6720 7500 8270 cogged drive belts. 11.8 SHEAVE ADJUSTMENT All fan motors that are not controlled by a VFD are equipped with an adjustable sheave. -
Page 42: Maintenance Records
MAINTENANCE LE10XIN ERV 11.9 MAINTENANCE RECORDS AIR FILTER REPLACEMENT RECORD FILTERS REPLACED DATE: ENTHALPIC CORES CLEANING RECORD CORES CLEANED DATE: RENEWAIRE.COM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 1.800.627.4499... - Page 43 MAINTENANCE LE10XIN ERV EA FAN MOTOR MOTOR TYPE: REQUIRED LUBRICANT (from motor manufacturer’s website): FRONT BEARING LUBE REQUIREMENTS: REAR BEARING LUBE REQUIREMENTS: LUBRICATION PERFORMED DATE: EA FAN PILLOW BLOCKS REQUIRED LUBRICANT (from pillow block manufacturer’s website): BEARING LUBE REQUIREMENTS: LUBRICATION PERFORMED DATE:...
- Page 44 A BOU T RENEWAI RE For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size. This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
