RenewAire LE10XRT Manual

www.renewaire.com (800) 627- 4499 support@renewaire.com

Table of Contents

FOR THE SPECIFIER AND INSTALLER.................................2
FOR THE ELECTRICIAN.................................................8
FOR THE CONTROL CONTRACTOR..................................11
FOR THE TEST, BALANCE, & COMMISSIONING CONTRACTOR..15 www.renewaire.com (800) 627- 4499 support@renewaire.com
SERVICE PARTS.........................................................18
MAINTENANCE.........................................................19
LE10XRT Due to continuing product development, specifications are subject to change without notice.
138276_000
LE10XRT
LE10XRTMan_Dec15.indd
4510 Helgesen Drive, Madison, WI 53718
(608) 221-4499, (800) 627-4499, Fax: (608) 221-2824
support@renewaire.com www.renewaire.com

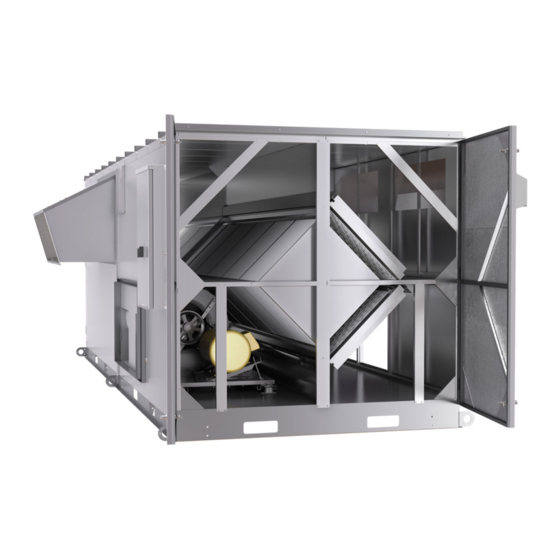

LE10XRT can be delivered in two modules for on-site
assembly or as a complete unit (additional charges apply).
In all cases the exhaust and outdoor air weatherhoods
ship loose and require later installation on the unit.
See Separate SHIPPING & RIGGING Manual for information
on shipping considerations, and moving and lifting the
unit as separate modules or as a complete unit.
1. Before servicing or cleaning the unit, switch power
off at disconnect switch or service panel and lockout/
tag-out to prevent power from being switched on
accidentally. More than one disconnect switch may be
required to de-energize the equipment for servicing.
2. This installation manual shows the suggested
installation method. Additional measures may be
required by local codes and standards.
3. Installation work and electrical wiring must be done
by qualified professional(s) in accordance with all
applicable codes, standards and licensing requirements.
4. Any structural alterations necessary for installation
must comply with all applicable building, health,
and safety code requirements.
5. This unit must be grounded.
6. Danger of severe injury to bystanders and damage
to unit or property if high winds move this unit.
Secure this unit to the building!
7. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) of
fuel burning equipment that might be installed in
the area affected by this equipment. If this unit
is exhausting air from a space in which chimney-
vented fuel burning equipment is located, take steps
to assure that combustion air supply is not affected.
Follow the heating equipment manufacturer's
requirements and the combustion air supply
requirements of applicable codes and standards.
8. Use the unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
9. This unit is intended for general ventilating only. Do
not use to exhaust hazardous or explosive materials
and vapors. Do not connect this unit to range hoods,
fume hoods or collection systems for toxics.
10. When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
12/2015 www.renewaire.com
NOTE
© 2016 RenewAire LLC
Page 1
