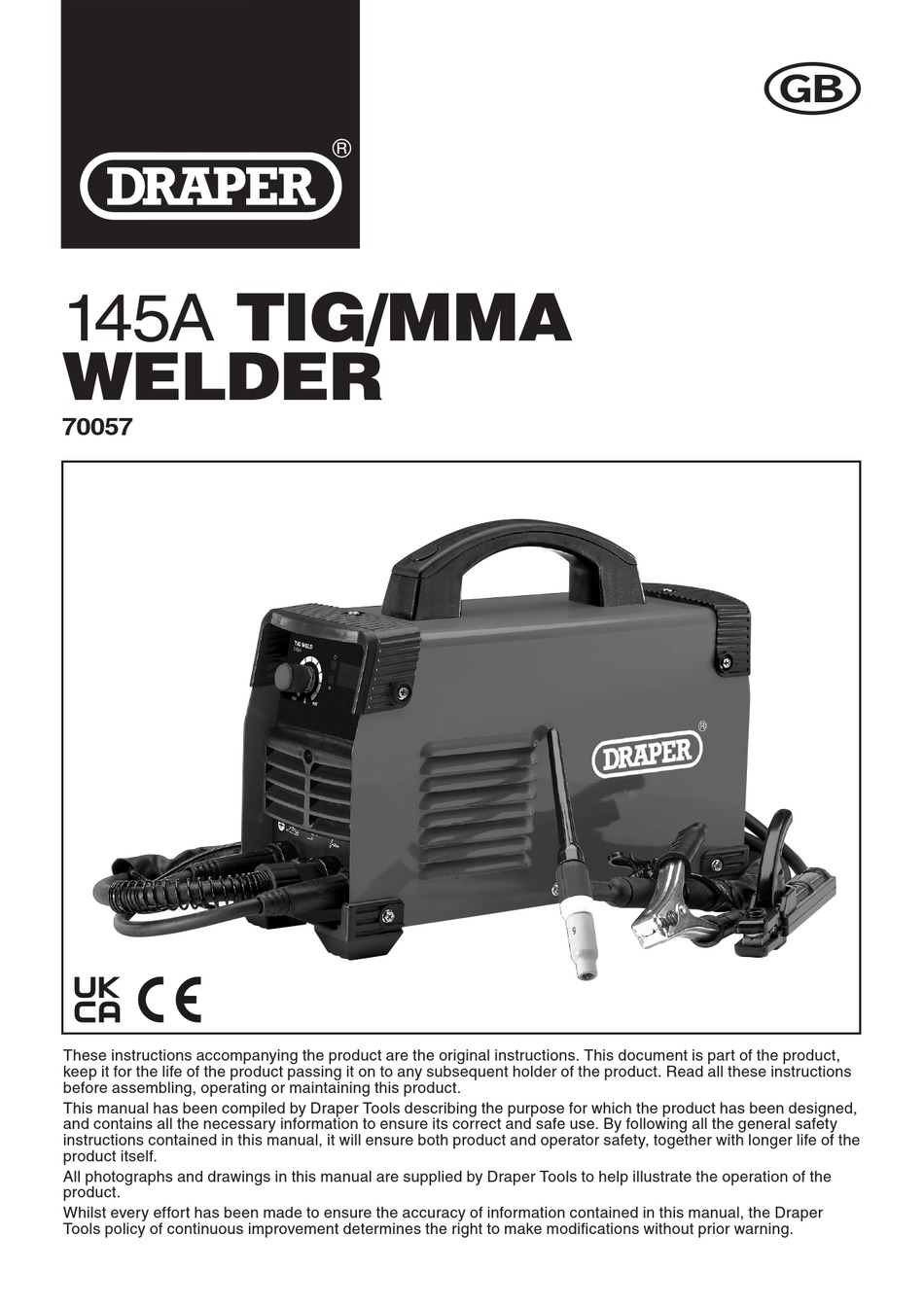

145A TIG/MMA
WELDER
70057
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions
before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Related Manuals for Draper 70057
Summary of Contents for Draper 70057
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
- Page 2 INTRODUCTION Danger of fumes. 1.1 SCOPE This welder is suitable for welding ferrous metals such as steel using the TIG welding process and this machine Danger of ultraviolet radiation. also benefits from its ability to perform MMA/STICK wedling when the dedicated accessories are attached. This welder is suitable for enthusiasts and tradespersons alike.
- Page 3 – The operator must be insulated from the floor and 2.1 SPECIFICATION workbench using a dry insulation mat. Stock No............... 70057 – Wear isolating footwear and gloves that are in good Part No............. TW145A condition, i.e. without holes.
- Page 4 – Keep your head away from the weld to avoid doctor before going near welding equipment/ breathing the fumes. operations. – If welding in confined spaces ensure adequate – The UV and IR radiation generated by welding is ventilation and use a fume extractor. highly damaging to the eye, causing burns.
- Page 5 Fig A. If any part is damaged regulations. or missing, please contact the Draper Help Line (see back page). Do not attempt to use the product! The packaging material should be retained during the warranty period, in case the product needs to be returned for repair.
- Page 6 TECHNICAL DESCRIPTION (17) (18) (14) (15) (16) (7) (8) (9) (10) (11) (12) (13) FIG.A (1) Amps control. (11) TIG torch. (2) Thermal overload indicator. (12) Earth clamp. (3) Amps display. (13) MMA welding electrode holder. (4) MMA/TIG switch. (14) Gas hose barb. (5) Power indicator.
- Page 7 ASSEMBLING THE Warning! Remove the plug from the socket before WELDER carrying out adjustment, servicing or maintenance. 7.3 TIG (TUNGSTEN INERT GAS) Make sure the power supply information on the machine’s rating plate is compatible with the power – FIG. 1 supply you intend to connect it to.
- Page 8 Draper Tools suggest training be obtained from a third In addition to dust protection, safety goggles must be party or refer to a suitable reference book on the subject warn to protect eyes from sparks and debris thrown up additionally;...
- Page 9 8.5 MMA/ARC MACHINE OPERATION material type, amperage and equipment, however as a guide the figures below provide an indication. - FIG. 5 MMA Electrode Material Thickness Amp Range Prepare the joint(s) to be welded. Select the electrode suitable for the application and 1-1.5mm ≤1.6mm ≤50A...
- Page 10 Use of an anti-spatter spray Draper stock No.05709 will electrode it will be consumed by the TIG process and help to achieve a cleaner finished weld. This welding require re-sharpening and eventually replacing.
- Page 11 • Check the condition of the warning labels. handling, alterations, accidents, or repairs attempted or made by any personnel other than the authorised Draper • Replace any worn parts. warranty repair agent.
- Page 12 Please note that this warranty is an additional benefit and does not affect your statutory rights. Draper Tools Limited. 12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations.
