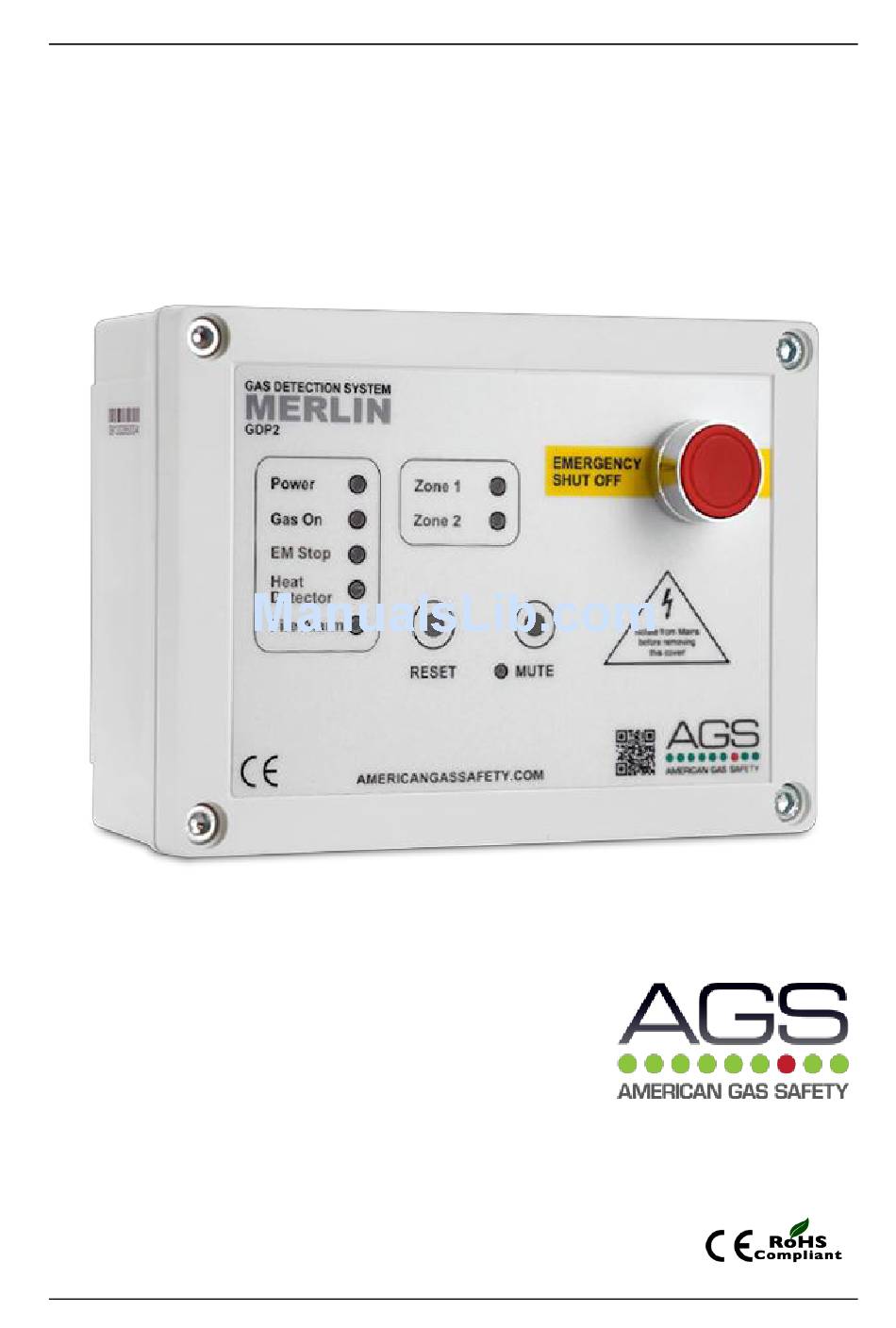

- Page 1 Merlin GDP2 User & Installation Manual Gas Safety Products Merlin GDP2 Installation, operating and maintenance Rev: 02 Date: 08-01-18...
-
Page 2: Table Of Contents
Merlin GDP2 User & Installation Manual Table of contents General information ................3 Installation ..................... 3 Panel Mounting....................3 Mains Supply...................... 3 Gas solenoid valve..................... 3 Gas Detector...................... 3 Remote emergency shut off buttons..............3 Heat Detector..................... 3 Fire Alarm. -
Page 3: General Information
User & Installation Manual General information The Merlin GDP2 is a two-zone gas detection panel which can be used in many applications, e.g. factories, car parks, shopping centres and the most common being a boiler house application. Many varieties of detectors are compatible with GDP2, e.g. Natural Gas, Carbon Monoxide, LPG, Refrigerant Gas and Oxygen depletion. -
Page 4: Operation Instructions
Merlin GDP2 User & Installation Manual Operation Instructions How to turn the system on and off To turn the system on press reset to start the testing sequence. The system will close the solenoid valve when an emergency stop has been pressed, gas has been detected or any alarm signal has been triggered. -
Page 5: Reset Button
BMS Integration The Merlin GDP2 can be integrated with a BMS to make or break a circuit on gas on/gas off, (valve open or valve closed). This will tell the BMS whether or not 100-240V is being sent to the solenoid. -
Page 6: Gdp2 Wiring Diagram
Merlin GDP2 User & Installation Manual GDP2 Wiring Diagram Mains Input 100-240VAC. Gas Solenoid Valve Power Output, 100-240VAC. Gas Detector, 24VDC power supply (purchased separately). Gas Detector, 24VDC power supply (purchased separately). Remote EM Stop buttons (purchased separately). VOLT FREE INPUT Fusible Links (purchased separately). - Page 7 Merlin GDP2 User & Installation Manual INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT When this product has reached the end of its life it must be treated as Waste Electrical & Electronics Equipment (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.
